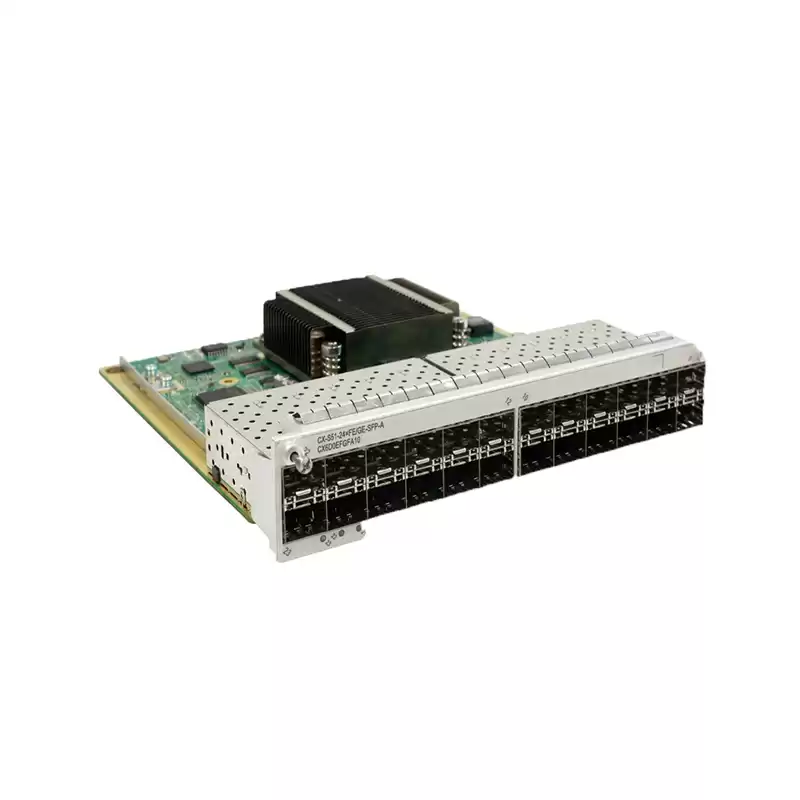

Huawei 03030PMB CX6D0EFGFA10 Router CX600 24-Port Gigabit Card
Product Description
|
Item
|
Specification
|
|
Dimensions (H x W x D)
|
620 mm (14U) x 442 mm x 650 mm (24.41 in. x 17.40 in. x 25.59 in.) (chassis main body dimensions)
620 mm (14U) x 442 mm x 770 mm (24.41 in. x 17.40 in. x 30.31 in.) (chassis dimensions including the chassis's front and rear assembly and cable racks)
|
|
Installation position
|
N68E cabinet or a standard 19-inch cabinet or a 23-inch rack that complies with the North American standard
|
|
Weight
|
Empty chassis
|
25.8 kg (56.89 lb)
|
|
Full configuration (maximal)
|
136 kg (299.88 lb)
|
|
Integrated chassis
|
43.2kg (95.26 1b)
|
|
Typical power consumption
|
3220W
|
|
Heat dissipation
|
10447.0 BTU/hour
|
|
DC input voltage
|
Rated voltage
|
-48 V DC / -60 V DC
|
|
Maximum voltage range
|
-38.4 V DC to -72 V DC
|
|
AC input voltage
|
Rated voltage
|
200 V AC to 240 V AC(220V)
|
|
Maximum voltage range
|
180 V AC to 264 V AC
|
|
System reliability
|
MTBF (year)
|
21.91
|
|
MTTR (hour)
|
0.5
|
|
Ambient temperature
|
Long-term
|
0°C to 45°C (32°F to 113°F)
|
|
Short-term
|
-5°C to 55°C (23°F to 131°F)
|
|
Remarks
|
Limit of the temperature change rate: 30°C (86°F)/hour
|
|
Storage temperature
|
-40°C to 70°C (-40°F to 158°F)
|
|
Relative humidity
|
Long-term
|
5% RH to 85% RH, no coagulation
|
|
Short-term
|
5% RH to 95% RH, no coagulation
|
|
Storage humidity
|
5% RH to 95RH, no coagulation
|
|
Long-term altitude
|
≤ 4000 m (13123.2 ft). If the altitude is between 1800 meters (5905.44 ft) and 4000 meters, the maximum operating temperature of the device must decrease by 1°C for every 220 meters (721.776 ft) increase in altitude.
|
|
Storage altitude
|
Lower than 5000 m (16404 ft)
|
System configuration list of the CX600-X8
|
Item
|
Typical Configuration
|
Remarks
|
|
Processing unit
|
Main frequency:1.5 GHz(SRUA5)
Main frequency:2 GHz(SRUB5)
Main frequency:1.5 GHz(SRUA7)
|
-
|
|
SDRAM
|
4 GB(SRUA5)
16 GB(SRUB5)
4 GB(SRUA7)
|
Two 2GB memory modules(SRUA5)
Two 8GB memory modules(SRUB5)
Two 2GB memory modules(SRUA7)
|
|
CF card
|
4 GB(SRUA5)
8 GB(SRUB5)
4 GB(SRUA7)
|
Two 2 GB CF cards(SRUA5)
One CF card(SRUB5)
Two 2 GB CF cards(SRUA7)
|
|
Switching capacity
|
7.08 Tbit/s (LPUF/I-240)
|
-
|
|
Number of LPU slots
|
8
|
-
|
|
Number of SRU slots
|
2
|
-
|
|
Number of SFU slots
|
1
|
-
|
Product Details
Our Advantages
We have HUAWEI 03030PMB for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.
HUAWEI 03030PMB, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.
HUAWEI 03030PMB represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
