Overview
The BTS3900 is applicable to the indoor scenarios such as centralized installation and relocation of the macro BTS.

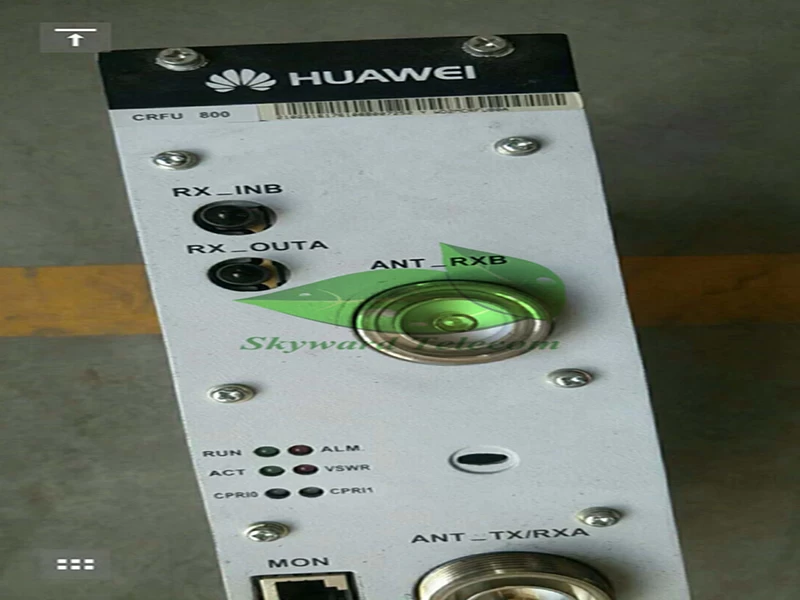

The BTS3900 supports –48 V DC power input and the modules. The modules of the BBU3900 and CRFU are installed in a centralized way in an indoor cabinet. As the most compact indoor macro BTS in the industry, the BTS3900 features a large capacity, good extensibility, light weight, and a small size. In addition, the BTS3900 can be stacked and combined to save spac.
Technical specifications of the BTS3900
|
Item
|
Specification
|
|
Working band
|
Frequency band
|
Receiving band
|
Transmitting band
|
|
Band class 0
(800 MHz)
|
824 MHz to 849 MHz
|
869 MHz to 894 MHz
|
|
Band class 15
(AWS)
|
1710 MHz to 1755 MHz
|
2110 MHz to 2155 MHz
|
|
Band class 1
(1900 MHz)
|
1850 MHz to 1910 MHz
|
1930 MHz to 1990 MHz
|
|
Band class 14
(US PCS 1.9 GHz)
|
1850 MHz to 1915 MHz
|
1930 MHz to 1995 MHz
|
|
Band class 6
(2 GHz)
|
1920 MHz to 1980 MHz
|
2110 MHz to 2170 MHz
|
|
Max. number of carriers
supported by one CRFU
|
8
|
|
Transmitter and receiver
specifications
|
Frequency band
|
Receiver sensitivity
|
Max. transmit power
|
|
Band class 0
(800 MHz)
|
–130 dBm
|
100 W
|
|
Band class 15
(AWS)
|
–127 dBm
|
80 W
|
|
Band class 1
(1900 MHz)
|
–127 dBm
|
80 W
|
|
Band class 14
(US PCS 1.9 GHz)
|
–127 dBm
|
80 W
|
|
Band class 6
(2 GHz)
|
–127 dBm
|
80 W
|
|
Transmission ports
|
Max. configuration
|
Number of available ports
|
|
One CMPT (4E1) and two UTRPs
|
One FE electrical port and one FE optical port
(supporting a maximum of 20 E1/T1 links)
|
|
One CMPT (8E1) and two UTRPs
|
One FE electrical port (supporting a maximum of 24 E1/T1 links)
|
|
NOTE
The CMPT (8E1) does not support the ATM transmission.
The CMPT (8E1) does not support transmission over the optical port.
|
|
External clock source
|
GPS/GLONASS, RGPS, 1PPS +TOD, IP CLK
|
|
Dimensions (height x
width x depth)
|
900 mm x 600 mm x 450 mm (35.43 in. x 23.62 in. x 17.72 in.)
|
|
Weight
|
Fully-configured cabinet: not more than 150 kg (330.75 lb)
|
|
Input power supply
|
Voltage range for –48 V DC: –57 V DC to –38.4 V DC
|
|
Power consumption
|
BTS type
|
Configuration
|
Max. power consumption
|
Average power
consumption
|
|
BTS3900
(–48 V DC)
|
S(1/1/1)
|
559 W
|
430 W
|
|
S(2/2/2)
|
694 W
|
514 W
|
|
S(3/3/3)
|
884 W
|
647 W
|
|
S(4/4/4)
|
1037 W
|
749 W
|
|
NOTE
The power consumption provided in the preceding table is measured when the system is operating in
typical configuration at 800 MHz.
The power consumption of the transmission equipment and the charging power consumption of batteries are not included.
The power consumption of BTSs varies with bands and configurations.
|
