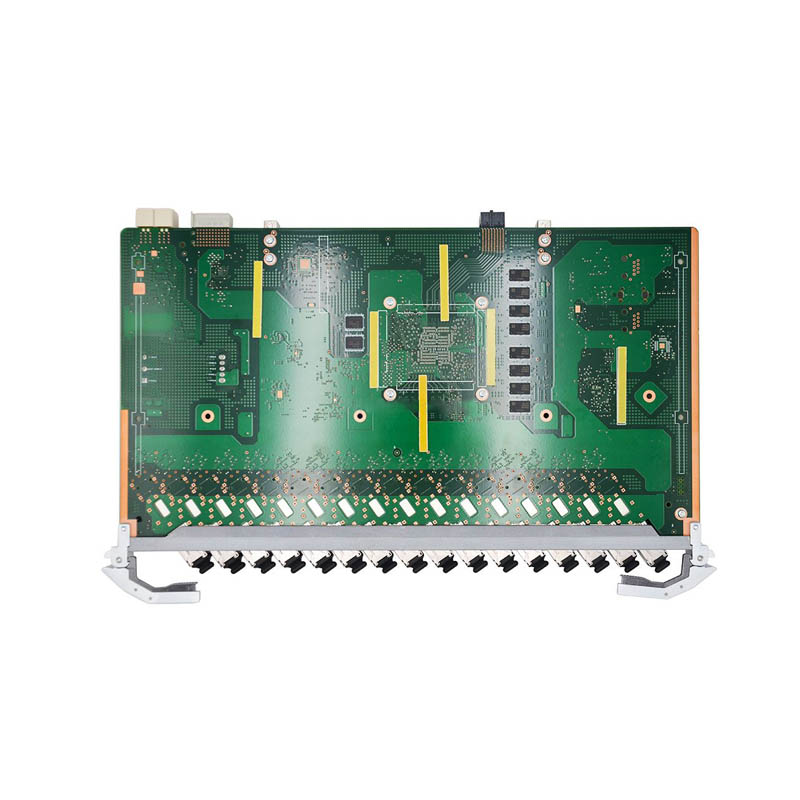

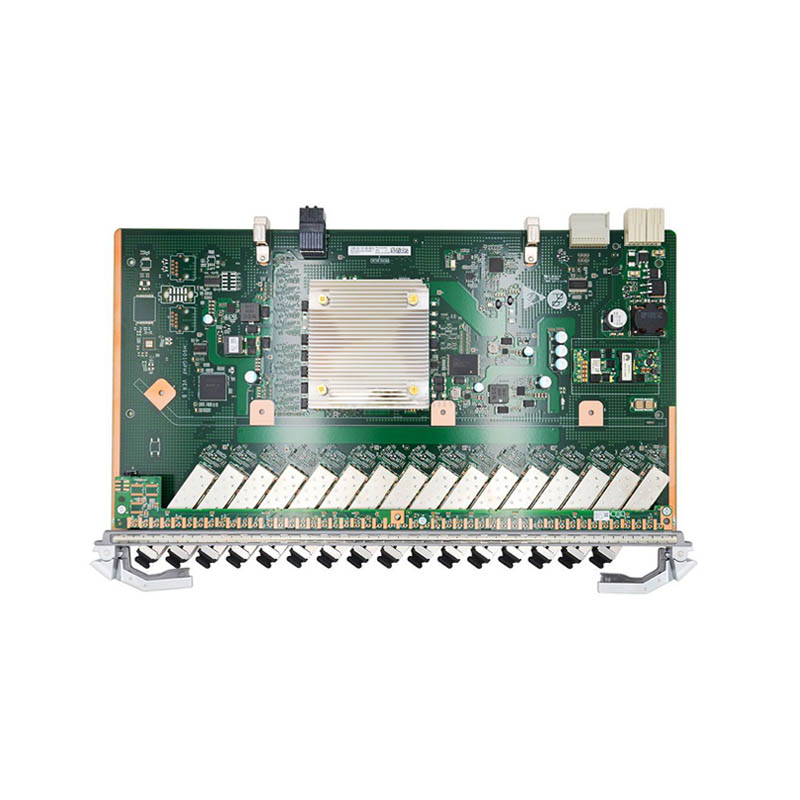

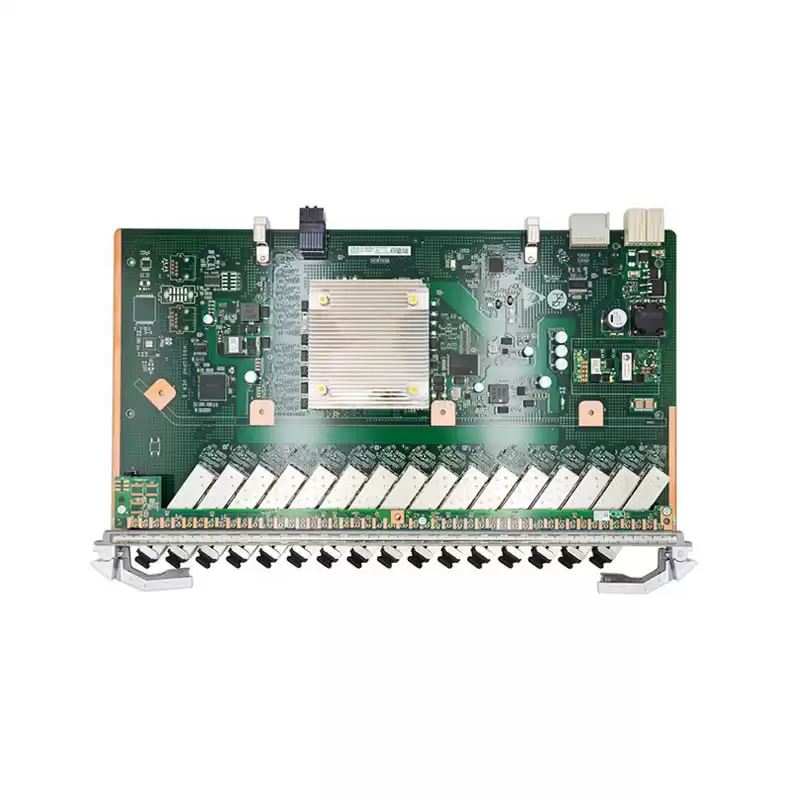

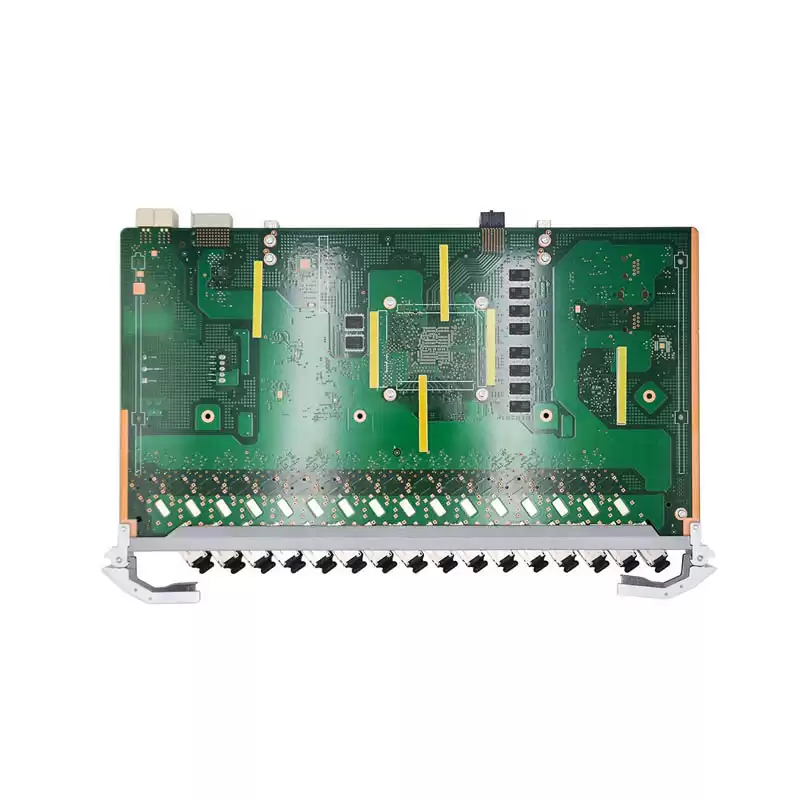

Huawei H901EPHF PX20++ 16-port EPON OLT interface board with PX20++ SFP module, apply to Huawei MA5800 series
Product Description
|
Front Pannel
|
|
|
|
Specification
|
|
Service ports
|
|
GPON Port
|
16-EPON Port
|
|
GPON SFP Module Specification
|
|
Type
|
EPON Module : One-fiber bi-directional optical module, PX20++
|
|
Operating Wavelength
|
Tx: 1490 nm, Rx: 1310 nm
|
|
Encapsulation Type
|
SFP
|
|
Port Rate
|
1.25Gbit/s
|
|
Minimun Output Optical Power
|
5.00 dBm
|
|
Maximum Output Optical Power
|
9.00 dBm
|
|
Maximum Receiver Sensitivity
|
-34.00 dBm
|
|
Optical Connector Type
|
SC/PC
|
|
Optical Fiber Type
|
Single-mode
|
|
Overload Optical Power
|
-10.0 dBm
|
|
Extinction Ratio
|
9dB
|
|
Device Specifications
|
|
Dimensions (W x D x H)
|
23.30 mm * 257.90 mm * 399.20 mm
|
|
Power Consumption and Maximum Frame Size
|
|
Power Consumption
|
Static: 23W; Maximum:38W
|
|
Maximum Frame Size
|
2052 bytes
|
|
Operating temperature
|
-40°C to +65°C
|

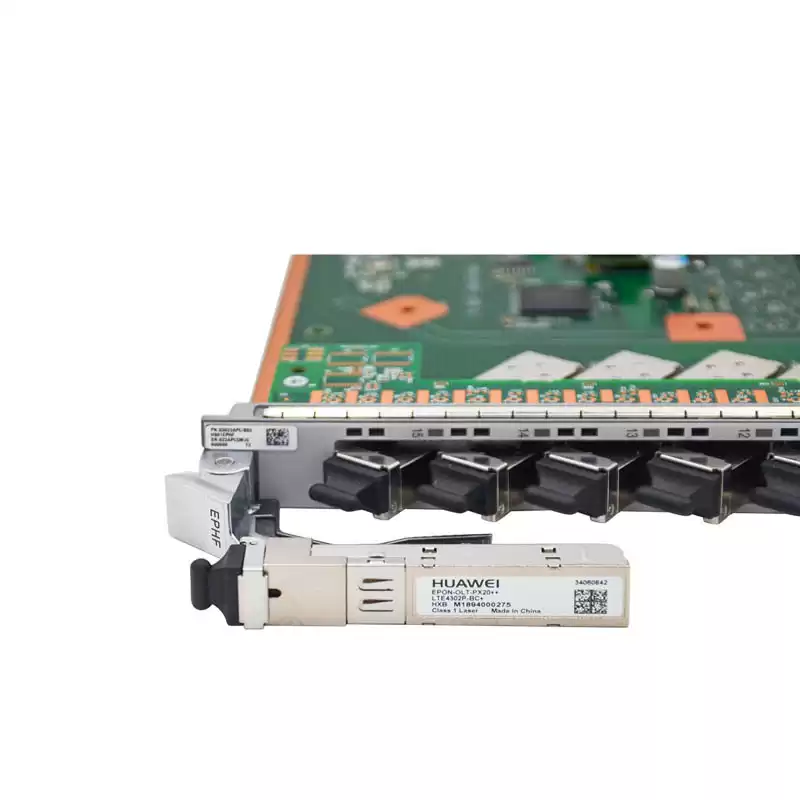

Huawei 16-EPON Port Interface Card with PX20++ SFP module
Apply to Huawei MA5800 X2, X7, X15, X17 NG OLT system
Max split radio 1:64
Port Rate: 1.25Gbit/s
Interface Type: SC/PC
Transmit Wavelength: 1490nm, Receive Wavelength: 1310nm
Standards Compliance: IEEE 802.3ah
PX20++ SFP Module Optical Power: 5 dBm~9 dBm, Receiver Sensitivity: -34dBm
EPHF is a 16 port EPON interface card of Huawei NG OLT, provides EPON service access from ONT. EPHF can maximum access 16*64 GPON subscribers.
Product Details
Our Advantages
We have Huawei H901EPHF for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.
Huawei H901EPHF, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.
Huawei H901EPHF represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
