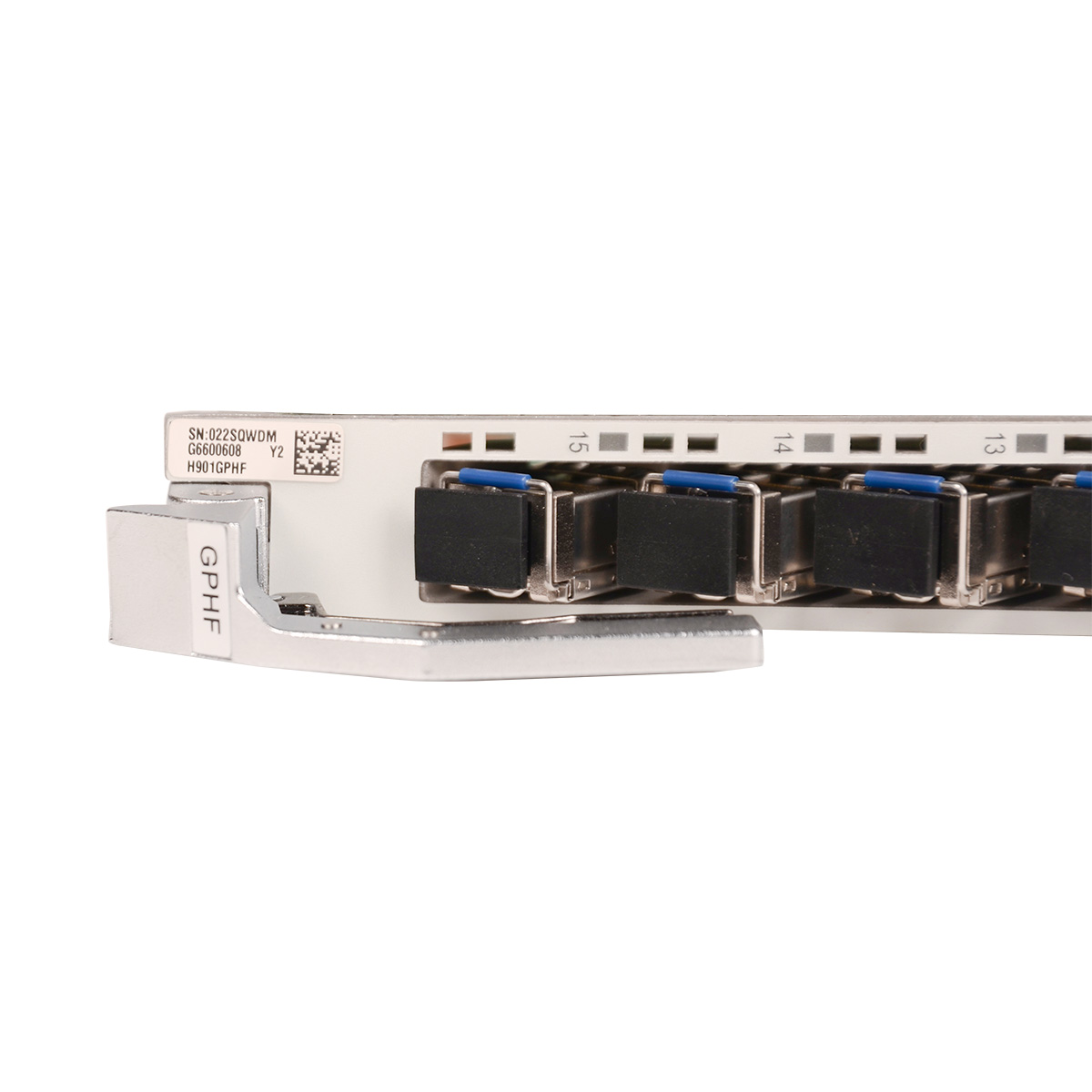

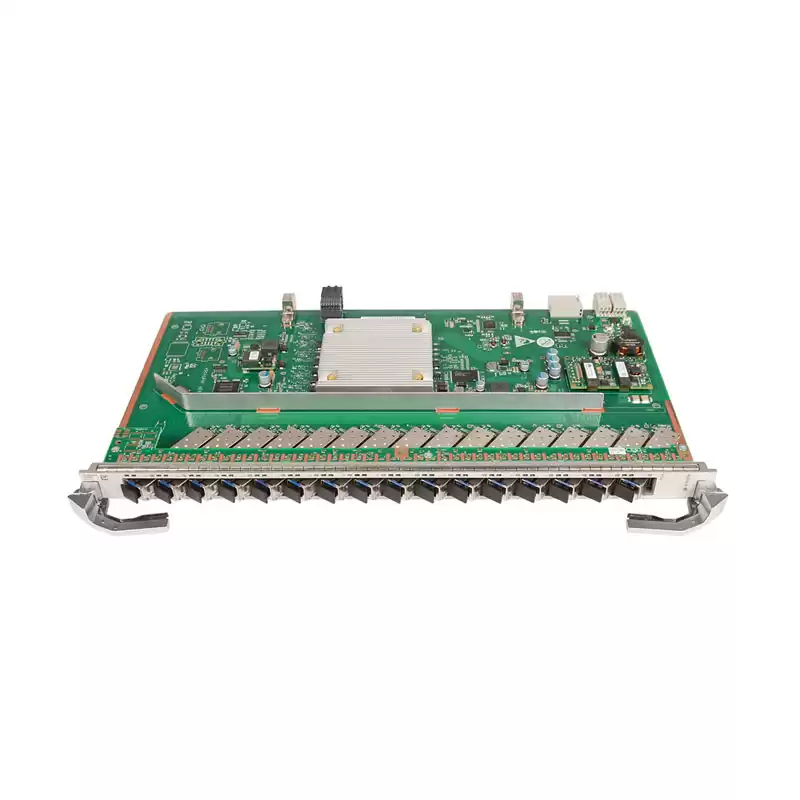

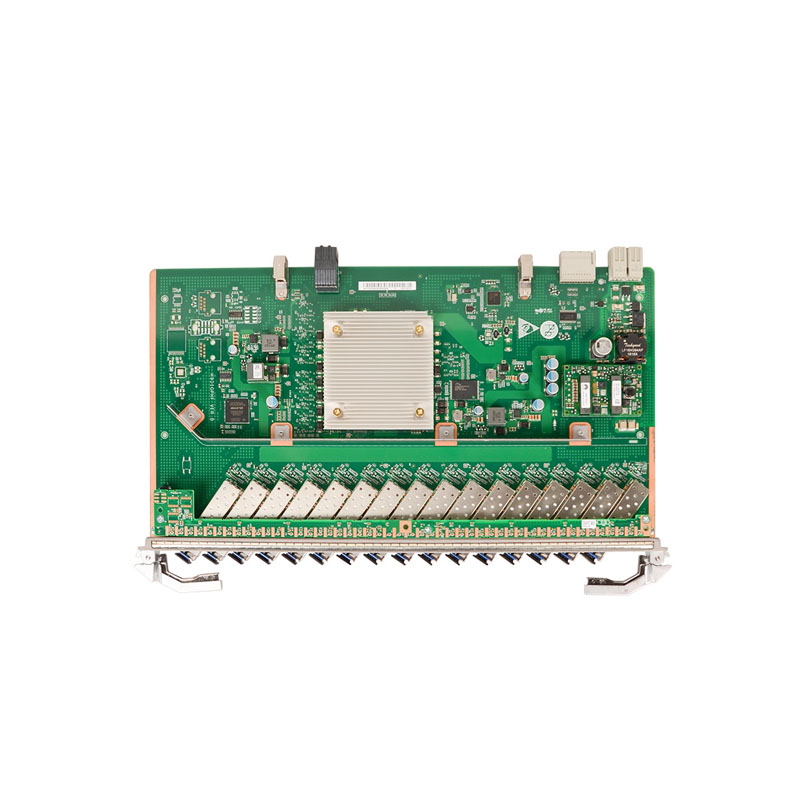

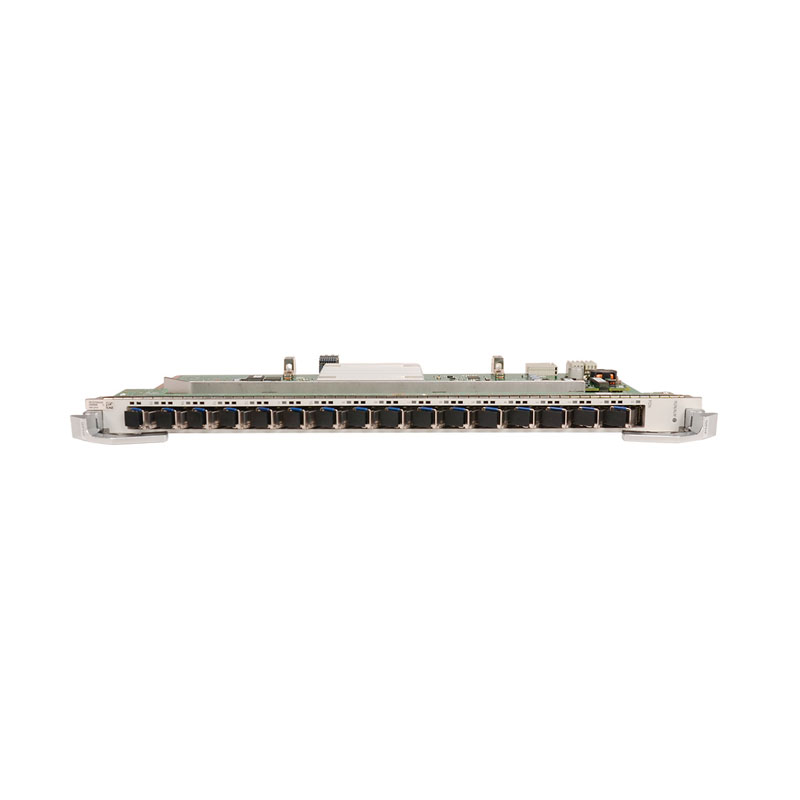

Huawei H901GPHF 16 ports GPON board for MA5800 OLT
Product Description
The Huawei H901GPHF 16 ports GPON board for MA5800 OLT (C+ SFP modules included) (Part number: H901GPHF C+) from Huawei is a ONT (Optical Network Terminal). Optical network terminal is a device used in fiber optic systems to convert optical signals into electrical signals for TV, voice, and data.
Huawei H901GPHF 16 ports GPON board for MA5800 OLT (C+ SFP modules included)
The H901GPHF board is a 16-port GPON Interface Board. It works together with the optical network terminal (ONU) to provide GPON access services.
Feature and Specifications
The H901GPHF board supports the following features and specifications:
16 GPON SFP ports
A maximum of 1:128 split ratio
Class B+/C+/C++ one-fiber bi-directional optical modules
Received signal strength indicator (RSSI) detection and optical signal transmission control of the optical module
ONU-based traffic shaping
Temperature reading and high-temperature alarm
Automatic power-off in case of high temperature
Upstream and downstream forward error correction (FEC)
Type B/Type C protection
L3VPN and D-CCAP networking
A maximum of 20 km transmission distance
Rogue ONU detection
Optical power budget of the GPON port
Class B+ optical module with a 28.5 dB power budget (used in most cases)
Class C+ optical module with a 32 dB budget (used for long-distance transmission)
Class C++ optical module with a 35 dB budget (used for long-distance transmission)
Product Details
Our Advantages
We have HUAWEI H901GPHF for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.
HUAWEI H901GPHF, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.
HUAWEI H901GPHF represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
