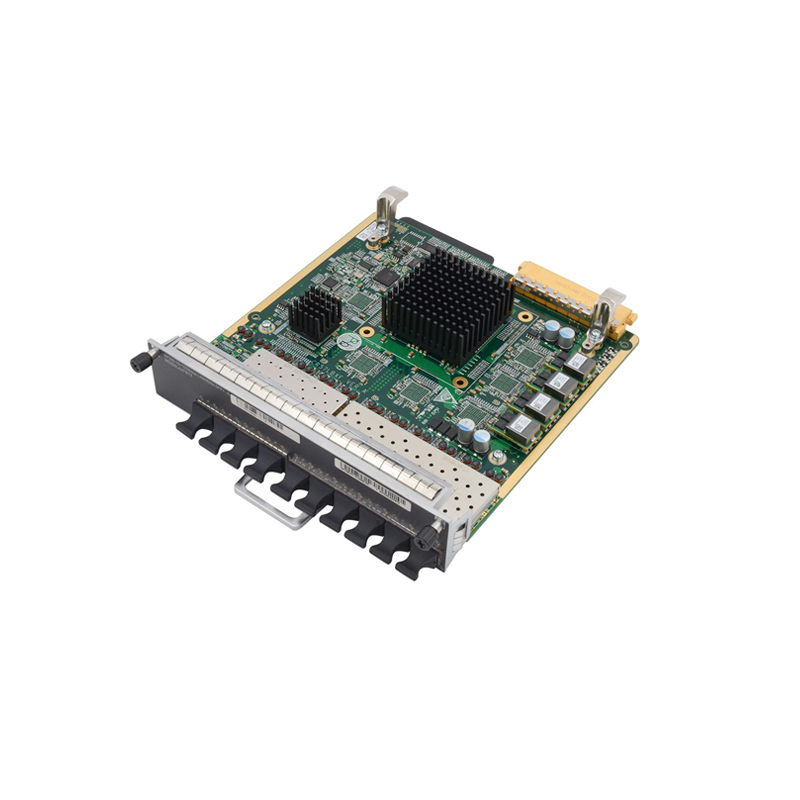

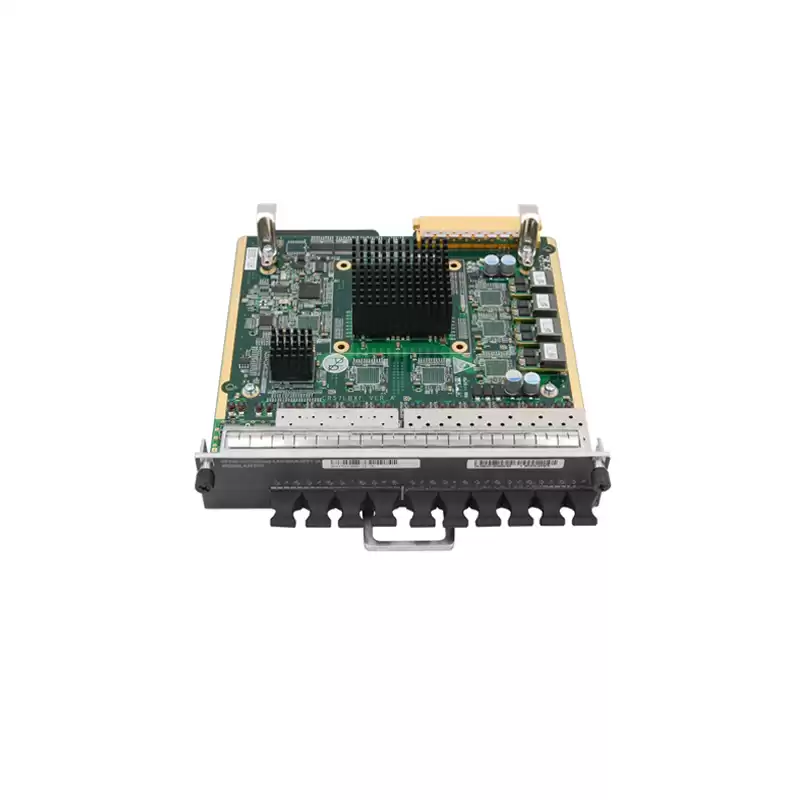

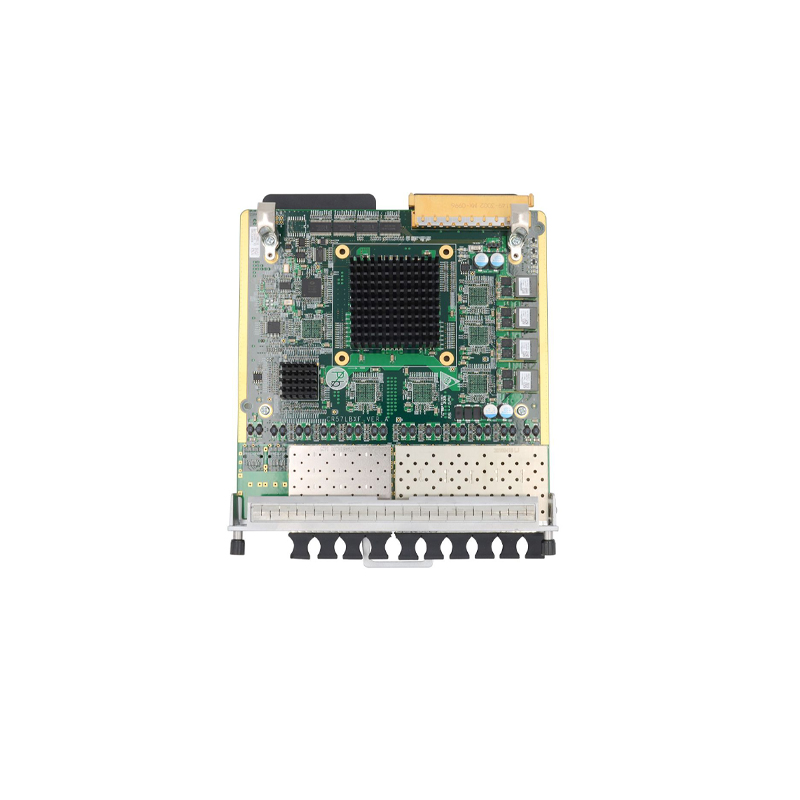

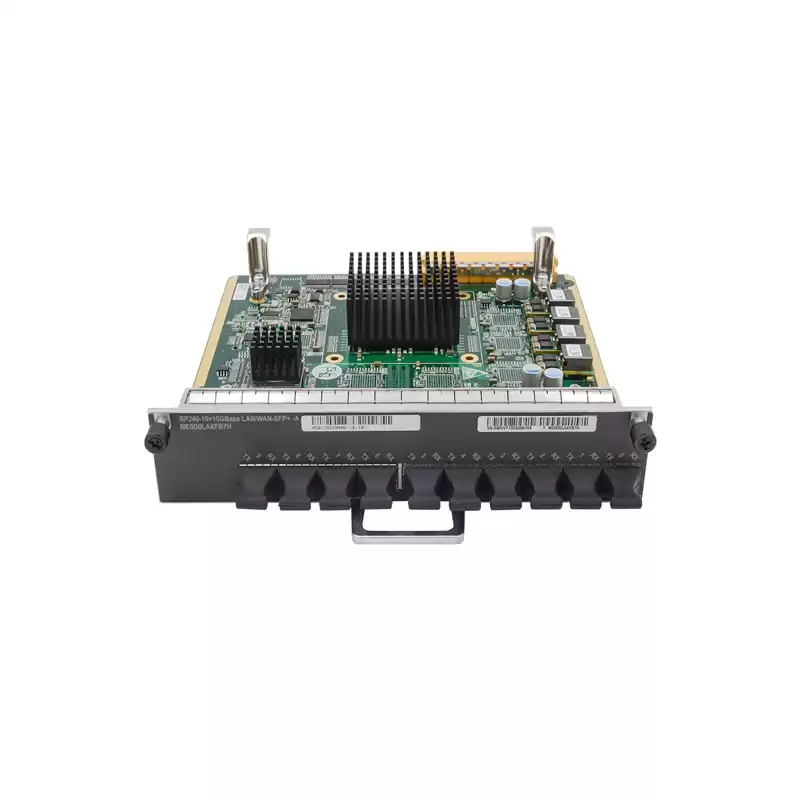

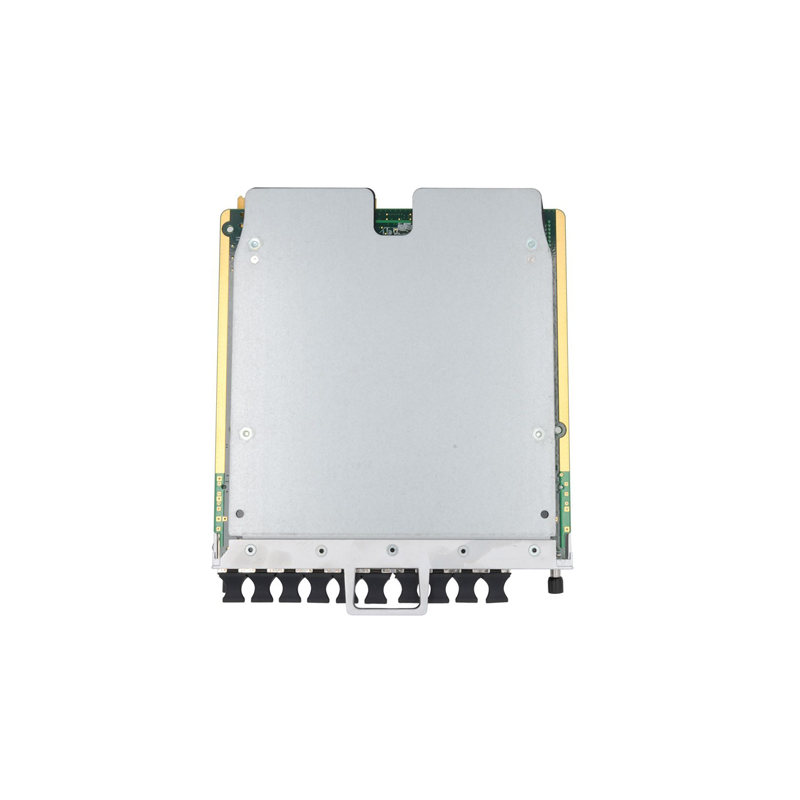

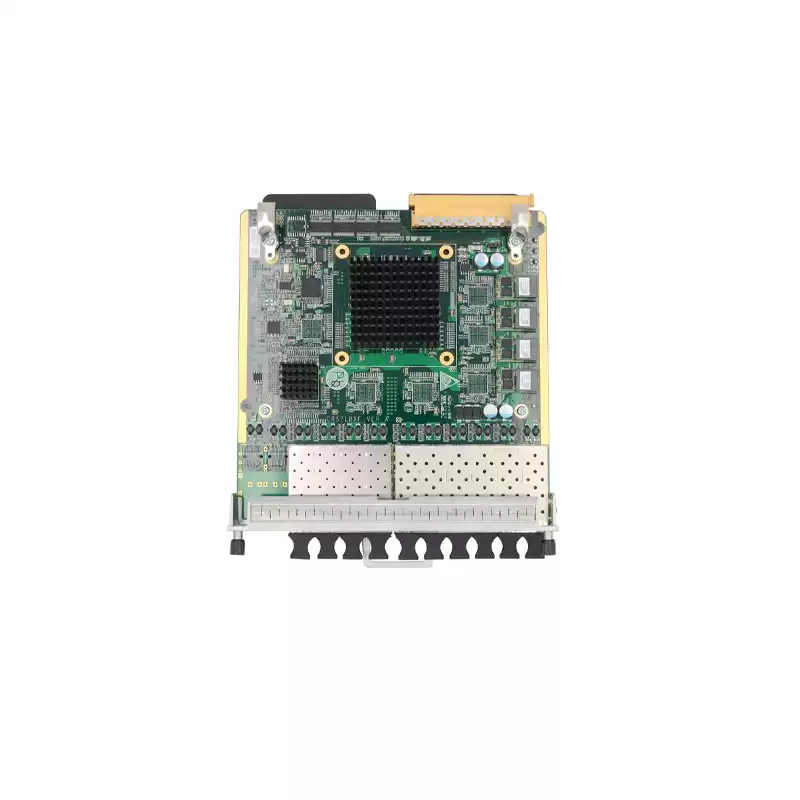

HUAWEI ME0D0LAXFB7H Flexible Card
Product Description
|
Specifications
|
|
Optical interface attributes
|
Compliant with the selected SFP+optical module, and 10G/1.25G auto-negotiation.
10 Gbit/s SFP+ Optical Module
1.25 Gbit/s SFP/eSFP Optical Module
1 Gbit/s Electrical Transceiver
|
|
Frame format
|
Ethernet_II, Ethernet_SAP, and Ethernet_SNAP
|
|
Supported protocol and service
|
Ethernet_II, Ethernet_SAP, and Ethernet_SNAP
|
|
NMS
|
Enhanced command-line interface
SNMP and MIB support
|
|
Operating conditions
|
Long-term ambient temperature: 0°C to 45°C (32°F to 113°F)
Short-term ambient temperature: -5°C to +55°C (23°F to 131°F)
Long-term relative humidity: 5% to 85%
Short-term relative humidity: 5% to 95%
|
|
Storage conditions
|
Storage temperature: -40°C to +70°C
Storage humidity: 5% to 100%
|
|
Physical specifications
|
|
Dimensions(mm)
|
37.2(H)x 178.7(W) x 193.3(D)
|
|
Weight(kg)
|
0.7
|
|
Power consumption (typical value)(W)
|
49
|
Huawei ME60 10-Port 10GBase LAN/WAN-SFP+ Flexible Card(BP240).
Can be installed on a LPUF-240 occupying one 1/2 width flexible card slot.
Provides types of loopback functions.
Supports SFP+ limiting optical modules instead of SFP+ linear optical modules.
Supports SyncE.
Supports IEEE 1588v2 protocol.
Supports WAN master instead of WAN slave.
Huawei ME0D0LAXFB7H is a 10-Port 10GBase LAN/WAN-SFP+ flexible card applied to Huawei ME60 router, the ten ports can be configured to work in LAN or WAN mode (When an interface is in WAN mode, only the Master mode is supported.) and use SFP+ optical module. This card can be installed on a LPUF-240 and occupies one subcard slot.
ME0D0LAXFB7H comes with original box, if purchase together with router, it will be will inserted into the router by default when delivery, to economical volume weight; If need delivery separately with original box, please contact Thunder-link.com sales team in advance.
