Huawei On Grid Solar Inverter For Commercial Solar Power System

By integrating AI and Cloud, Huawei further incorporates many latest ICT technologies with PV for optimal power generation, thus making the solar power plant to be Highly Efficient, Safe & Reliable with Smart O&M and Grid Supporting capabilities and builds the foundation for solar to become the main energy source


  • WARRANTY5 years
  • OPERATING TEMPERATURE -25 ~+60 °C
  • WATERPROOFIP65
  • MPPT VOLTAGE RANGE90~560V
  • AC VOLTAGE & FREQUENCY220/230/240V, 50/60HZ
  • RATED POWER2KW,3KW,4KW,5KW
  • MODELSUN2000-2/3/4/5KTL-L1

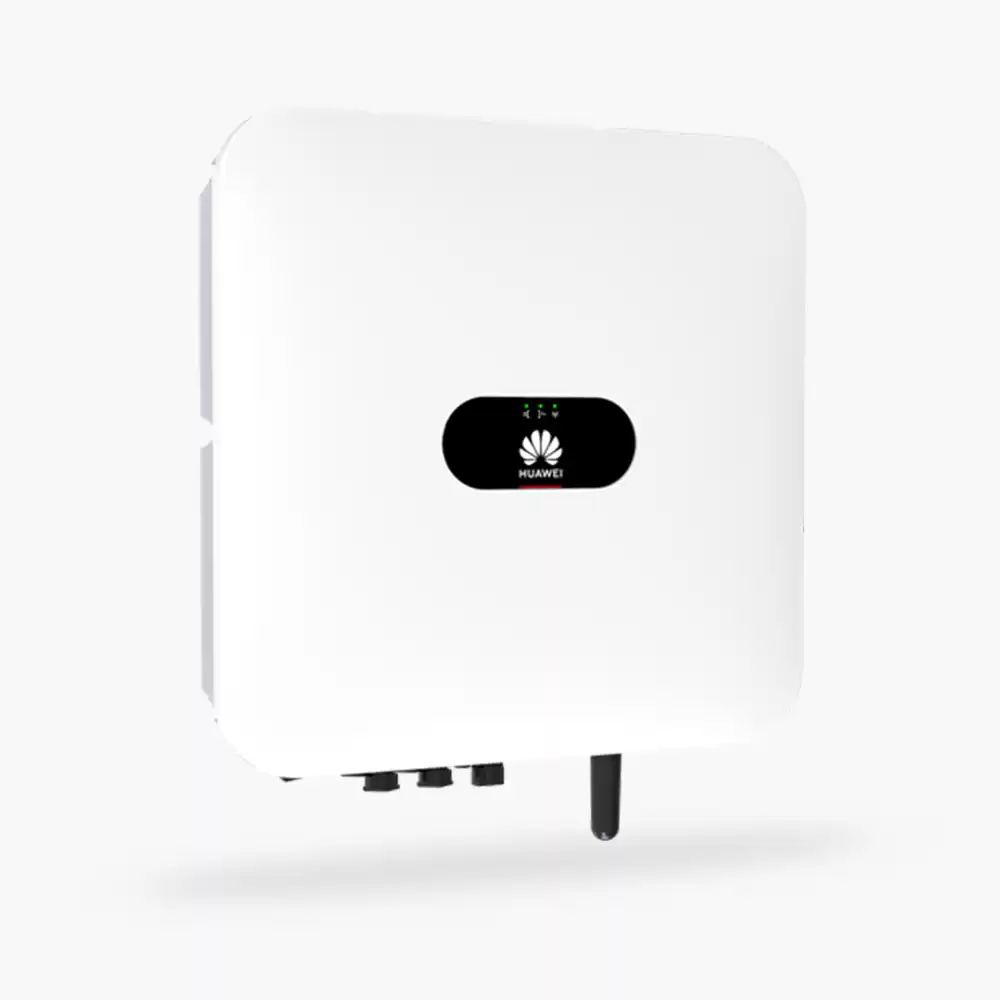

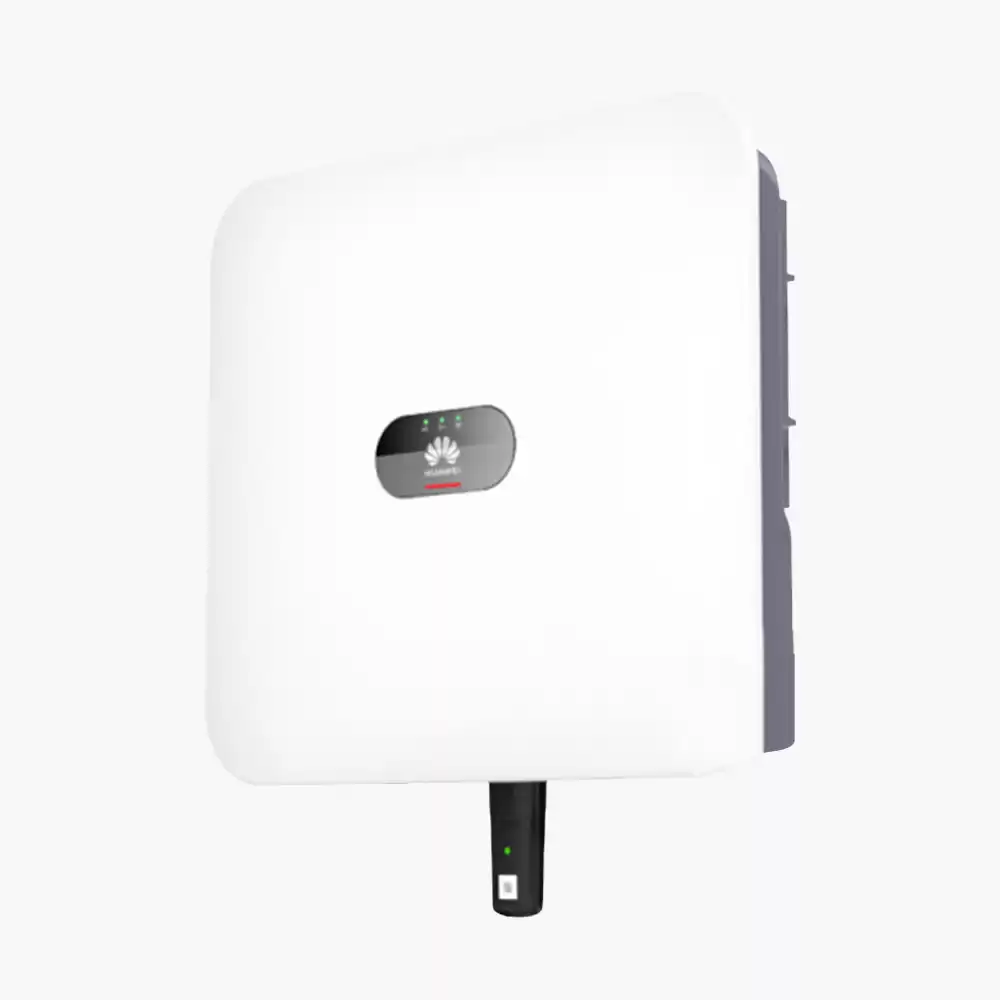

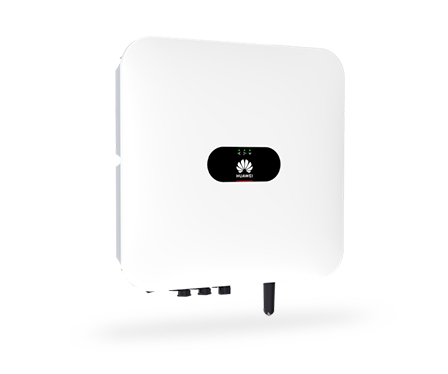

On Grid Inverter

AI powered arcing protection
Compatible to SUN2000-450W-P optimizer
Battery ready by direct Plug & Play, no extra device or any retrofit required
A 5KTL inverter allows 5KW full power AC output plus 5KW full power battery charge
High efficiency inverter topology, Max. Efficiency 98.4%

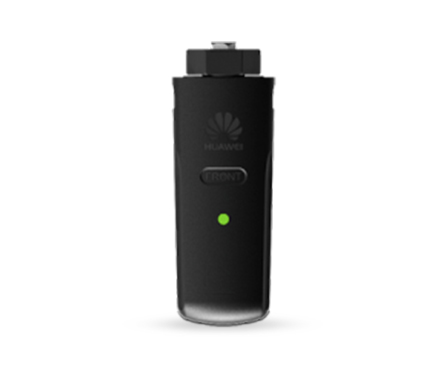

Monitoring System

Plug & Play connection to inverter
WLAN/Fast Ethernet communication via Smart Dongle-FE
4G communication via Smart Dongle-4G
Support max 10 inverters communication










Huawei on grid inverter meet certifications:

Safety: EN/IEC 62109-1, EN/IEC 62109-2
Grid connection standards: G98, G99, EN50549-1, CEI0-21, VDE-AR-N-4105, AS4777, C10/11, ABNT, UTE C15-712, RD1699, TORD4, IEC61727, IEC62116
