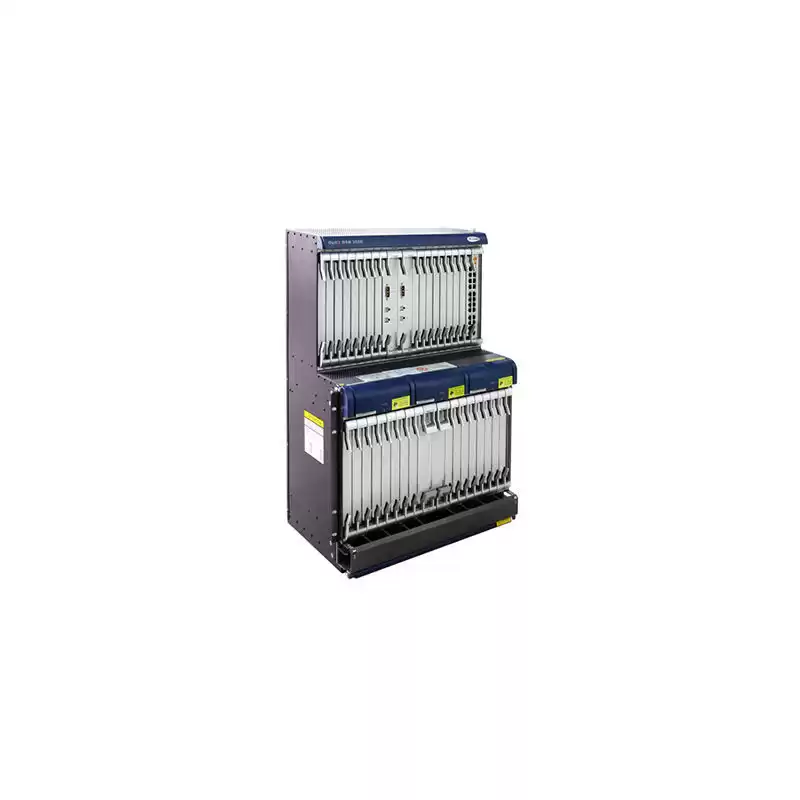

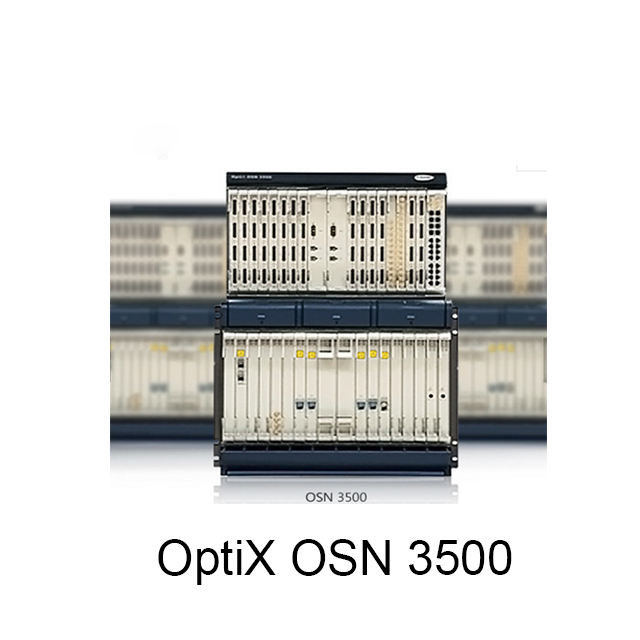

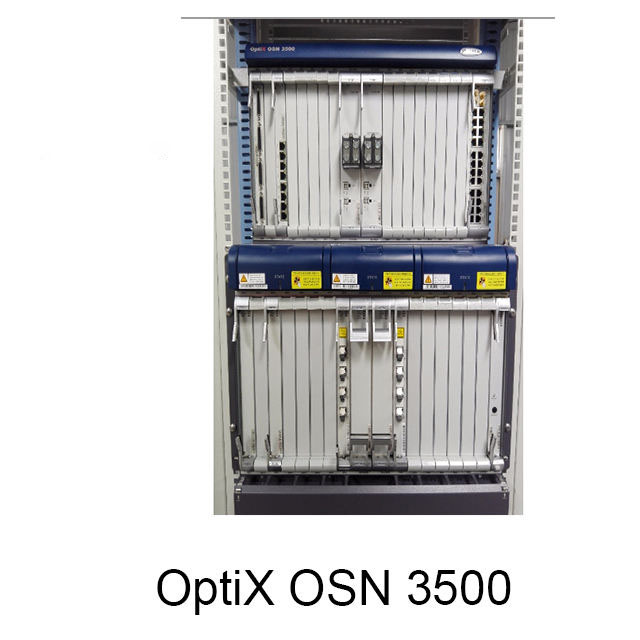

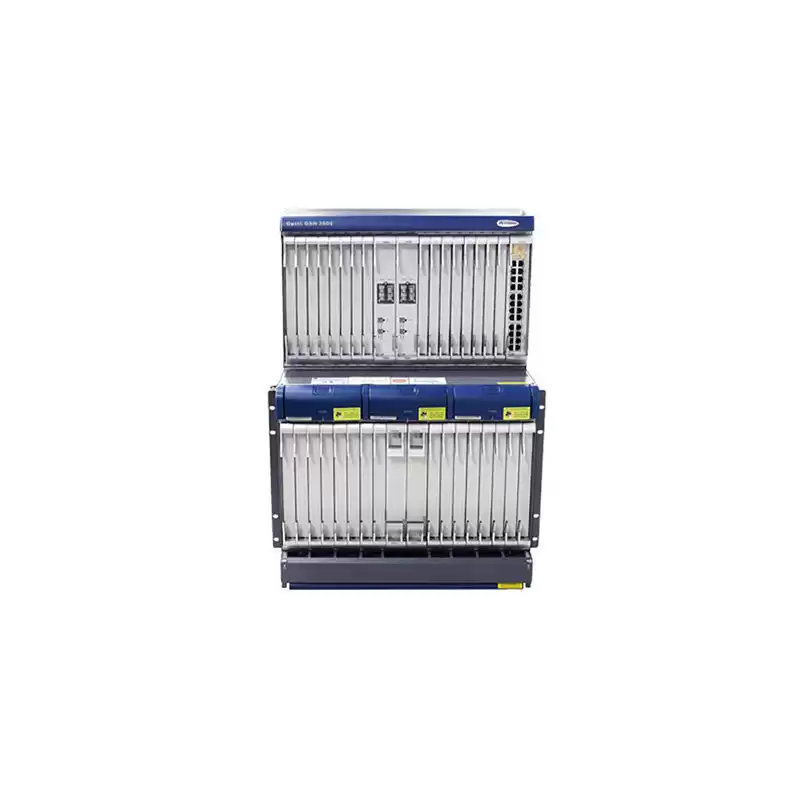

Huawei OptiX OSN 3500
Product Description
|
OptiX OSN 3500
|
|
System Features
|
|
Subrack dimensions
|
498mm(W) X 287mm (D)X 700mm (H)
|
|
Switching capacity
|
Packet: 100 Gbit/s. TDM: 200 Gbit/s (high order), 20 Gbit/s (low order)
|
|
Service slots
|
15 slots for processing boards and 16 slots for interface boards
|
|
Highly reliable design
|
1+1 hot backup for power supply modules
1+1 hot backup for system control boards
1+1 hot backup for cross-connect and synchronous timing boards
Redundancy protection for fan modules
|
|
Supported interfaces
|
Packet transport interfaces
|
E1, STM-1, FE/GE/10GE
|
|
MSTP interfaces
|
STM-64/16/4/1, E1/E3/E4/T1/T3, FE/GE/10GE, DDN, IMA/ATM, SAN
|
|
WDM interfaces
|
40-channel DWDM interfaces, compliant with ITU-T G.694.1
8-channel CWDM interfaces, compliant with ITU-T G.694.2
|
|
Power Supply
|
48V DC; 110/220V AC (External module)
|
|
Operation Environment
|
Temperature Relative Humidity
Long term: 0°C to 45°C 10% to 90%
Short term: –5°C to 55°C 5% to 95%
|
|
Packet Transport Features
|
|
Service features
|
E-Line and E-LAN
QinQ
MPLS-TP based VPWS and VPLS
TDM PWE3: CESoPSN and SAToP, compression of idle timeslots
ETH PWE3
IGMP SNOOPING V2
Blacklist
Broadcast packet suppression
ACL
|
|
QoS features
|
H-QoS scheduling and traffic shaping
DiffServ mode based on traffic classification
Simple traffic classification, complex traffic classification, per hop behavior (PHB), and ACL
Committed access rate (CAR)
PQ scheduling priority, weighted fair queuing (WFQ), and PQ+WFQ queuing
Tail drop and weighted random early detection (WRED)
Eight priority queues
Shaping based on port scheduling priority
|
Product Details
Our Advantages
We have Huawei OSN 3500 for
sale, including refurbished and new ones, and the price is usually 90% lower
than the original supplier's price. Our super fast turnaround time and
high-quality inventory all over the world mean that we can accurately deliver
the products replaced on the same day to the place where they are needed, and
minimize network downtime.
Huawei OSN 3500, like all our hardware,
takes comprehensive warranty as the standard. Whether you need new products or
renovated products, we only purchase green market equipment of the highest
quality and environmental protection. All these are provided at the best
possible price, and a large amount of cost-effectiveness will be directly
passed on to you.
Huawei OSN 3500 represents only one product
in our world-class hardware portfolio. The portfolio includes very well-known
industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel,
Lucent, etc. We have a lot of inventory, thank you very much for sharing with
customers.
