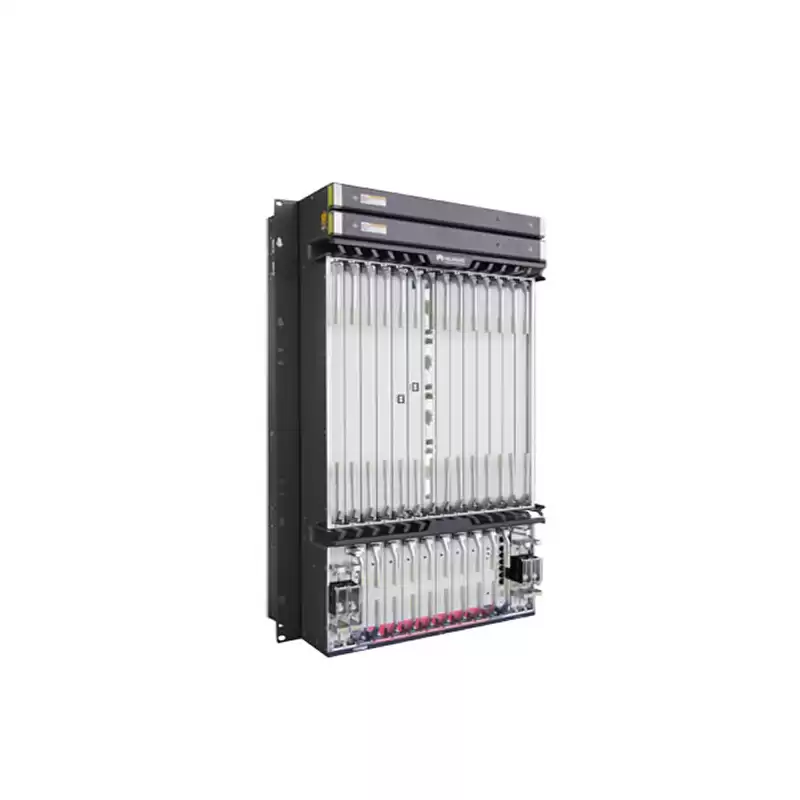

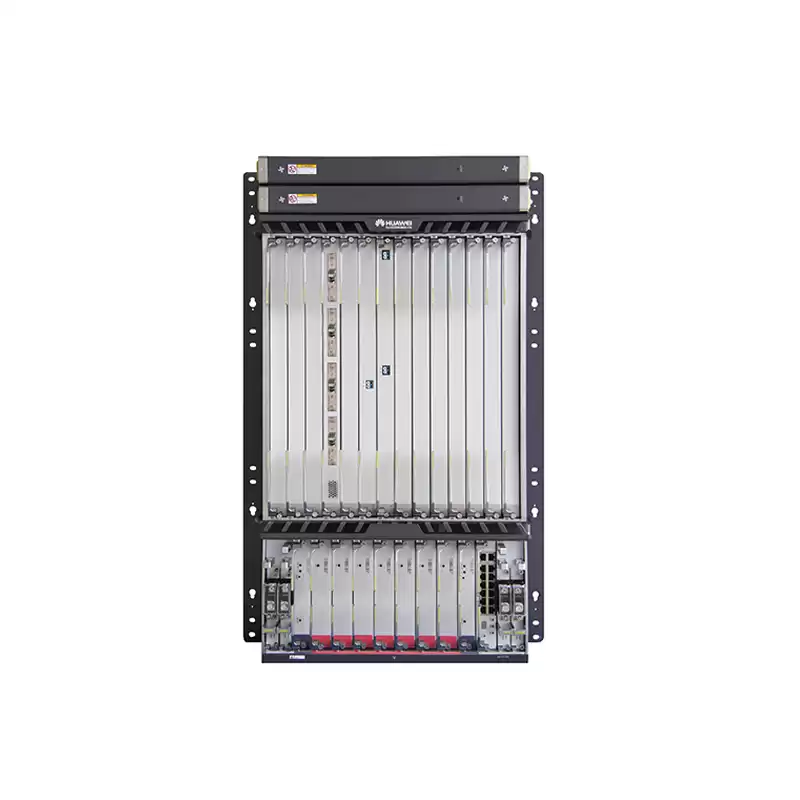

Huawei OptiX OSN 9800 U16
Product Description
Huawei OSN 9800 U16 is an optical subrack product that meets the requirements of miniaturized OLA sites and line degree optical subracks of ROADM
14 service slots for master subrack
Highlights:
The industry’s largest capacity MS-OTN and OTN cluster platform, with flexible service grooming
Optimal 200G/400G transmission technology, meeting future bandwidth requirements
Energy-saving and easy maintenance, improving O&M efficiency
Supports Synchronous Ethernet IEEE 1588v2 ITU-T G.8275.1
Supports Optical-Layer ASON Electrical-Layer ASON
Supports Online Service Provisioning Survivability Analysis BOD IP and Optical Collaboration
Supports application of extended C band in submarine scenarios.
The OptiX OSN 9800 U16 is a large-capacity OTN product intended for the beyond 200G/400G era. It is highly integrated, saves equipment room space, and achieves energy conservation. This product supports a variety of services, such as Ethernet, OTN, SDH, storage, and video services, and integrates 20 Tbit/s unified switching, IEEE 1588v2, synchronous Ethernet, ASON, TSDN, and various management and protection functions. It is the optimal 100G/400G OTN platform in the industry and provides carriers with OTN/WDM transmission solutions featuring ultra broadband, flexible grooming, high elasticity, and ASON.
|
Product Code
|
Huawei OptiX OSN 9800 U16
|
|
Dimensions (HxWxD)
|
847x442x295mm
|
|
Number of Service Slots
|
14
|
|
Switching Capability
|
Optical
|
Up to 20-degree C-D-C-G ROADM
|
|
Electrical
|
5.6Tbit/s universal switching
|
|
Channel Spacing
|
50/100GHz fixed grid for 40/80-ch
|
|
Flex-grid
|
|
Wavelength Range
|
DWDM: 1529.16 nm to 1560.61 nm (C Band, ITU-T G.694.1)
|
|
Rate per Channel (Max.)
|
100G, 200G, 400G, 1T, 2T
|
|
Service Types Supported
|
SDH, SONET, Ethernet, SAN, OTN, video
|
Product Details
Our Advantages
We have Huawei OSN9800 U16 for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.
Huawei OSN9800 U16, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.
Huawei OSN9800 U16 represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
