Huawei Original OSN8800 FIU 03030ETC TN11FIU01 03030KUY TN21DFIU01
Product Description

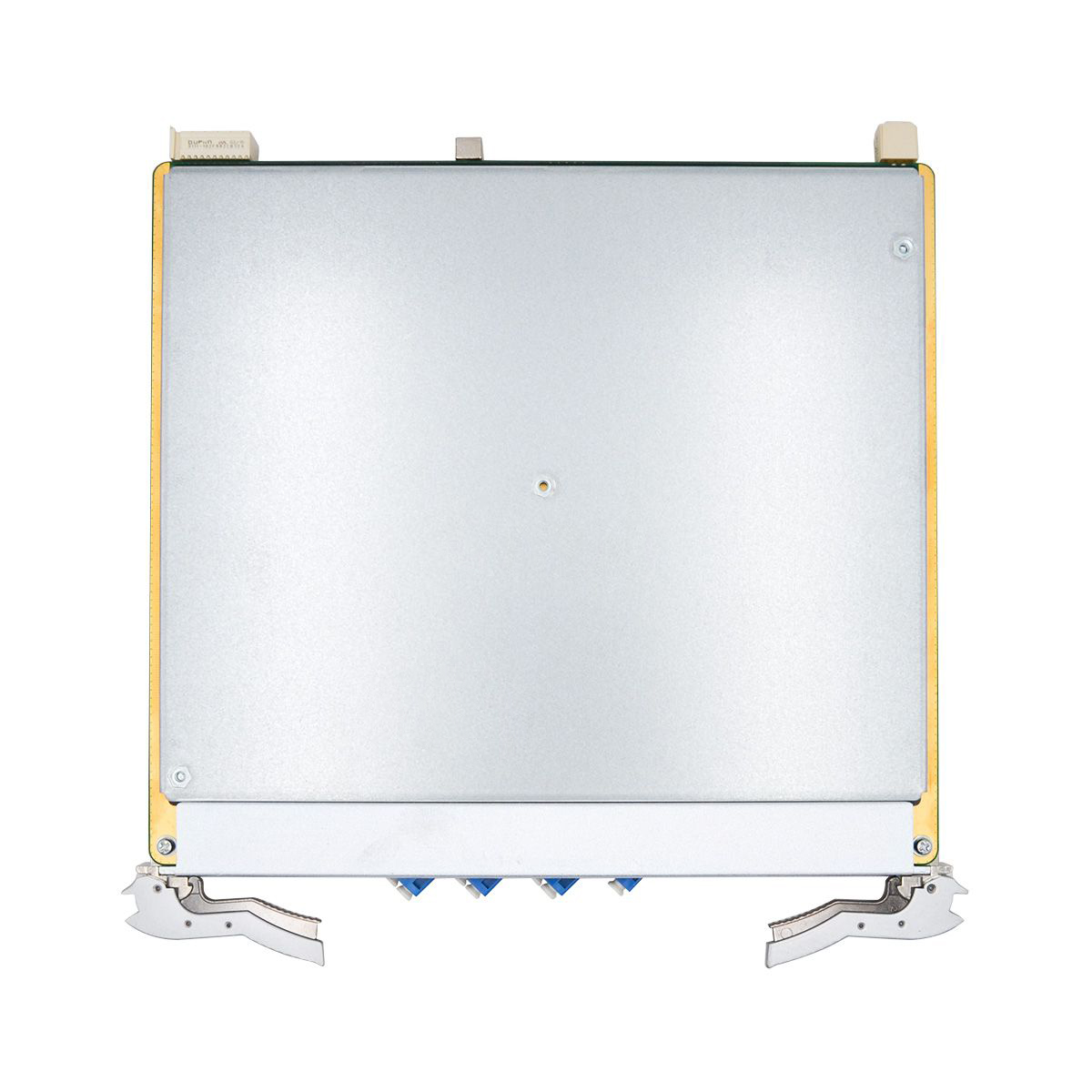

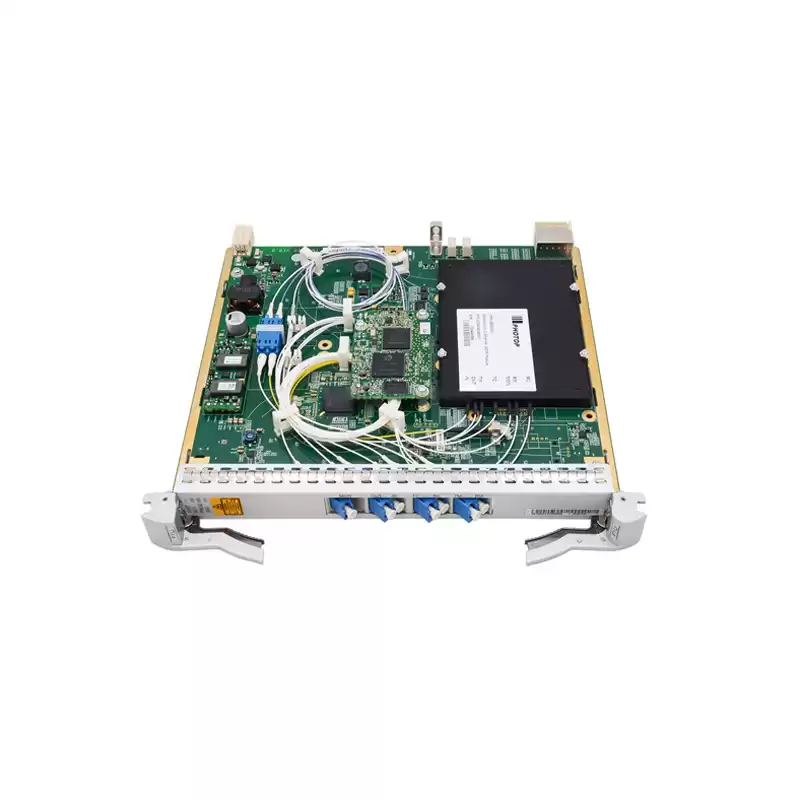

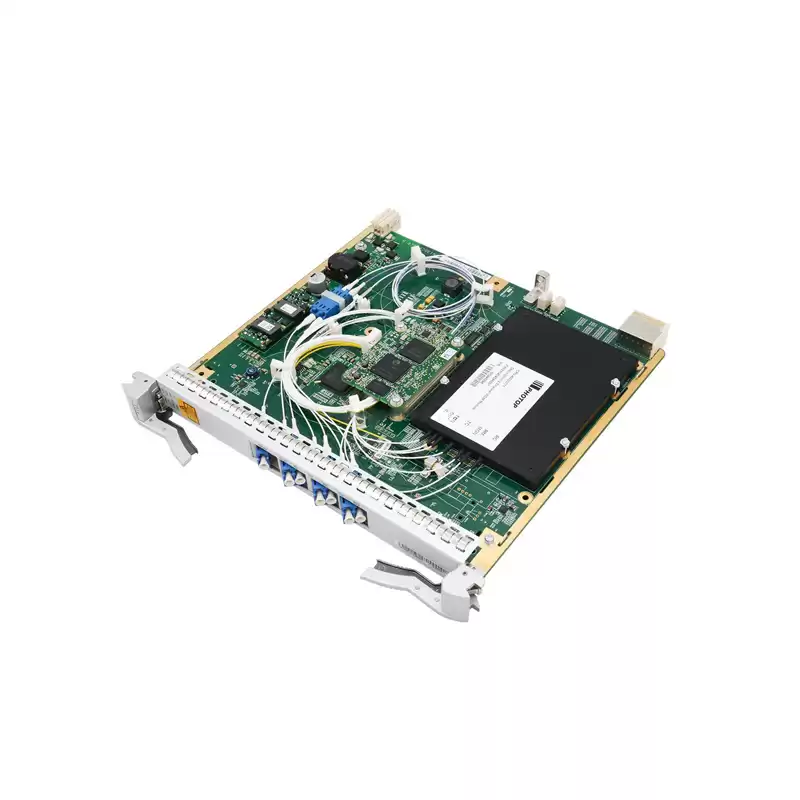

Huawei FIU Board consists of an optical module, an optical power detection module, control and communication module, and a power module.
The main optical channel signal received from the “RC” optical port and the monitoring channel signal received from the “RM” optical port are combined into a 1-channel optical signal through a multiplexing module and output through the “OUT” optical port.
Receive the line optical signal from the “IN” optical port and input it to the demultiplexing module. The demultiplexing module divides the signal of the main optical channel and the signal of the monitoring channel and outputs them through the “TC” and “TM” optical ports respectively.
Real-time detection of input/output optical power of service signals.
TN12FIU / TN15FIU supports optical power detection of input ports.
TN14FIU / TN16FIU supports optical power detection at the output port.
TN13FIU does not support optical power detection on the input or output ports.
Huawei FIU Board Product Specifications
|

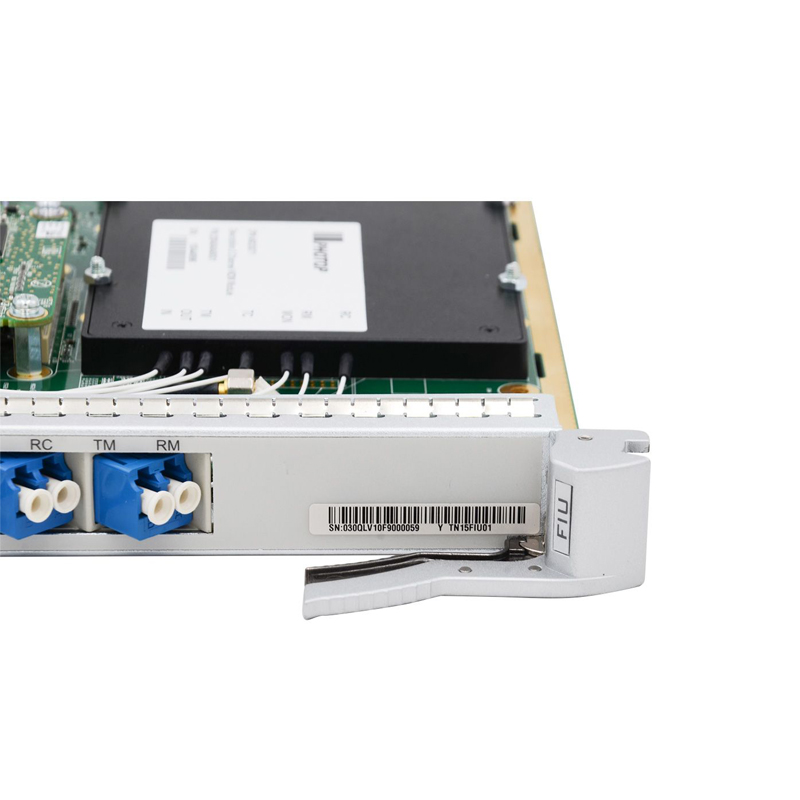

Interface silk screen
|
Interface type
|
Purpose
|
|
IN
|
LC
|
Receiver input port
|
|
OUT
|
LCa
|
Sending output port
|
|
TC
|
LC
|
Receiver C-band output port
|
|
RC
|
LCa
|
C-band input port on the transmitting side
|
|
TM
|
LC
|
Receiver monitoring channel output port
|
|
RM
|
LC
|
Sender monitoring channel input port
|
|
Board name
|
Typical board power consumption (W)
|
Maximum board power consumption a (W)
|
|
TN12FIU/TN14FIU
|
4.2
|
4.6
|
|
TN13FIU
|
0.2
|
0.3
|
|
TN15FIU
|
6
|
6.6
|
|
TN16FIU
|
6
|
6.5
|
|
MON
|
LC
|
Connect to MCA4, MCA8, OPM8, OMCA, and WMU input ports for online optical performance testing.
|
|
TN12FIU / TN13FIU01 / TN13FIU03 / TN14FIU / TN15FIU / TN16FIU: The split ratio between the MON port and the OUT port is 1:99, which means that the MON power is 20dB lower than the OUT port. The calculation formula is: Pout (dBm) -Pmon (dBm) = 10 x lg (99/1) = 20dB.
|
|
TN13FIU02: The splitting ratio between the MON port and the OUT port is 0.1: 99.9, which means that the MON power is 30dB lower than the OUT port. The calculation formula is: Pout (dBm) -Pmon (dBm) = 10 x lg (99.9 / 0.1) = 30dB.
|
|
Maximum power consumption refers to the value measured at the highest ambient temperature of the device during normal operation.
|
