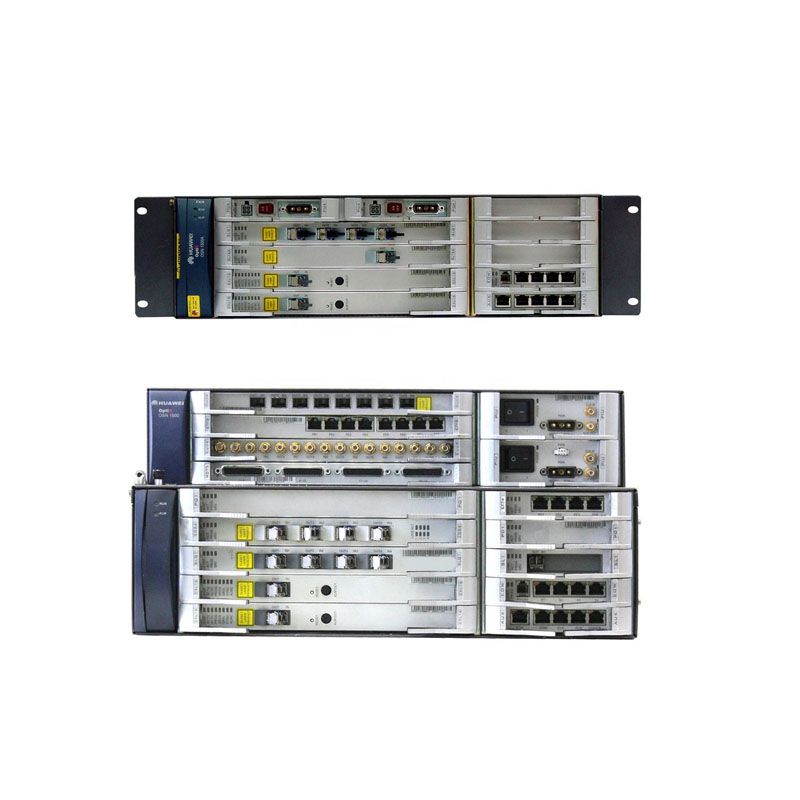

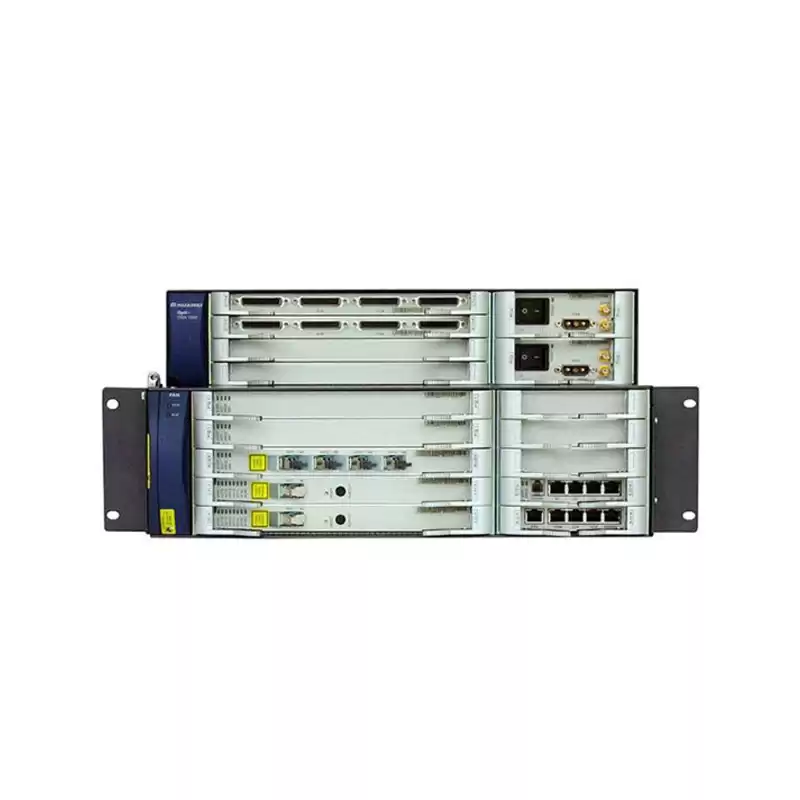

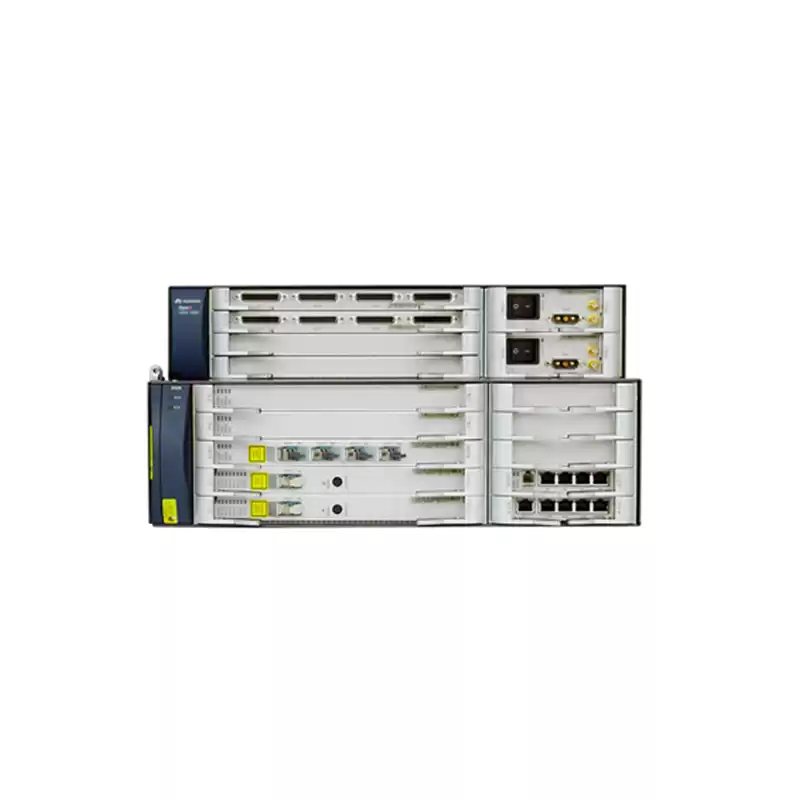

Huawei OSN 1500B Optical Transmission Equipment Digital SDH Transmission Device
Product Description
Positioning
The OptiX OSN 1500 intelligent optical transmission system (the OptiX OSN 1500 for short) developed by Huawei is the next-generation intelligent optical transmission equipment.
The OptiX OSN 1500 is of a "universal switch" architecture. That is, the OptiX OSN 1500 can be used in packet mode or in TDM mode. When used with the other equipment of Huawei, the OptiX OSN 1500 supports various networking applications, such as the pure packet mode application, hybrid networking application (overlay networking of the packet mode and TDM mode), and pure TDM mode application. By using a proper networking solution, the data service and conventional SDH service can be processed in the optimal manner.
Technology
The OptiX OSN 1500 efficiently transmits voice, data, SAN/Video, and video services on the same platform.
In packet mode, the OptiX OSN 1500 supports the following technologies:
Multiprotocol Label Switching (MPLS)
ETH PWE3 (Pseudo Wire Edge to Edge Emulation)
TDM PWE3
In TDM mode, the OptiX OSN 1500 supports the following technologies:
Synchronous digital hierarchy (SDH)
Plesiochronous digital hierarchy (PDH)
Ethernet
Asynchronous transfer mode (ATM)
Storage area network (SAN)/Video
Wavelength division multiplexing (WDM)
Digital data network (DDN)
Network Application
OptiX OSN 1500 is mainly used at the access layer of the metropolitan area network (MAN). The network application scenarios are described as follows:
In TDM networking, can be networked with the other OptiX transmission equipment (the OptiX OSN 9560, OptiX OSN 9500, OptiX OSN 7500 II, OptiX OSN 7500, OptiX OSN 3500 II, OptiX OSN 2500, OptiX OSN 3500, OptiX OSN 500, and OptiX OSN 550) to optimize carrier investment, achieving a full range of networking solutions at the access layer, convergence layer, and backbone layer.
With the packet switching technology, can constitute a packet data transmission network with the other OptiX transmission equipment (the OptiX OSN 7500, OptiX OSN 7500 II, OptiX OSN 3500, OptiX OSN 500, OptiX OSN 550, and OptiX RTN 900) to meet the requirement for bearing IP services.
Can be flexibly networked with WDM equipment and Metro equipment.
Can transparently transmit services over third-party Layer 2 networks, allowing end-to-end configuration and management.
Product Details
Our Advantages
We have Huawei OSN1500B for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.
Huawei OSN1500B, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.
Huawei OSN1500B represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
