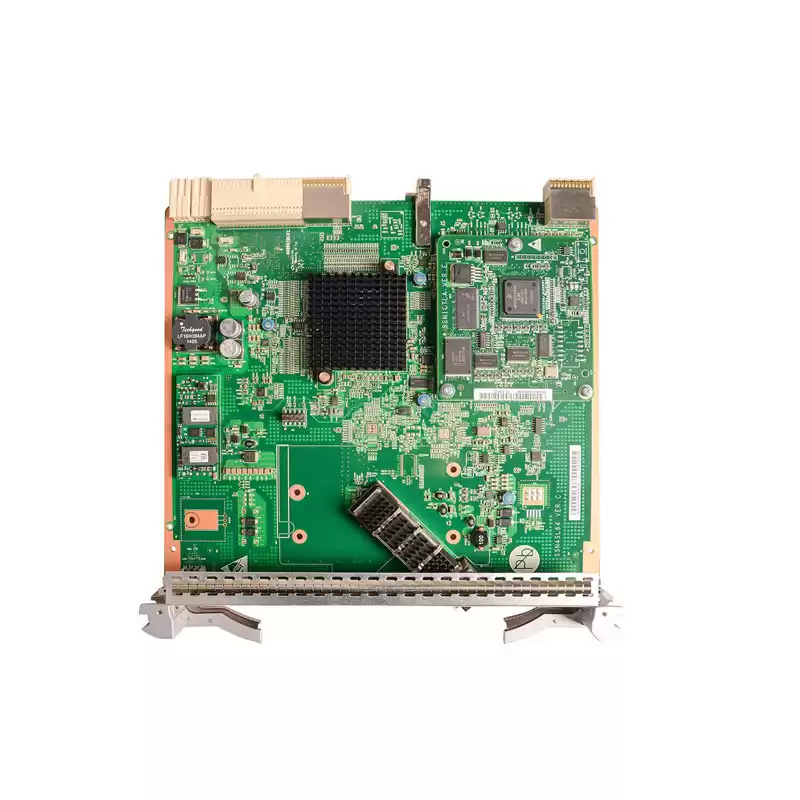

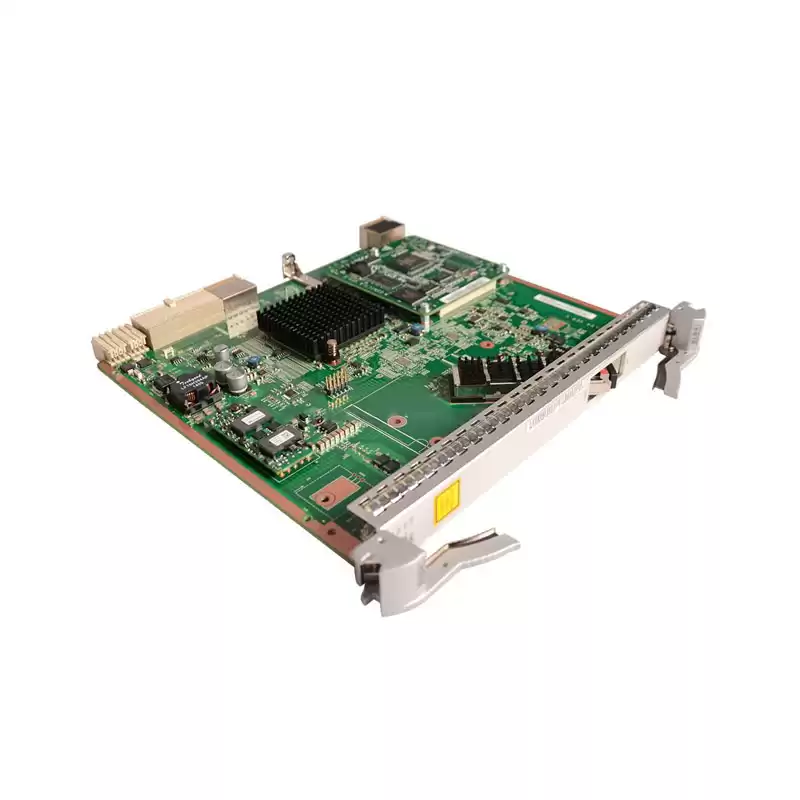

Huawei OSN3500 Interface Board SF64 SSN4SF64-160km 02318935 for WDM ONT
Product Description
Apply to Huawei OSN 3500, OSN 7500 equipment to transmit and receive 1xSTM-64 optical signals, at 140~160km.
Supports the board version replacement function.
Can substitute for SSN1SF64(Ue-64.2c,LC).
Supports the detection and query of the information about the optical module.
Supports the ALS function. The optical interface supports the setting of the on/off state of a laser.
Supports the usage and detection of the pluggable XFP optical module.
Supports the VC-12 services, VC-3 services, and VC-4 services.
Supports the transparent transmission and termination of the path overheads.
Supports the setting and query of the J0, J1, J2, and C2 bytes.
Supports one channel of ECC communication.
Supports Two-fiber ring MSP. Four-fiber ring MSP. Linear MSP. SNCP. SNCMP. SNCTP protection schemes.
Supports inloops and outloops at optical interfaces.
Supports the PRBS function in the line direction and Cause by Cross function, detects and reports voltage performance.
Supports the query of the manufacturing information of the board.
Supports the in-service loading of the FPGA.
SSND00SF64 is a 1-port STM-64 optical interface board, can be used on Huawei OSN3500, OSN7500. SSND00SF64(Ue-64.2c-e,LC) part number is 03052974, model name is SSND00SF6401.
SSND00SF64(Ue-64.2c-e,LC) comes with 1 unit Ue-64.2c-e SFP module, transmission distance is 160km. SFP module is not swappable to perform different transmission distance.
Product Details
Our Advantages
We have HUAWEI SSN4SF64 for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.
HUAWEI SSN4SF64, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.
HUAWEI SSN4SF64 represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
