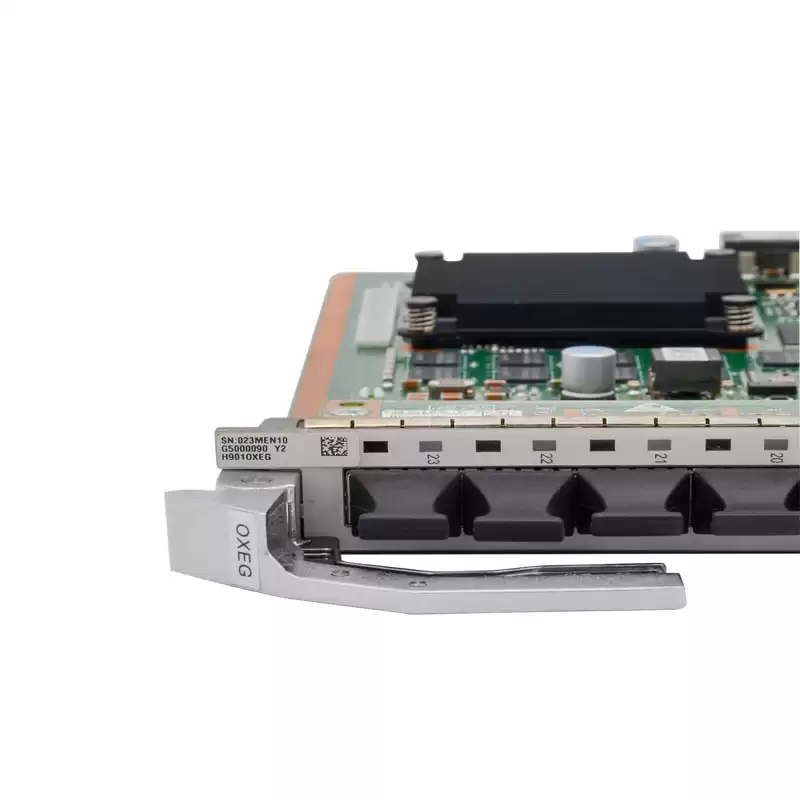

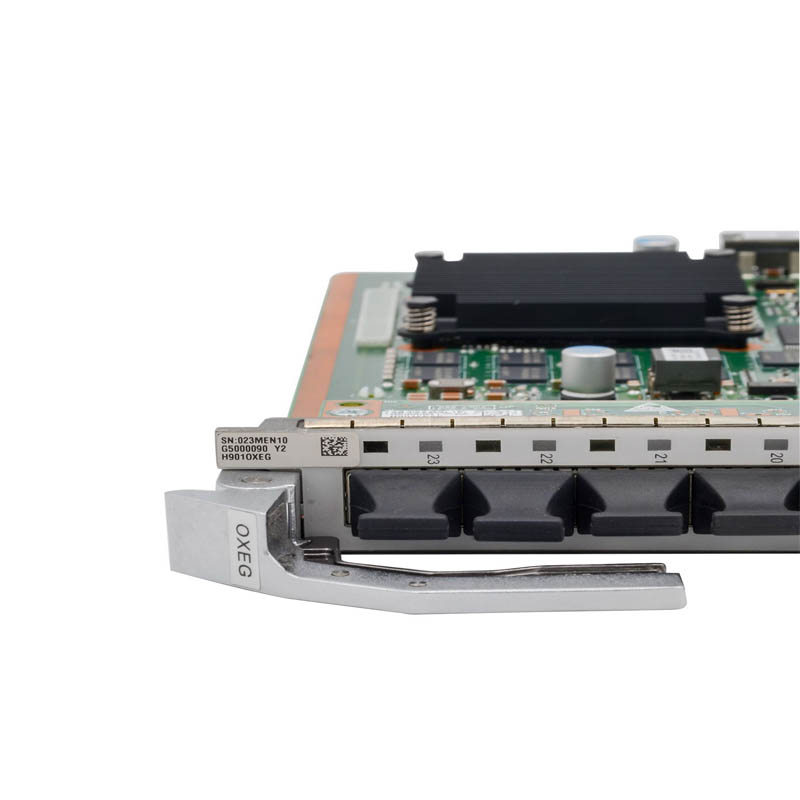

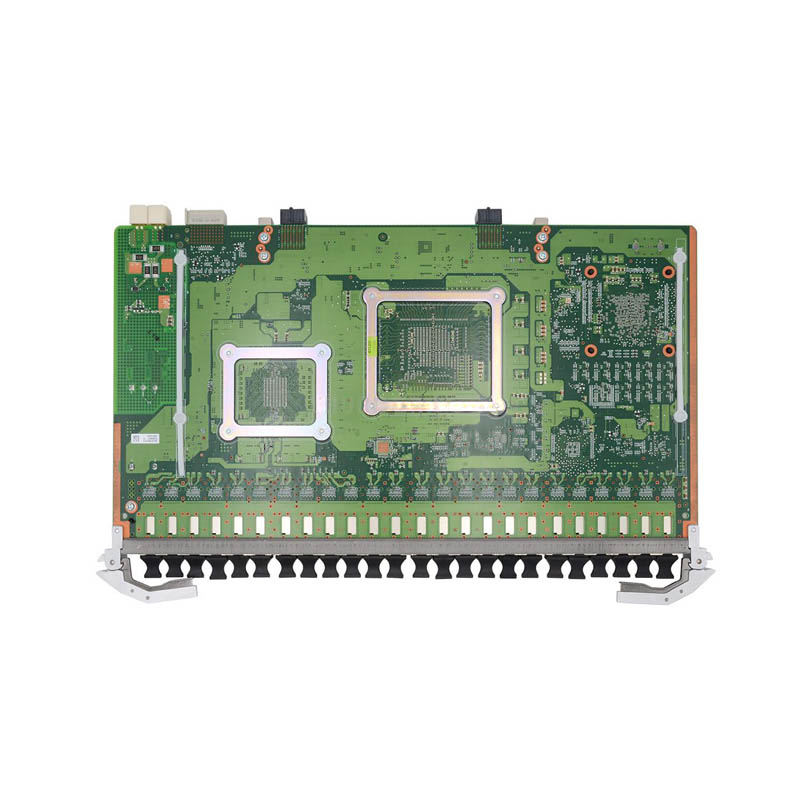

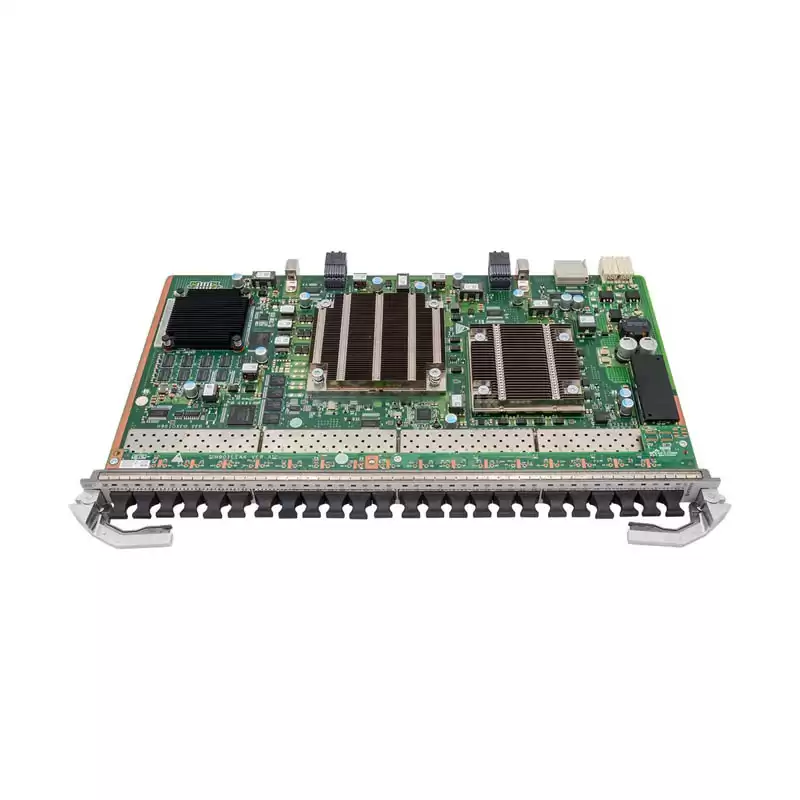

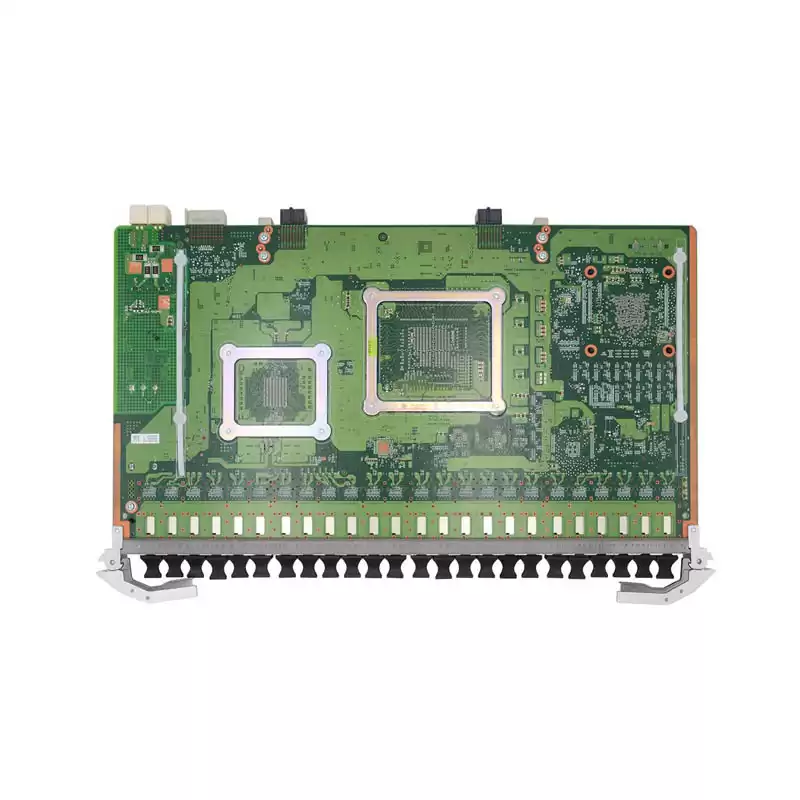

Huawei OXEG 24-Port 10GE/GE P2P Optical Interface Board H901OXEG for MA5800 Series olt
Product Description
SmartAX MA5800 Full-service Virtualized OLT Building a convergence access network that is green, ultra-broadband, and intelligent.
The MA5800 series multi-service access device is the first OLT in the industry with distributed architecture. Developed using virtual access technology, it provides a unified carrying platform for multiple services, such as broadband, wireless, video, and monitoring.
The MA5800 provides GPON, XG-PON, XGS-PON, GE, and 10GE access, and supports POL, FTTH, FTTB, FTTC, and D-CCAP network construction modes. It carries all services over one fiber network, simplifying network architecture and reducing OPEX.
The MA5800 supports capacities for large, medium, and small products, meeting requirements in different scenarios.
|
parameter
|
MA5800-X17
|
MA5800-X15
|
MA5800-X7
|
MA5800-X2
|
|
Size (width x depth x height)
|
493x287x486mm
|
442x287x486 mm
|
442x268.7x263.9 mm
|
442x268.7x88.1 mm
|
|
The maximum number of ports supported by a single frame
|
272 × GPON / EPON
816 × GE / FE
136 × 10G GPON / 10G EPON
136 × 10G GE
544 × E1
|
240 × GPON / EPON
720 × GE / FE
120 × 10G GPON / 10G EPON
120 × 10G GE
480 × E1
|
112 × GPON / EPON
336 × GE / FE
56 × 10G GPON / 10G EPON
56 × 10G GE
224 × E1
|
32 × GPON / EPON
96 × GE / FE
16 × 10G GPON / 10G EPON
16 × 10G GE
64 × E1
|
|
MPU exchange capacity
|
7 Tbit / s
|
480 Gbit / s
|
|
MAC addresses
|
262143
|
|
ARP / routing table entries
|
64K
|
|
Operating temperature
|
-40 ℃ ~ + 65 ℃ (work)
-25 ℃ ~ + 65 ℃ (restart)
* 65 ℃ refer to operational block inlet temperature.
|
|
Operating Voltage
|
-38.4 ~ -72 V DC power supply
|
DC power supply: -38.4V ~ -72V
AC power supply: 100V ~ 240V
|
|
Layer 2 features
|
VLAN + MAC forwarding, SVLAN + CVLAN forwarding, PPPoE +, DHCP option82
|
|
Layer 3 features
|
Static routing, RIP, OSFP / OSPFv3, IS-IS, BGP / BGP4 +, ARP, DHCP relay, VRF
|
|
MPLS & PWE3
|
LDP, RSVP-TE, MPLS OAM, tunnel protection switching, TDM / ETH PWE3, PW protection switching, MPLS BGP IP VPN
|
|
IPv6
|
IPv4 and IPv6 dual stack, IPv6 Layer 2 and Layer 3 forwarding, DHCPv6 relay
|
|
Multicast
|
IGMPv2, IGMPv3, IGMP proxy with the listener, VLAN-based multicast IPTV
|
|
QoS
|
Traffic classification, prioritization, traffic policing trTCM based, HQoS, traffic shaping, WRED, PQ / WRR / PQ + WRR, ACL
|
|
System Reliability
|
GPON type B, type C protection;
EPON type B, type D protection;
XG-GPON and the 10G EPON type B protection;
Between the plate and the inner plate LAG, MSTP;
Master and upgrade service boards continued business.
|
Product Details
Our Advantages
We have Huawei H901OXEG for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.
Huawei H901OXEG, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.
Huawei H901OXEG represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
