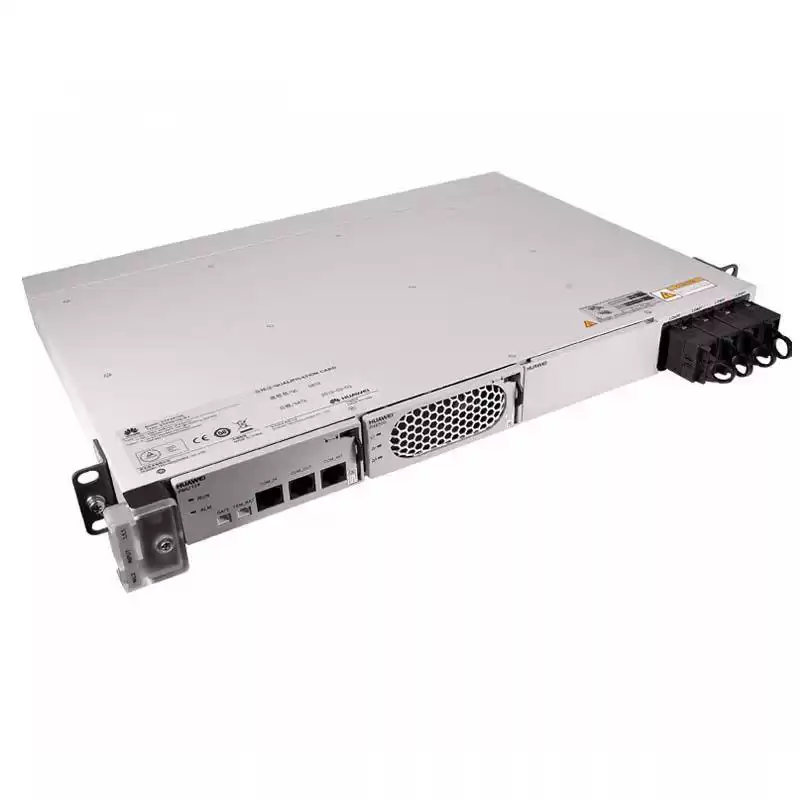

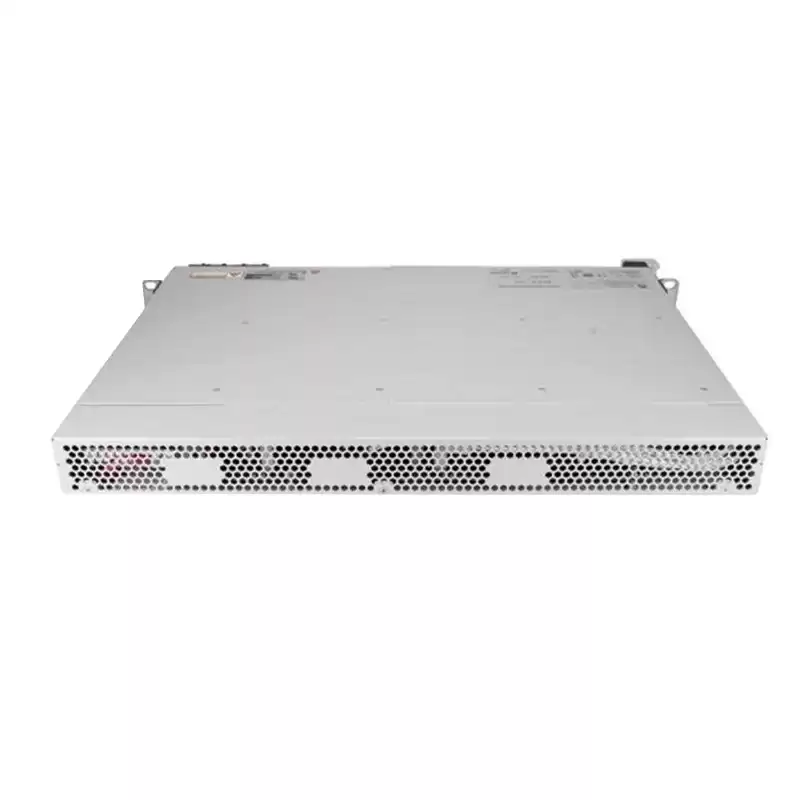

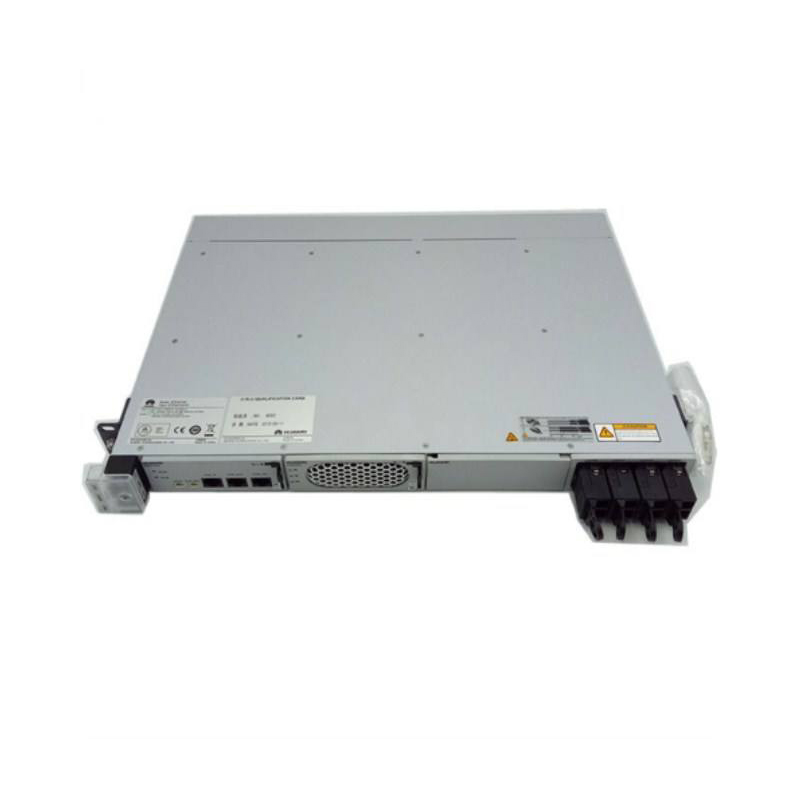

Huawei PMU 11A Telecom Power Supply Part Monitoring Module
Product Description
|
Input
|
100-120V / 200-240V
|
|
Output
|
48V 50A
|
|
Rectifier module
|
R4850G*1
|
|
Monitoring module
|
PMU 11A*1
|
|
Apply to
|
Fiber home/Huawei/ZTE OLT
|
Product Features
• Support wide range of DC output from 30A to 400A;
• High rectifier efficiency over 96% helps to save energy, derated output above 55℃;
• Rectifier with MTBF>500,000h helps to save OPEX;
• E-label function, can achieve assets management of the whole site, easy for assets management and location of problem quality;
• Battery anti-reversed connection function, avoid the possible of equipment loss and personal safety accident
• Complete system management function, LCD visualization monitoring;
• Support multiple interfaces, convenient remote centralized management.
ETP48100 is an AC/DC embedded power system with excellent performance such as high power efficiency, intelligent battery management, remote management, wide range of AC input voltage, etc. The system can configure 2 pieces of 1U 50A high rectifier modules, and provides 30A rated current output. ETP48100-B1 can be embedded in 19-inch rack or cabinet.
This series of embedded power products includes 5 types of products: ETP4830, ETP4890, ETP48150, ETP48200 and ETP48400. They can provide wide range of DC output from 30A to 400A, and are very broad application in DC power system scenarios. The functional unit using a standardized installation structure design, power height ranging from 1U to 11U, compact design, support 19-inch rack or cabinet installation. The system can be adapted to a wide range of AC input voltage, with intelligent battery management, remote monitoring, etc.
Product Details
Our Advantages
We have Huawei PMU 11A for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.
Huawei PMU 11A , like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.
Huawei PMU 11A represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
