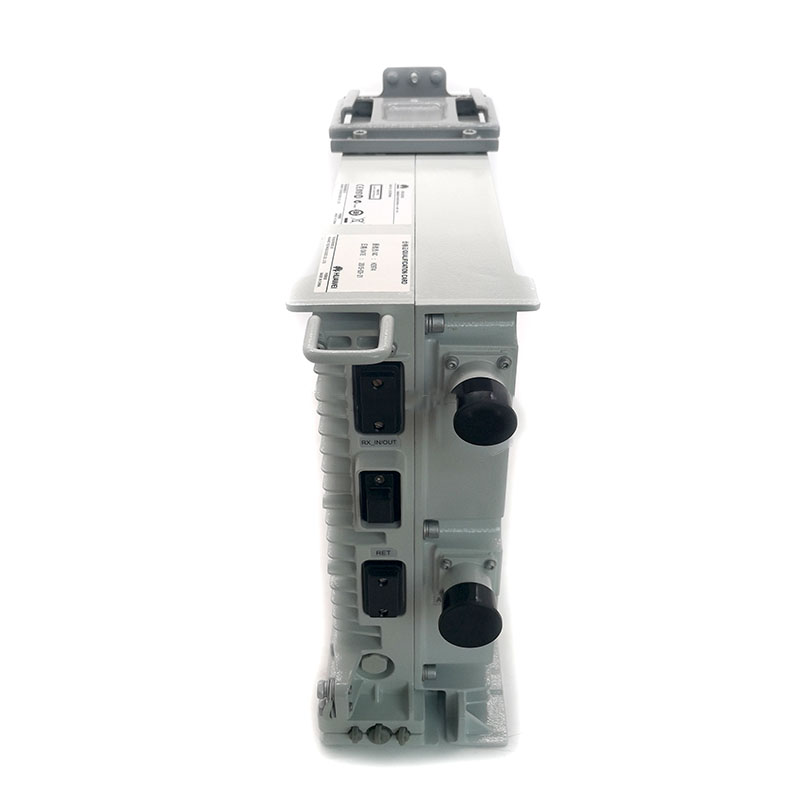

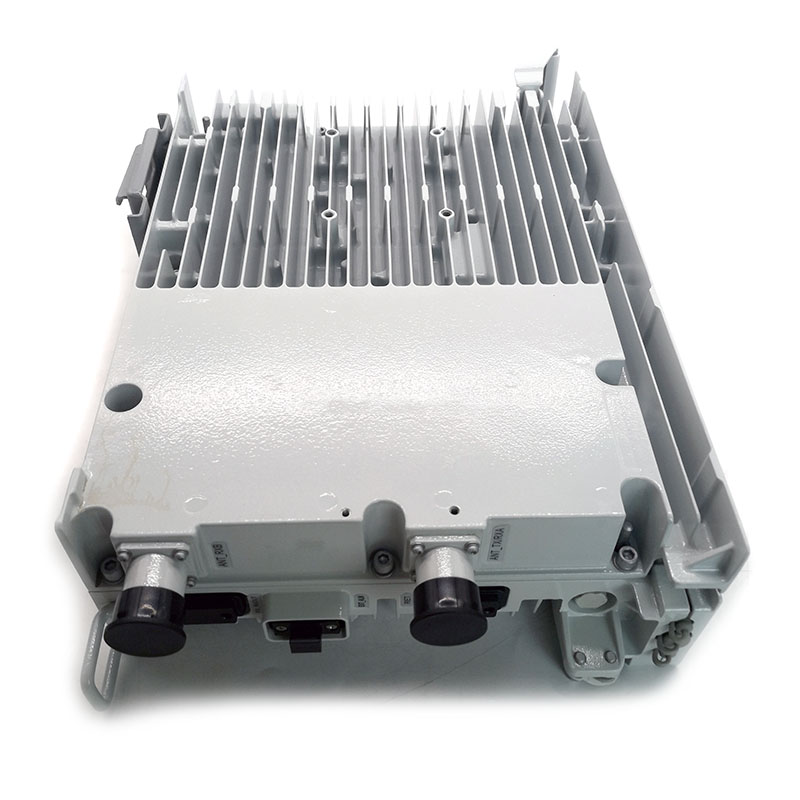

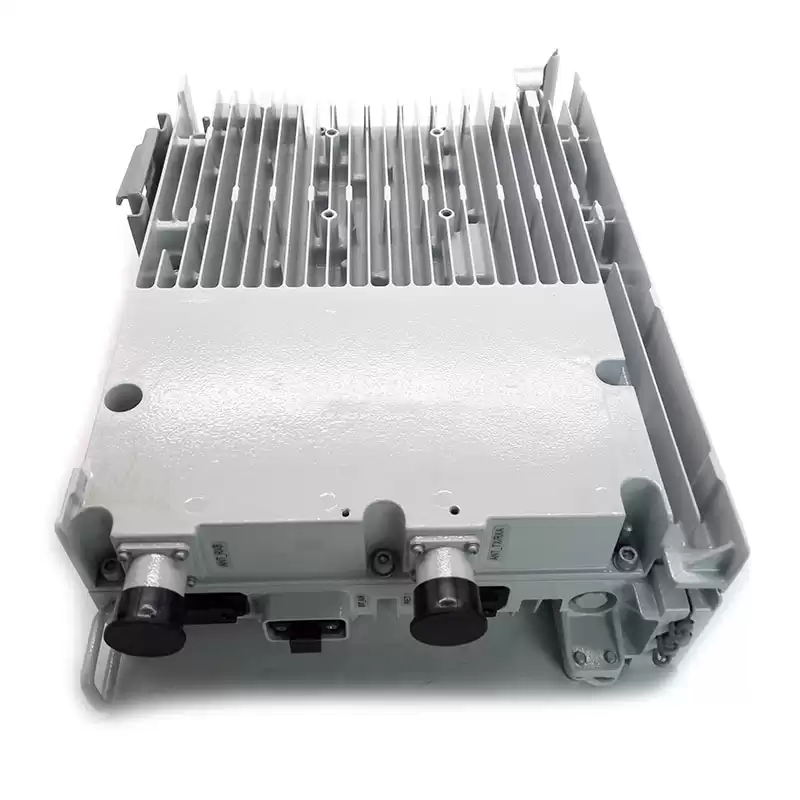

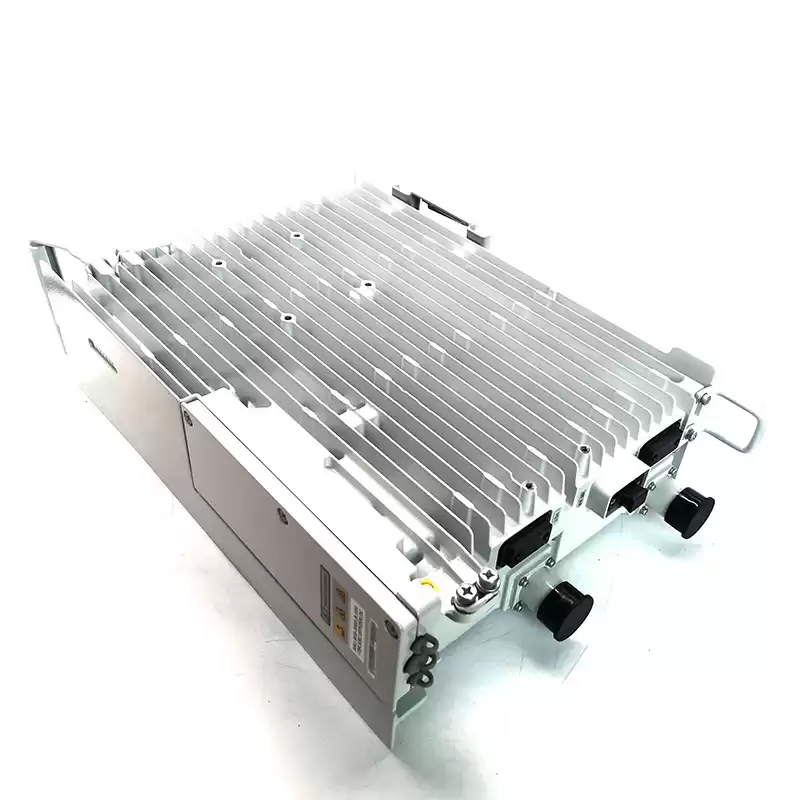

HUAWEI RRU3936 900MHz 02310MNP
Product Description
Modes and frequency bands supported by an RRU3936
|
Type
|
Capacity
|
Maximum Output Power
|
Typical Output Power
|
|
RRU3936 (850 MHz)
|
GSM: 8 carriers
UMTS: 6 carriers
LTE FDD: 2 carriers. The bandwidth per carrier is 1.4, 3, 5, 10, 15, or 20 MHz.
LTE NB-IoT: 1 carrier
|
1x80 W
|
For details, see Typical Power Configuration Reference for RRU (Excluding NB-IoT) and NB-IoT Typical Power Configurations (RRU).
|
|
RRU3936 (900 MHz)
|
GSM: 8 carriers
UMTS: 6 carriers
LTE FDD: 2 carriers. The bandwidth per carrier is 1.4, 3, 5, 10, 15, or 20 MHz.
LTE NB-IoT: 1 carrier
|
1x80W
|
For details, see Typical Power Configuration Reference for RRU (Excluding NB-IoT) and NB-IoT Typical Power Configurations (RRU).
|
|
RRU3936 (1900 MHz)
|
GSM: 8 carriers
UMTS: 6 carriers
LTE FDD: 2 carriers. The bandwidth per carrier is 1.4, 3, 5, 10, 15, or 20 MHz.
|
1x80W
|
For details, see Typical Power Configuration Reference for RRU (Excluding NB-IoT) .
|
|
RRU3936 (1800 MHz)
|
GSM: 8 carriers
LTE FDD: 2 carriers. The bandwidth per carrier is 1.4, 3, 5, 10, 15, or 20 MHz.
LTE NB-IoT: 1 carrier
|
1x80W
|
For details, see Typical Power Configuration Reference for RRU (Excluding NB-IoT) and NB-IoT Typical Power Configurations (RRU).
|
Receiver sensitivity of an RRU3936
|
Type
|
TX/RX Channel
|
Receiver Sensitivity with One Antenna (dBm)
|
Receiver Sensitivity with Two Antennas (dBm)
|
|
RRU3936
|
1T2R
|
GSM:
-
850 MHz: -113.4
-
900 PGSM: -113.7
-
900 EGSM: -113.7
-
1800 MHz: -114.0
-
1900 MHz: -113.7
UMTS:
-
850 MHz: -125.5
-
900 PGSM: -125.8
-
900 EGSM: -125.8
-
1900 MHz: -125.8
LTE FDD:
-
850 MHz: -106.0
-
900 PGSM: -106.3
-
900 EGSM: -106.3
-
1800 MHz: -106.6
-
1900 MHz: -106.3
LTE NB-IoT: -127.3
|
GSM:
-
850 MHz: -116.2
-
900 PGSM: -116.5
-
900 EGSM: -116.5
-
1800 MHz: -116.8
-
1900 MHz: -116.5
UMTS:
-
850 MHz: -128.3
-
900 PGSM: -128.6
-
900 EGSM: -128.6
-
1900 MHz: -128.6
LTE FDD:
-
850 MHz: -108.8
-
900 PGSM: -109.1
-
900 EGSM: -109.1
-
1800 MHz: -109.4
-
1900 MHz: -109.1
LTE NB-IoT: -130.1
|
Dimensions and weight of an RRU3936
|
Type
|
Dimensions (H x W x D)
|
Weight (kg)
|
|
RRU3936
|
400 mm x 300 mm x 100 mm (12 L, without the housing)
|
Product Details
Our Advantages
We have HUAWEI RRU3936-900 for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.
HUAWEI RRU3936-900, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.
HUAWEI RRU3936-900 represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
