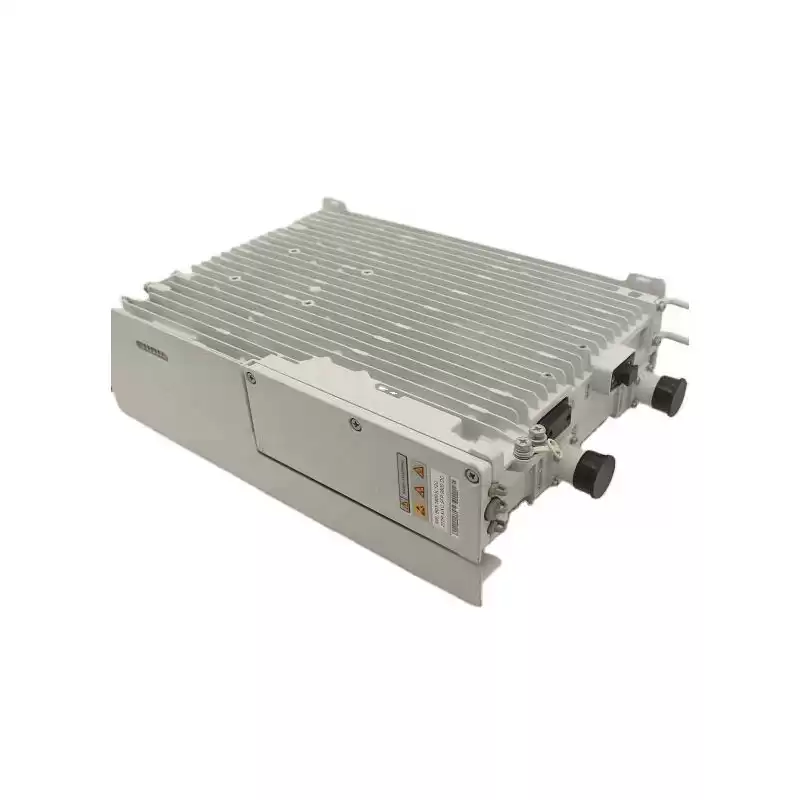

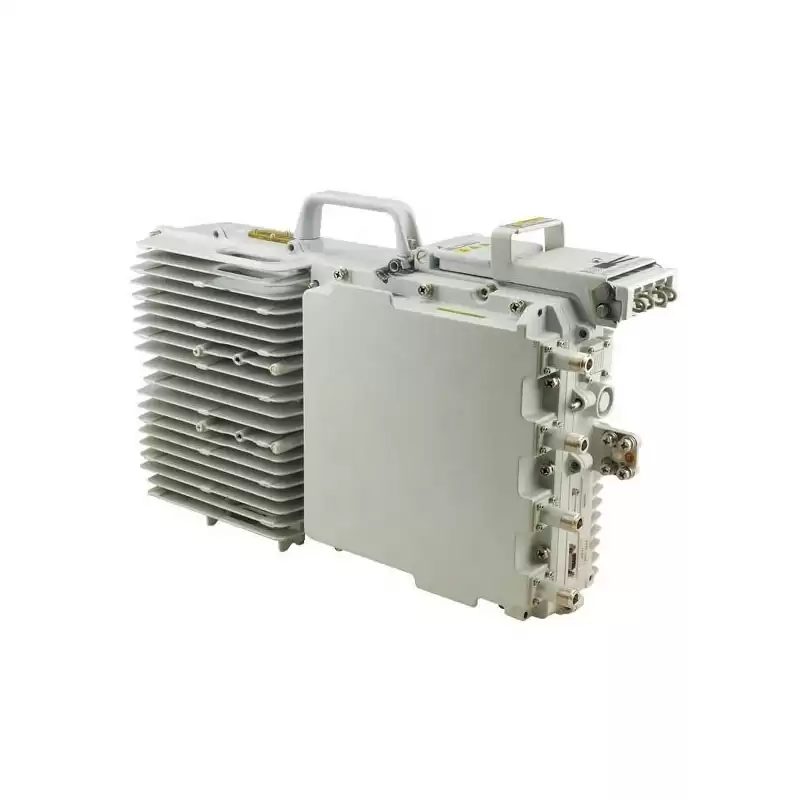

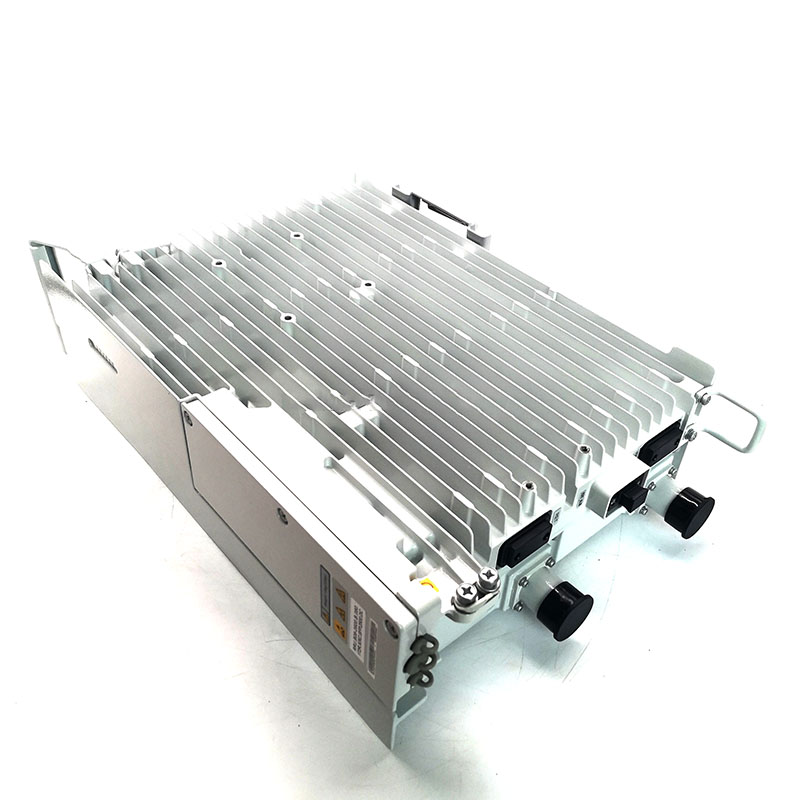

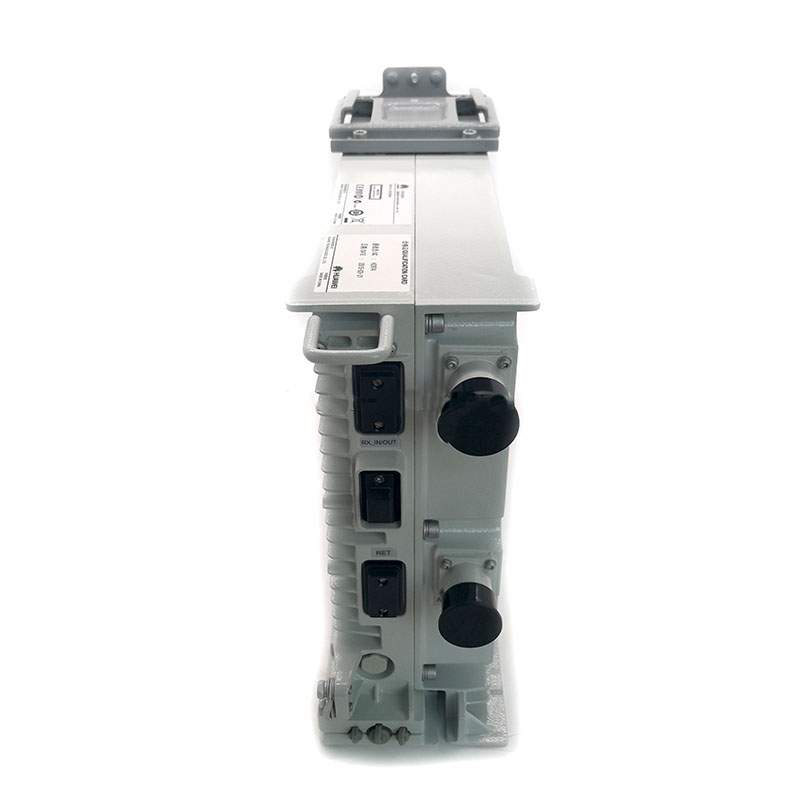

HUAWEI RRU3959 1800MHZ 2102311BBM for huawei rru 3959
Product Description
HUAWEI RRU3959 1800MHZ 2102311BBM for huawei rru 3959
HUAWEI GSM-R PRODUCTS
Base Station Sub-System
BTS3900/BTS3900A
BTS3900 is a indoor macro BTS and BTS3900A is for outdoor. This base station features greater transmit power, higher reliability
and LTE Evolution.
Frequency Band:
E-GSM: 880-915(35MHz)
ER-GSM 873-880(7 MHz)
Transmitting Diversity, 4-way Receiving Diversity
Top Power:
ER frequency band: 60W
E frequency band: 80W
Static receiving sensitivity: -112.5 dBm
Outdoor BTS3900A us of stronger acclimatization: -40℃~+50℃, IP55 protection lever
DBS3900
The DBS3900 GSM features a distributed architecture and consists of two basic fuction modules: BBU and RRU.
These basic modules can be flexibly configured to meet requurements for different capacities and in different application
scenarios for GSM network.
RRU
Frequency 900M EGSM/ 900M RGSM
Sensitivity:-113dBm/1-Way Receiver -116 dBm/2-Way Receiver
TOC: 30W per TRX
Protection level: IP65
Temperature: -40℃~+50℃(without solar radiation)
BBU
Weight: 7 to 12KG
Capacity: 36 TRXs
Power Consumption: 50W
Protection level: IP20
Temperature: -20℃~+50℃
BSC6000
BSC6000 is responsible for radio resource management, base station management and power control.
Max equivalent BHCA: 5,900 k
Traffic volume: 24,000
Number of TRXs: 2,048
Number of configuren PDCHs: 30,720
Gb interface through put: 1,536 Mbit/s
Power consumption:≤3200W
Network Sub-System
eCNS300
The eCN300 depliys all CN NEs of GSM-R in single cabinet, including MSC Server, UMG and HLR based on the unified ATCA platform.
Futhermore eCNS300 is evolution for LTE.
The typical configuaration is MSC Server, eHLR, and eUMG sharing one subrack.
Specification is:
Maximum subscribers: 50000
System Reliability:≥99.999%
Weight: ≤200KG
Power Consumption: ≤2200W(housing MSC server + eHLR + eUMG)
USN9810
Huawei USN9810 is a unified service node that can be deployed in Evolved Packet Core(EPC) systems.
ATCA platform
Maximum subscribers: 12,000,000
Maximum bearers: 24,000,000
Number of eNodesBs: 50000
Number of S-GWs and P-GWs: 4096
Weight:
UGW9811
The Huawei proprietary UGW9811(UGW9811) is a unified packet gateway that can be deployed in Evolved Packet Core(EPC) systems, it
provides the functionalities of serving gateway(S-GW), PND gateway(P-GW).
Maximum bearers: 5,000,000(SPUs in active/standby mode)
Maximum data throughput: 120 Gbit/s(SPUs in active/standby mode)
Maximum APNs: 3,000
Maximum eNodeBs: 100,000
Weight: Dimensions:(H)2200mm x (W)600mm x (D)800 mm
Operation Support System
iManager U2000
The iManager U2000 centrally manages Huawei mobile network elements(NEs), including BSS and NSS. The U2000 provides basic
functions, such as configuration management, performance management, fauly management, security management, log management,
topology management, software managementm and system management. It also provides various optionak functions.
Product Details
Our Advantages
We have Huawei RRU3959-1800 for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.
Huawei RRU3959-1800, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.
Huawei RRU3959-1800 represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
