Huawei SD4 SSD1SD4 SS63SD4 SS63SD401-S4.1 for HUAWEI SD4 2500 Metro 3000 Metro3000
Product Description
|
Valid Slot
|
|
The SS63SD4(S-4.1,SC) can be installed in slot IU4–IU9 in the Metro 3000 subrack.
|
|
Feature Code
|
|
The number code that follows the board name in the bar code is the feature code of the board. The feature code of the SS63SD4(S-4.1,SC) indicates the type of optical interface.
|
|
Board
|
Feature Code
|
Type of Optical Interface
|
|
SS63SD401
|
01
|
S-4.1
|
|
Optical Interface Parameter
|
|
Nominal bit rate
|
622.08 Mbit/s
|
|
Line code pattern
|
NRZ
|
|
Application code
|
S-4.1
|
|
Maximum transmission distance(km)
|
15
|
|
Operating wavelength(nm)
|
1310
|
|
Launched optical power range (dBm)
|
–8 to –15
|
|
Receiver sensitivity (dBm)
|
-28
|
|
Least Overload (dBm)
|
-8
|
|
Power consumption(W)
|
21
|
|
Mechanical Specifications
|
|
Dimensions (mm)
|
340 (H) x 32 (W) x 218.5 (D)
|
|
Weight (kg)
|
0.77
|

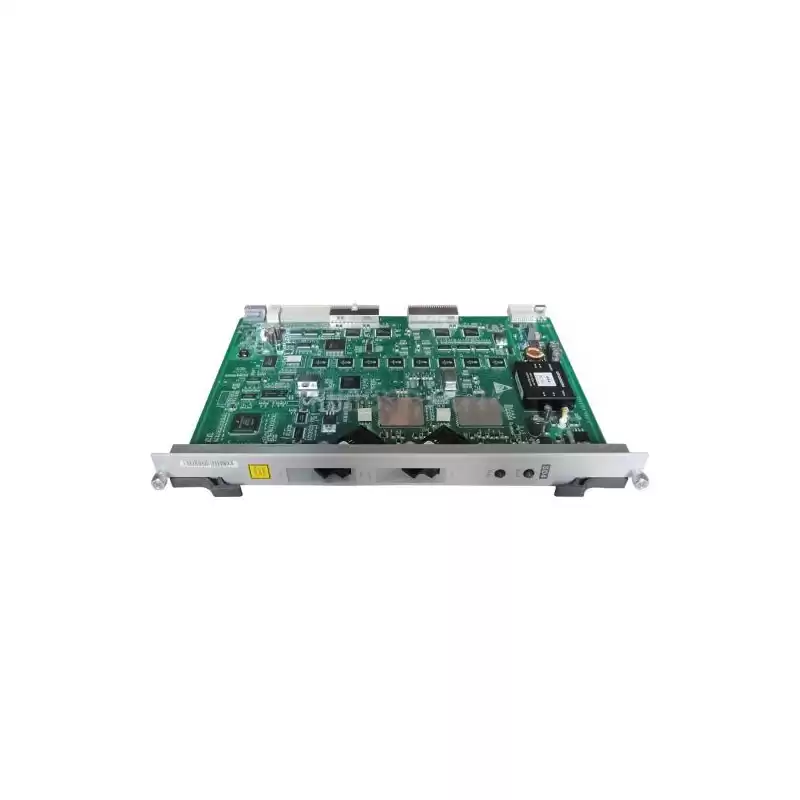

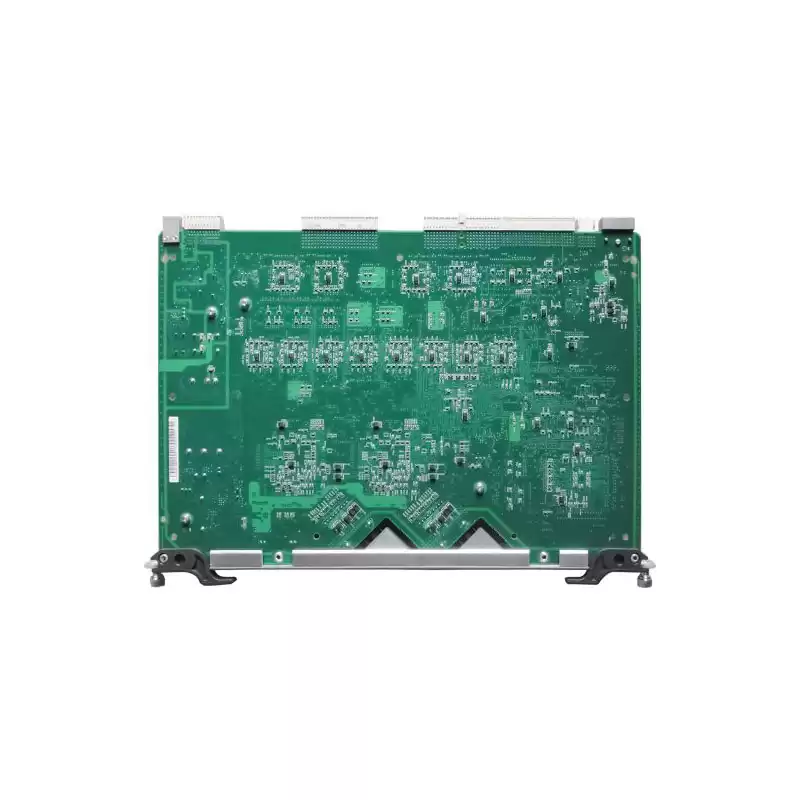

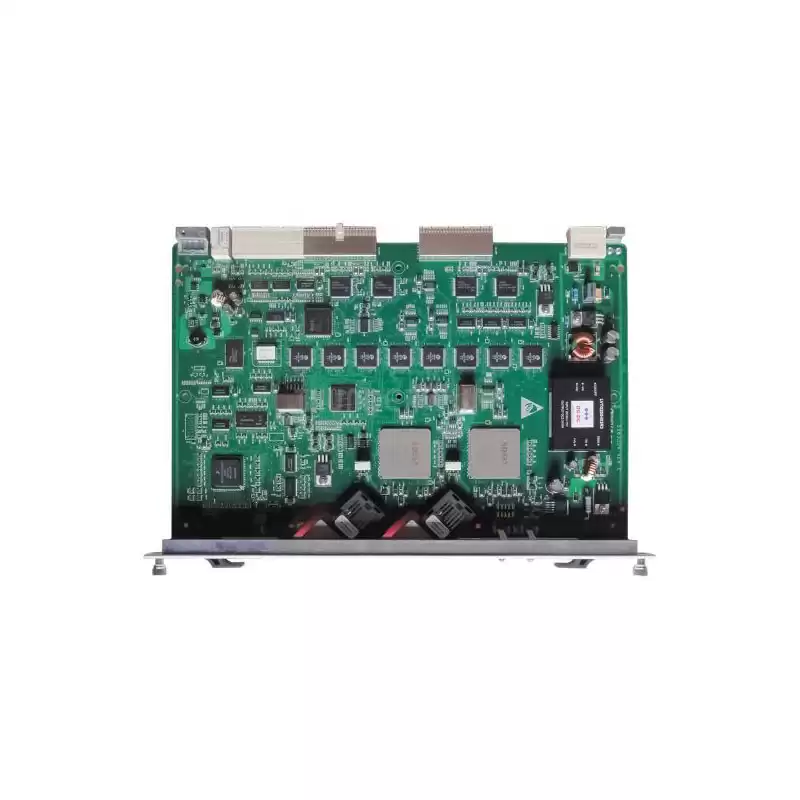

2xSTM-4 Optical Interface Board(S-4.1,SC)
Apply to Huawei Metro 3000 to transmit/receive 2xSTM-4 optical signals, at Max distance 15km.
Supports VC-4-4C concatenated service.
SS63SD4(S-4.1,SC) is a 2-ports STM-4 optical interface board, can be used on Huawei Metro3000. SS63SD4(S-4.1,SC) part number is 03034096, model name is SS63SD401. SS63SD4(S-4.1,SC) comes with 2 units S-4.1 SFP module, transmission distance is 15km. SFP module is swappable to perform different transmission distance.
