Huawei SDH SLQ16 N1SLQ16 N2SLQ16 N4SLQ16 SSN1SLQ16 SSN2SLQ16 SSN4SLQ16 OSN 3500

SSN2SLQ16 is a 4-ports STM-16 optical interface board, can be used

on Huawei OSN3500, OSN7500. SSN2SLQ16(L-16.1,LC) part number is

03030DFS, model name is SSN2SLQ16(L-16.1,LC) comes with 4 unit.


  • warranty time:six months
  • Delivery Time:3-5 days
  • Price:Negotiable
  • Min.Order Quantity:1 pc
  • Place of Origin:China
  • Payment Terms:T/T, Western Union, MoneyGram

Huawei SDH SLQ16 N1SLQ16 N2SLQ16 N4SLQ16 SSN1SLQ16 SSN2SLQ16 SSN4SLQ16 OSN 3500

Product Description

Apply to the Huawei OptiX OSN 3500, OSN 7500 to transmit and receive 4xSTM-16 optical signals, transit 15~40km.

Supports the AU-3 services.

Supports the TCM function

Can be substituted by the N1SLQ16(L-16.1,LC),when the AU-3 services and TCM function are not required

Supports the detection and query of the information about the optical module.

Supports the ALS function. The optical interface supports the setting of the on/off state of a laser.

Supports the usage and detection of the SFP optical module.

Supports the VC-12, VC-3, VC-4 and VC-4-4c, VC-4-8c and VC-4-16c concatenation services.

Supports the AU-3 services.

Supports the configuration of the D1-D12, E1, and E2 bytes as transparent transmission bytes.

Supports the transparent transmission and termination of the path overheads.

Supports the setting and query of the J0, J1, J2, and C2 bytes.

Supports one to four channels of ECC communication.

Supports the Two-fiber ring MSP, Four-fiber ring MSP, Linear MSP, SNCP, SNCMP, SNCTP.

Supports the fiber-shared virtual trail protection.

Supports the fiber-shared MSP and processes eight sets of K bytes.

Supports inloops and outloops at optical interfaces.

Supports warm resets and cold resets. The warm reset does not affect services.

Supports the query of the manufacturing information of the board.

Supports the in-service loading of the FPGA.

Supports the upgrade of the board software without affecting services.

Supports the press-to-collect function in fault data collection.

Supports the TCM function.

Product Details

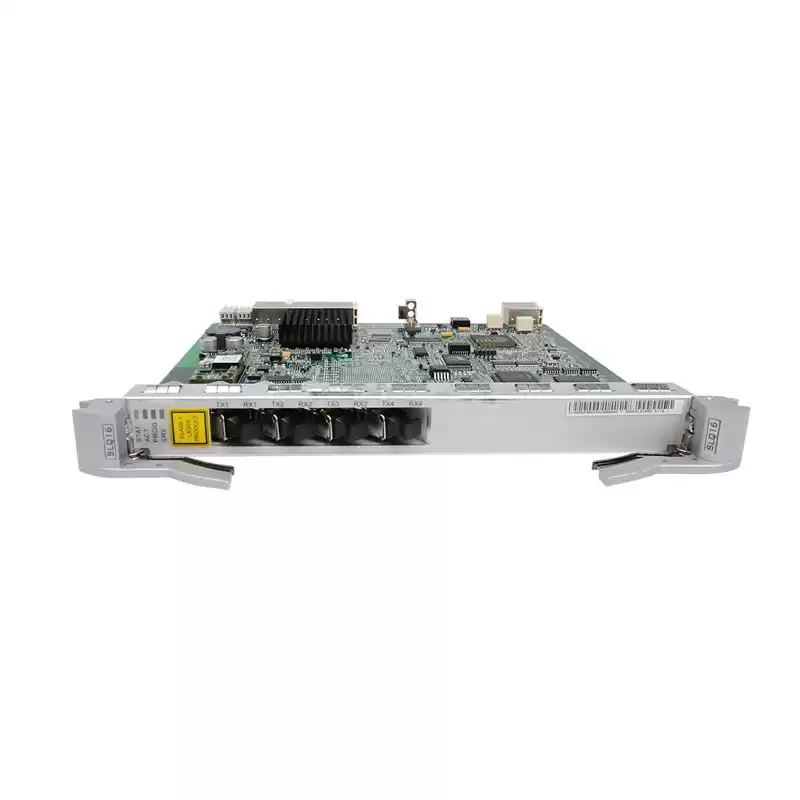

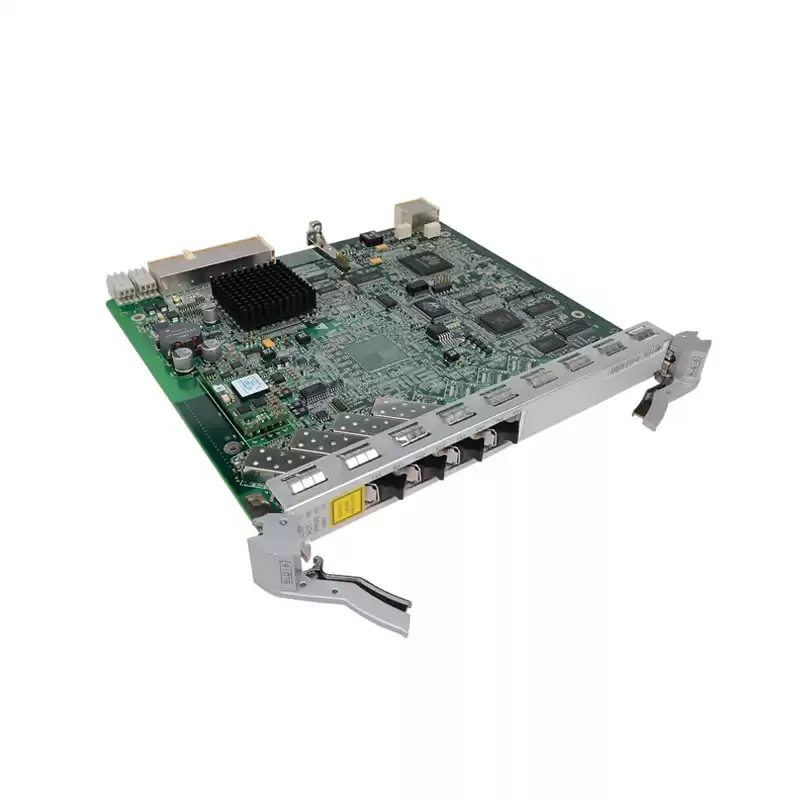

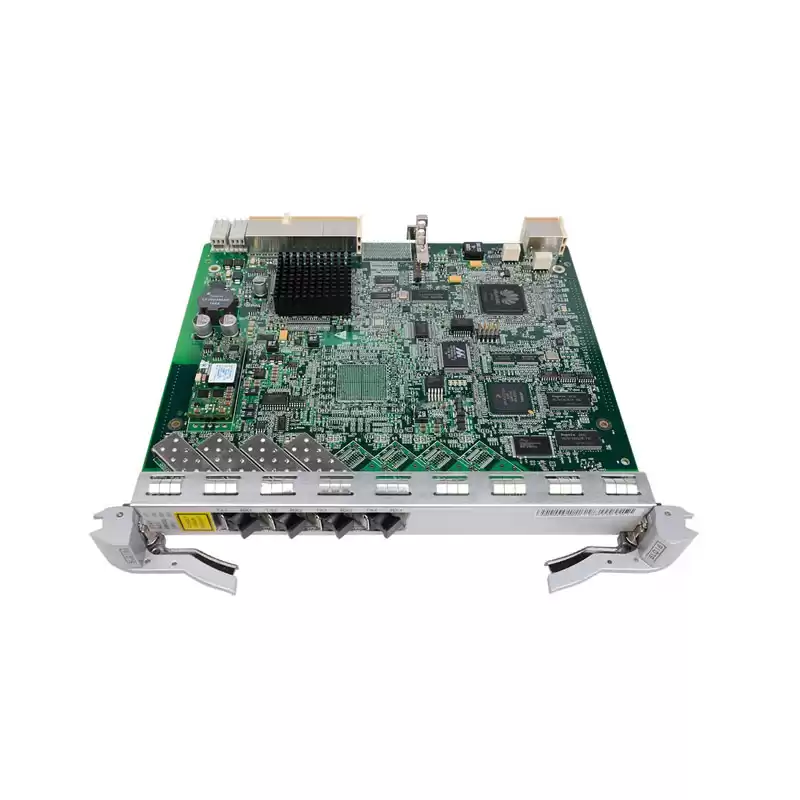

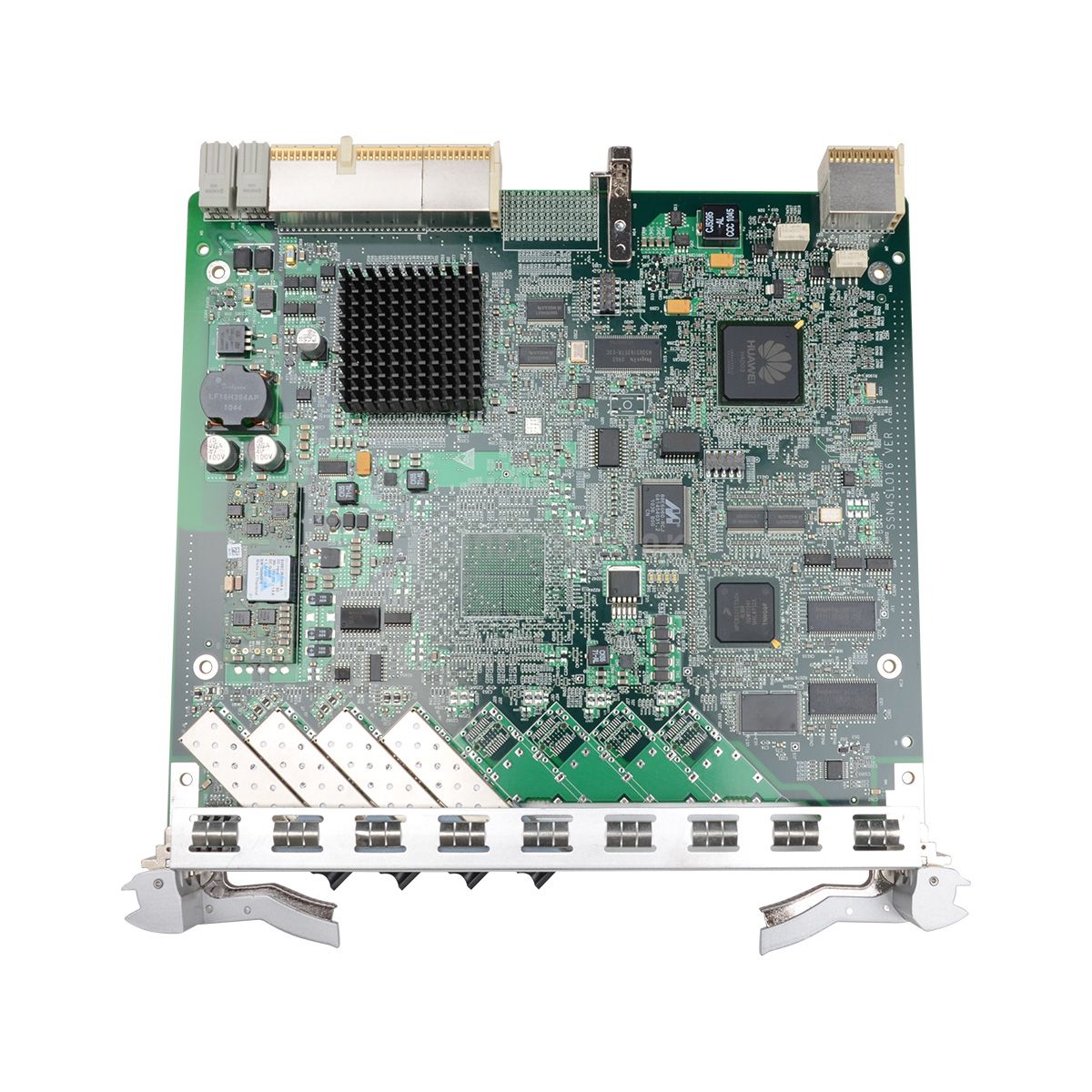

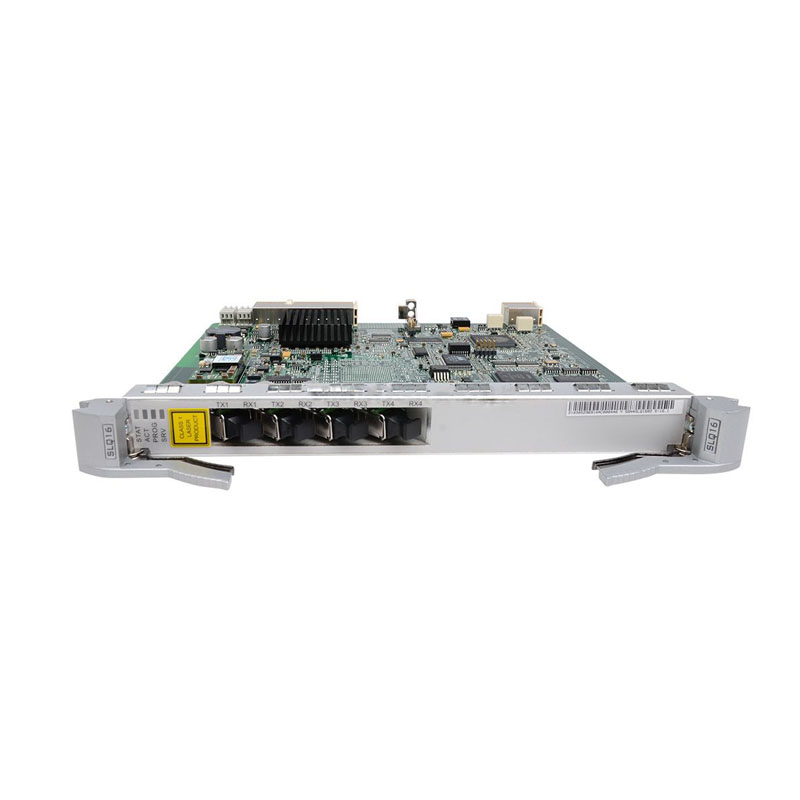

Huawei SLQ16

Huawei SLQ16

Our Advantages

We have Huawei SSN2SLQ16 for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.


Huawei SSN2SLQ16, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.


Huawei SSN2SLQ16 represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.


Product Tags Huawei SLQ16          SLQ16          Huawei SSN2SLQ16          SSN2SLQ16
