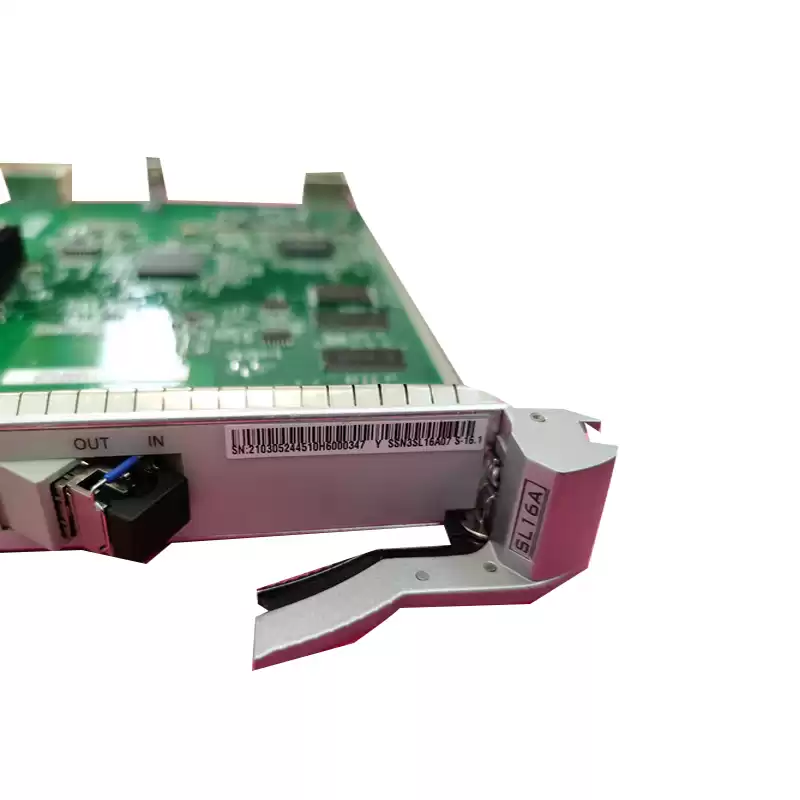

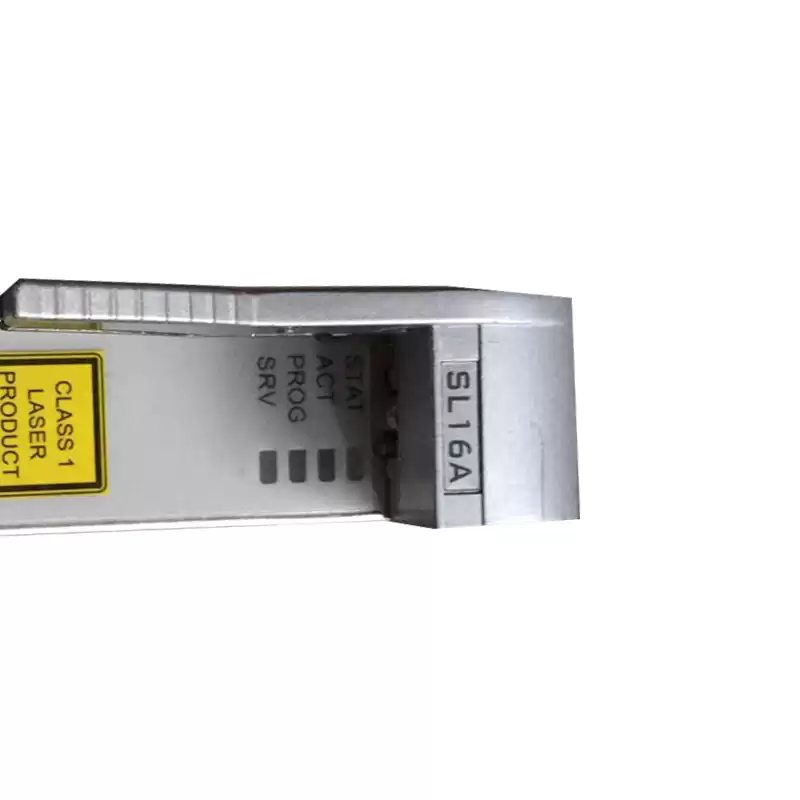

HUAWEI SL16 SSN3SL1608 STM-16 Optical Interface Board(V-16.2Je,LC) for OSN2500 OSN3500 OSN7500
Product Description
Huawei SSN3SL16A Board Product Overview
Huawei SSN3SL16A Board is an optical interface board, which can be used on the OptiX OSN7 500 / OSN3500 / OSN2500 / OSN1500 series equipment to realize the reception and transmission of one STM-16 optical signal. Through this board, Huawei SL16A sends the received optical signals to the cross-side after 0 / E conversion, and at the same time, the cross-side electrical signals are sent after E / O conversion. The SDH line board can form a ring network or a chain network with the SLD16 and SLQ16 optical boards in the system.

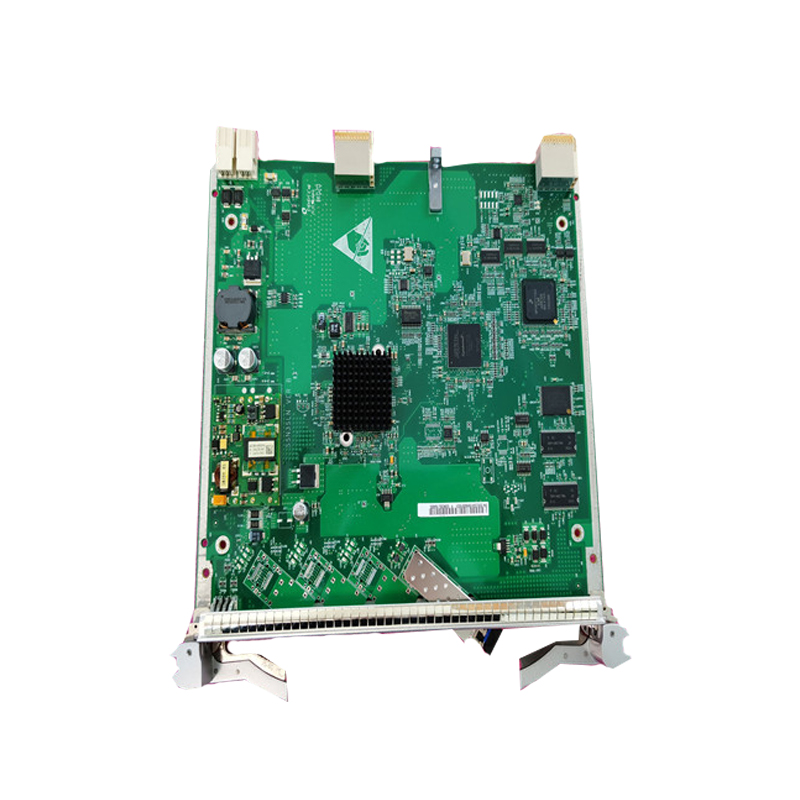

The Huawei SL16A board consists of a photoelectric conversion module, a MUX / DEMUX module, an SDH overhead processing module, a logic control module, and a power module.
|
Functions and features
|
Description
|
|
Basic skills
|
Receive and send 1 STM-16 optical signal.
|
|
Optical interface specifications
|
Supports L-16.2, L-16.2Je, V-16.2Je (plus BA), U-16.2Je (plus BA and PA) optical interfaces, of which the characteristics of the L-16.2 optical interface comply with ITU-T G.957 and ITU- T G.692 is recommended. The optical interfaces of L-16.2Je, V-16.2Je (plus BA) and U-16.2Je (plus BA and PA) are Huawei’s custom standards. U-16.2Je is compatible with U-16.2.
|
|
Supports standard wavelength output that complies with ITU-T G.692 recommendations. The U-16.2Je optical interface can directly access DWDM (Dense Wavelength Division Multiplexing) equipment.
|
|
N3SL16 supports DWDM color optical interface, and the optical interface adopts LC connector. DWDM optical interface supports 170km and 640km transmission distance.
|
|
Optical module specifications
|
Supports optical module information detection and query.
|
|
The optical interface provides laser on and off settings and automatic laser shutdown.
|
|
Service
|
Supports VC-12 / VC-3 / VC-4 services and VC-4-4c, VC-4-8c, and VC-4-16c cascade services.
|
|
N2SL16 supports AU-3 service processing.
|
|
Supports segment overhead processing for STM-16 signals.
|
|
Supports channel overhead processing (transparent transmission and termination).
|
|
Supports setting and querying J0 / J1 / C2 bytes.
|
|
Overhead processing
|
Support 1 ECC communication.
|
|
Alerts and performance
|
|
Provides a wealth of alarms and performance events to facilitate equipment management and maintenance.
|
|
|
REG specifications
|
|
Protection method
|
Supports two-fiber multiplex section ring protection, four-fiber multiplex section ring protection, linear multiplex section protection, SNCP protection, SNCMP and SNCTP and other protection methods.
|
|
|
Support MSP and SNCP shared optical path protection. It provides two sets of K-byte processing capabilities, and one SL16 board supports up to two MSP rings.
|
Huawei SSN3SL16A Board Product Feature
Supports optical loop-level inner loopback and outer loopback functions.
Supports VC-4 channel inner loopback function; SSN3SL16A supports VC-4 channel inner loopback function and outer loopback function.
Supports soft reset and hard reset. Soft reset does not affect services.
Support query function of single-board manufacturing information.
Support FPGA online loading function.
N2SL16A and N3SL16A support TCM function.
Supports the smooth upgrade of single-board software.
Support PRBS function.
Supports one-click data collection.
