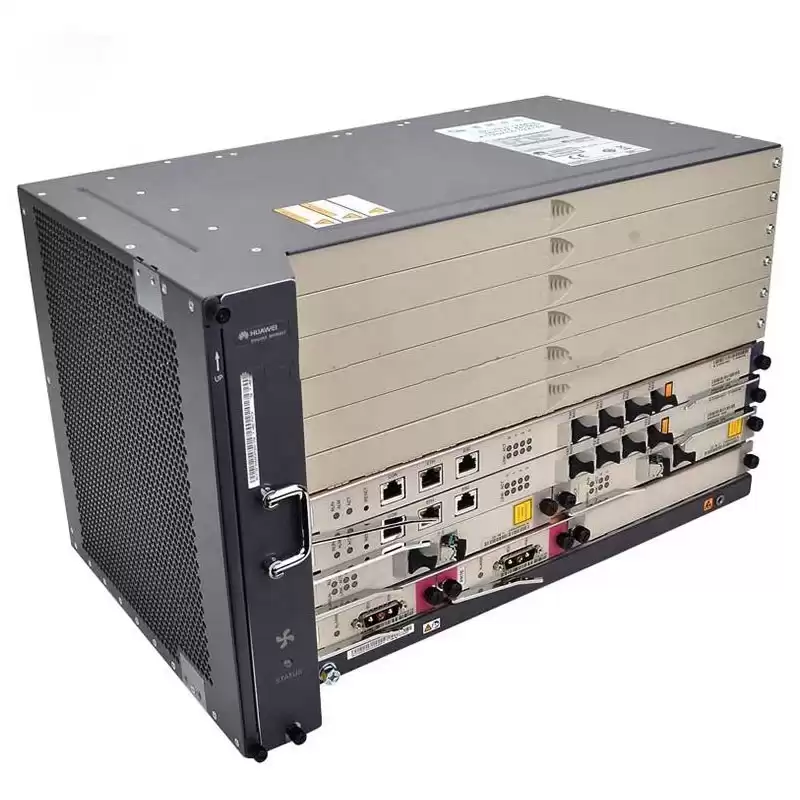

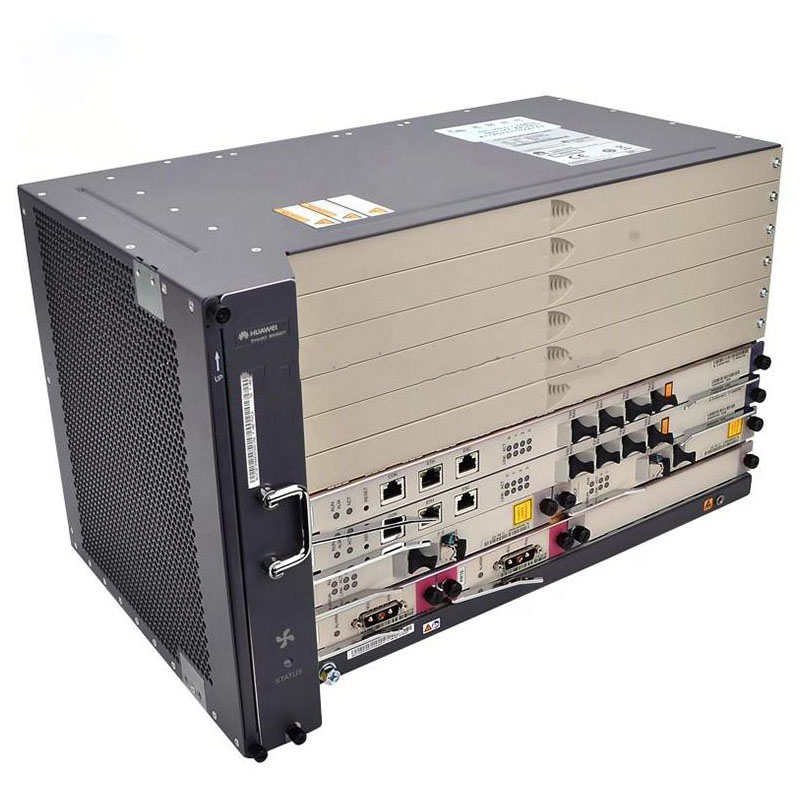

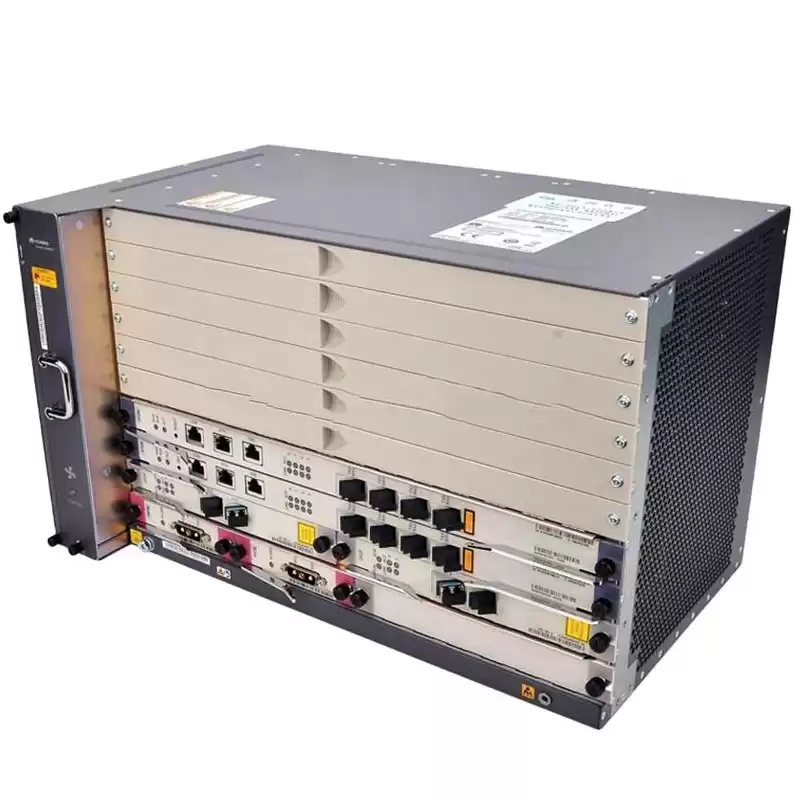

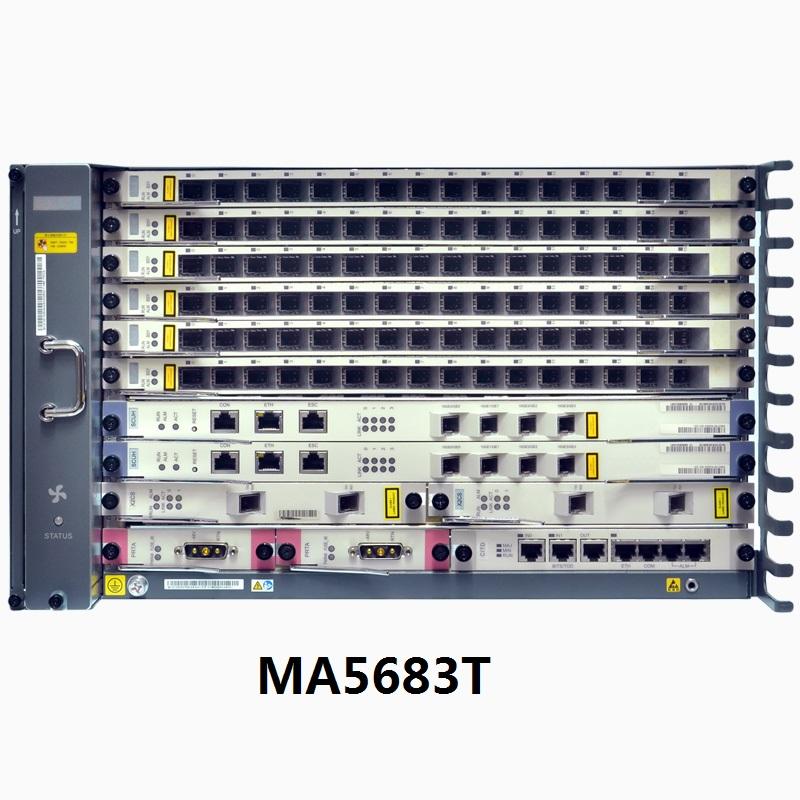

Huawei SmartAX MA5683T OLT
Product Description
|
|
|
|
|
|
Main control board slot
|
6, 7
|
|
|
|
Service board slot
|
0～5
|
|
physical parameters
|
|
Upstream board slot
|
8, 9
|
|
W*D*H (without mounting ears)
|
442mm × 283.2mm × 263.9mm
|
Common Interface Board Slots
|
12
|
|
W*D*H (with IEC mounting ears)
|
482.6mm × 283.2mm × 263.9mm
|
Power interface board slot
|
10, 11
|
|
W*D*H (with ETSC mounting
|
535mm × 283.2mm × 263.9mm
|
Upstream/Cascade Port
|
|
|
full weight
|
19.8kg
|
Number of GE/10GE ports (dual-master upstream)
|
SCUN/SCUK: 8*GE (load sharing)
SCUH: 8*GE/10GE (load sharing)
|
|
|
|
|
Power supply
|
DC
|
Number of GE/FE ports
|
288
|
|
Rated voltage
|
-48V/-60V
|
Number of 10GE ports
|
N/A
|
|
Operating voltage range
|
-38.4V ～ -72V
|
Number of GPON ports
|
96
|
|
Maximum input current
|
20A
|
Number of XG-PON ports
|
N/A
|
|
Environmental parameters
|
|
Number of XGS-PON ports
|
N/A
|
|
Working ambient temperature
|
-40℃～+65℃
|
Number of EPON ports
|
96
|
|
Working ambient Normal start
|
-25℃～+65℃
|
Number of 10G EPON ports
|
48
|
|
Working environment
|
5%RH～95%RH
|
|
|
|
Air pressure environment
|
70kPa～106kPa
|
|
|
|
Altitude
|
≤4000 m
|
|
|
SmartAX MA5683T is the global first all-in-one access platform which can provide DSL and optical integrated access. It can provide high density ADSL2+, VDSL2, POTS, ISDN, PON and Ethernet fiber P2P access, triple-play service, and TDM/ATM/Ethernet leased line services for business customers.
The MA5683T can also offer mobile backhaul with high reliability and high precision clock, and high density GE/10GE interfaces for cascading remote access equipments. MA5683T helps to simplify network architecture, to enable seamless migration in FTTx network and lower TCO essentially.
Any Access
Support multiple access methods, VDSL2/ADSL2+/G.SHDSL/POTS/ISDN/ PON/Ethernet P2P;
Support multiple scenarios: FTTC / FTTB / FTTH / FTTO / FTTM.
Any Service
Large capacity IPTV service provision, 8K multicast users and 4K multicast channels;
H-QoS support 3-level QoS (Different ISP/service/user) guaranteeing OLT wholesale;
Traditional E1 service access, NATIVE TDM or CESoP for traditional E1 service of enterprise and mobile backhaul.
System performance
Backplane capacity: 3.2 Tbit/s; switching capacity: 960 Gbit/s; MAC address capacity: 512 K.
Layer 2/Layer 3 line rate forwarding.
Static route/RIP/OSPF/MPLS.
Product
Details
Our Advantages
We have Huawei MA5683T for
sale, including refurbished and new ones, and the price is usually 90% lower
than the original supplier's price. Our super fast turnaround time and
high-quality inventory all over the world mean that we can accurately deliver
the products replaced on the same day to the place where they are needed, and
minimize network downtime.
Huawei MA5683T like all our hardware,
takes comprehensive warranty as the standard. Whether you need new products or
renovated products, we only purchase green market equipment of the highest
quality and environmental protection. All these are provided at the best
possible price, and a large amount of cost-effectiveness will be directly
passed on to you.
Huawei MA5683T represents only one
product in our world-class hardware portfolio. The portfolio includes very
well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel,
Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much
for sharing with customers.
