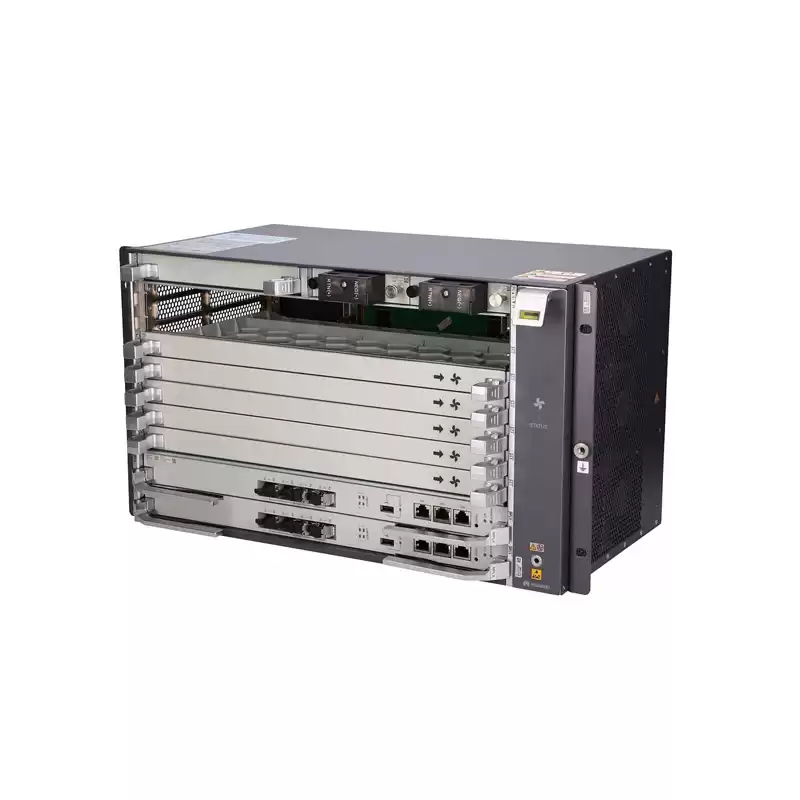

Huawei SmartAX MA5800 X7 OLT
Product Description
|
MA5800-X7 Multi-service Access Module
|
|
Main Equipment
|
|
Frame
|
|
H90Z1BPMB
|
IEC Service Shelf, 6 fan
|
|
Main Control Board & Pinch Board Module
|
|
H901MPLB
|
Main Processing Board MPLB
|
|
PON Access Board Module
|
|
H901GPHF
|
16-port Advanced GPON OLT Interface Board
|
|
H901GPSF
|
16-port GPON OLT Interface Board
|
|
10G G/EPON Board Module
|
|
H901XGHD
|
8-port Advanced 10G GPON OLT Interface Board
|
|
H901TWED
|
8-port Enhanced TWDM PON OLT Interface Board
|
|
Optical Module
|
|
10GE Optical Module(SFP+)
|
|
OMXD30001
|
Optical transceiver,SFP+,850nm,10Gb/s,-7.3~-1dBm,-9.9dBm,LC, MM,0.3km
|
|
GPON Optical Module
|
|
OSX002003
|
PON Transceiver,SFP,1490nm(Tx)/1310nm(Rx),2488M(Tx)/1244M(Rx), 3dBm,7dBm,-32dBm,SC/UPC Compatible with SC/PC,SM
|
|
10G GPON Optical Module
|
|
OSG10G3001
|
PON Transceiver,SFP+,1270nm(RX)/1577nm(Tx),2.488Gbps(Up)/9.95328Gbps(Down), 4dBm,8dBm,-29.5dBm,SC/UPC Compatible with SC/PC,SM
|
|
OSG10G3003
|
PON Transceiver,XFP,1577nm(Tx)/1270nm(RX),9.953Gb/s(Down)9.953Gb/s(Up)&2.488Gb/s(Up), 2dBm,6dBm,-28dBm,SC/UPC,SM,20km
|
|
Power Module
|
|
H901PILA
|
Connect Power Board
|
|
Installation Material
|
|
Fiber Suite,MA5800,External Fiber Cable Suite
|
|
External Optical Fiber Set(LC-LC)
|
|
SS-OP-D-LC-M-10
|
Patch cord-LC/PC-LC/PC-Multimode-A1b-2mm-10m-PVC-Orange
|
|
External Optical Fiber Set(SC-SC)
|
|
SS-OP-D-SC-S-20
|
Patch cord-SC/PC-SC/PC-Single mode-G.652D-3mm-20m-PVC-Yellow
|
|
External Cable Suite,MA5800,External Power Cable
|
|
C0DF1D800
|
Power Cable,1.8m,10mm^2,2*T10^2W,H07Z-K-10^2B+H07Z-K-10^2BL,2*OT10-6,LSZH
|
|
CPOWCAB02
|
Power Cable,0.85m,16mm^2,Yellow&Green,OT16-6,H07Z-K-16^2Y&G,OT16-6,LSZH
|
|
Blank Panel
|
|
H80XBP0YWB01
|
Air Deflector Panel for Service Board Slot (Shielded)
|
|
H80XBPGPIO01
|
Blank Panel for GPIO Slot (Shielded)
|
|
Rack Mounting & Other Auxiliary Materials
|
|
H80B000DFK02
|
Cabling Channel
|
|
Software Charges (Software&License)
|
|
NDSSMULSUB22
|
Per Multicast Subscriber License
|
|
H80S000ONT09
|
ONT Access License, Based on Per ONT
|
|
H80S00GPON09
|
GPON Port License,Based on per GPON Port
|
|
H80S010GPON12
|
10G PON Port License,Based on per 10G PON Port
|
|
H90MPLB017
|
MPLB V100R017 System Software Package
|
Huawei SmartAX MA5800 X7 OLT Product Features
Huawei MA5800-X7 uses PON/P2P to realize unified access and convergence of any media of optical fiber, copper wire and cable, and evolve the independent access network of multiple media into a unified access network to achieve unified access, convergence and management , Simplify network architecture and operation and maintenance.
Support PON/P2P full service access, one optical network supports full scene access such as home, enterprise, and mobile backhaul.
The functions of OLT and aggregation switches are integrated to simplify the network hierarchy, reduce space and energy consumption, and reduce OPEX.
The service board adopts programmable NP architecture, supports SDN-based intelligent services, and supports rapid deployment of new services.
Support virtual access network function, realize multi-service intelligent operation or develop network wholesale business, and provide better business experience.

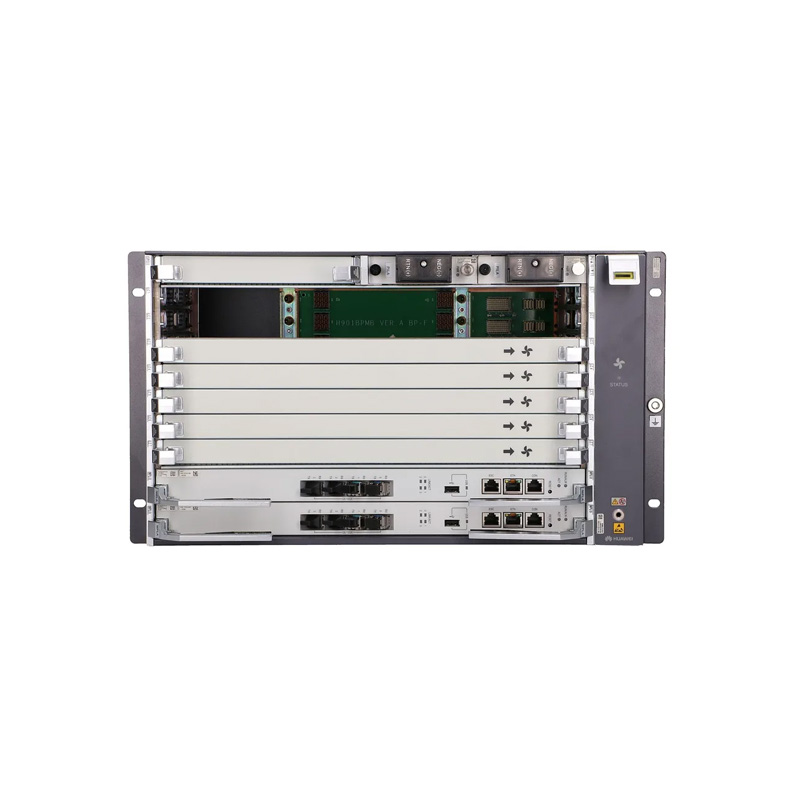

The MA5800-X7 service frame provides 12 slots, including 2 main control board slots, 2 power supply board slots, 1 general interface board slot, and 7 service board slots.
The backplane supported by the MA5800-X7 service frame is H901BPMB.

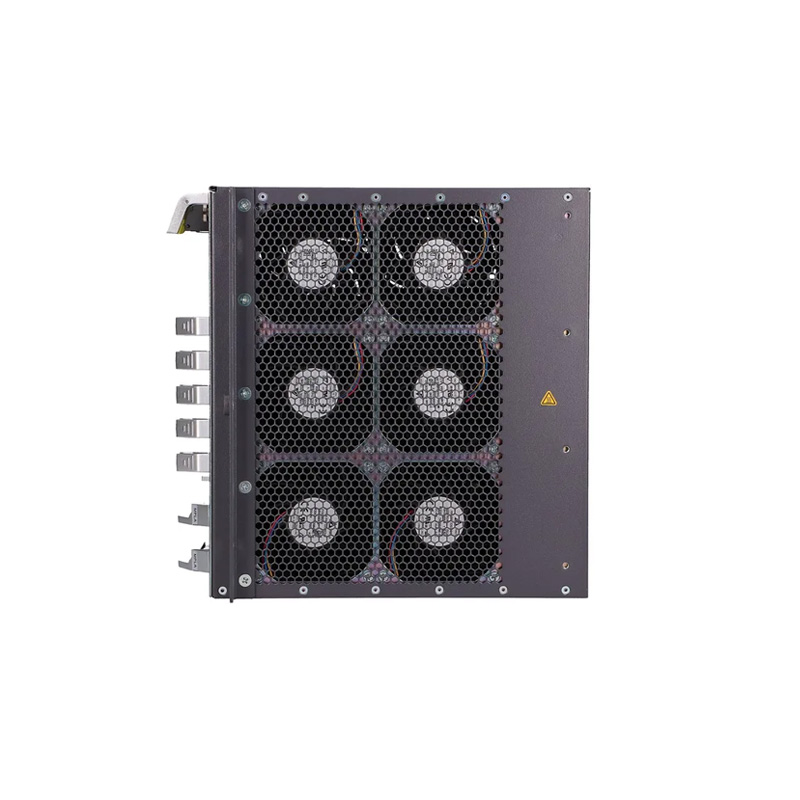

The fan frame of the Huawei MA5800-X7 business frame is equipped with 6 fans and the H901FMMA fan monitoring board, which has the functions of heat dissipation, monitoring, and speed regulation to ensure that the device works at a stable temperature.
