Huawei SSN1EAS2 OSN3500 Osn7500 2-Ports 10G Processing Board
Product Description
Huawei SSN1EAS2 Board Product Overview

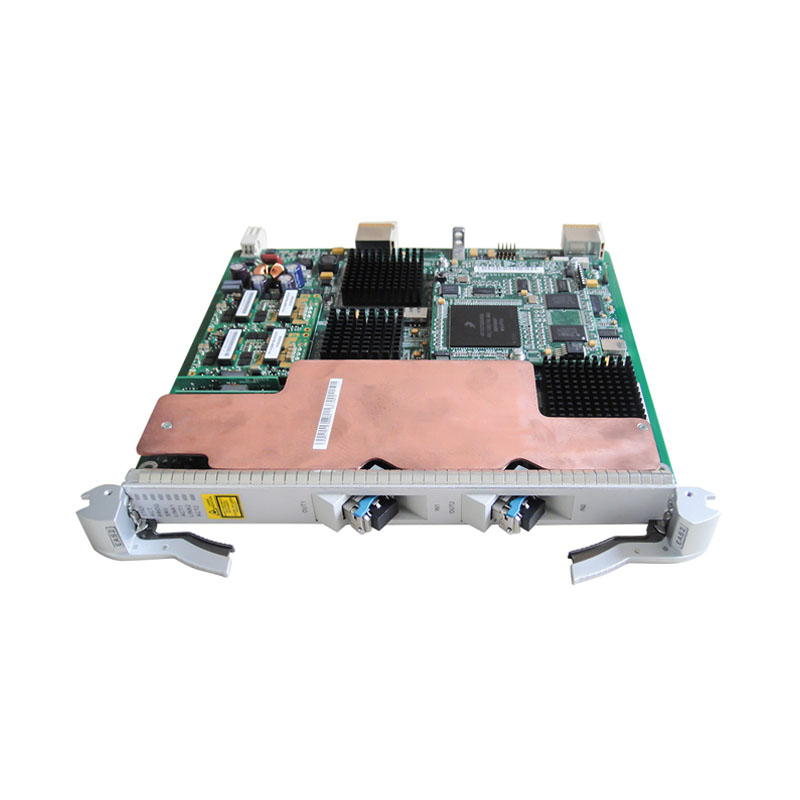

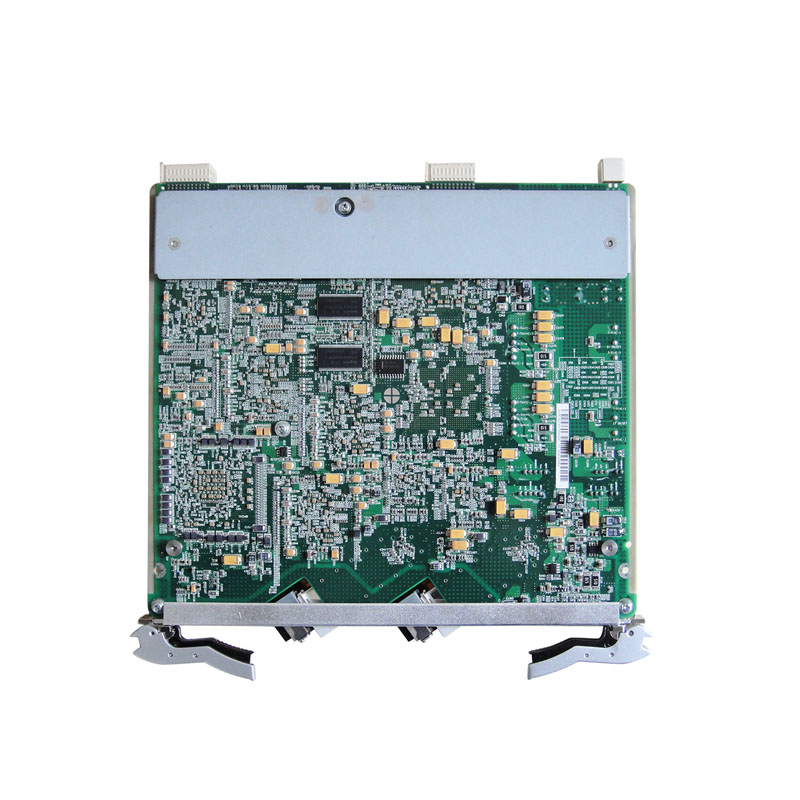

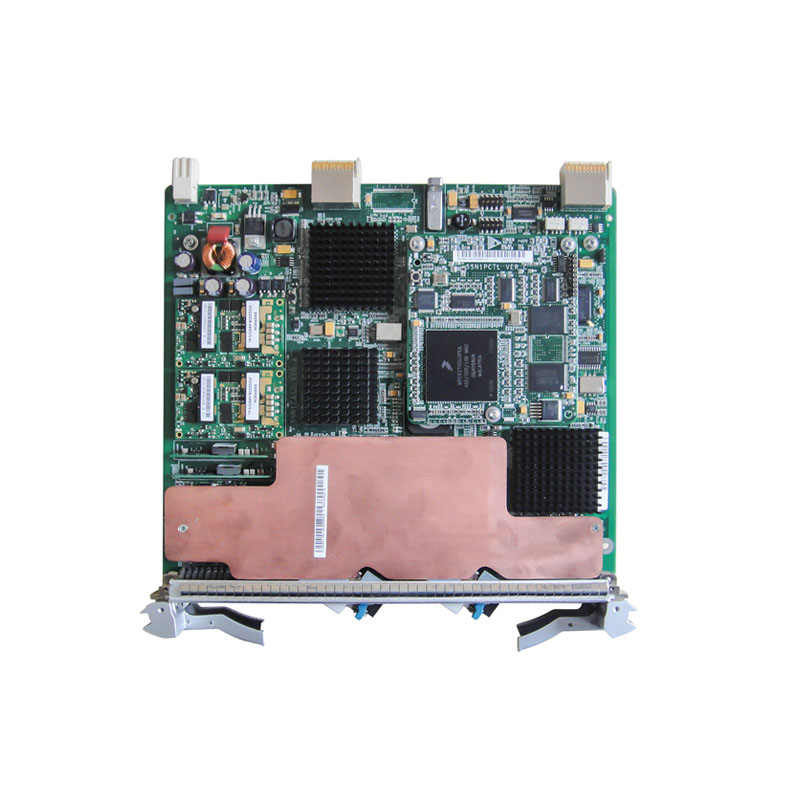

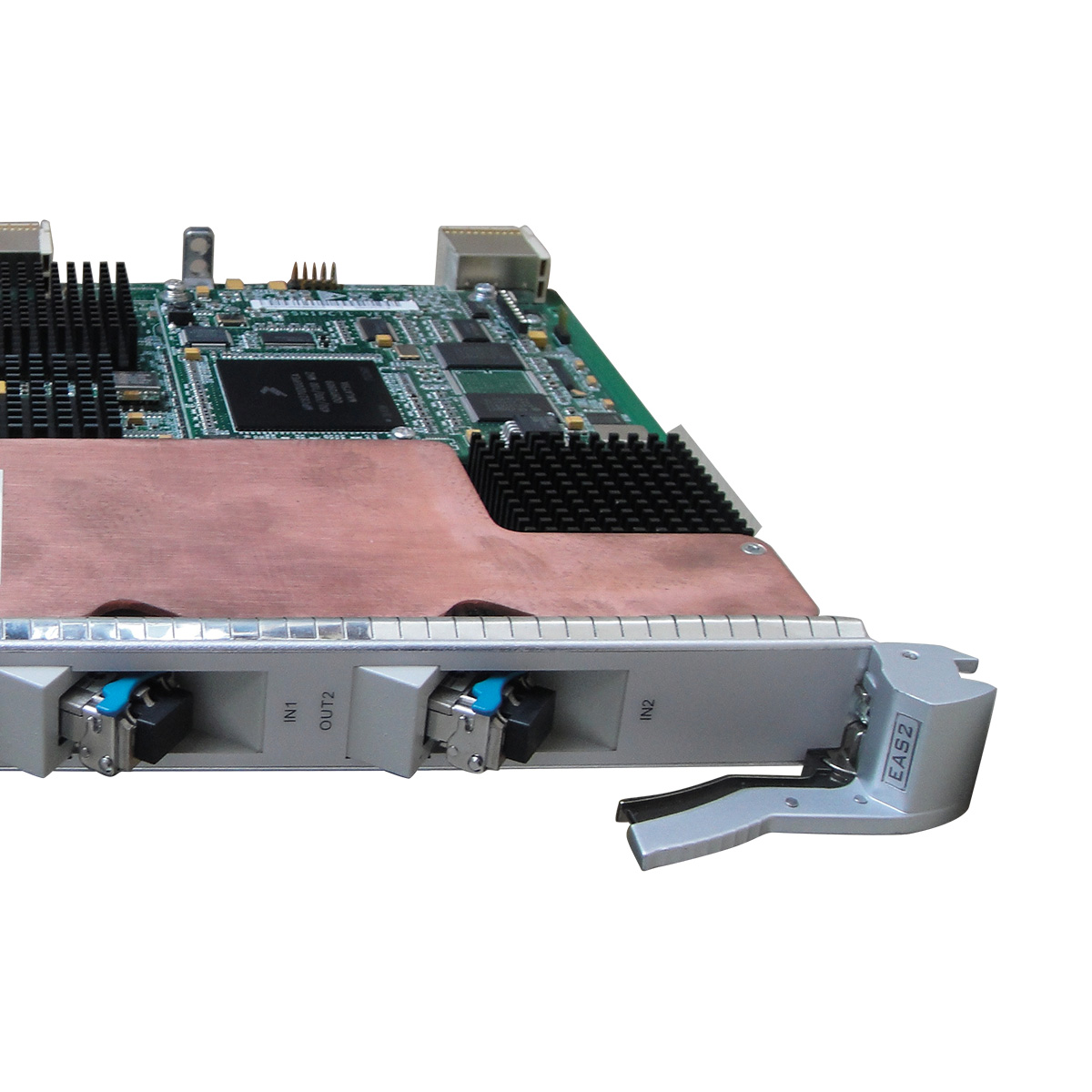

Huawei SSN1EAS2 Board is two 10G Ethernet switching boards for OSN3500 OSN7500.It handles two 10GE services and uses the panel to go directly. Support 10GE Ethernet service access capabilities, LCAS and test frames and other functions and features.
Interface type: 10GBASE-LR, 10GBASE-LW Ethernet optical interface, meeting IEEE 802.3ae standard.
Huawei SSN1EAS2 Board supports 10GE full-duplex WAN and 10GE full-duplex LAN andalso auto-negotiation port flow control, port status query / configuration, interface type query. SSN1EAS2: supports XFP pluggable optical modules. SSN3EAS2: supports SFP + pluggable optical modules. SSN3EAS2 supports single-fiber bidirectional optical modules. Support 4094 VLAN tags, VLAN technology meets IEEE 802.1q / p standard.
Huawei SSN1EAS2 Board Product Feature
EVPL Service
Supports EVPL business sharing PORT.
Support the EVPL service of sharing VCTRUNK.
It supports a maximum of 2048 LINK services, and SSN3EAS2 supports a maximum of 4096 LINK services.
EPLAN Service
SSN1EAS2: The maximum number of VBs supported is one, and the maximum number of logical ports per VB is 26.
SSN3EAS2: The maximum number of supported VBs is 1, and each VB logical port has a maximum of 19 (slot bandwidth 10Gbit / s) or 36 (slot bandwidth 20Gbit / s).
Support to query the actual learned MAC address by VB + VLAN or VB + LP.
Support EPLAN service based on IEEE 802.1d MAC bridge.
Maximum bonding bandwidth
SSN1EAS2: 64xVC-4 or 192xVC-3
SSN3EAS2: 128xVC-4
The Huawei EAS2 board needs to be inserted into the corresponding slot of the Huawei OSN3500 subrack as required, otherwise the board will not work properly.
The SSN1EAS2 board can be inserted into slot 5 to slot 8, slot 11 to slot 14 of the OSN3500 subrack, and the bandwidth is 10 Gbit / s. The SSN3EAS2 board can be inserted into slot 5 ~ slot 6, slot 13 ~ slot 14, and bandwidth 10Gbit / s; slot 7 ~ slot 8, slot 11 ~ slot 12, bandwidth 20Gbit / s.
Product Details
Our Advantages
We have Huawei EAS2 for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.
Huawei EAS2, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.
Huawei EAS2 represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
