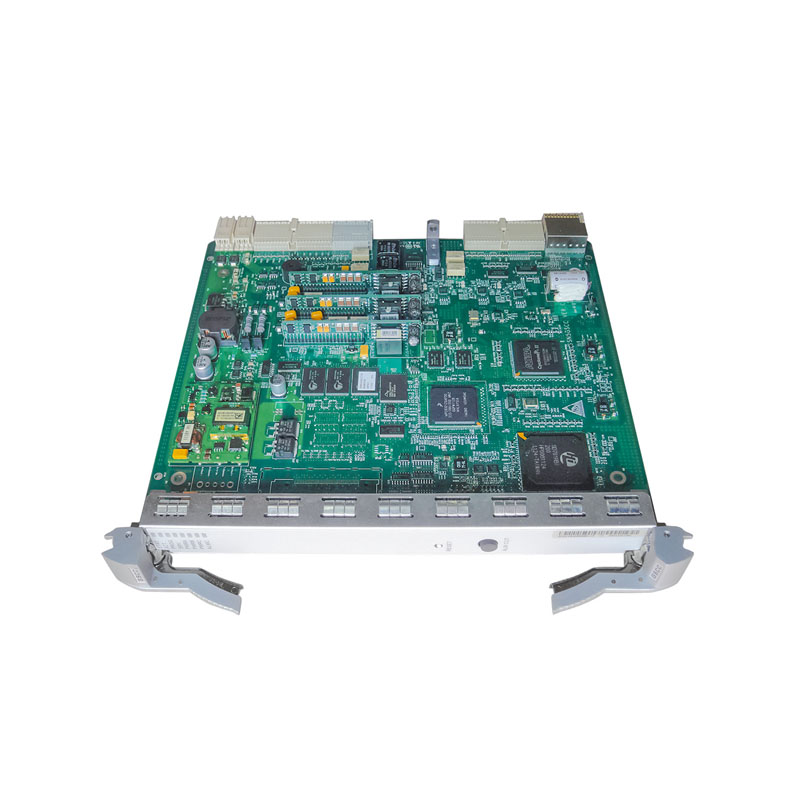

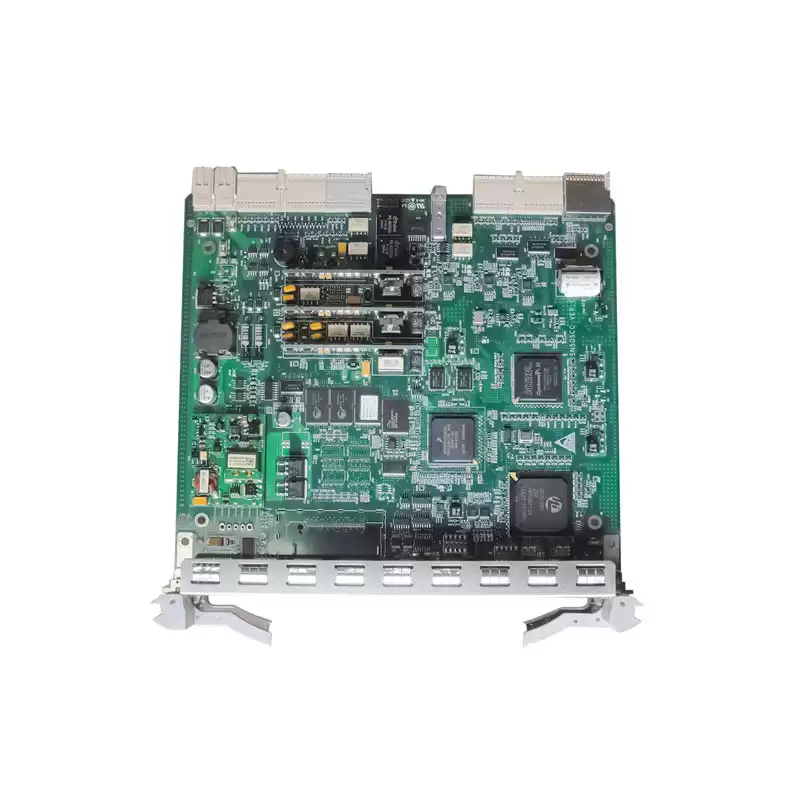

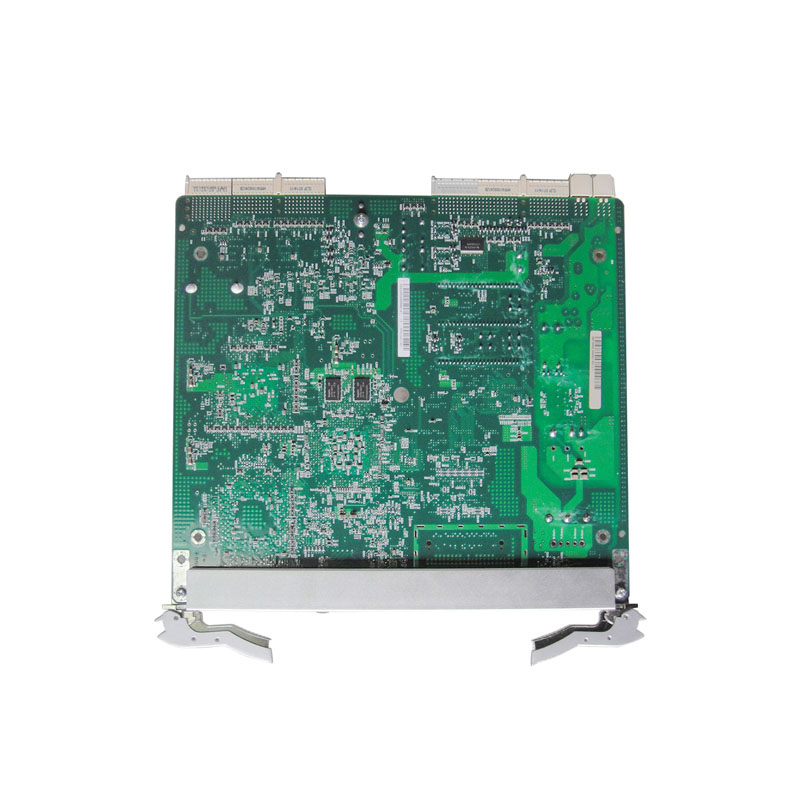

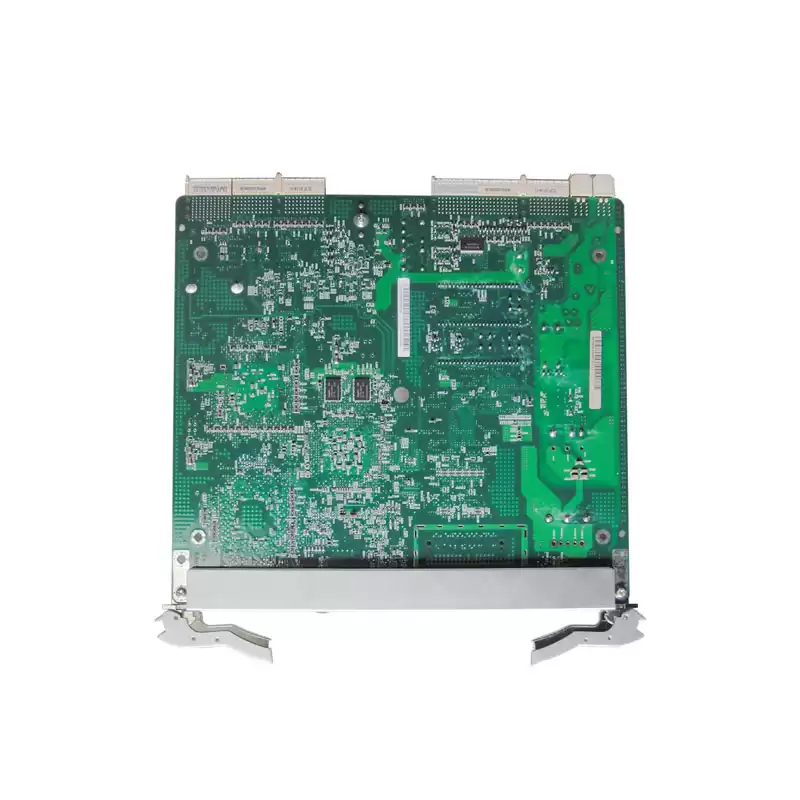

Huawei SSN1GSCC 03037064 Optix OSN 3500 System Control Board
Product Description
SSN1GSCC is a Main Control board for Huawei OSN3500, provide system control, orderwire, communication and system power supply monitoring. Part number is 03026645, Normally configure as 1+1 redundancy.
System Control and Communication Board
Huawei OSN3500 System Control and Communication Board
Supports channel types of D1-D1, D1-D3, and D4-D12.
Processes the E1, E2, F1, and serial1–4 bytes.
Supports the monitoring of the –48 V or –60 V power supply.
Supports the in-service check function and the failure check function.
Supports the 1+1 Hot Backup for the SCC Unit protection schemes.
Supports one channel of ECC communication.
Supports service performance monitoring and collects information about the performance events and alarms.
Provides 16 alarm inputs and four alarm outputs through the AUX.
Controls the four cabinet indicators through the AUX.
Supports intelligent fan speed control and manages the fan alarms.
Supports simulation package loading and diffused loading.
Product Details
Our Advantages
We have Huawei SSN1GSCC for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.
Huawei SSN1GSCC , like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.
Huawei SSN1GSCC represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
