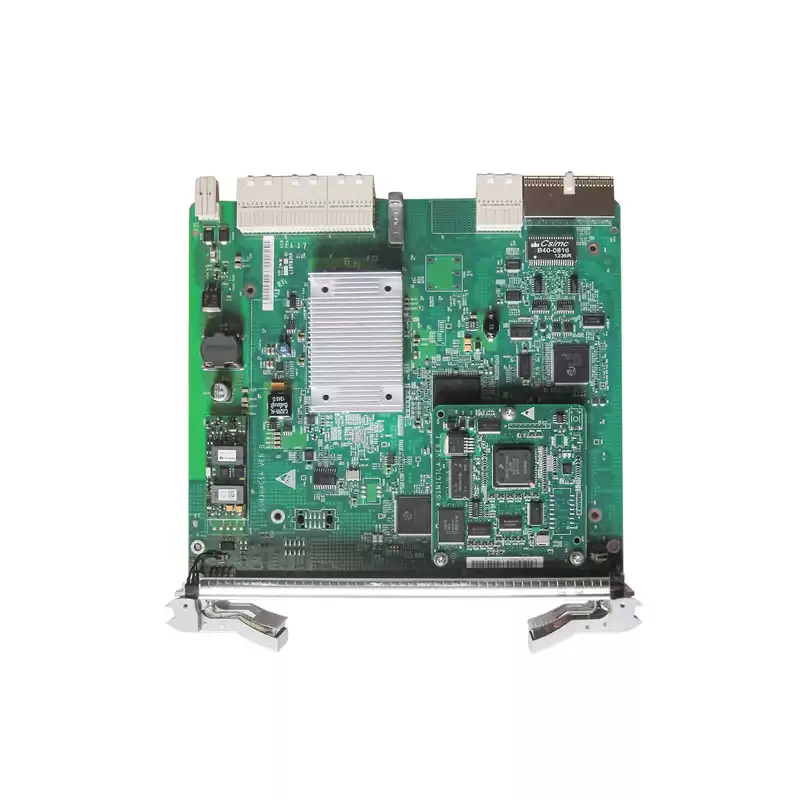

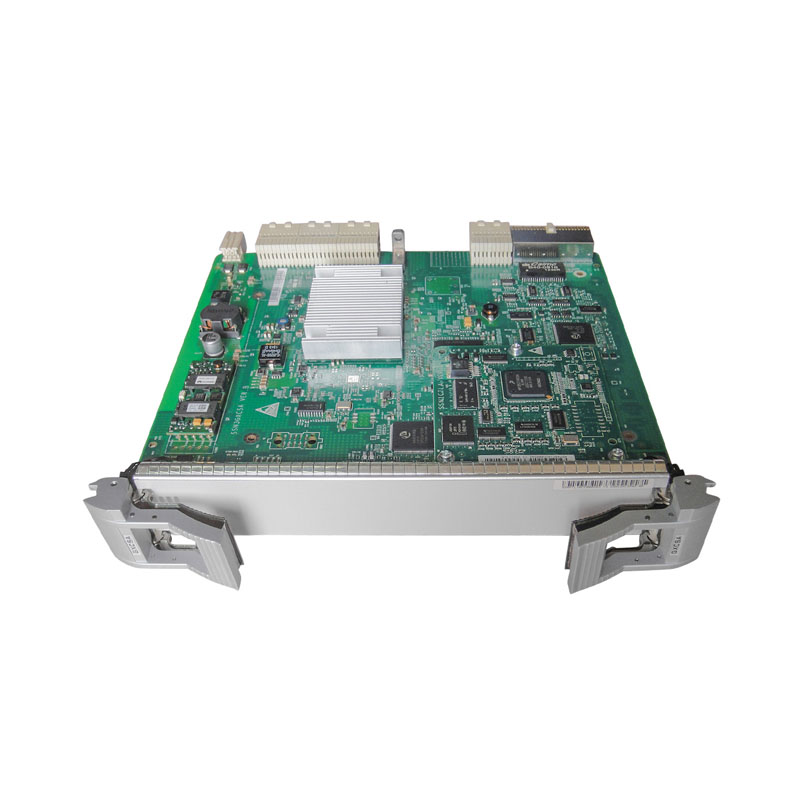

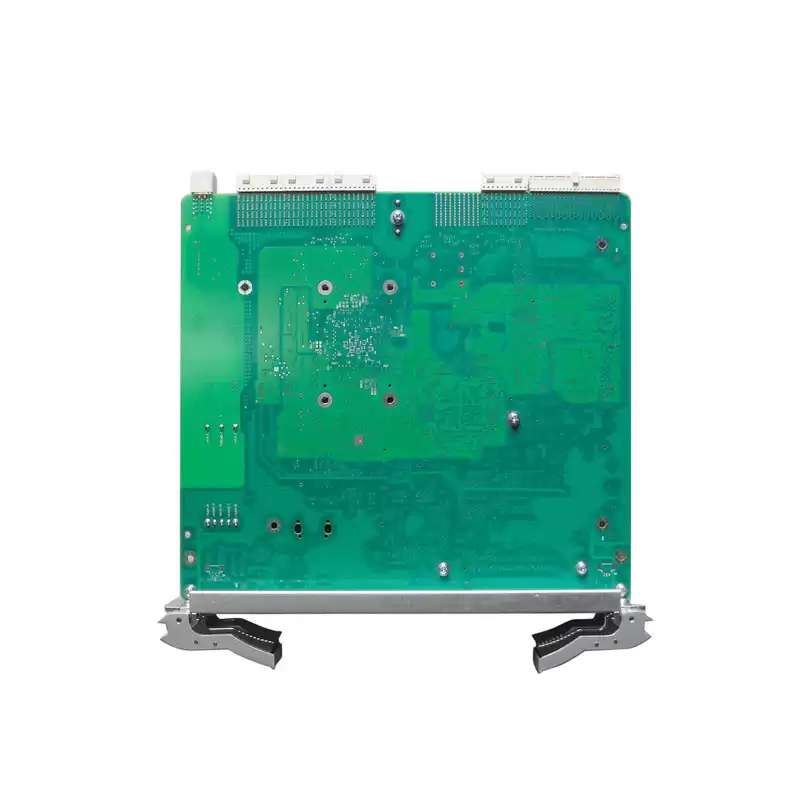

HUAWEI SSN1GXCSA OSN3500 General Synchronous Timing unit
Product Description
GXCSA is a General Cross-Connect board for Huawei OSN3500, provide 40G High order, 5G Low order Cross-Connect capacity and 35G Access capacity. GXCSA have N1 version, part number is 03020MTL.
Huawei OSN3500 General Cross-Connect unit and Synchronous Timing unit
Higher order cross-connect capacity: 40 Gbit/s.
Lower order cross-connect capacity: 5 Gbit/s.
Access capacity: 35 Gbit/s.
Supports the SNCP protection at the VC-4-4c, VC-4-8c, VC-4-16c, VC-4-64c, VC-4, VC-12, VC-3, and AU-3 levels.
Supports VC-4-4c, VC-4-8c, VC-4-16c, and VC-4-64c concatenation services.
Supports a maximum of 40 linear MSP protection groups.
Supports a maximum of 12 ring MSP protection groups.
Supports the standard system synchronization clock.
Supports the processing of the S1 byte to realize the clock protection switching.
Supports the extraction, insertion, and management of the SSM and clock ID.
Supports the 1+1 Hot Backup for the Cross-Connect and Timing Units protection schemes.
Product Details
Our Advantages
We have Huawei SSN1GXCSA for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.
Huawei SSN1GXCSA, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.
Huawei SSN1GXCSA represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
