HUAWEI SSN1PFL1 03053866 OSN3500 Optical Processing Board
Product Description
Processes E1 optical signals and overhead, and supports alarms, performance events, and maintenance functions.
Includes client-side receive/transmit module, mapping/de-mapping module, interface conversion module, logic and control module, clock module and power supply module.
The PFL1 as a PDH processing board, which can be used on the OptiX OSN series of equipment to receive/transmit and process 8xE1 optical signals.

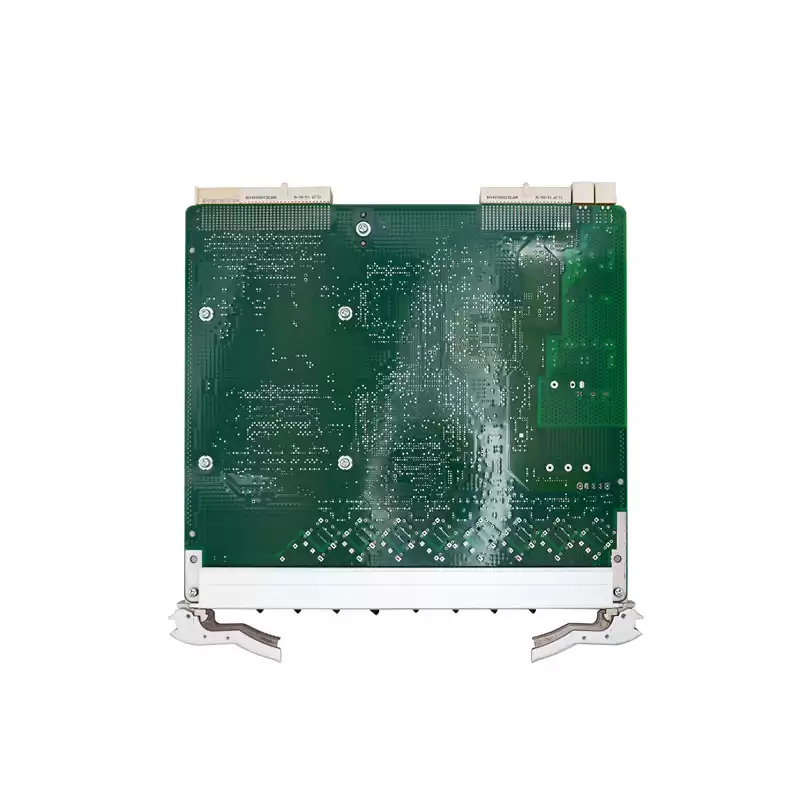

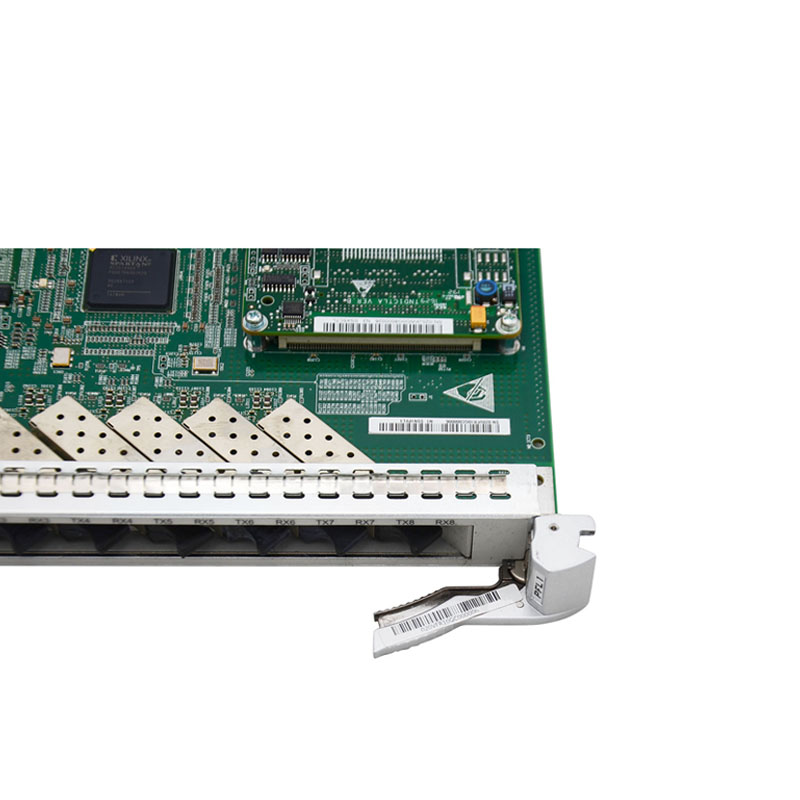

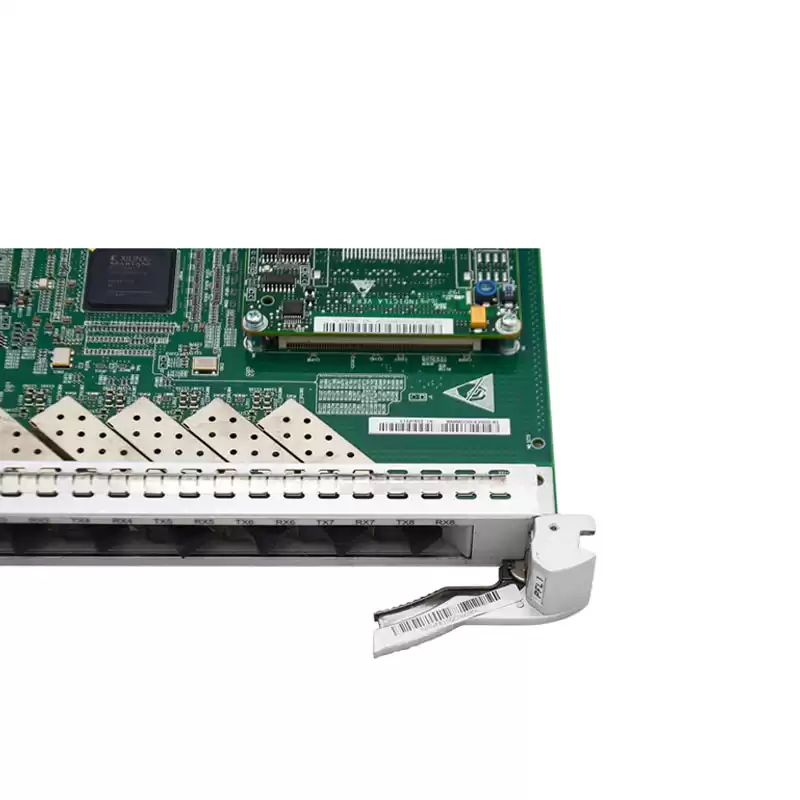

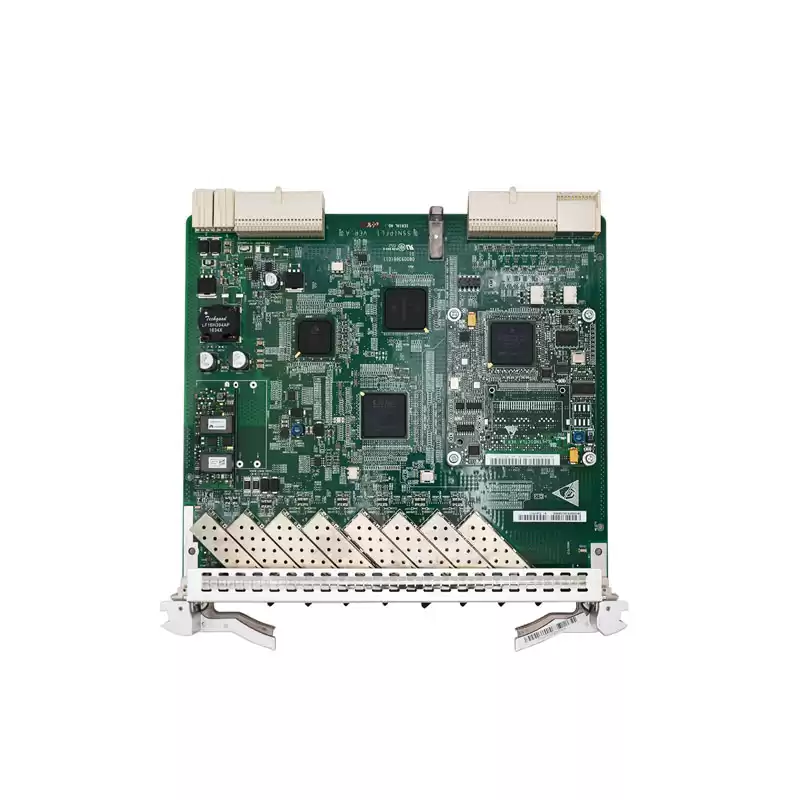

Huawei OSN3500 8xE1, PFL1 optical processing board
The PFL1 is available in a functional version, N1.
The PFL1 can be installed in slots 1-8 and slots 11-16.
|
Setting
|
Value
|
|
Basic functions
|
PFL1 can process 8xE1 optical signals.
|
|
Service processing
|
Receives/transmits and processes 8 E1 optical signals.
|
|
Supports transparent transmission according to IEEE C37.94 standard to meet the transmission requirements of relay protection equipment in the electric power industry.
|
|
Optical Port Specifications
|
Supports I-2M optical ports, complying with the standards set by Huawei.
|
|
Optical module specifications
|
Supports detecting and querying information about an optical module.
|
|
Allows you to set the on/off state of a laser and supports the Automatic Laser Shutdown (ALS) function.
|
|
Supports the use and monitoring of eSFP optical modules, facilitating the maintenance of optical modules.
|
|
Treatment of overheads
|
Handles path overhead at the VC-12 level, such as J2 bytes.
|
|
Performance alarms and events
|
Provides various alarms and performance events, facilitating equipment management and maintenance.
|
|
Maintenance functions
|
Supports inloops and outloops on optical ports.
|
|
Supports hot reset and cold reset. Warm resets do not affect running services.
|
|
Support card manufacturer information query.
|
|
Supports in-service FPGA loading.
|
|
Supports card software upgrades without affecting running services.
|
|
Support PRBS function.
|
|
Hot board swap.
|
|
Protection scheme
|
TPS protection is not supported.
|
Product Details
