Huawei SSN4SLD6402 Board
Product Description
|
Relationship between Huawei SLD64 board feature codes and optical interface types and optical interface indicators
|
|
Board
|
Feature Code
|
Optical interface type
|
description
|
|
SSN1 SLD6401γSSN4SLD6401
|
01
|
1-64.1
|
2km STM-64 dual-fiber bidirectional optical interface
|
|
SSN1SL D6402γ SSN4SLD6402
|
02
|
|S-64.2b
|
40km STM-64 dual-fiber bidirectional optical interface
|
|
SSN4SLD6403
|
03
|
P1L1-2D2
|
80km STM-64 dual-fiber bidirectional optical interface
|

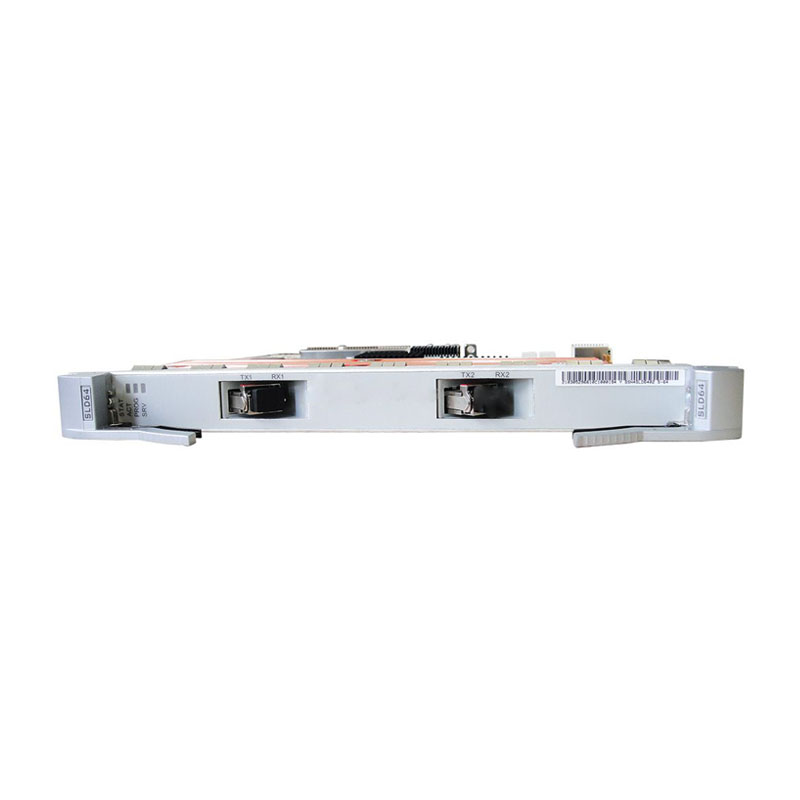

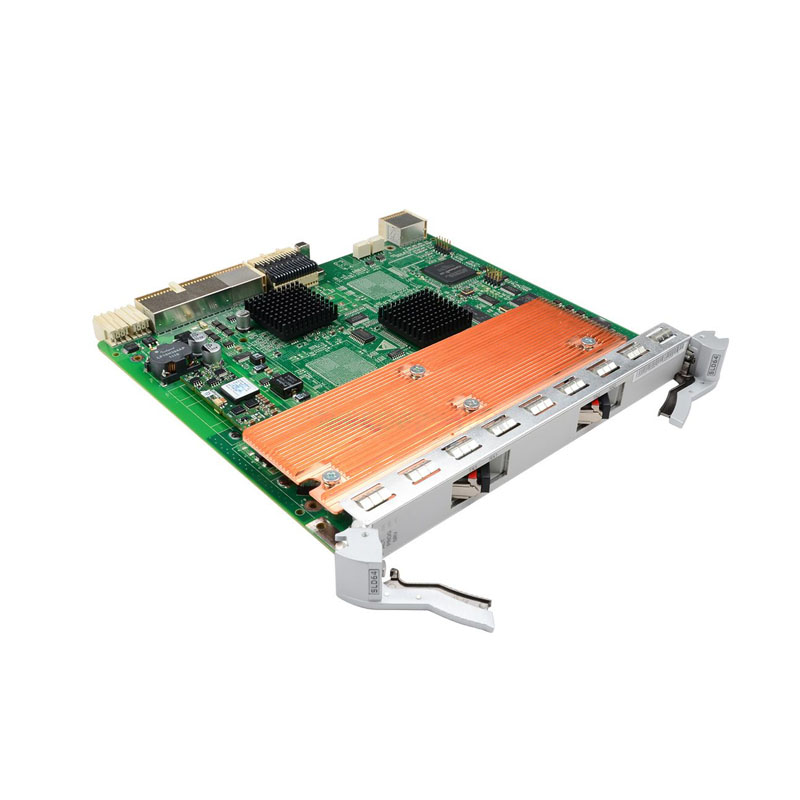

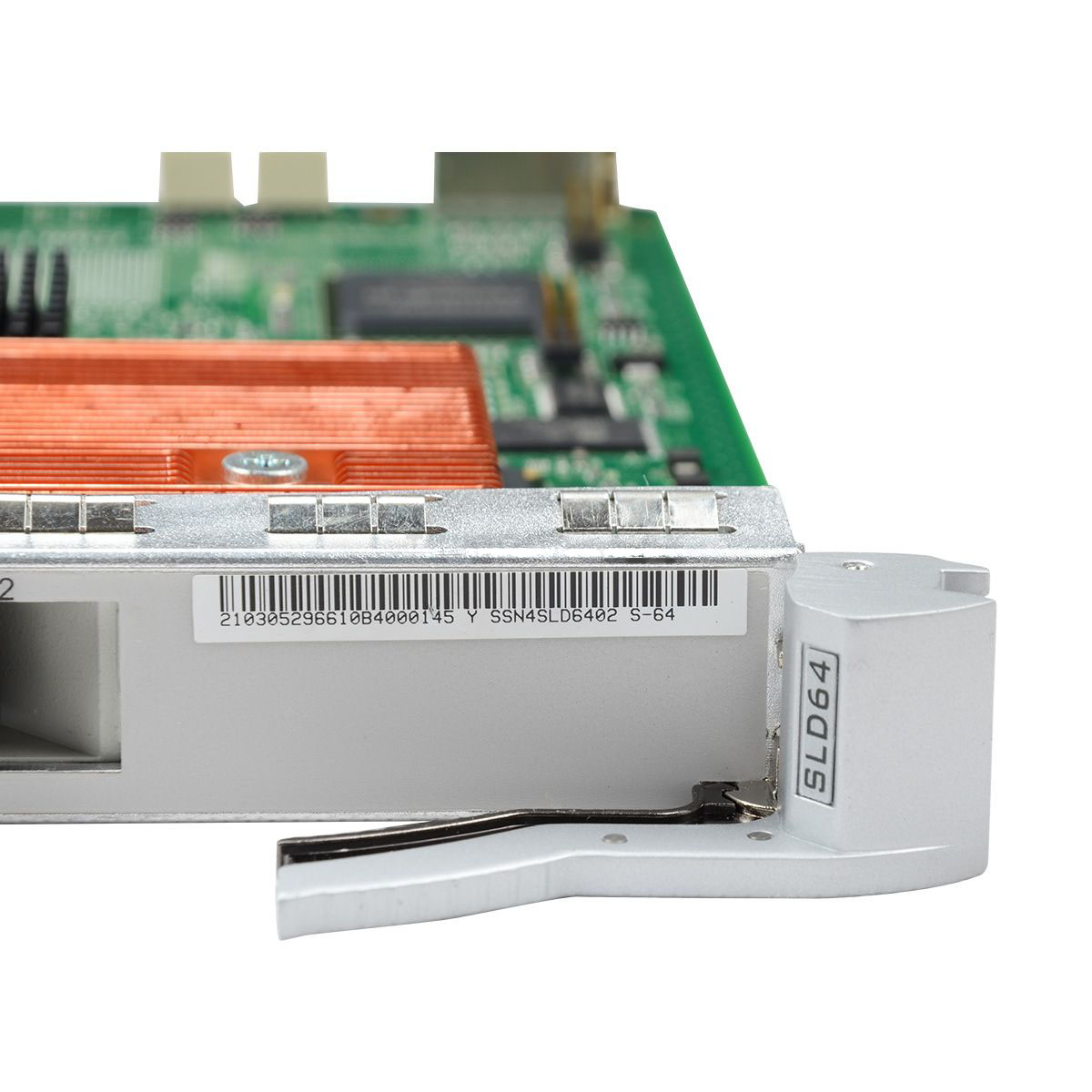

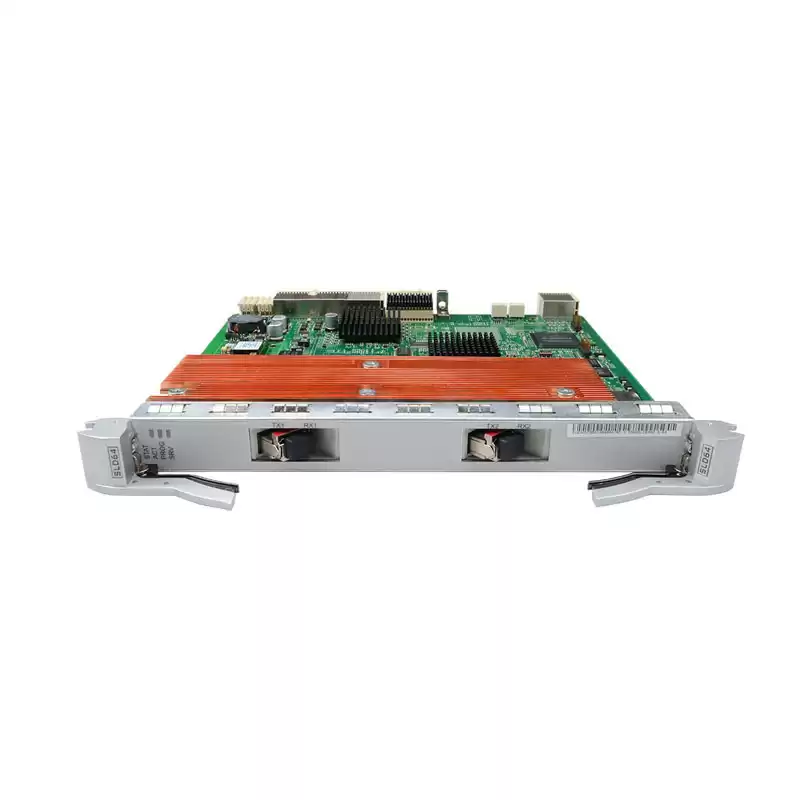

Huawei SSN4SLD6402 Board Product Overview
Huawei SSN4SLD6402 Board is 2xSTM-64 optical interface board (SLD64 for short) supports receiving and sending 2 STM-64 optical signals, overhead processing and multiplex section protection and other functions and features. The Huawei SLD64 board consists of a photoelectric conversion module, a MUX / DEMUX module, an SDH overhead processing module, a logic control module, and a power module.
Huawei SSN4SLD6402 Board is a line board, which can be used to receive and send 2 STM-64 optical signals on OptiX OSN7 500 / 0SN3500 series devices. Through this board, Huawei SLD64 sends the received optical signal to the crossover side after O / E conversion, and sends the electrical signal at the crossover side after E / O conversion. SDH line boards can form a ring network or a chain network in the system.
Product Details
Our Advantages
We have Huawei SSN4SLD6402 for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.
Huawei SSN4SLD6402, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.
Huawei SSN4SLD6402 represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
