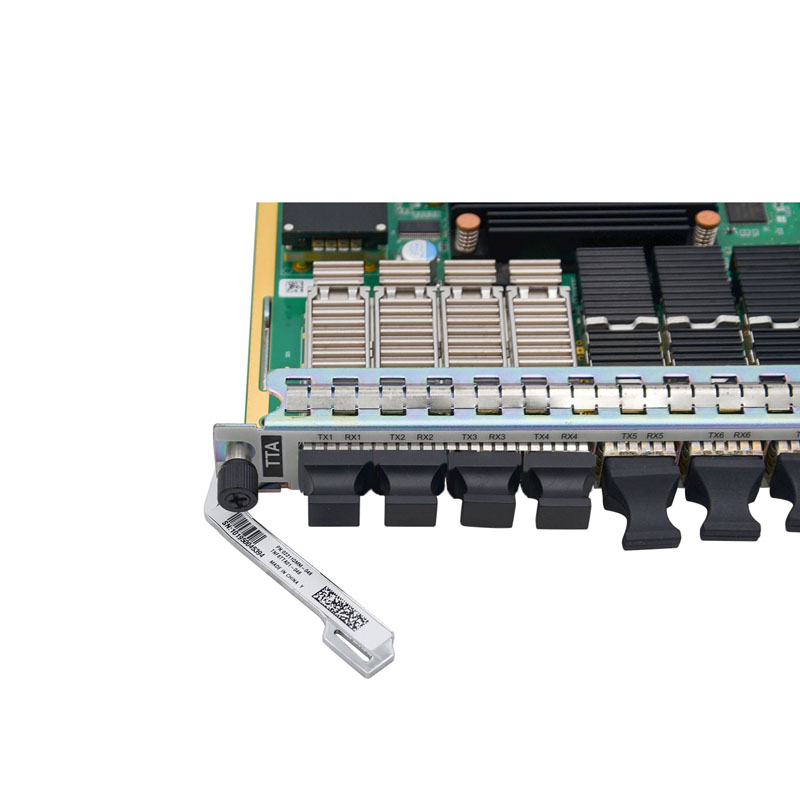

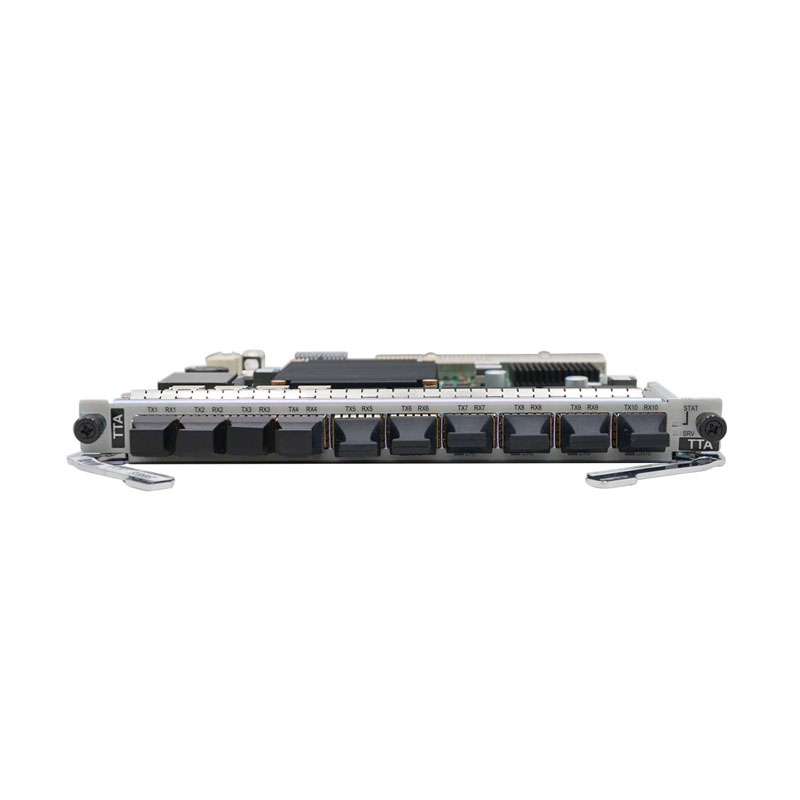

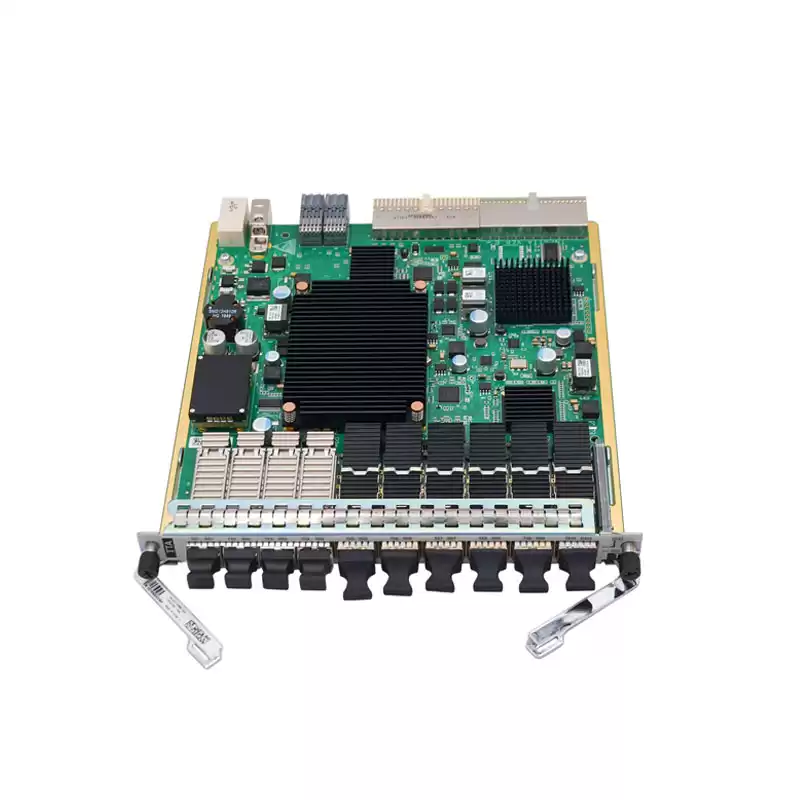

Basic functions
|
Port Working Mode
|
The board supports multiple application scenarios. For details, refer to Application Overview.
|
|
Cross-connect functionality
|
Cross-connects a maximum of 20 channels of ODU0 signals, 10 channels of ODU1/ODUflex or 4 channels of ODU2/ODU2e signals through the backplane bus and cross-connect board.
|
|
Service specifications
|
Service types
|
-
SDH service/SONET service: STM-1, STM-4, STM-16, STM-64, OC-3, OC-12, OC-48, OC-192
-
Ethernet service: FE(optical/electrical), GE(optical/electrical), 10GE LAN, 10GE WAN
-
OTN service: OTU1, OTU2, OTU2e
-
Session aware network (SAN) service: FC100, FC200, FC400, FC800, FC1200, FICON, FICON Express, FICON 4G, FICON 8G, FICON 10G, ESCON, FDDI, ISC 1G, ISC 2G, InfiniBand 2.5G, InfiniBand 5G, InfiniBand 10G
-
Video and audio services: DVB-ASI, SDI, HD-SDI, 3G-SDI, MADI
For the rate of each service type, see Supported Services.
NOTE:
The board supports GE/FE optical signals and electrical signals.
When 10GE LAN services are received on the client side and mapped into ODUflex, the client equipment must support flow control response.
The board can receive DVB-ASI, SDI, HD-SDI, and 3G-SDI electrical signals using digital video O/E converters (third-party devices). Optical modules equipped on these converters must meet the boards' requirements for optical modules.
MADI optical ports comply with the FDDI protocol. Therefore, to support MADI optical port transmission, you need to configure a FDDI service and select the multi-mode 1310 nm optical module on the NMS.
|
|
Service mapping mode
|
-
GE: GE(TTT-GMP), GE(GFP-T)
-
10GE LAN: Bit Transparent Mapping (11.1G), MAC Transparent Mapping (10.7G)
-
Supports encapsulation of FE services in GFP-F SLICE+BMP mode.
-
Supports encapsulation of STM-64/OC-192/STM-16/OC-48/10GE WAN services in asynchronous AMP mode.
|
|
Maximum frame length (MFL) for a port
|
Ranges from 1518 bytes to 9600 bytes.
NOTE:
The board provides the maximum frame length (MFL) for a port function only when receiving 10GE LAN services on the client side. when Port Mapping is set to Bit Transparent Mapping (11.1G), Maximum Frame Length is unavailable on the U2000.
|
|
Protection schemes
|
Client 1+1 Protection
|
Supported
NOTE:
If the working mode of the port on the board is ODU1_ODU0, client-side 1+1 protection is not supported.
|
|
ODUk SNCP
|
Supported
|
|
Tributary SNCP
|
Supported
NOTE:
Supports tributary SNCP protection only when the client-side service type is OTN, SDH or SONET.
When the cross-connect granularity is ODUflex, the board does not support tributary SNCP protection.
Support tributary SNCP for ODU0 only when working in ODU1_ODU0 (OTU1->ODU1->ODU0) mode.
|
|
LPT
|
Supported
NOTE:
The LPT function is supported only when the client-side service type is FE/GE/10GE LAN.
|
|
Service encryption
|
Supported
NOTE:
-
This function is supported only when TNF6TTA board works with the system control boards TNZ1UXCL and TNZ5UXCMS.
-
An encrypted service must be bidirectional.
-
When OTN service cascading or tributary SNCP is configured for the board, the board does not support service encryption.
-
If you perform a fault locating operation such as loopback or PRBS test on any port that an encrypted service traverses, the client service encryption function may fail or work abnormally or the services may become interrupted.
-
In ODU1_ODU0 mode or ODU1 convergence mode, service encryption is not supported.
For details, see Client Service Encryption.
|
|
ALS
|
Supports the ALS function on the client side when client services are non-OTN services.
|
|
Synchronization
|
Synchronous Ethernet
|
Supports synchronous Ethernet processing when receiving GE (GFP-T) services.
Supports synchronous Ethernet transparent transmission when receiving GE (TTT-GMP) services.
Supports synchronous Ethernet transparent transmission when the client-side service type is 10GE LAN and the Port Mapping is Bit Transparent Mapping (10.7 G).
Supports synchronous Ethernet processing when the client-side service type is 10GE LAN and the Port Mapping is MAC Transparent Mapping (10.7 G).
NOTE:
In ODU1_ODU0 mode (OTU1->ODU1->ODU0), when OTU1 services are received on the client side, synchronous Ethernet processing is supported but synchronous Ethernet transparent transmission is not supported.
|
|
IEEE 1588v2
|
Supported
NOTE:
Supports this function on the client side only when receiving GE (GFP-T) services.
The port 1 to port 10 support this function when the client-side service type is 10GE LAN (GFP-F) and the Port Mapping is ODUflex.
Due to limited bandwidth on the board, a maximum of four channels of IEEE 1588v2 are concurrently supported when the client-side service type is 10GE LAN (GFP-F) and the Port Mapping is ODU2.
|
|
G.8273.2
|
When working with F5XCH/F5UXCM/F5UXCME, the board supports this function.
|
|
G.8275.1
|
Supported.
|
|
Maintenance features
|
Loopbacks
|
-
Supports ODU0 channel inloops and ODU0 channel outloops.
-
Supports inloops and outloops on the client side.
NOTE:
ODU0 channel loopbacks are supported only when the port working mode is the ODU1_ODU0 mode (OTU1->ODU1->ODU0).
|
|
Pseudo random binary sequence (PRBS) test function
|
Supports the PRBS test function on the client side.
NOTE:
Supports this function on the client side only when receiving STM-1/OC–3, STM-4/OC-12, STM-16/OC-48, STM-64/OC-192/10GE WAN, OTU1, OTU2, and OTU2e services.
|
|
Test frames
|
Supported
NOTE:
Supports this function when receiving GE (GFP-T) services on the client side.
Supports this function when receiving 10GE LAN services on the client side and Port Mapping is set to MAC Transparent Mapping (10.7G).
|
|
Delay measurement (DM)
|
Supports DM. Specifically, the bidirectional delay between two tributary boards supporting DM can be measured, and the delay data is displayed on the NMS.
NOTE:
Delay measurement depends on service mapping paths:
-
When non-OTN services are received, the board supports delay measurement for the PM sections of upstream signals at ODU1, ODU1(ODU1_ODU0), ODU2, ODU2e.
-
When OTN services are received, the board supports delay measurement for the TCM sections of downstream signals at ODU1(ODU1_ODU0), ODU2, ODU2e.
|
|
Alarms and performance events monitoring
|
-
Monitors bit interleaved parity 8 (BIP8) bytes (Bursty mode) to help locate line failures.
-
Monitors B1 bytes to help locate line failures.
-
Monitors OTN alarms and performance events.
-
Monitors parameters such as the bias current, operating temperature, and optical power of a laser.
-
Provides remote network monitoring (RMON) and performance measurement functions for Ethernet services.
-
Supports Ethernet bandwidth usage of the RMON performance statistics.
|
|
OTN Overheads
|
Mapping processing complies with ITU-T G.7041 and ITU-T G.709. The ITU-T G.709-compliant frame formats and overhead processing are adopted.
-
OTU1/OTU2 layer: supports SM overhead processing.
-
ODU0/ODU1/ODU2 layer: supports PM and TCM overhead processing, and non-intrusive monitoring on PM and TCM overheads.
-
ODUflex layer: supports PM overhead processing, and non-intrusive monitoring on PM overheads.
|
|
Outband DCN
|
Supports ESC communication.
NOTE:
This feature is supported only when OTU1, OTU2, and OTU2e services are received on the client side, supports GCC0 three-byte mode and GCC12 nine-byte mode.
|
|
FEC Mode
|
Supports ITU-T G.709-compliant forward error correction (FEC) encoding on the client side only when receiving OTU1, OTU2, and OTU2e signals.
|
|
Protocols or standards compliance
|
Protocols or standards for transparent transmission (non-performance monitoring)
|
IEEE 802.3u
IEEE 802.3z
ITU-T G.707
ITU-T G.782
ITU-T G.783
GR-253-CORE Synchronous Optical Network (SONET) Transport Systems: Common Generic
NCITS FIBRE CHANNEL PHYSICAL INTERFACES (FC-PI)
NCITS FIBRE CHANNEL LINK SERVICES (FC-LS)
NCITS FIBRE CHANNEL FRAMING AND SIGNALING-2 (FC-FS-2)
NCITS FIBRE CHANNEL BACKBONE-3 (FC-BB-3)
NCITS FIBRE CHANNEL SWITCH FABRIC-3 (FC-SW-3)
NCITS FIBRE CHANNEL - PHYSICAL AND SIGNALING INTERFACE (FC-PH)
NCITS FIBRE CHANNEL SINGLE-BYTE COMMAND CODE SETS-2 MAPPING PROTOCOL (FC-SB-2)
SMPTE 292M Bit-Serial Digital Interface for High-Definition Television Systems
ETSI TR 101 891 Professional Interfaces:Guidelines for the implementation and usage of the DVB Asynchronous Serial Interface (ASI)
SMPTE 259M 10-Bit 4:2:2 Component and 4fsc Composite Digital Signals - Serial Digital Interface
NCITS SBCON Single-Byte Command Code Sets CONnection architecture (SBCON)
ANSI X3.139 Information Systems - Fiber Distributed Data Interface(FDDI) - Token Ring Media Access Control(MAC)
ANSI X3.148 Information Systems - Fiber Distributed Data Interface(FDDI) - Token Ring Physical Layer Protocol(PHY)
ANSI X3.166 Information Systems - Fiber Distributed Data Interface(FDDI) Physical Layer Medium Dependent(PDM)
|
|
Protocols or standards for service processing (performance monitoring)
|
ITU-T G.805
ITU-T G.806
ITU-T G.709
ITU-T G.872
ITU-T G.7710
ITU-T G.798
ITU-T G.874
ITU-T M.3100
ITU-T G.874.1
ITU-T G.875
ITU-T G.808.1
ITU-T G.841
ITU-T G.8201
ITU-T G.873.1
ITU-T G.694.1
|
