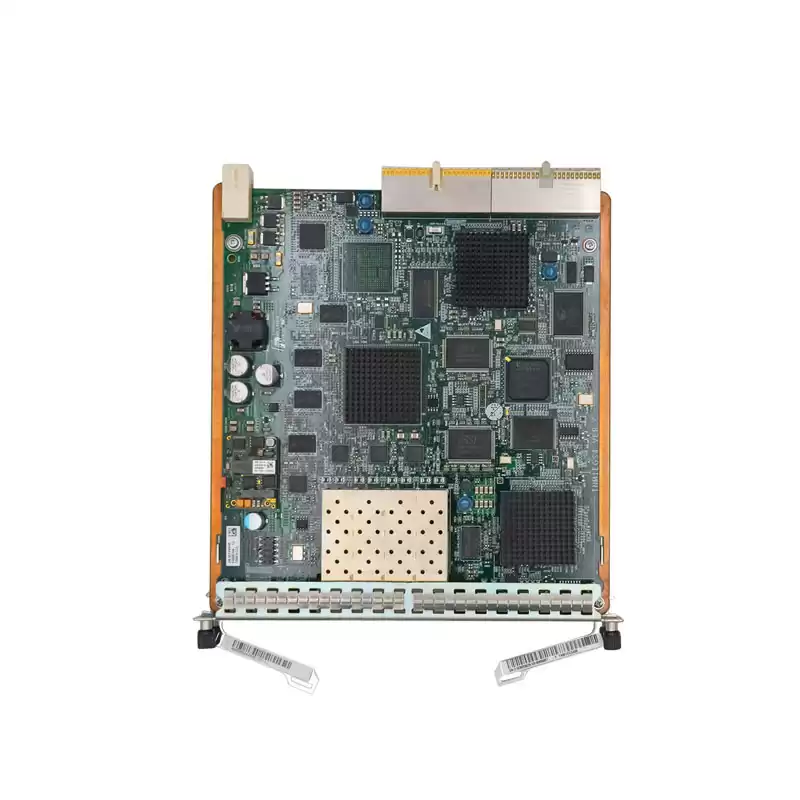

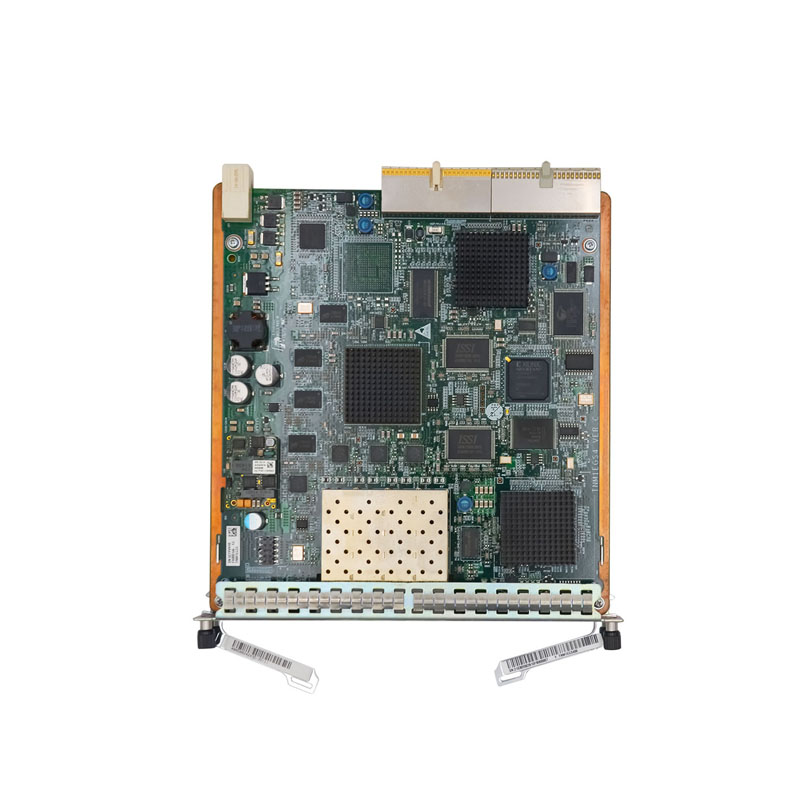

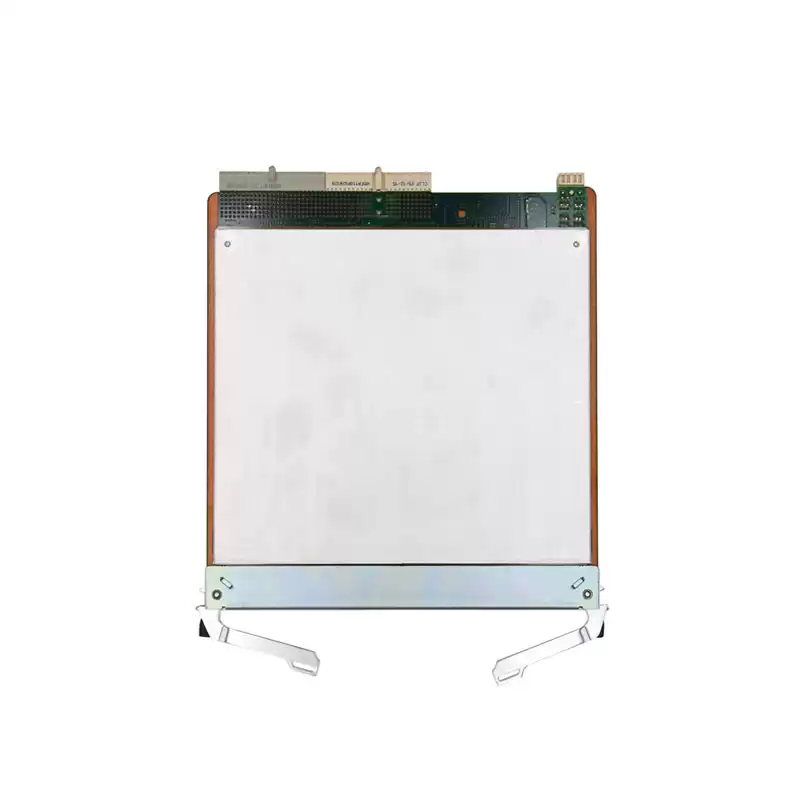

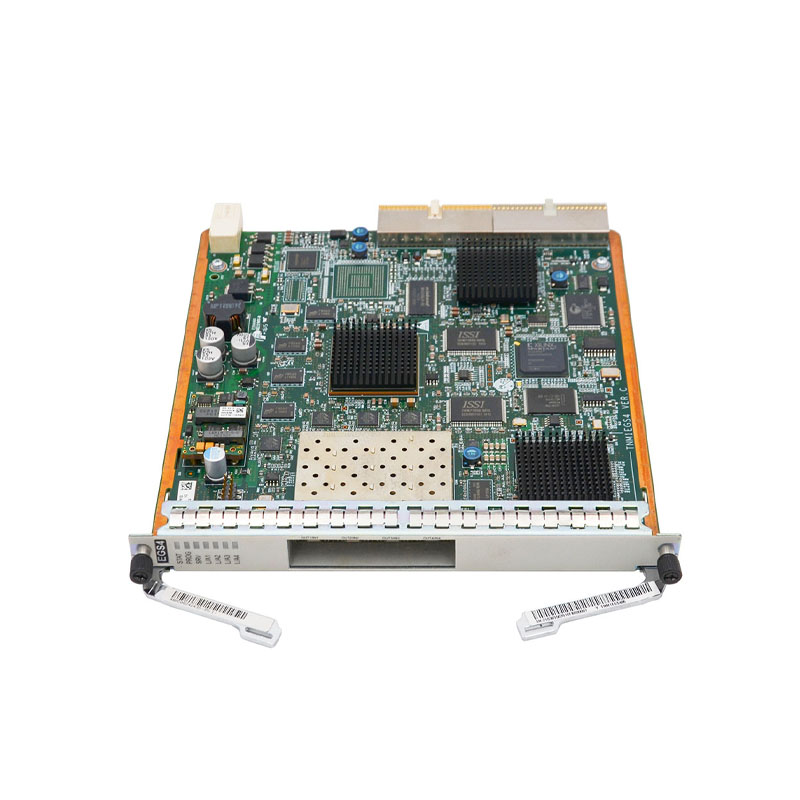

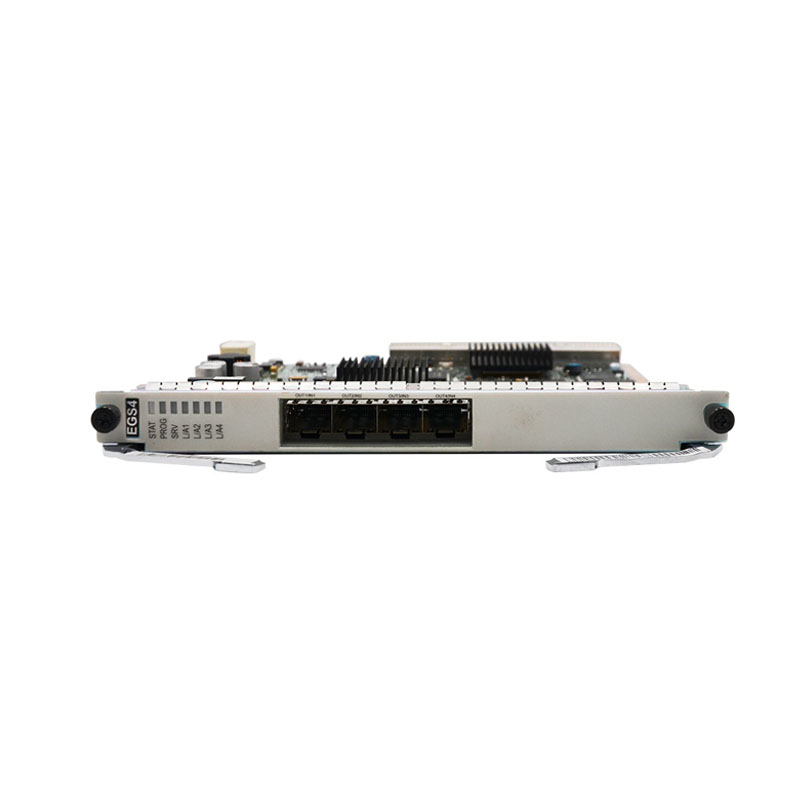

HUAWEI TNM1EGS406 03055039 OptiX OSN 500 Processing Board
Product Description
|
Specifications
|
OSN 500
|
OSN 550
|
OSN 580
|
|
Dimensions
|
44mm (H) x 442mm (W) x 220mm (D)
|
88mm (H) x 442mm (W) x 220mm (D)
|
221 mm (H) x 442 mm (W) x 224 mm (D)
|
|
Switch Capacity
|
Packet: 7.2 Gbit/s and TDM: 21.25 Gbit/s (higher order), 5 Gbit/s (lower order)
|
Packet: 64 Gbit/s ,TDM: 20 Gbit/s (higher order)
|
Packet: 560 Gbit/s, TDM: 280 Gbit/s (higher order) Packet: 280 Gbit/s, TDM: 280 Gbit/s (higher order)
|
|
Service Slots
|
3 slots
|
8 slots
|
15 slots
|
|
OTN interface
|
N/A
|
N/A
|
OTU-2, OTU-3
|
|
Ethernet interface
|
FE/GE
|
FE/GE/10GE
|
FE/GE/10GE/40GE
|
|
SDH interface
|
STM-1/4
|
STM-1/4/16
|
STM-1/4/16/64
|
|
PDH interface
|
E1/E3; T1/T3
|
E1/E3; T1/T3
|
E1/T1, E3/T3
|
|
ATM interface
|
E1, STM1
|
ATM/IMA E1, ch STM-1
|
|
|
CES interface
|
ATM/IMA E1, ch S TM-1
|
|
|
|
PCM interface
|
|
FXS/FXO, 2/4 wire audio and E&M X.21/V.35/V.11/V.24/V.28, RS232/RS422, RS449/RS423A/RS422A, RS530/RS530A, RS485, G.703 64 kbit/s
bidirectional; IEEE C37.94
|
FXS/FXO, 2/4 wire audio and E&M X.21/V.35/V.11/V.24/V.28, RS232/RS422, RS449/RS423A/RS422A, RS530/RS530A, RS485, G.703 64 kbit/s
bidirectional; IEEE C37.94
|
|
WDM interface
|
|
40 DWDM wavelengths, compliant with ITU-T G.694.1 8 CWDM wavelengths, compliant with ITU-T G.694.2
|
40 DWDM wavelengths, compliant with ITU-T G.694.1 8 CWDM wavelengths, compliant with ITU-T G.694.2
|
|
Networking Mode
|
•• Supporting pure packet, hybrid (packet + SDH) or SDH networking •• Supporting WDM networking
•• Supporting single-fiber bidirectional transmission
|
Supports pure packet, hybrid (packet + SDH), or SDH networking Supports WDM networking
|
Supports pure packet, hybrid (packet + SDH), or SDH networking Supports WDM networking
|
Product Details
Our Advantages
We have HUAWEI TNM1EGS406 for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.
HUAWEI TNM1EGS406, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.
HUAWEI TNM1EGS406 represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
