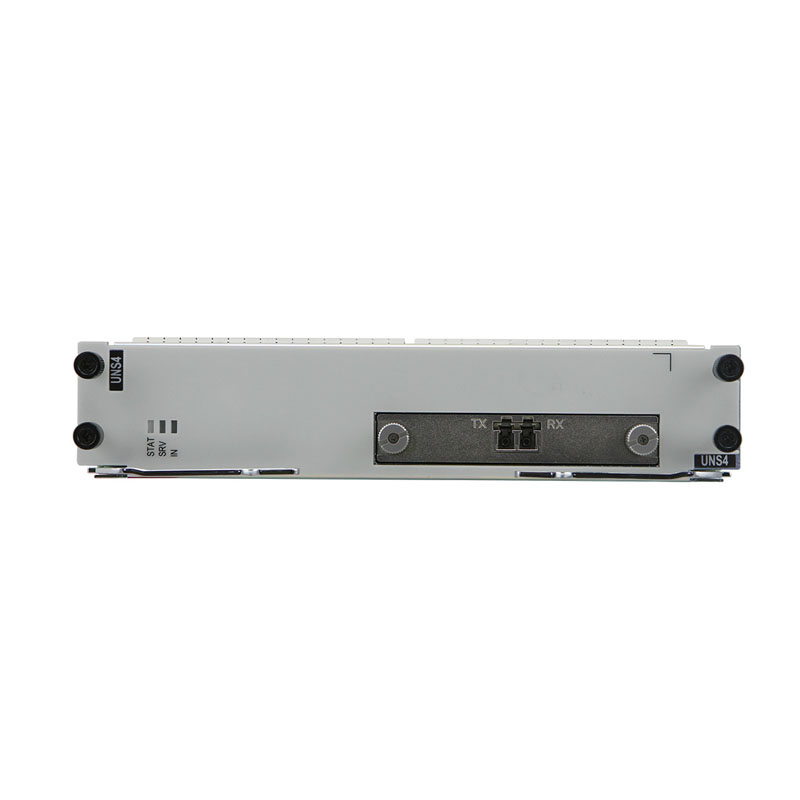

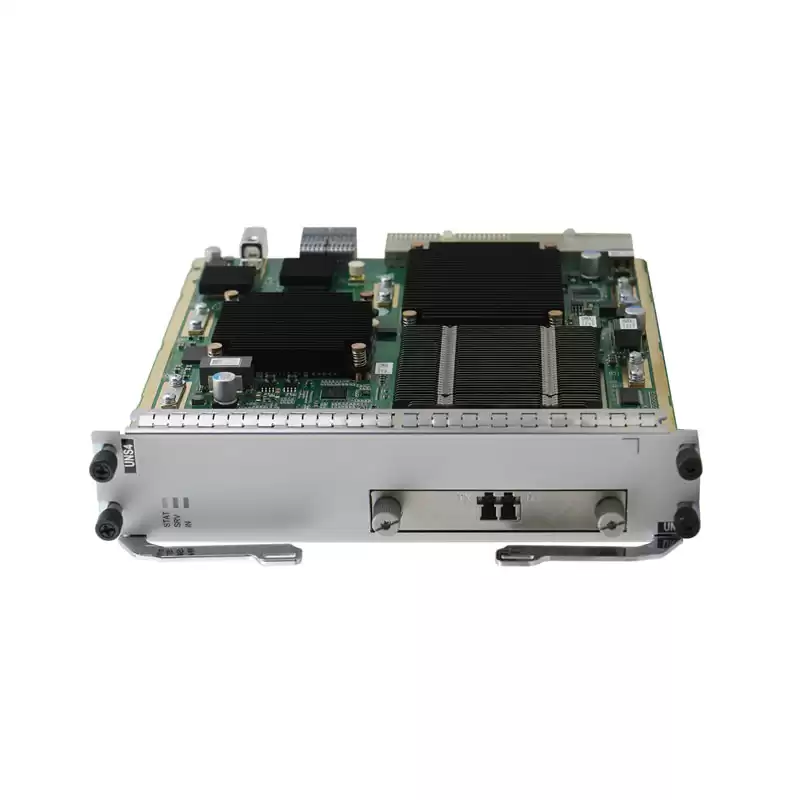

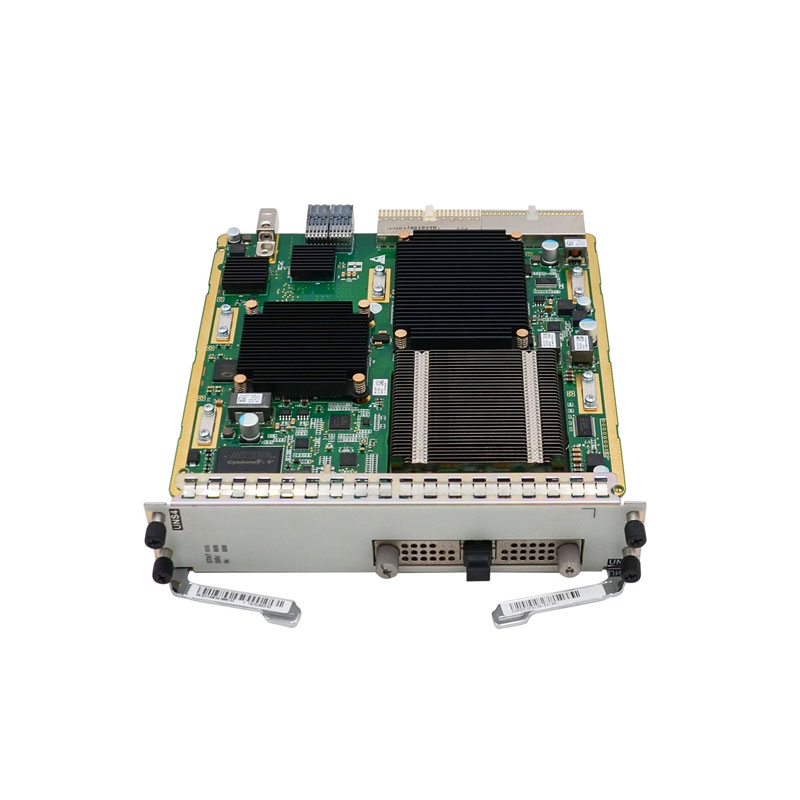

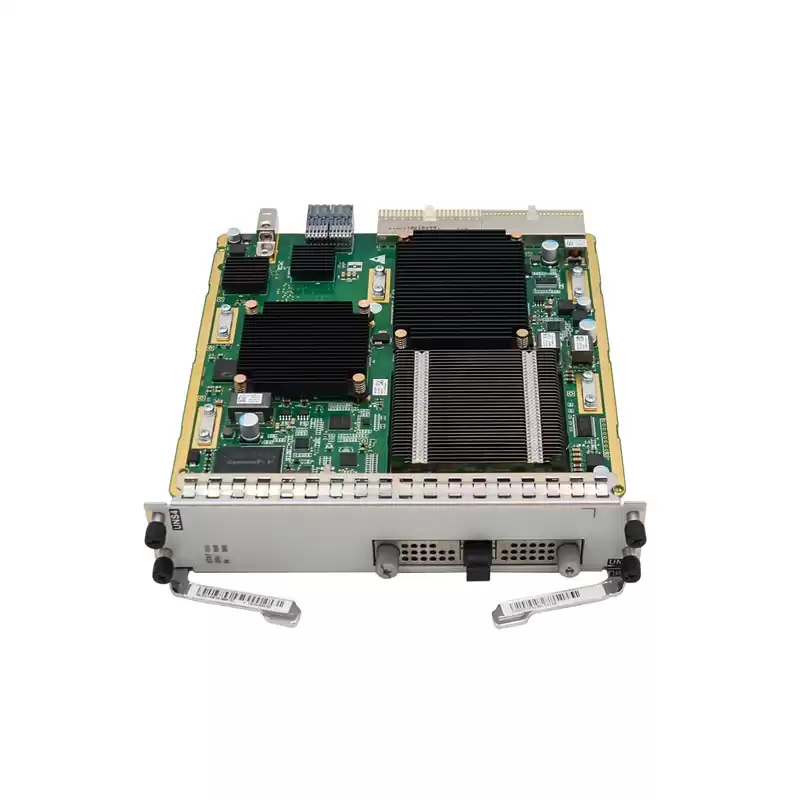

Huawei TNZ5UNS4T65 UNS4 03031YAM OSN 1800 board
Product Description
TNZ5UNS4T65 is a 1-port 100G universal line service processing board applied to Huawei OSN 1800V. It supports hybrid transmission of OTN, SDH and packet services with a maximum bandwidth of 100 Gbit/s. TNZ5UNS4T65 comes with one TNF1C1CFPT65 module.
TNZ5UNS4T65 is 1-port 100G universal line service processing board.
With one 100G-DWDM-C ext.-T65-SM-TCFP TNF1C1CFPT65
Applied to Huawei OSN 1800V.
Supports hybrid transmission of OTN, SDH and packet services, and functions such as Layer 2 switching, OTN ports, and SDH overhead processing.
Supports hybrid transmission of OTN, SDH and packet services with a maximum bandwidth of 100 Gbit/s. Functions supported by the UNS4 board vary depending on the signals received.
Supports Tributary SNCP, ODUk SNCP, intra-board 1+1 protection (when working with the OLP board).
Supports ESC function, ESC communication.
Supports the PRBS function on the WDM side.
Supports Electrical-layer ASON, Optical-layer ASON.
Supports outloops on VC-12, VC-3 channels, and supports inloops/outloops on VC-4 channels.
Supports Outband DCN.
Supports IEEE 1588v2.
Supports 1:1 PW FPS, 1:1 PW APS.
Supports MC-LAG, LPT, Packet SNCP, MC-PW APS, MRPS, LLDP, HQoS, Inband DCN, IGMP Snooping.
Product Details
Our Advantages
We have HUAWEI TNZ5UNS4T65 for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.
HUAWEI TNZ5UNS4T65, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.
HUAWEI TNZ5UNS4T65 represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
