Production Process
Product Photos

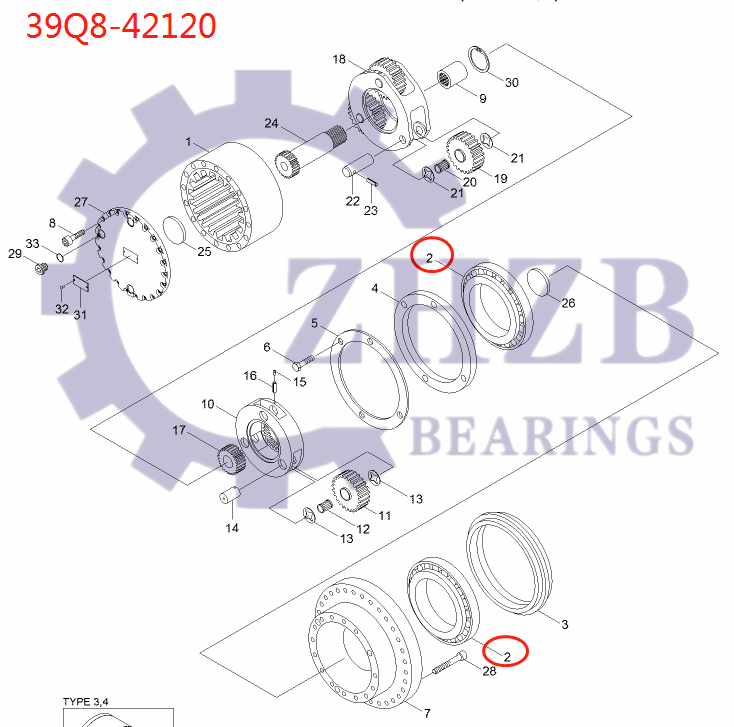

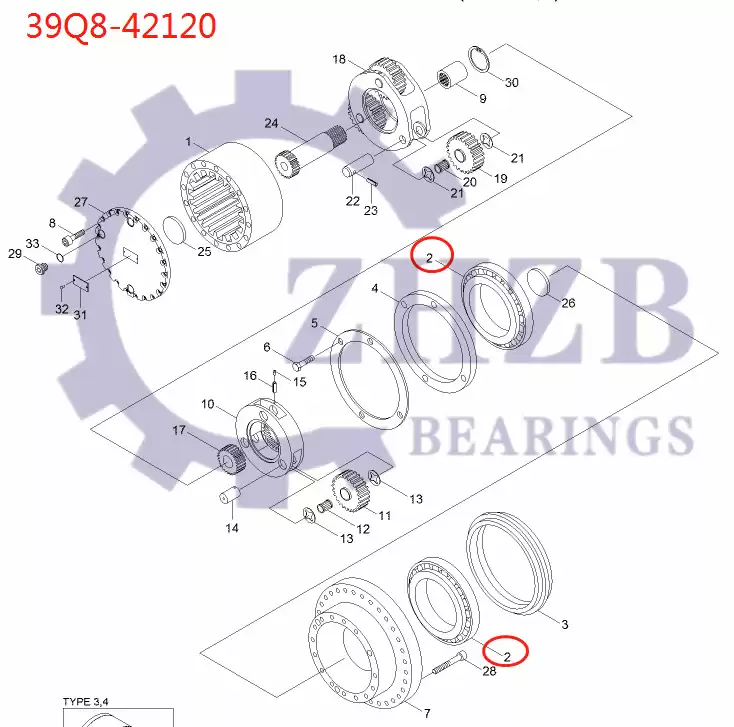

If you need any part in the picture above or in this form, please mark it and we can provide it for you.
|
Pos.
|
Part No
|
Qty
|
Parts name
|
Comments
|
|
*.
|
@
|
[1]
|
TRAVEL MOTOR ASSY
|
|
|
N*-2.
|
39Q8-42100
|
[1]
|
TRAVEL REDUCTION GEAR
|
|
|
N*-2.
|
39Q8-42101
|
[1]
|
TRAVEL REDUCTION GEAR
|
|
|
1.
|
39Q8-42110
|
[1]
|
GEAR-RING
|
|
|
2.
|
39Q8-42120
|
[2]
|
BEARING-ANG.BALL
|
|
|
3.
|
39Q8-42130
|
[2]
|
SEAL ASSY-FLOATING
|
|
|
4.
|
39Q8-42140
|
[1]
|
RING-NUT
|
|
|
5.
|
39Q8-42150
|
[1]
|
PLATE-LOCK
|
|
|
6.
|
S107-100206
|
[4]
|
BOLT-SOCKET
|
|
|
7.
|
39Q8-42160
|
[1]
|
HOUSING
|
|
|
8.
|
S129-070206
|
[22]
|
BOLT-SOCKET,UNIFIED
|
|
|
9.
|
39Q8-42171
|
[1]
|
COUPLING
|
|
|
K10.
|
39Q8-42190
|
[1]
|
CARRIER 2
|
|
|
K11.
|
39Q8-42200
|
[3]
|
GEAR-PLANETARY 2
|
|
|
K12.
|
39Q8-42210
|
[3]
|
BEARING-NEEDLE
|
|
|
K13.
|
39Q8-42220
|
[6]
|
WASHER-THRUST 2
|
|
|
K14.
|
39Q8-42230
|
[3]
|
PIN-CARRIER 2
|
|
|
K15.
|
XKBR-00128
|
[3]
|
PIN-SPRING 2
|
|
|
K16.
|
39Q8-42240
|
[3]
|
PIN-SOLID
|
|
|
17.
|
39Q8-42250
|
[1]
|
GEAR-SUN 2
|
|
|
K18.
|
39Q8-42270
|
[1]
|
CARRIER 1
|
|
|
K19.
|
39Q8-42280
|
[3]
|
GEAR-PLANETARY 1
|
|
|
K20.
|
39Q8-42290
|
[3]
|
BEARING-NEEDLE 1
|
|
|
K21.
|
39Q8-42300
|
[6]
|
WASHER-THRUST 1
|
|
|
K22.
|
39Q8-42310
|
[3]
|
PIN-CARRIER 1
|
|
|
K23.
|
S472-600504
|
[3]
|
PIN-SPRING
|
|
|
24.
|
39Q8-42320
|
[1]
|
GEAR-SUN 1
|
|
|
25.
|
39Q6-42320
|
[1]
|
PLATE-THRUST
|
|
|
26.
|
39Q8-42330
|
[1]
|
PLATE-THRUST
|
|
|
27.
|
39Q8-42340
|
[1]
|
COVER
|
|
|
28.
|
S109-18140D
|
[25]
|
BOLT-HEX SOCKET HEAD
|
|
|
N28.
|
S109-18140V
|
[25]
|
BOLT-SOCKET
|
|
|
29.
|
P220-110205
|
[3]
|
PLUG-HEX
|
|
|
30.
|
S602-045001
|
[1]
|
RING-RETAINING,C TYPE
|
|
|
31.
|
39Q8-42350
|
[1]
|
NAME PLATE
|
|
|
32.
|
39Q6-41800
|
[2]
|
RIVET
|
|
|
33.
|
S631-024001
|
[3]
|
O-RING
|
|
|
K.
|
39Q8-42180
|
[1]
|
CARRIER ASST KIT 2
|
SEE ILLUST
|
|
K.
|
39Q8-42260
|
[1]
|
CARRIER ASST KIT 1
|
SEE ILLUST
|
|
*-1.
|
39Q8-41100
|
[1]
|
TRAVEL MOTOR UNIT
|
SEE 4180, 4181
|
Company
ZHZB Mission:We are committed to providing bearing component solutions for all construction machinery and equipment!!!
ZHZB was established in 2004 and has been committed to the development and production of engineering machinery bearings. Our products are widely used in mining equipment, road machinery, metallurgy, wind power generation, excavators and other heavy equipment and have been well received by customers!
Product production process: rough forgings-annealing-turning processing-heat treatment-grinding processing-super fine grinding-finished product assembly.
Packaging
Delivery：
1.We will send express delivery for less than 45 kg, which is more convenient door-to-door.
2.45-200 kg we will choose air transportation, the safest, fastest, and the most expensive
3.For more than 200 kg, we will send it by sea to reduce transportation costs.
Why choose us?
✬1.Trusted Product
✬2.Advanced Technology
✬3.Reliable Service
✬4.Competitive price
FAQ
Q1: I want to buy your products, how can I pay?
A: You can contact me through Whatsapp to send bank account to you.
Q2: If we don't find what we want on your website, what should we do?
A: You can email or Whatsapp us the descriptions and pictures of the products you need, we will check whether we have them. We develop new items every month. and some of them have not been uploaded to website in time. Or you can send us sample by express, we will develop this item for bulk purchasing.
Q3: Can we buy 1 pc of each item for quality testing?
A: Yes, we are glad to send lpc for quality testing if we have the item you need in stock
