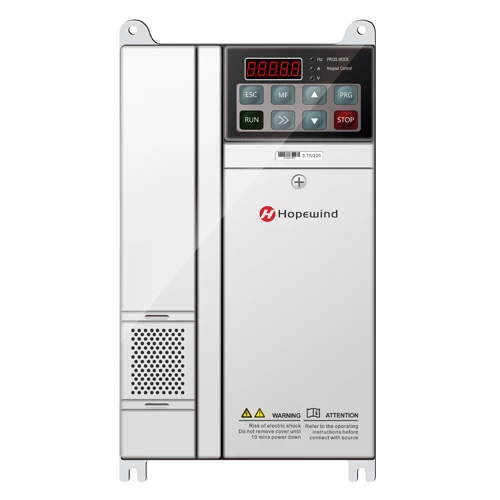

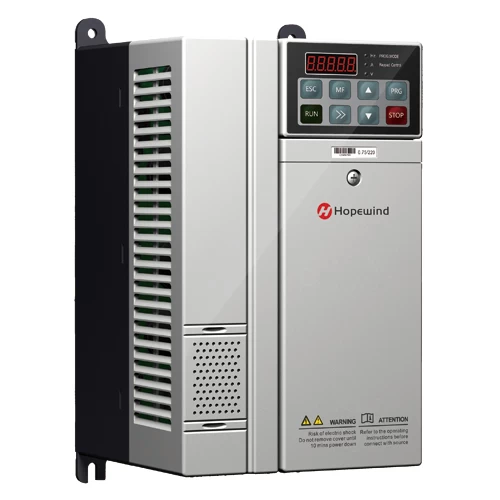

HV330 Inverter for PV Pump
In some areas, people still use
inefficient, energy waist to obtain water for domestic and irrigation,
such as waterwheel, diesel pumps, manpower pumping, or manpower carry.
Along with the technology improved and the environment protection
demand, the PV water pumping system is perfectly meet the requirement of
people’s demand of water. And solar is renewable energy, green and
clear with no pollution, is meet the demand of environment protection as
well.
PV water pumping system
is that, make the solar energy convert to electric energy (DC) through
photovoltaic panels, then access the direct current to the inverter, and
drive the pump, make the water from lower place to higher place to
stored for use of life, agriculture and industry. And the inverter could
adjust the drive frequency according to the intensity of the sunlight,
and automatically star and stop according to the water level of the
wells and the water tank, totally smart control.
Features:
1. Max Power Point Trace (MPPT) Technology, which maximize the PV power generation efficiency.
2. Adjusting the pumping speed according to the sunlight intensity.
3. Automatically detecting the water level of the well, and stop running
when it is at the low water level, which prevent the pump idling.
4. Automatically detecting the water level of the reservoir, that star
running when water level is at the low point, and stop running when
water level is at the high point, which prevent the water overflow in
the reservoir.
5. It could access to external power – such as electric power or diesel
engine – as the backup power source, when it is in the rainy days or the
sunlight is weak, the inverter could switch to the backup source
immediately.
6. Intelligent thermal protection design for IGBT module, which ensure the reliability of the product.
7. Complete protection system - over/under-voltage, over-current,
short-circuit, phase-loss, over-heat, low water level auto-stop, etc.
8. Powerful inverter management software – HVManager, which could be
realized the function of programming, debugging, setting parameters,
monitoring, etc.
