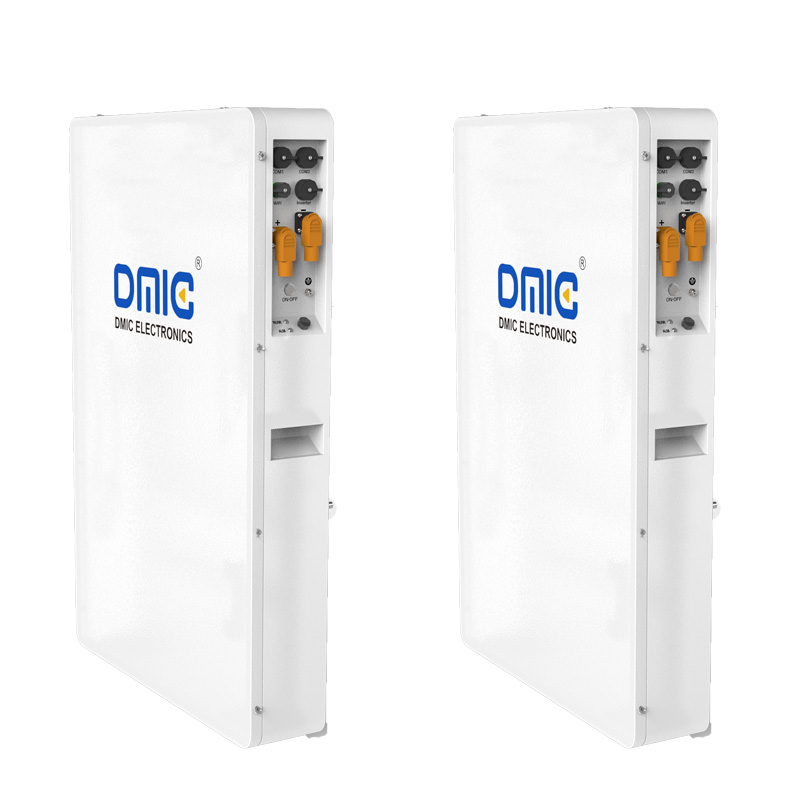

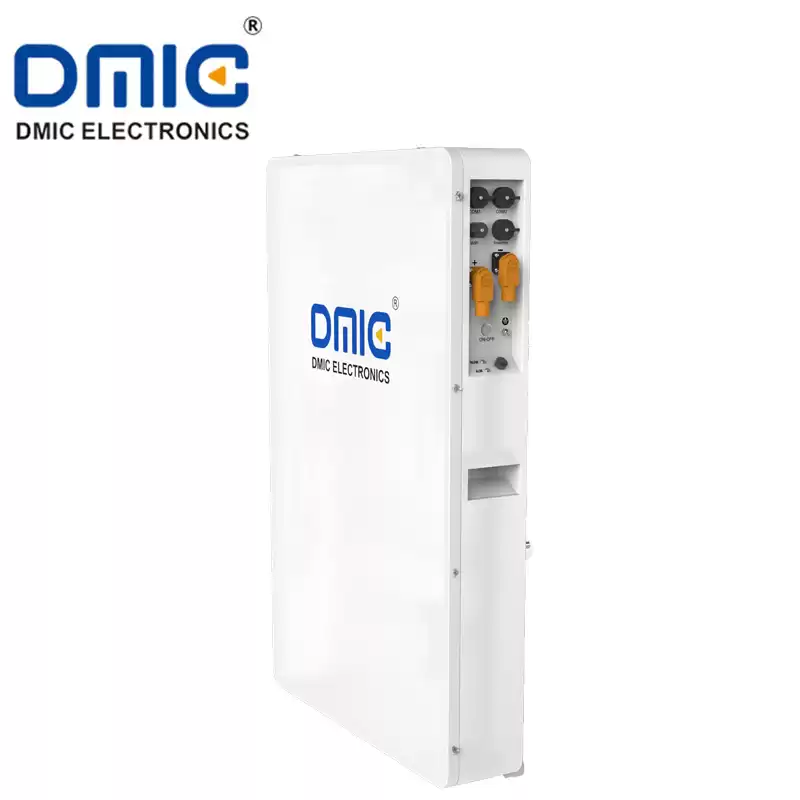

HW-L10 Battery Cell Lithium iron phosphate battery pack
1.Product Introduction:
Key Features:
1. Compact Size: The HW-L10 Battery is designed with a compact form factor, making it suitable for installations with limited space requirements.
2. High Efficiency: With advanced technology and optimized design, this battery offers excellent energy conversion efficiency, ensuring maximum utilization of stored energy.
3. Easy Installation: The battery is designed for hassle-free installation, allowing for quick integration into different systems or setups.
4. High Energy Density: Despite its compact size, the HW-L10 Battery boasts a high energy density, delivering substantial power output and extended operation times.
5. Large Capacity: The HW-L10 Battery offers a high capacity, providing ample energy storage for demanding applications.
2.Technical Parameters：
Combination method
|
16S2P（LiFePO4）
|
Rated Voltage
|
51.2V
|
Rated Capacity
|
200Ah
|
Rated Energy
|
10.24KWh |
Voltage at end ofDischarge
|
44.8V
|
| Charging mode(CC-CV) |
MAX ：58.4V |
| Standard charge current |
50A |
| Maximum Charge Current |
100A
|
Limiting Charge Current
|
10A（Software opening）
|
| Standard discharge |
50A |
| Maximum Discharge Current |
100A
|
| OperationTemperature Range |
0℃~ 55%（Charge）
-20℃~ 60℃（Discharge）
|
| Storage Temperature Range |
-10~35℃（less than 12 months）
-10~45℃（less than 3 months）
-20~65℃（Less than 7 day）
|
| Communicationmode |
CAN / RS485
|
Cycle Life
|
＞6000
|
| Ingress protection |
IP65 |
Installation
|
Wall or Floor mount
|
Dimensions
|
933×600×150mm
|
Weight
|
100.0kg
|
Warranty
|
5 Years
|
3.Picture Introduction:
4.Our Advantages:
∗At our company, we take pride in our ability to seamlessly integrate the research, development, production, and sales of various high-current connectors and accessories for new energy applications.
∗Offering unparalleled OEM cable harness customization and full-service connector and wire harness solutions, our team delivers a comprehensive approach to meeting your needs.
∗From start to finish, our goal is to provide exceptional quality and service, ensuring the success of your project. Trust us to be your all-in-one partner for cutting-edge new energy interconnectivity.
5.Packages & Shipping:
Our products are packaged to international standards, ensuring that your order arrives in immaculate condition. We are based in Guangdong, China, and dispatch all orders from this location. With our commitment to professional and efficient service, you can trust us to deliver your goods with utmost care and attention to detail.
6.FAQ:
Q: What services does your company offer for high-current connectors and cabling solutions?
A: Our company specializes in providing professional development, design, and integrated cabling solutions for high-current connectors ranging from 5A to 350A. We also offer production and sales of a wide range of high-current connectors, plugs, and UPS/EPS power sockets to support various industries, including automotive, electric vehicles, communication power, medical equipment, power distribution equipment, material handling equipment, solar energy, and new energy.
Our company boasts its own production and R&D base, and has obtained ISO9001 quality system certification. All of our products meet CE, 3C, and other certifications, as well as RoSH and REACH environmental protection requirements. With our commitment to quality and excellence, we offer reliable and efficient solutions to support our clients' businesses.
