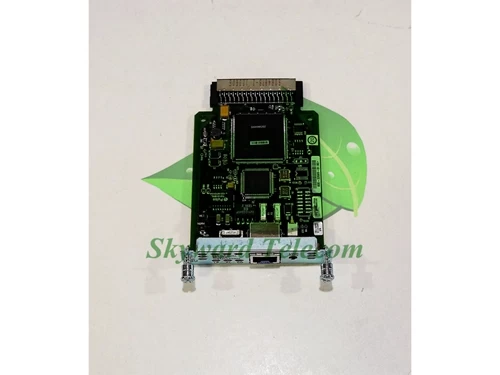

HWIC-1DSU-T1 1-Port T1/Fractional T1 DSU/CSU WAN Interface Card

Serial and asynchronous high-speed WAN interface cards (HWICs) provide highly flexible connections for Cisco1800, 1900, 2800, 2900, 3800, and 3900 Series Integrated Services Routers. These HWICs help customers enable applications such as WAN access, legacy protocol transport, console server, and dial access server. You can mix and match HWICs to tailor cost-effective solutions for common networking problems such as remote network management, external dial-modem access, low-density WAN aggregation, legacy protocol transport, and high-port-density support.




HWIC-1DSU-T1 Overview


Serial and asynchronous high-speed WAN interface cards (HWICs) provide highly flexible connections for Cisco1800, 1900, 2800, 2900, 3800, and 3900 Series Integrated Services Routers. These HWICs help customers enable applications such as WAN access, legacy protocol transport, console server, and dial access server. You can mix and match HWICs to tailor cost-effective solutions for common networking problems such as remote network management, external dial-modem access, low-density WAN aggregation, legacy protocol transport, and high-port-density support.

HWIC-1DSU-T1 Specification


Brand Cisco
Part number HWIC-1DSU-T1
Product Description 1-Port T1/Fractional T1 DSU/CSU WAN Interface Card
Synchronous Support Yes
Synchronous Maximum Speed (Per Port) 1.544 Mbps
Asynchronous Support No
Asynchronous Maximum Speed (Per Port) -
Bisync Support No
Serial Protocols -
Network Clock Synchronization Yes
NEBS Type 1/3
TelecommPTT TIA - 968 - A
Industry Canada CS -03 Part II
JATA Digital
ID0002
HK2017
NEBS
Network Interface Specifications Transmit bit rate: 1.544 Mbps +/- 50 bps
Receive bit rate: 1.544 Mbps +/- 100 bps
Line code: AMI, B8ZS
AMI ones density
Forced/bit robbing (N X56)
High-Level Data Link Control (HDLC) data inversion (N X64)
Framing format: D4 (SF) and DSF
Output level (LBO) 0, -7.5, or -15 dB, DSU 0-655 feet
Input level: +1 dB0 to -24 dB0
Dimensions (H x W x D) 2.1 x 7.9 x 14.2 cm
Warranty One year
Lead time 2-3 business days
Shipment DHL, Fedex, Aramex, EMS or per request
