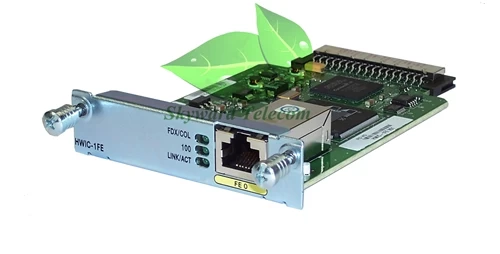

HWIC-1FE ^1-port 10/100 Routed Port HWIC

The Layer 3 Cisco 1-Port Fast Ethernet High-Speed WAN interface card (HWIC) supported on the Cisco 1841, Cisco 2800, and Cisco 3800 Series Integrated Services Routers offers small-to-large-sized businesses and enterprise branch-office customers the option to add Layer 3 routed ports with many advanced features, including quality-of-service (QoS) and rate-limiting capabilities.



HWIC-1FE Overview


The Layer 3 Cisco 1-Port Fast Ethernet High-Speed WAN interface card (HWIC) supported on the Cisco 1841, Cisco 2800, and Cisco 3800 Series Integrated Services Routers offers small-to-large-sized businesses and enterprise branch-office customers the option to add Layer 3 routed ports with many advanced features, including quality-of-service (QoS) and rate-limiting capabilities.


HWIC-1FE Specification


Brand Cisco
Part number  HWIC-1FE
Product Description  ^1-port 10/100 Routed Port HWIC
Device Type Expansion module
Form Factor Plug-in module
Interface (Bus) Type HWIC
Dimensions (WxDxH) 7.8 cm x 12 cm x 1.9 cm
Weight 64 g
Cabling Type Ethernet 10Base-T, Ethernet 100Base-TX
Data Link Protocol Ethernet, Fast Ethernet
Data Transfer Rate 100 Mbps
Network / Transport Protocol TCP/IP, L2TP, PPPoE
Compliant Standards IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3x
Designed For Cisco 1841, 1841 T1, 1921, 1921 4-pair, 1921 ADSL2+, 1941, 2801, 2801 V3PN, 2811, 2811 V3PN, 2821, 2821 V3PN, 2851, 2851 V3PN, 2901, 2911, 2921, 2951, 3825, 3825 V3PN, 3845, 3845 V3PN, 3925, 3925E, 3945, 3945E
Warranty One year
Lead time 2-3 business days
Shipment DHL, Fedex, Aramex, EMS or per request
