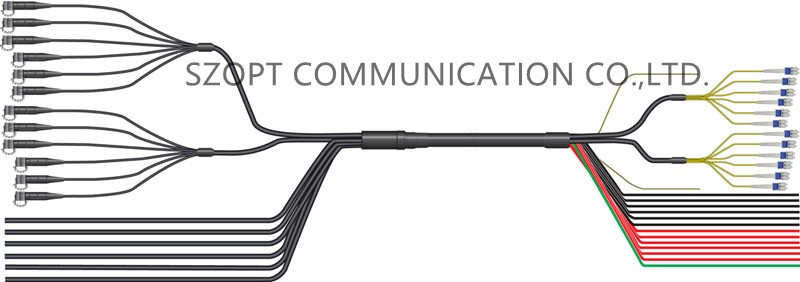

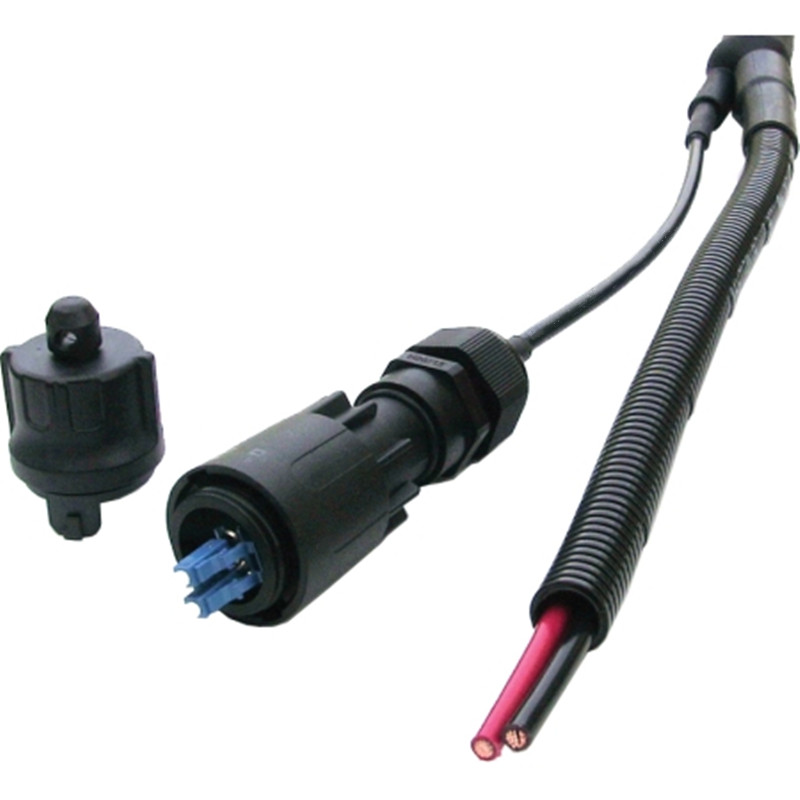

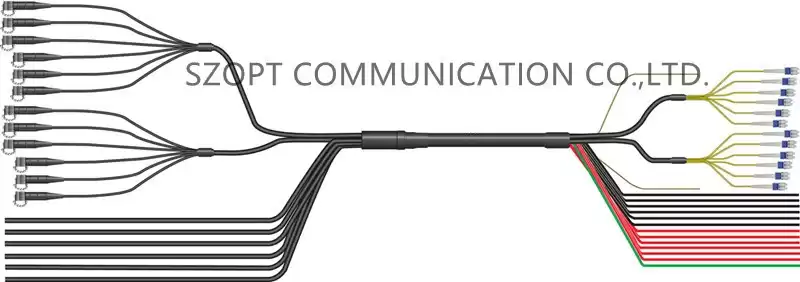

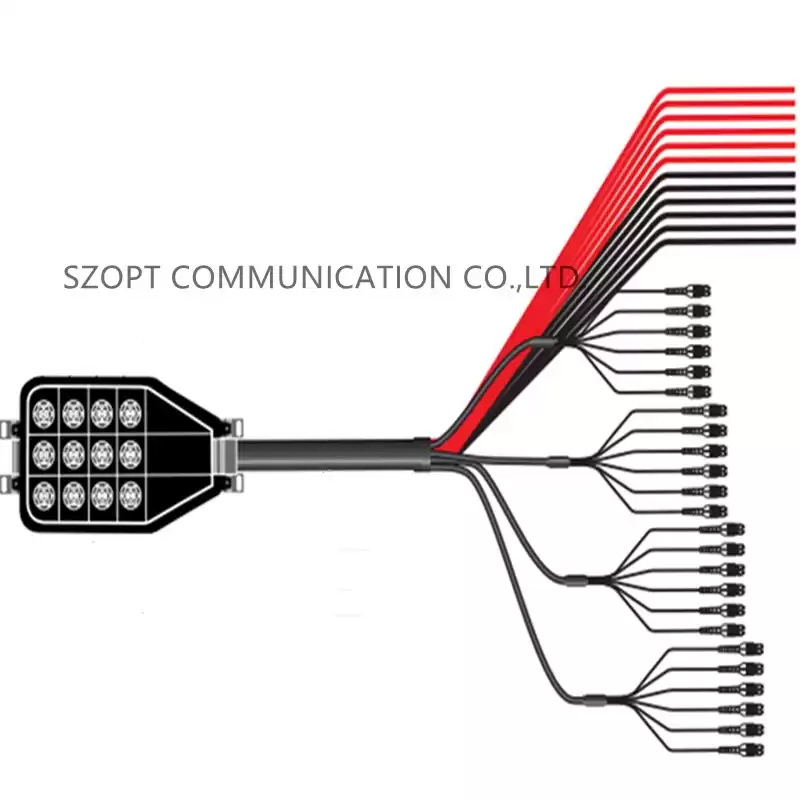

Hybrid Cable Assemblies LC SC FC ST MPO MTP E2000 SM MM
SZOPT’s hybrid cable assemblies are designed to deliver rugged, reliable, and
user-friendly connectivity solution,more fiber connectors such as SC,LC,FC,ST,MPO,MTP,MTRJ,E2000,etc.for options,any further enquiry,please feel free to reach us.
Application:
Telecommunication System
Testing Equipment
CATV System
LAN System
Feature:
Simplex,duplex or multi-core fiber optic connectors
Water blocking glass yarns
Insulated stranded copper (8AWG,12 AWG,16 AWG,etc.)
Flame retardent outer jacket
Package:
Each piece in a small PE bag,then some pcs in a bigger bag,finally put into a carton box.
Specification:
|
Connector Type
|
Performance Data
|
|
Connector
|
Polishing Mode
|
IL(dB)
|
RL(dB)
|
|
SC/LC/FC/ST/MU/E2000
|
SM
|
UPC
|
≤0.3
|
≥50
|
|
APC
|
≤0.3
|
≥60
|
|
MM
|
PC
|
≤0.3
|
≥35
|
|
MTRJ/MPO/MTP
|
SM
|
PC
|
≤0.5
|
≥50
|
|
MM
|
PC
|
≤0.5
|
≥35
|
