Product Advantages:
1. Built-in MPPT solar controller
2. Pure sine wave output
3. Low frequency design.
4. Output factor :1
5. Output socket optional
6. Generator input and dry contact
7. Full automatic and silent operation
8. Automatically transfer between battery and line mode
9. High reliability Microprocessor control
Data Sheet
|
Model
|
FL-IVCP1012
|
|
Rated power
|
1KVA/800W
|
|
Input
|
|
Voltage
|
230V
|
|
Selectable Voltage Range
|
170-280 VAC ( ) 90-280 VAC ( Appliances )
|
|
Frequency Range
|
50 Hz/60 Hz (Auto sensing)
|
|
Battery Voltage
|
12VDC
|
|
Output
|
|
AC Voltage Regulation
|
230VAC ± 5%
|
|
Efficiency(Peak)
|
>95% ( Rated R load, battery full charged )
|
|
Transfer time
|
10ms typical (UPS); 20ms typical (Appliances)
|
|
Waveform
|
Pure sine wave
|
|
SOLAR CHARGER&AC CHARGER
|
|
Maximum Solar Charge Current
|
50A
|
|
Maximum AC Charge Current
|
20A
|
|
Maximum Charge Current
|
50A
|
|
Rated Power
|
800W
|
|
Max. PV Circuit Voltage
|
15~18Vdc max
|
|
PV PWM Volt Range
|
50V dc
|
|
PV Array Pwm voltage Range
|
50Vdc
|
|
OPERATING ENVIRONMENT
|
|
Storage Temperature
|
0°C - 55°C
|
|
Humidity
|
-15°C - 60°C
|
|
PHYSICAL
|
|
Dimension
|
95X240X316
|
|
Net Weight
|
5KG
|

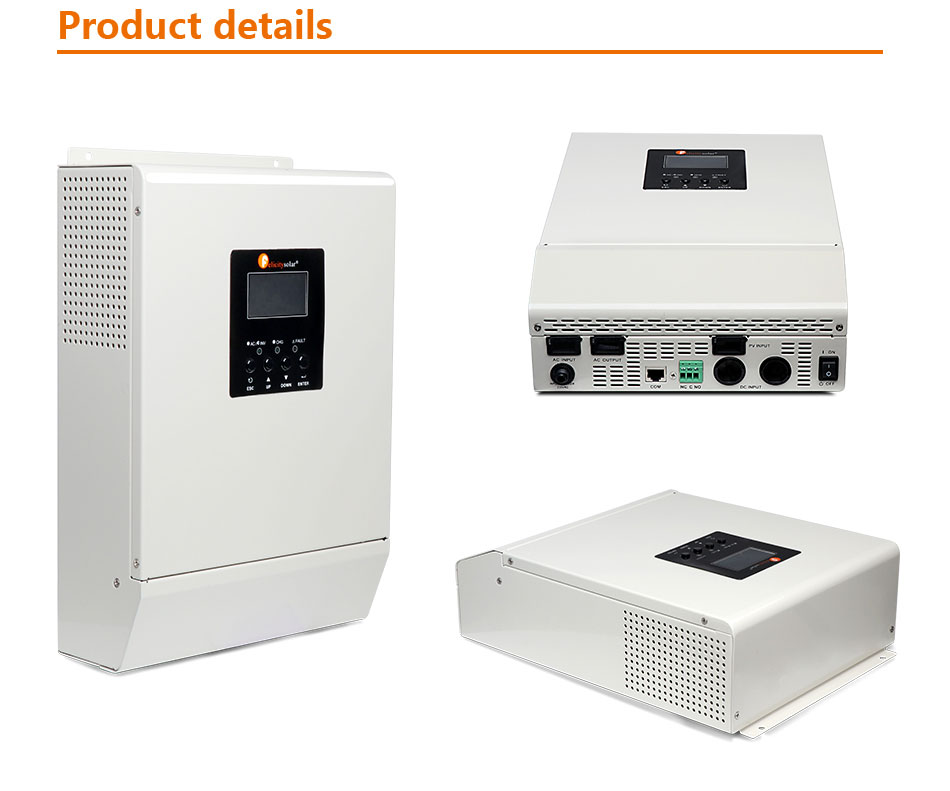

Product Details

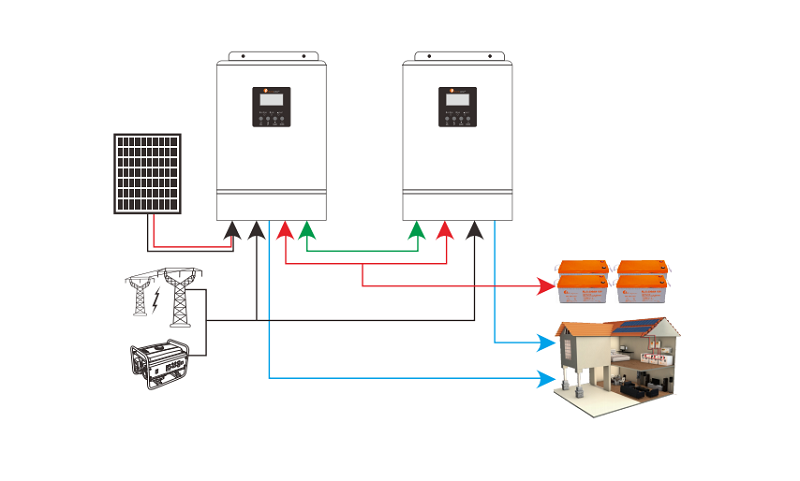

Basic System Architecture
The following ilustration shows basic application for this inverter/charger. It also includes following devices to
have a complete running system:
●Generator or Utility.
●PV modules (option)
Consult with your system integrator for other possible system architectures depending on your requirements.
This inverter can power all kinds of appliances in home or ofice environment, including motor-type appliances
such as tube light, fan, refrigerator and air conditioner.

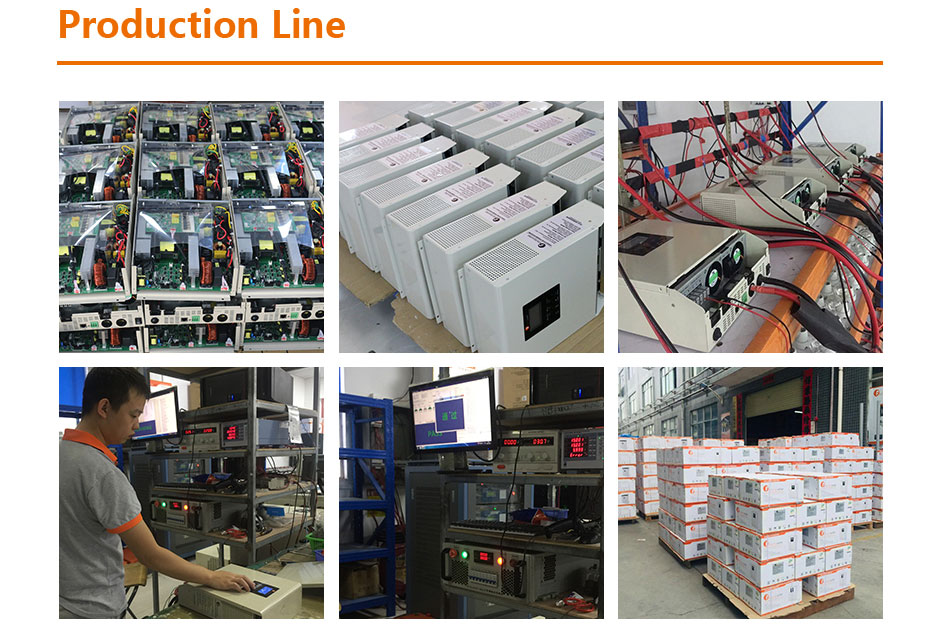

Production Line
Our Advantage
1. We offer one-stop power solutions, which saves design time and cost for customer:
-- Pack design / External Case design / BMS design
2. Strict quality control system which enhances customers' competitiveness:-- 100% PCM test by IQC-- 100% Capacity test by OQC
3. Delivery on time & excellent service:
-- Fast Delivery in 10 days if stock-- 8h response & 48h solution4. Experienced R&D team, be customer's professinonal power solution consultant:-- Comprehensive Battery Test Center (Safety and Reliable test)-- Powerful ODM Ability to Afford Customized Design Requirement
RFQ
Q1.How do you provide your after sale service？
A:Professional after-sales team will help you in china and other country's agent, If you have any questions about our product, please contact us, we will solve your problem based on your situation.
Q2.Can you provide OEM, ODM service?
A: OEM and ODM service is available.
Q3.what kind of certificate you have ?
A: ISO, CE, ETL, Thayer, UL .
Q4. what's the payment term?
A: TT,30% deposit and 70% balance before shipment.
Q5. how's the delivery time ?
A: within 1 week.
Q6: What's the different between high frequency inverter and Low frequency inverter?
A: The main difference is the transformer, there is big transformer bulit in low frequency inverter, it can afford big power machine.
Low frequency is bulit in MPPT/PWM controller, which is good performmance.
