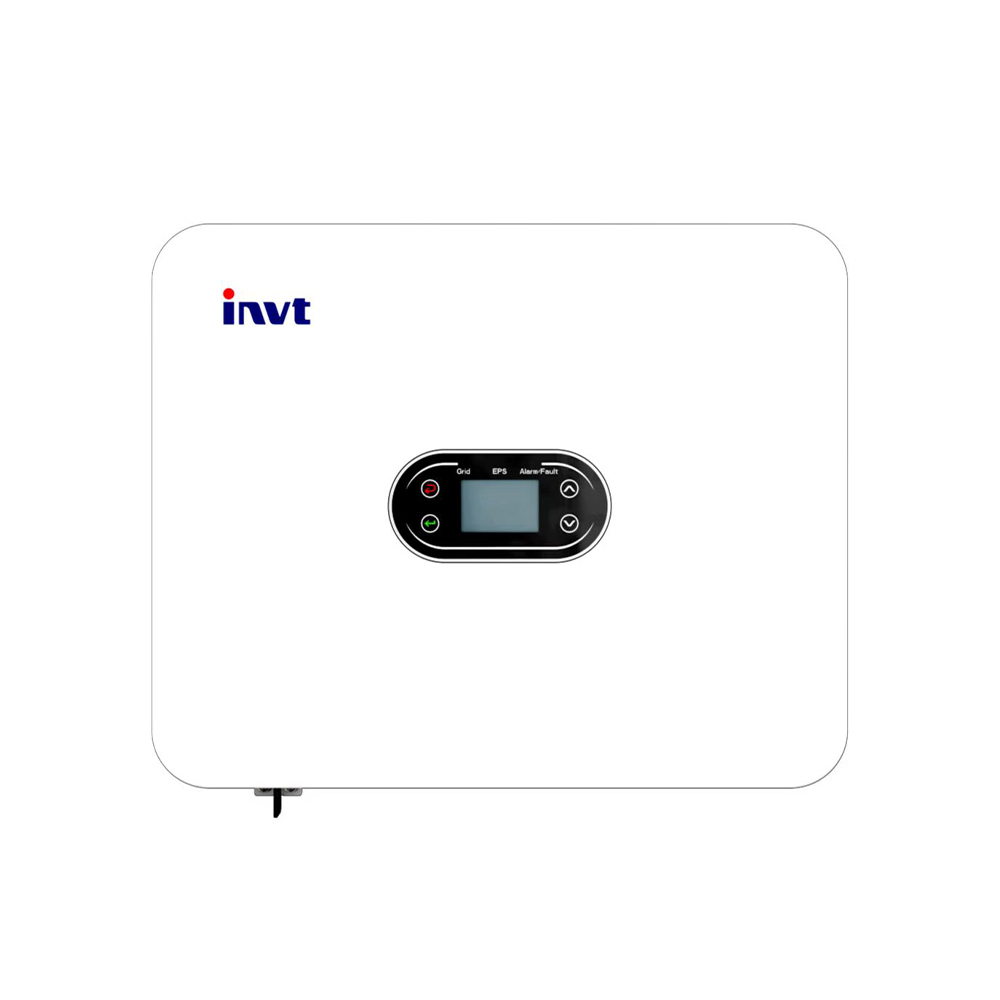

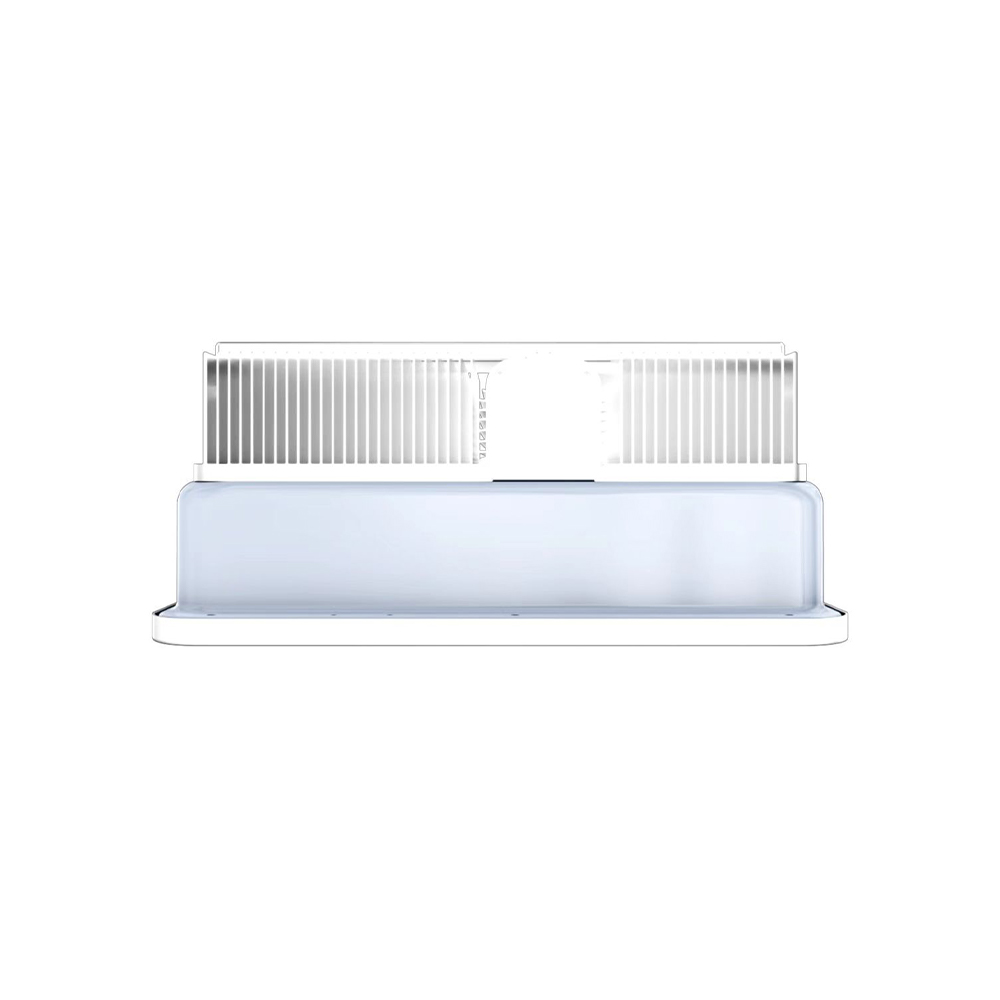

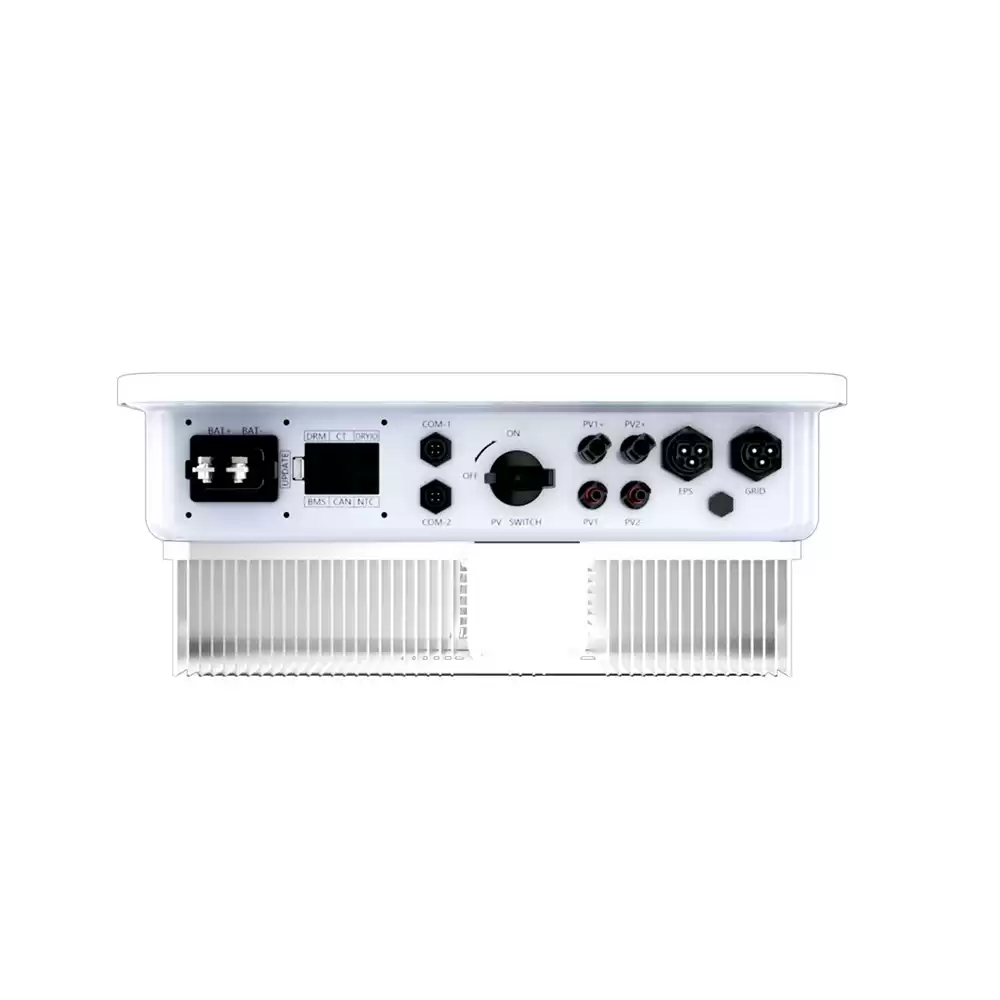

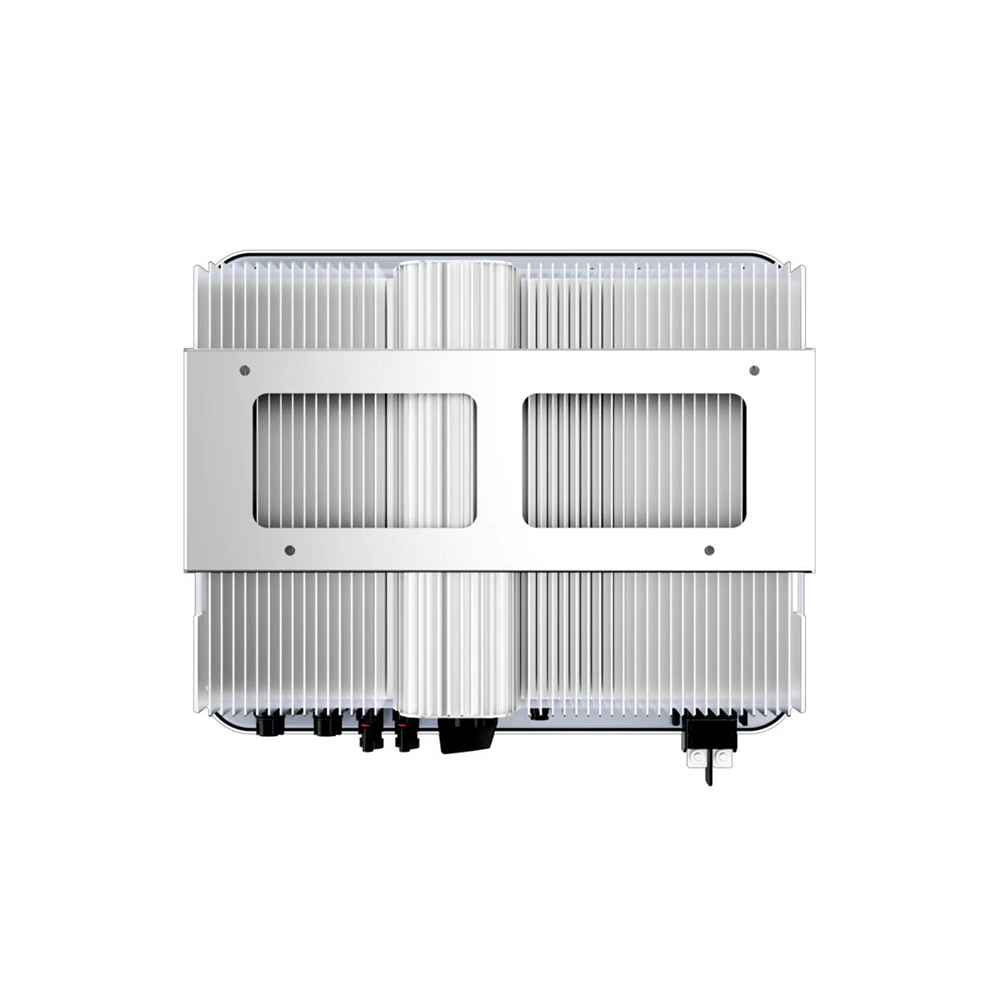

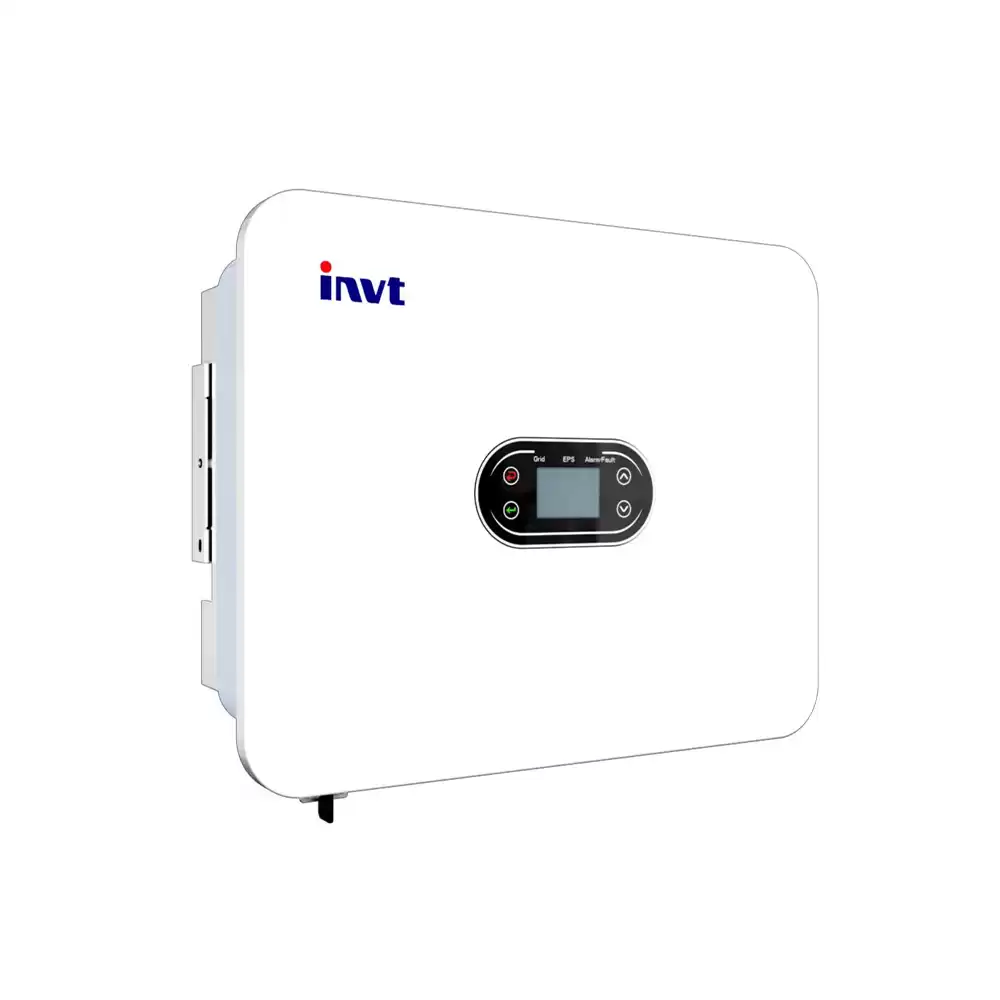

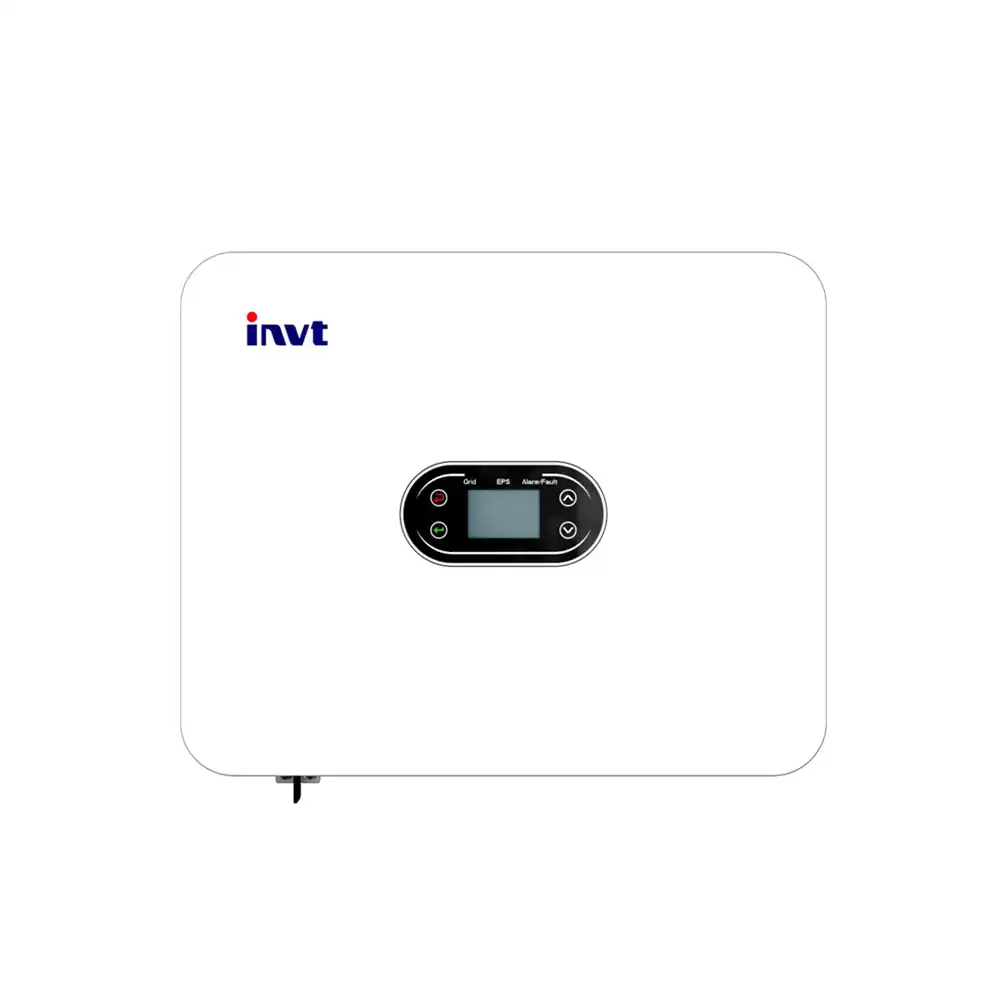

Hybrid Solar Power Inverter MPPT Solar Charge Controller 6KW 100A Single Phase pure sine wave inverter

  • CertificateCE TUV ISO9001
  • Warranty2 years
Facebook Twitter Pinterest LinkedIn 分享
Details Images
Product Features

1. Efficient Higher Revenue

* Max. Efficiency 97.5%

* Max. PVInput Voltage 550V

*150% Peak Output Power
*2 MPP Trackers, 150% DCInput Oversizing
*Max. PV Input Current 16A, Compatible with High Power Modules

2.Intelligent Simple O&M
* IP66 Protection Degree: support outdoor installation
*Smart I-V Curve Diagnosis Function: locate PV string faults accurately and automatically detect faults
*DC & AC Type Il SPD: prevent lightning damage
*Battery Reverse Connection Protection

3. Flexible Abundant Configuration
* Plug & Play, EPS Switching Under 10ms
*Compatible with Lead-acid and Lithium Batteries
*Max. 6 units inverters Parallel
*AFCI Function (Optional): when an arc-fault is detected the inverter immediately stops operation

Product Paramenters
Input(PV)
Max. PV Input Power
5.4kw
6kW
6.9kw
7.5kw
9kW
Max. PV Input Voltage
550V
Start-up Voltage
100V
Rated Voltage
240V
270V
300V
330v
360V
MPPT Voltage Range
100V~550V
Number of Input Current
2
Max. PV Input Current
16A
Output(AC)
Rated Output Power
3.68kVA
4kVA
4.6kVA
5kVA
6kVA
Max. Output Power
3.68kVA
4.4kVA
4.6kVA
5.5kVA
6.6kVA
Max. Output Current
16A
20A
20.9A
22.7A
30A
Rated Voltage
230V
Rated Frequency
50Hz/60Hz
THDi(@Rated Power)
<3%
Power Factor
0.8 leading~0.8lagging
Output(EPS)
Max. Output Power
3.68kVA
4kVA
4.6kVA
5kVA
6kVA
Max. Output Current
16A
20A
20.9A
22.7A
30A
Peak Output Power, Time
5.5kW,10s
6kW,10s
6.9kW,10s
7.5kW,10s
7.5kW,10s
Rated Voltage,Frequency
230V,50Hz
THDv(@Rated Power)
<3%
Switch Time
< 10ms
Battery
Battery Type
Lithium, Lead-acid
Battery Voltage Range
40V~60V
Max. Charge / Discharge Current
100A
Communication
CAN
Efficiency
Max. Efficiency
97.50%
EU Efficiency
97.20%
Battery Charge/Discharge Efficiency
95%
Protection
DC Reverse Polarity Protection /Insulation
Resistance Monitoring/ Ground Fault Monitoring
Yes
Over Current/Over Voltage Protection
Yes
Battery Soft Start Protection
Yes
AFCI Protection
Optional
Surge Protection
Type II
Communication
Display
LCD
Communication
RS485/CAN /WIFI/4G /LAN /Bluetooth
General Data
Dimension (W*H*D)
490×395×200 mm
Weight
15kg
Operating Temperature Range
-30℃~+60℃
Cooling Method
Natural
Protection Degree
IP66
Max. Operating Altitude
4000m
Noise
≤25dB
Relative Humidity
0~100%
Self-consumption
<10W
Topology
High Frequency Insolation (For battery)
