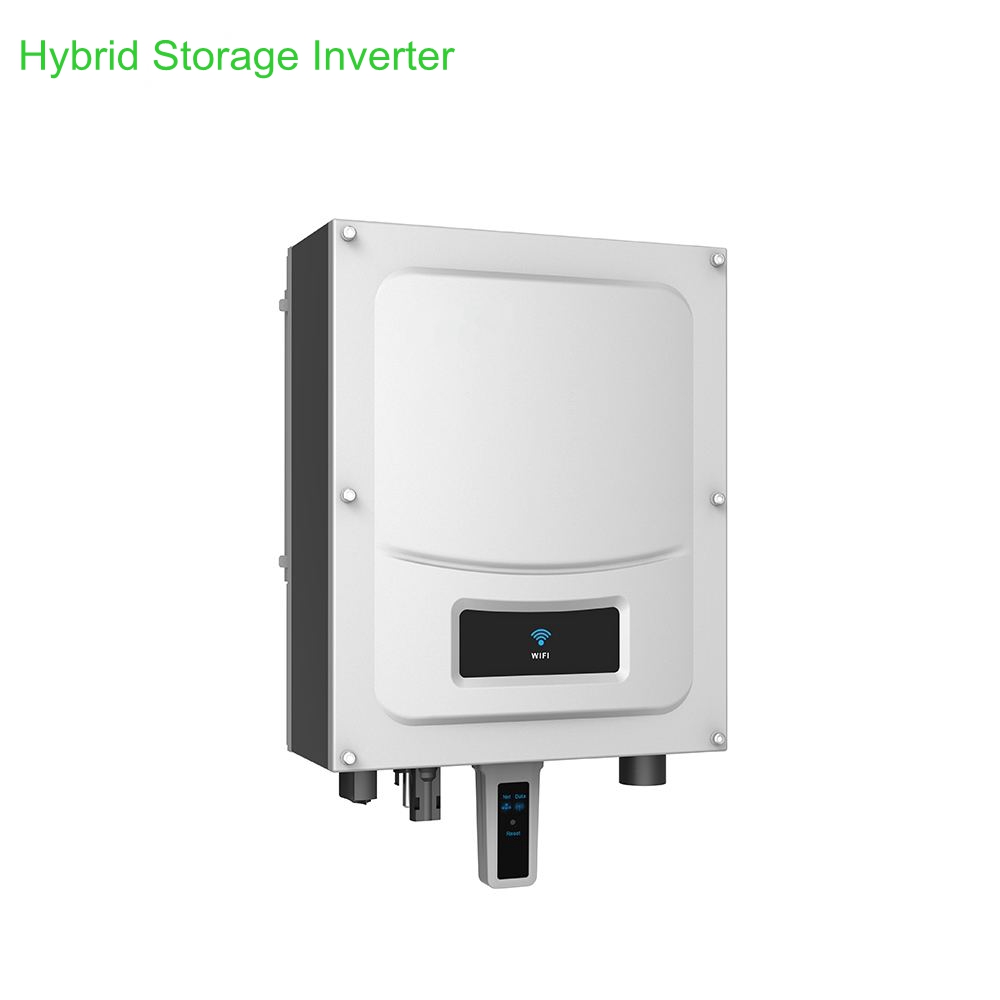

Greensun Hybrid String Solar Inverter for Home
Hybrid Storage Inverter 3kw 4kw 5kw EU USA Standard for Energy Storage System
Model
|
3KW
|
3.6KW
|
4KW
|
5KW
|
6KW
|
8KW
|
|
Battery Type
|
Lithium-ion, Lead-acid
|
Battery Voltage
|
40-60V
|
Charging curve(Lithium-ion)
|
BMS
|
Max Input Power
|
3500W
|
400W
|
4400W
|
5500W
|
6600W
|
8800W
|
|
Max DC Input Voltage
|
600V
|
Start-up Input Voltage
|
120V
|
120V
|
120V
|
150V
|
120V
|
150V
|
|
Grid Connection
|
Single Phase
|
Grid Voltage
|
230Vac
|
230Vac
|
230Vac
|
230Vac
120Vac/240Vac
|
230Vac
|
230Vac
120Vac/240Vac
|
|
Max Efficiency
|
97.6%
|
97.6%
|
97.6%
|
97.6%
|
97.6%
|
97.6%
|
|
MPPT Efficiency
|
>99.9%
|
Protection
|
PV array insulation protection, PV array leakage current protection, Ground fault monitoring, Grid Monitoring, Island protection, DC monitoring, Short current protection etc.
|
Communication Interface
|
RS485(standard); WIFI
|
Certification
|
UL, IEC 62116, IEC61727, IEC61683, IEC60068, CE, CGC, AS4777, VDE4105
|
Warranty
|
5years, 10years
|
Temperature Range
|
-25β to +60β
|
DC Terminal
|
Waterproof Terminals
|
Demension(H*W*D mm)
|
560*390*170
|
560*390*170
|
560*390*170
|
680*400*230
|
560*400*170
|
680*400*230
|
|
Approx Weight
|
19.5kg
|
19.5kg
|
20.5kg
|
32kg
|
21kg
|
32kg
|
|
Hybrid
grid inverter is a key part of the energy storage solar system, which
converts the direct current of solar modules into alternating current.
The hybrid network energy storage inverter has its own charger,
which can be directly connected to lead-acid batteries and lithium iron
phosphate batteries.
Inverter specifications include single-phase 220-240v,
50hz; three-phase 380-415V 50hz; single-phase 120v / 240v 60hz; and
three-phase 480v.
Our Company Projects for Reference
One stop solution for solar power system.
