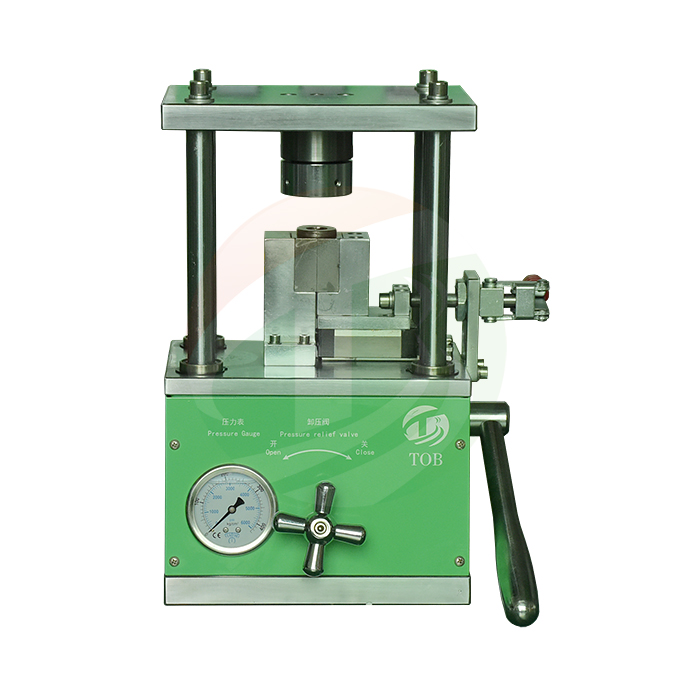

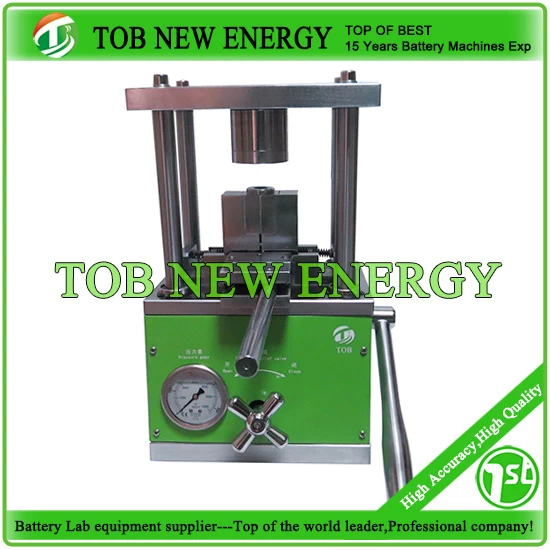

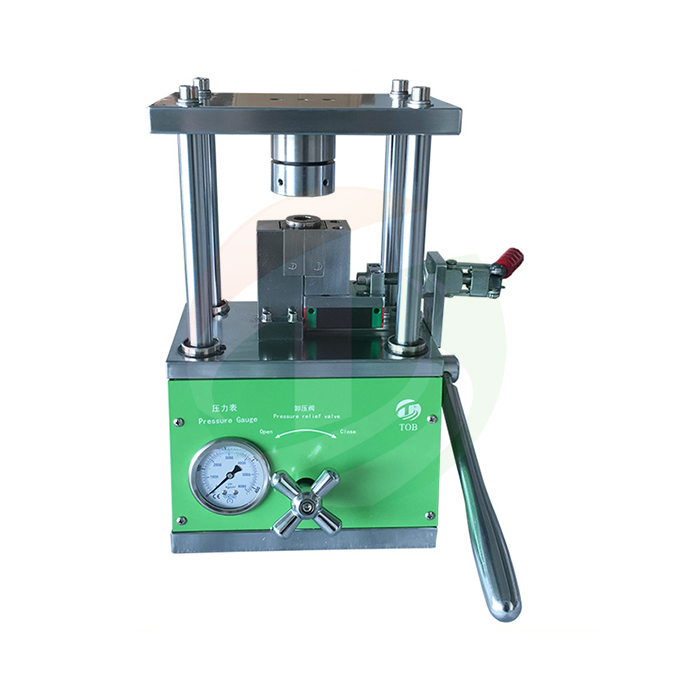

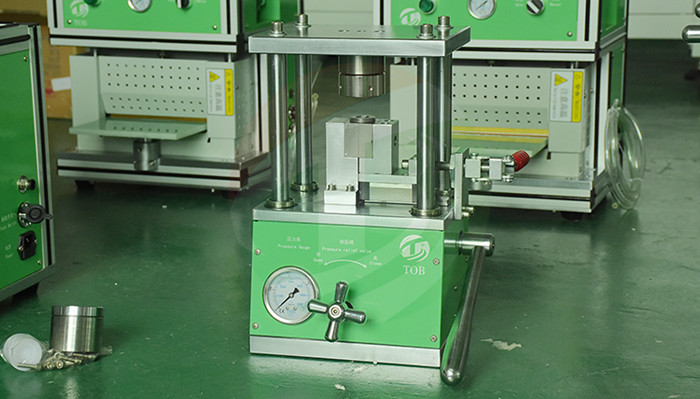

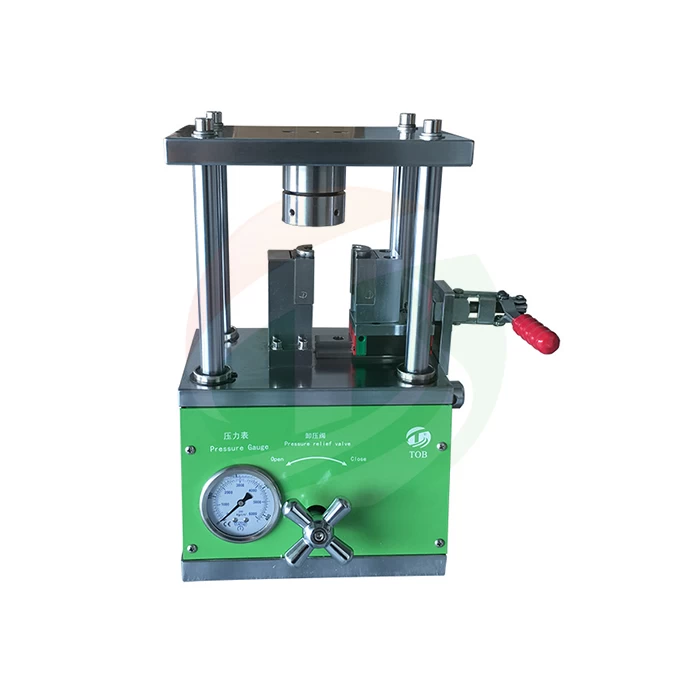

Hydraulic Crimping Machine for 18650 Cylinder Cell And CR 20XX, 24XX Coin Cell Crimping And Disassembling
SPECIFICATIONS
TOB-CF-650 is acompact hydraulic crimperfor sealing all types of cylinder cases in battery R&D labs. The compact body design allows it to be easily placed inside a glove box and thus preventing contamination of the electrolyte materials during cell assembly. Simple operation with safety protection feature allows customers to master the sealing procedure within 5 minutes.
It is mainly used for 18650 battery and Button battery crimping and disassembling
|
Model
|
Hydraulic Sealing Machine TOB-CF-650
|
|
Driving Force
|
Manual hydraulic pressing up to 5T
|
|
Pressure Gauge
|
0-3500 psi (0-250 kg/cm^2)
|
|
Body
|
Stainless Steel
|
|
Crimping Dies
|
Six standard die selectable: CR123 /18650 / 26650 / 32650 / AA /AAA
|
|
Warranty
|
One year limited with lifetime support
|
|
Product Dimensions
|
330mm(L) x 240mm(W) x 400mm(H)
|
|
Application Notes
|
Customized die for other cylindrical cell types is available upon request

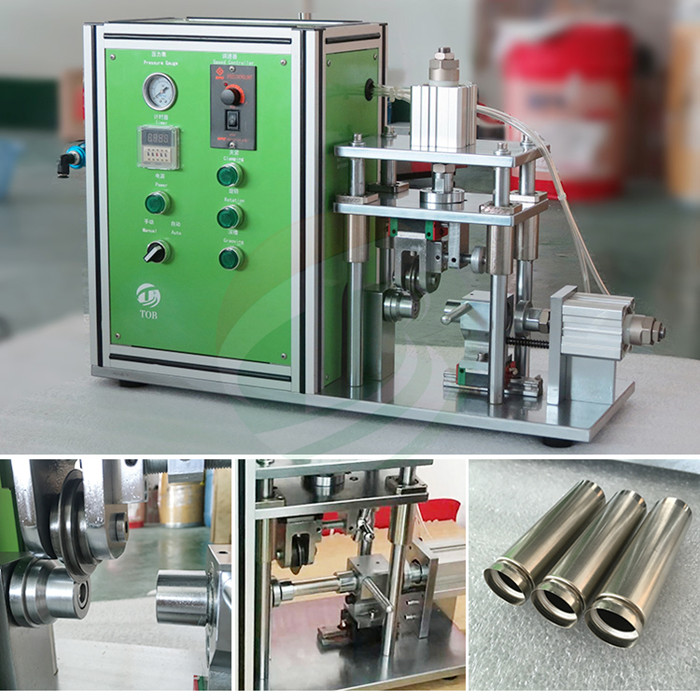

It is necessary to groove the opening end of the cylindrical case by
using the TOB-GC650 grooving machine before sealing the cap
Each type of cylinder cell can only be sealed specifically by certain model of
equipment. Please select the type of cylinder cell in the Product Options drop
box to check the model number and price for the corresponding crimping die
of each cylinder cell type
|
|
Net Weight
|
26 kg (58 lbs)
|
PRODUCT DISPLAY

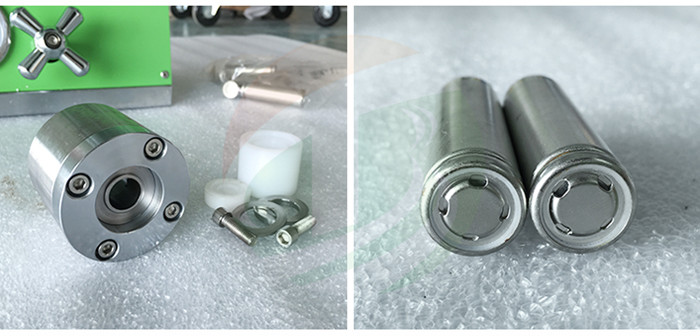

18650 Crimping Die
|

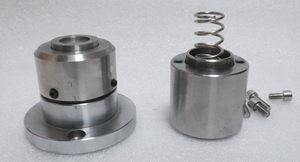

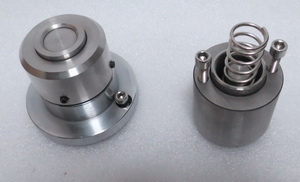

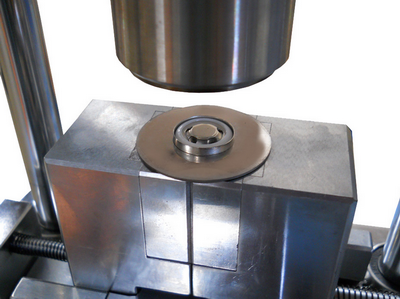

Coin Cell Crimping Die
|

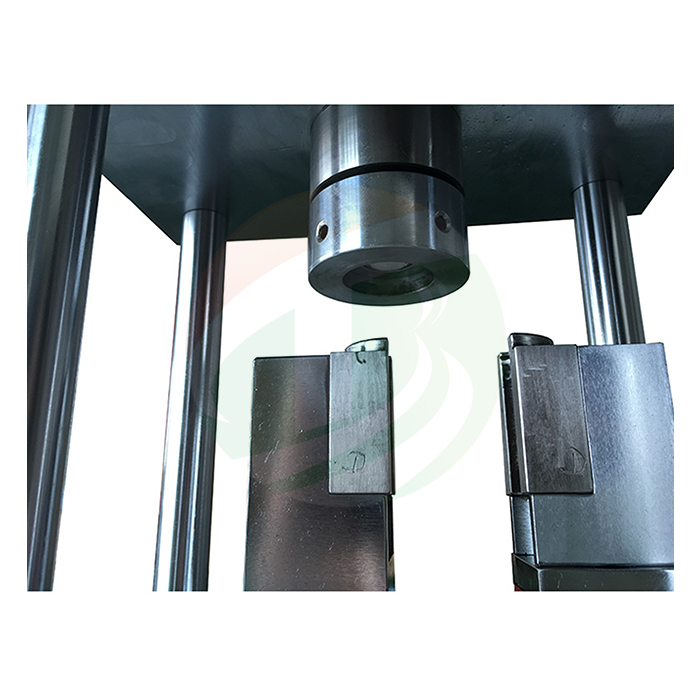

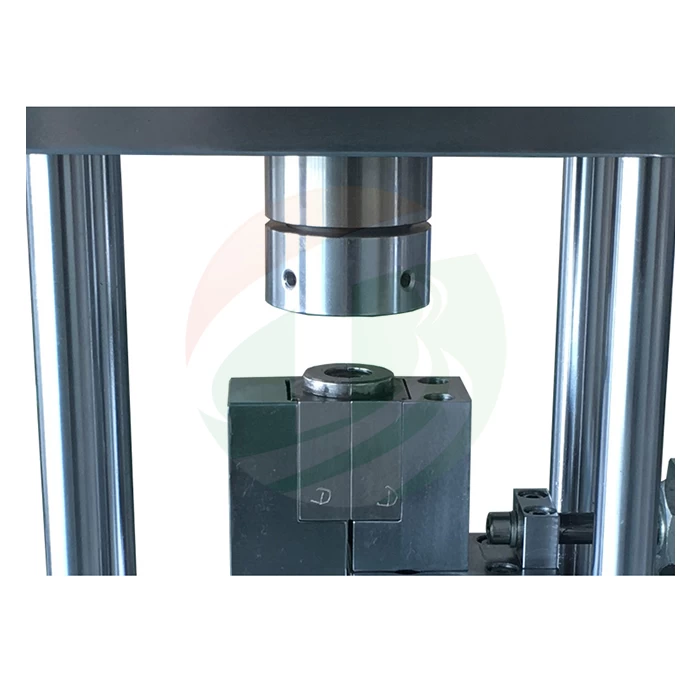

Coin Cell Disassembling Die
|
|
|
|

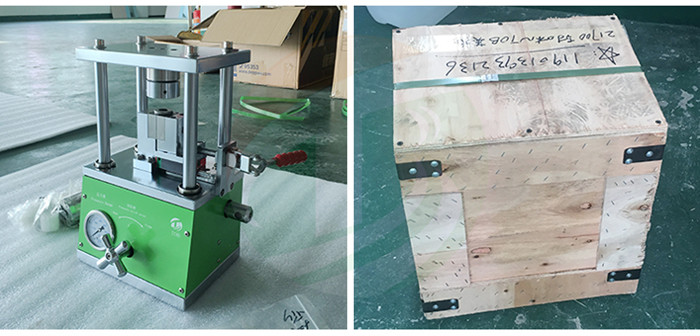

PACKAGE
