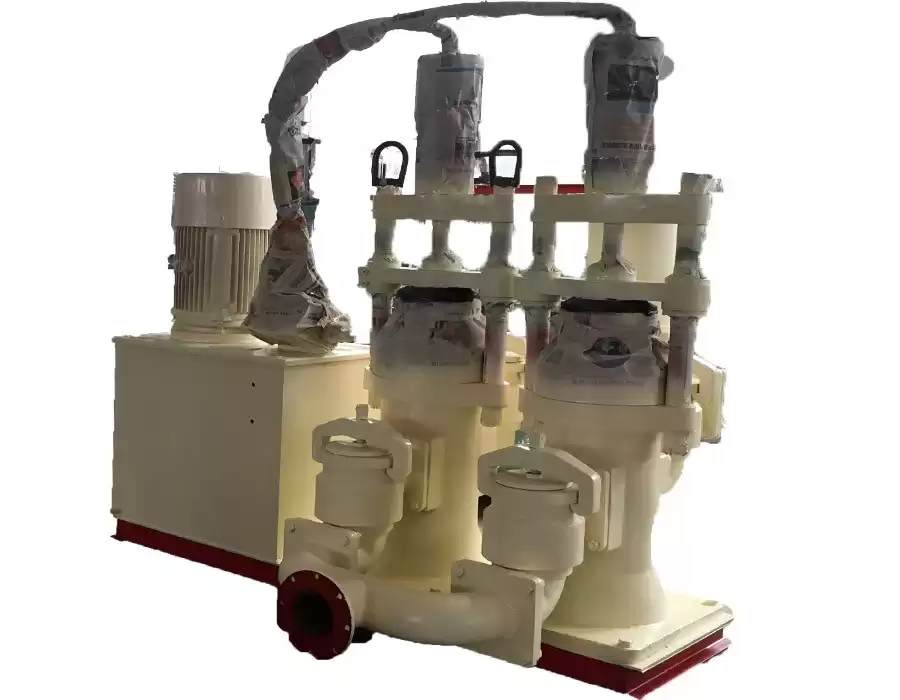

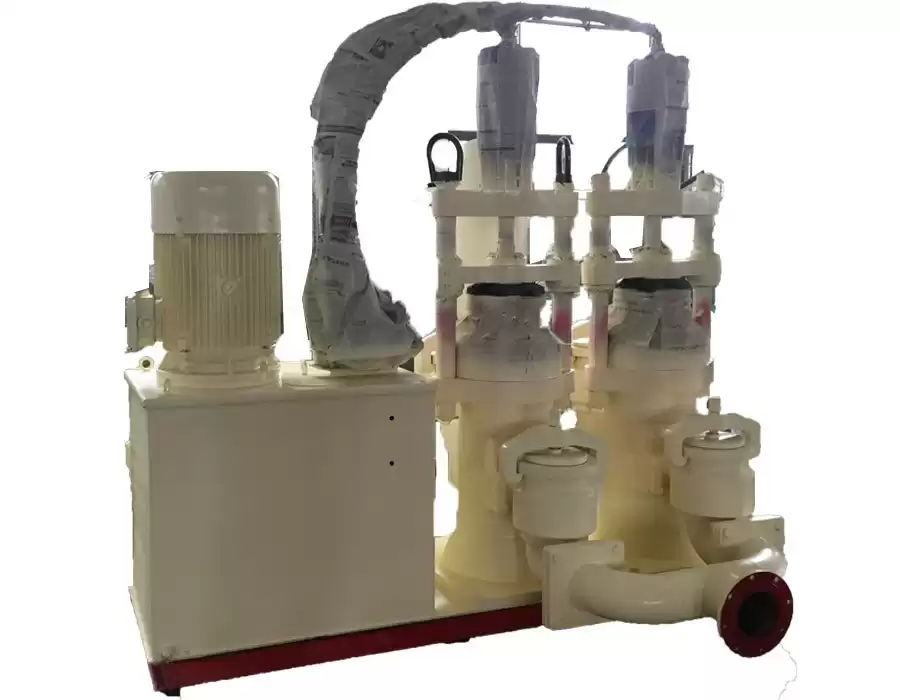

Hydraulic Ceramic Piston Slurry Pump
Slurry Pump Characteristic:
1. Hydraulic driven, two ceramic pistons working up and down stably
2. The highest feeing pressure could be 2.5Mpa, the rate pressure is 2.0Mpa, the pressure could be adjusted.
3. Pistons are made of alumina ceramics,of great abrasion resistance and corrosion resistance.
4. Using combined seal, good sealing efficiency
5. Good Design Structure, Convenient Installation and maintenance, Long Usage Life Span
How slurry pump work:

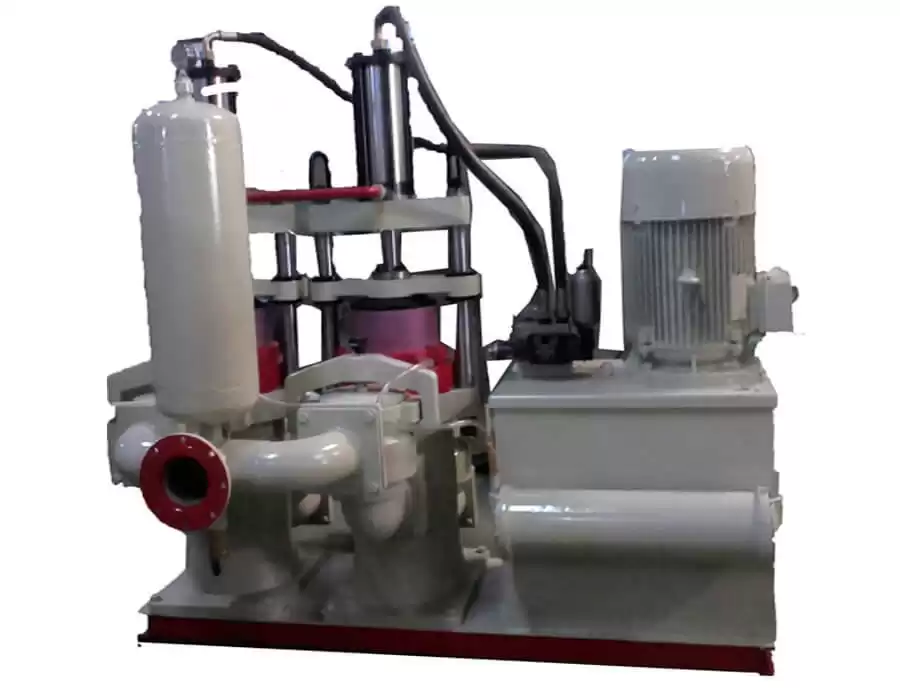

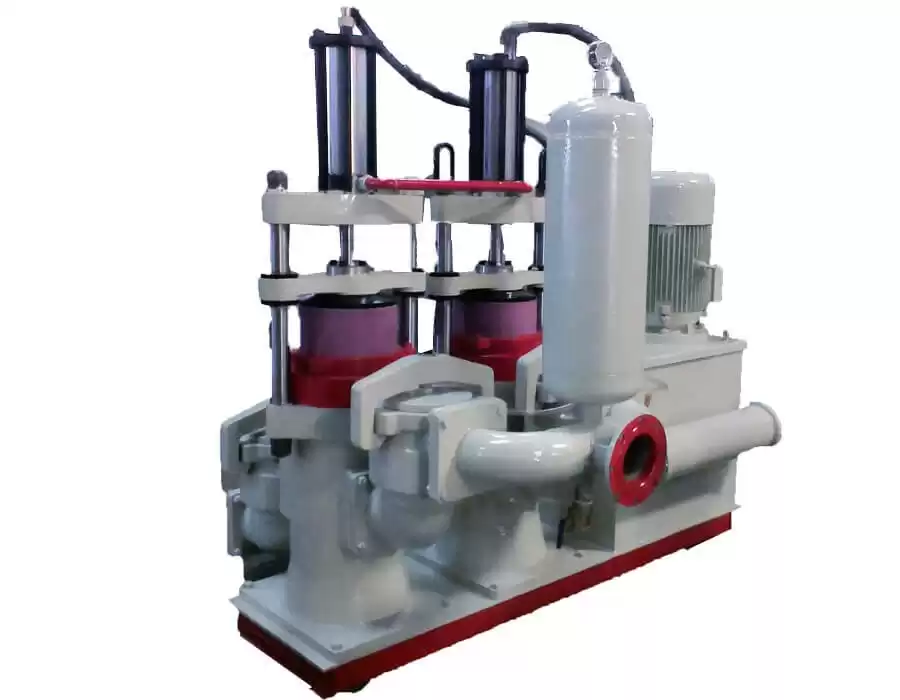

YB series hydraulic piston pump have been studied for transporting thick slurry to the filter press or spray-driers. The pump is formed by: two pistons, run by two hydraulic cylinders; suction and delivery valves which can be easily disassembled for rapid inspection or for cleaning the pump; an air accumulator; a control pressure gauge; a valve to adjust the working pressure at any value (within the fixed limits), and a safty valve. The pistons are made of alumina ceramic(This special coating guarantees long life and resistance to the high abrasive action of the liquids) and equipped with gaskets made of special wear resistant material with a low coefficient of friction.
Slurry Pump Technical Parameters:
YB Series Sludge Piston Pump
Model | Flux (m3/h) | Pressure Range (Mpa) | Rated Pressure (Mpa) | Motor Power (kw) | Diameter （Suction And Discharge） （mm） | External Size (L*W*H) (mm) | Weight (Kg) |
YB-85 | 3.0 | 0-2.5 | 2.0 | 4 | Ø76 | 1300*850*1600 | 482 |
YB-120 | 7.1 | 0-2.5 | 2.0 | 11 | Ø76 | 1600*1300*1800 | 815 |
YB-140 | 10 | 0-2.5 | 2.0 | 11 | Ø76 | 1600*1300*1800 | 870 |
YB-200 | 19 | 0-2.5 | 2.0 | 18.5 | Ø89 | 1730*1400*1900 | 1127 |
YB-250 | 30 | 0-2.5 | 2.0 | 22 | Ø133 | 2000*1700*2100 | 1600 |
YB-300 | 40 | 0-2.5 | 2.0 | 30 | Ø133 | 2100*1900*2200 | 2400
|
