Hydraulic compactor system for Industrial garbage trucks
Function:
Hydraulic compactor system (also called as Hydraulic pressed compactor system, Rear loaded structure for garbage vehicle, Garbage collection vehicle compactor system, Compactor vehicle body kit) is widely used in daily rubbish transport in such living areas as all kinds of cities, large station, port and whart, airpot and densely-populated areas like industrical and mineral enterprises and military units.
All our compressed garbage truck optional hanging bucket or barrel tilting mechanism, automatic operating, simple and efficient garbage collection. It can be converted into various special garbage truck according to clients' special requirement.
Features:
---- ISUZU chassis, perfect performance.
---- Compression ration > 60%
---- Compression body capacity from 3 CBM TO 20 CBM
---- Sealed transportation avoid the second time pollution
---- Massive, durable, perfect performance
Specifications:
|
NO.
|
Item
|
Name
|
Coad
|
Quantity
|
Comments
|
|
1
|
Compactor tank
|
Tank Assembly
|
YS12-0100000
|
1
|
|
|
2
|
Tail Gate Assembly
|
YS12-0200000
|
1 set
|
|
|
3
|
Scraper Assembly
|
YS12-0300000
|
1 set
|
|
|
4
|
Slide Plate Assembly
|
YS12-0400000
|
1 set
|
|
|
5
|
Tilt Device Assembly
|
YS12-0500001
|
1 set
|
|
|
6
|
Spare Parts
|
Oil Pump
|
|
1 unit
|
|
|
7
|
PTO
|
|
1 unit
|
|
|
8
|
Five Function Multi-way Valve
|
|
1 set
|
Installed
|
|
9
|
Hydraulic Oil Tank
|
80L
|
1 unit
|
Installed
|
|
10
|
PLC Control Box
|
|
1 set
|
Installed
|
|
11
|
Electric System
|
|
1 set
|
Installed
|
|
12
|
Balance Valve
|
5060BF2
|
2 units
|
Installed
|
|
13
|
Hosepipe, oil pipe & Joint
|
|
1 set
|
Installed
|
|
14
|
Slide Plate Oil Cylinder
|
50/90-1300x830
|
2 units
|
Installed
|
|
15
|
Scraper Oil Cylinder
|
50/80-860x570
|
2 units
|
Installed
|
|
16
|
Lifting Oil Cylinder
|
50/80-840x560
|
2 units
|
Installed
|
|
17
|
Tilt Device Oil Cylinder
|
45/80-410x170
|
2 units
|
Installed
|
|
18
|
Push Pate Oil Cylinder
|
55/125-1220x2600
|
1 unit
|
Installed
|
|
19
|
Sliding Block
|
Nylon
|
1 set
|
Installed
|
|
20
|
Hose Protector
|
|
1 set
|
Installed
|
|
21
|
Ball Valve
|
1’ 1/4
|
1 unit
|
Installed
|
|
22
|
Stainless Steel Cover
|
DN50
|
1 unit
|
Installed
|
|
23
|
Side lamps
|
|
1 set
|
Installed
|
|
24
|
Others
|
Cushion
|
|
2 units
|
|
|
25
|
U-style Bolt
|
|
8 units
|
|
|
26
|
Plastic Fender (semicircle)
|
|
2 units
|
|
|
27
|
Side Fence Assembly
|
|
2 sets
|
|
|
28
|
Waste Water Tank Assembly (With
Support)
|
|
1 unit
|
|
|
29
|
Standard Part
|
|
1 set
|
|

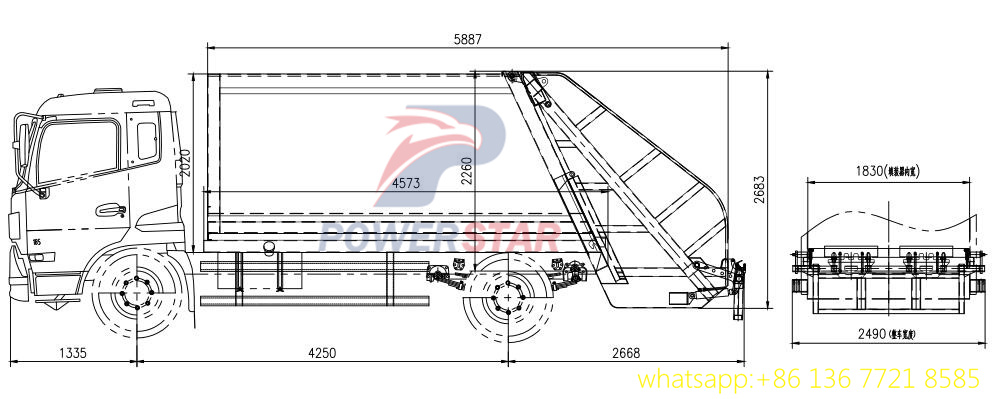

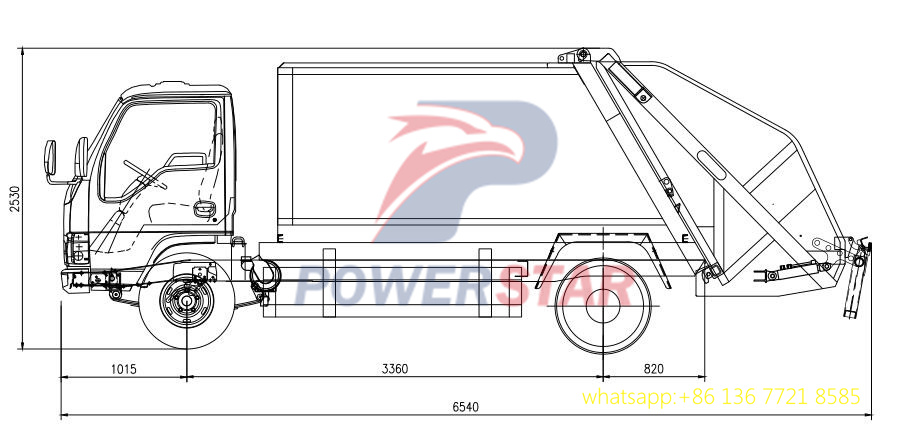

5 CBM Garbage compactor body kit drawing
10 CBM,12 CBM Waste compactor body kit drawing
15 CBM Refuse compactor body kit drawing

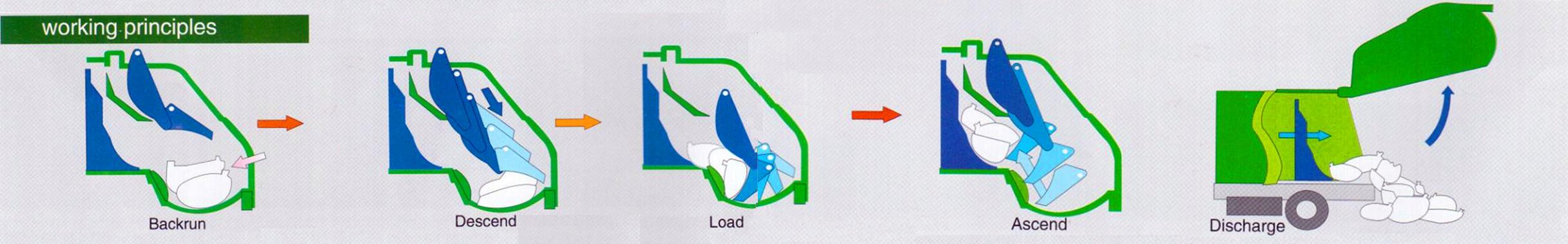

Working
Principles of Garbage Compactor
Different bin optional:
Different Mechanism type for customer choose
Detail pictures:

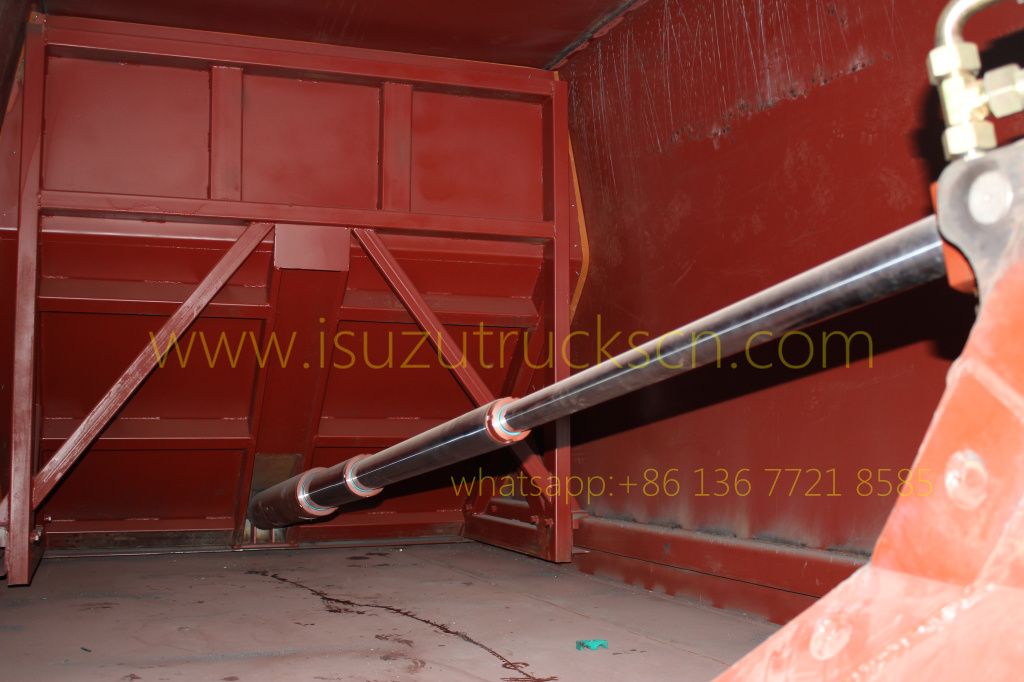

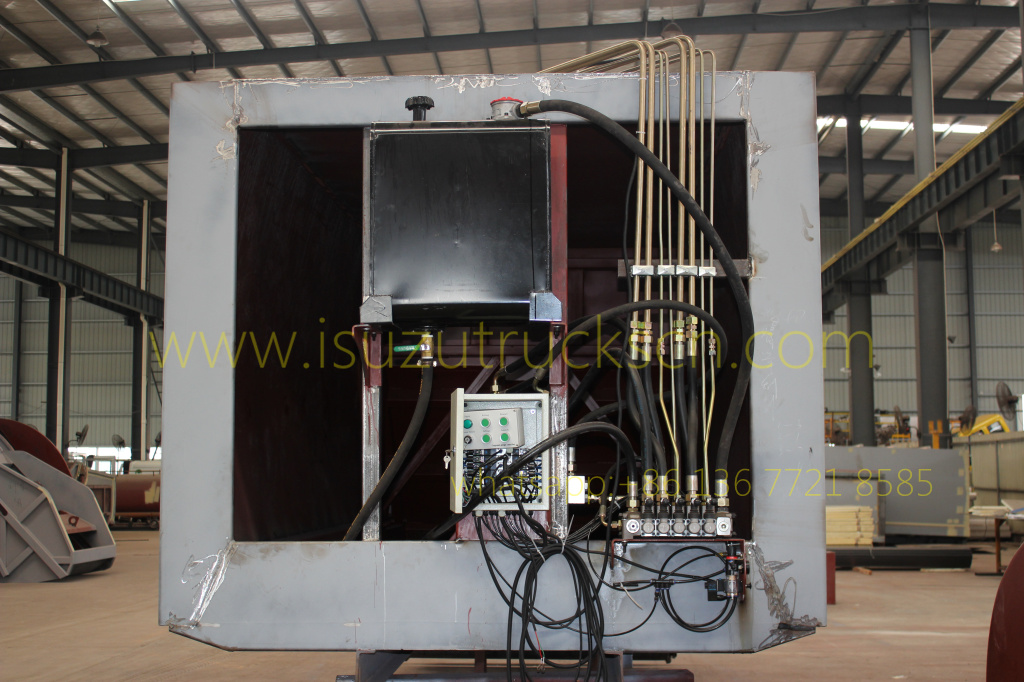

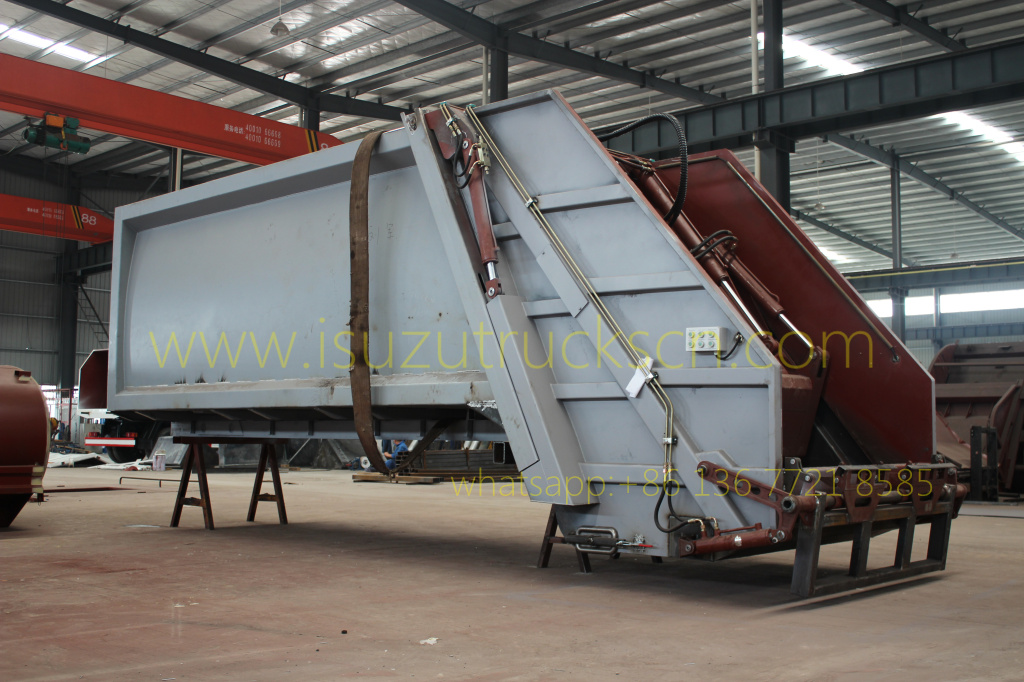

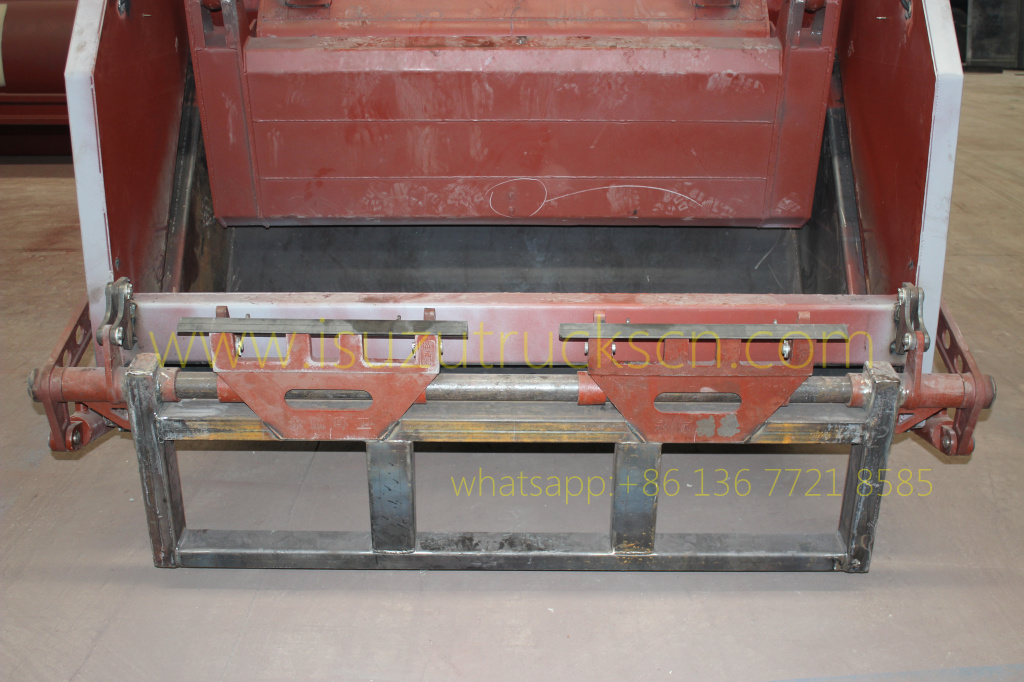

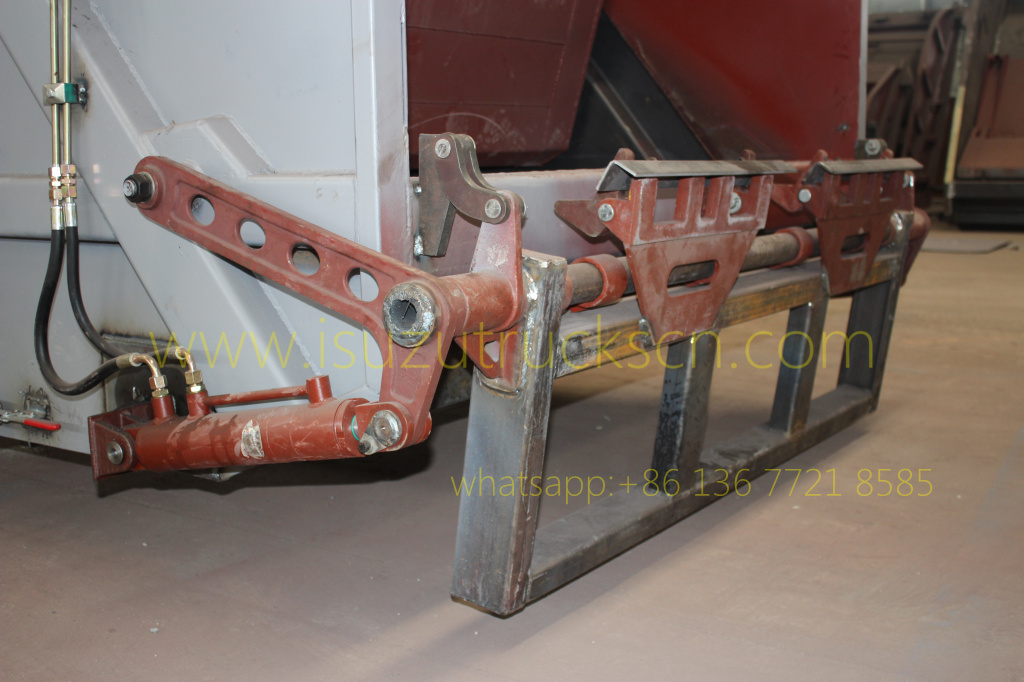

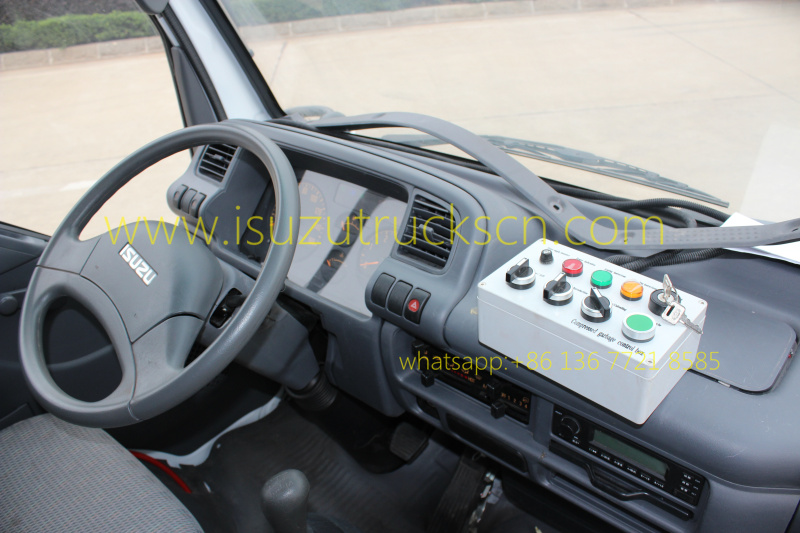

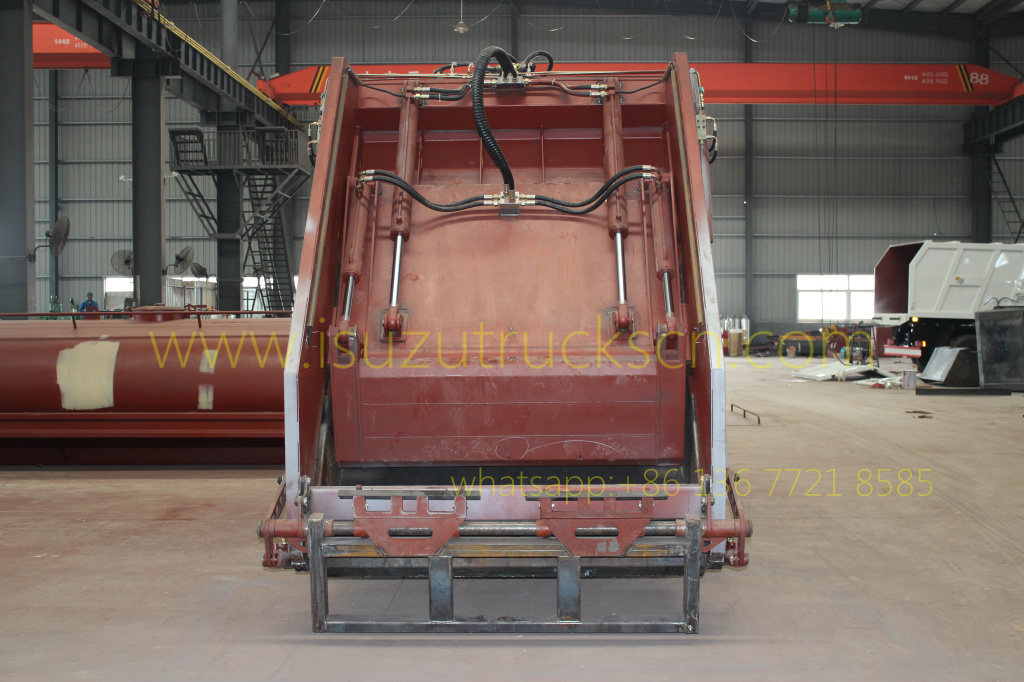

Customer made Garbage Compactor Truck Body kit detail pictures
Customer made Garbage Compactor Truck Body kit detail pictures
Customer made Garbage Compactor Truck Body kit detail pictures
Customer made Garbage Compactor Truck Body kit detail pictures
Customer made Garbage Compactor Truck Body kit detail pictures
Customer made Garbage Compactor Truck Body kit detail pictures

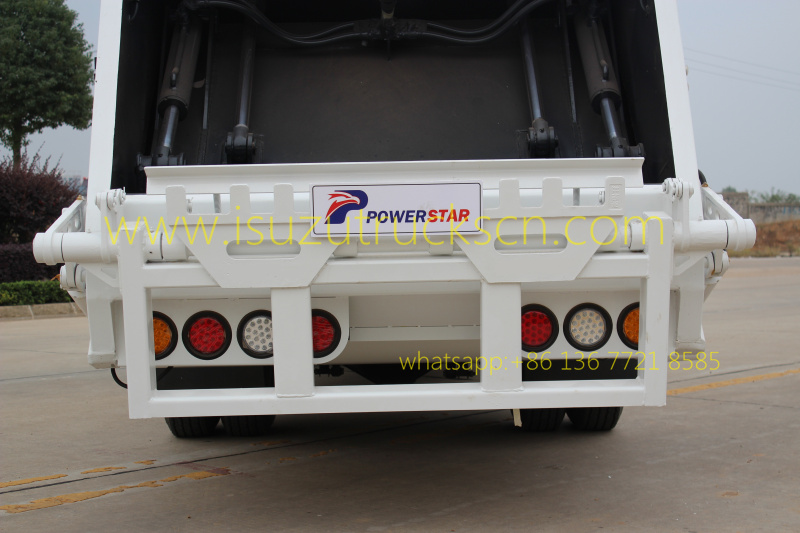

Details pictures of 4cbm Compression Garbage Truck Isuzu
Operation manual of 4cbm Compression Garbage Truck Isuzu
kshop of build 4CBbuild 4CBM Garbage Compactor Truck
