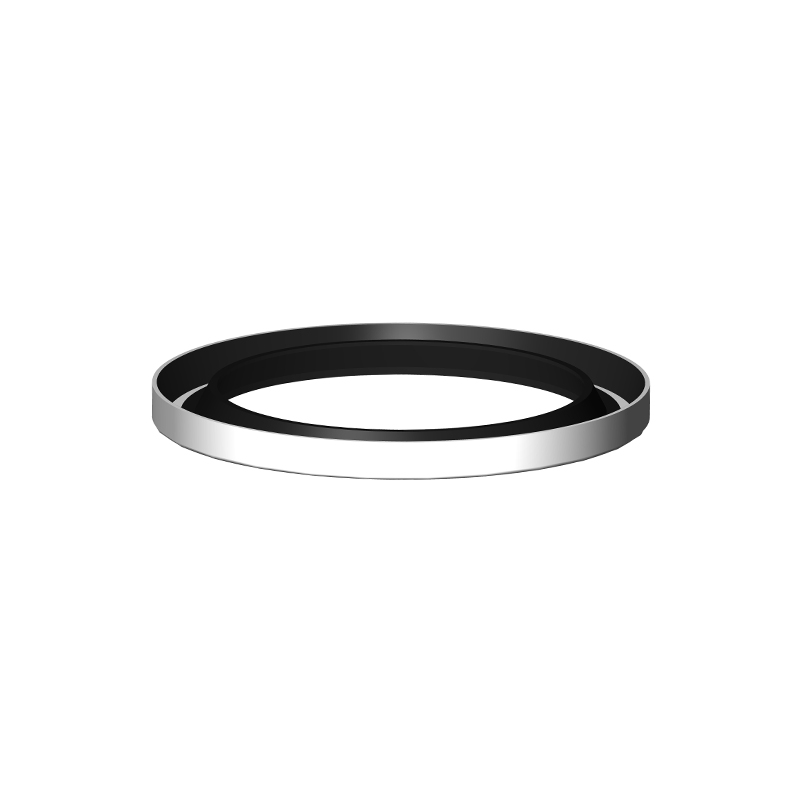

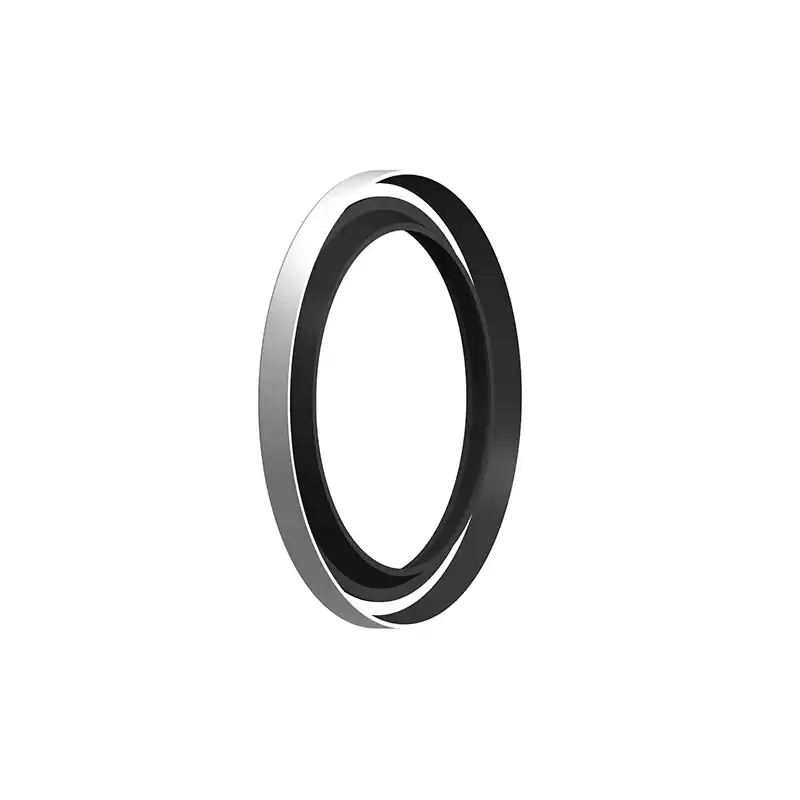

Hydraulic DLI wiper seal

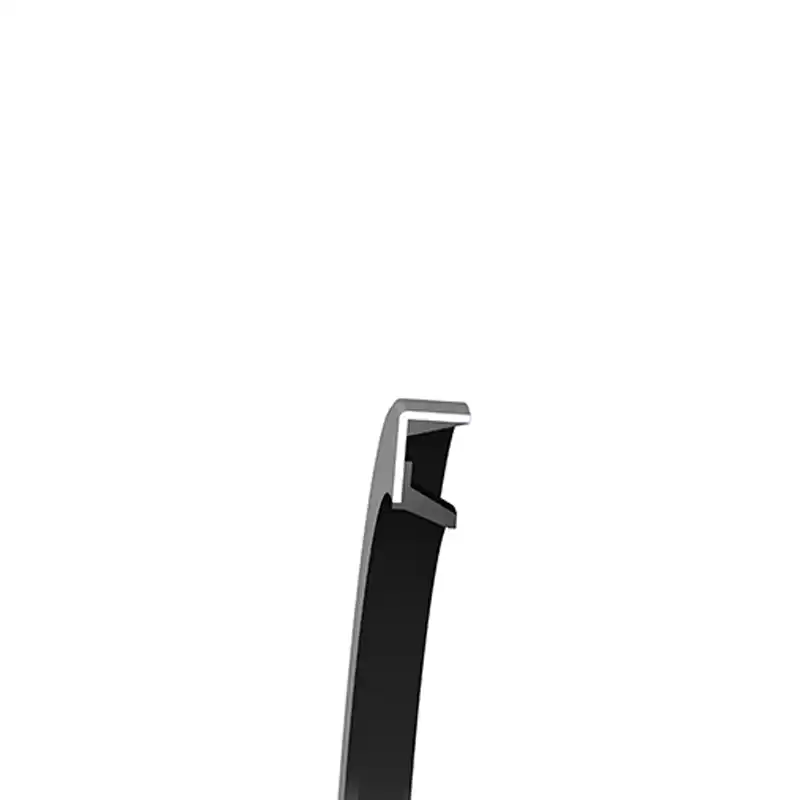

DLI is a dust resistance and oil-scraping double acting seal. Consist of PU and iron material.
|
Advantages:
1.Excellent dust-proof sealing ability
2. Waterproof and immersed
3. Reduce oil film leakage
|
Working Conditions
|
Working Temperature
|
Working Speed
|
Working Medium
|
Material
|
|
-35℃ to +100℃
|
≤1m/s
|
Mineral oil, gas, water
|
PU+Iron
|

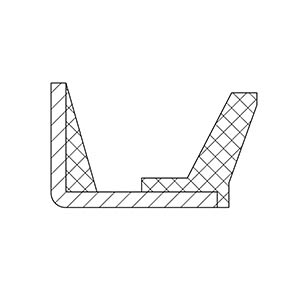

Size:
Diameter: φ14-φ200mm
|
|
Φd
|
ΦD
|
h
|
H=h
|
|
25
|
32
|
5
|
+0.5/0.3
|
|
25
|
32
|
7
|
+0.5/0.3
|
|
30
|
42
|
7
|
+0.5/0.3
|
|
35
|
47
|
7
|
+0.5/0.3
|
|
36
|
46
|
7
|
+0.5/0.3
|
|
40
|
50
|
3.2
|
+0.5/0.3
|
|
40
|
52
|
7
|
+0.5/0.3
|
|
45
|
55
|
3.2
|
+0.5/0.3
|
|
45
|
57
|
7
|
+0.5/0.3
|
|
50
|
60
|
3.2
|
+0.5/0.3
|
|
50
|
60
|
7
|
+0.5/0.3
|
|
50
|
62
|
7
|
+0.5/0.3
|
|
55
|
65
|
3.2
|
+0.5/0.3
|
|
55
|
69
|
8
|
+0.6/0.4
|
|
60
|
70
|
7
|
+0.5/0.3
|
|
60
|
73
|
8
|
+0.6/0.4
|
|
60
|
74
|
8
|
+0.6/0.4
|
|
65
|
75
|
7
|
+0.5/0.3
|
|
65
|
79
|
8
|
+0.6/0.4
|
|
70
|
80
|
7
|
+0.5/0.3
|
|
70
|
84
|
8
|
+0.6/0.4
|
|
70
|
85
|
5
|
+0.5/0.3
|
|
70
|
85
|
6
|
+0.5/0.3
|
|
70
|
85
|
7
|
+0.5/0.3
|
|
75
|
89
|
8
|
+0.6/0.4
|
|
80
|
90
|
7
|
+0.5/0.3
|
|
80
|
94
|
8
|
+0.6/0.4
|
|
80
|
95
|
5
|
+0.5/0.3
|
|
80
|
95
|
7
|
+0.5/0.3
|
|
85
|
99
|
8
|
+0.6/0.4
|
|
86.5
|
121
|
8
|
+0.6/0.4
|
