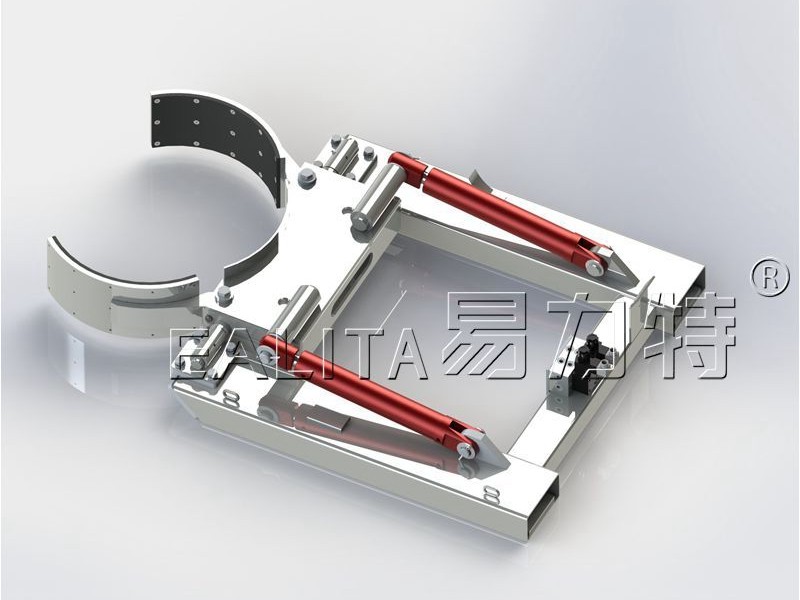

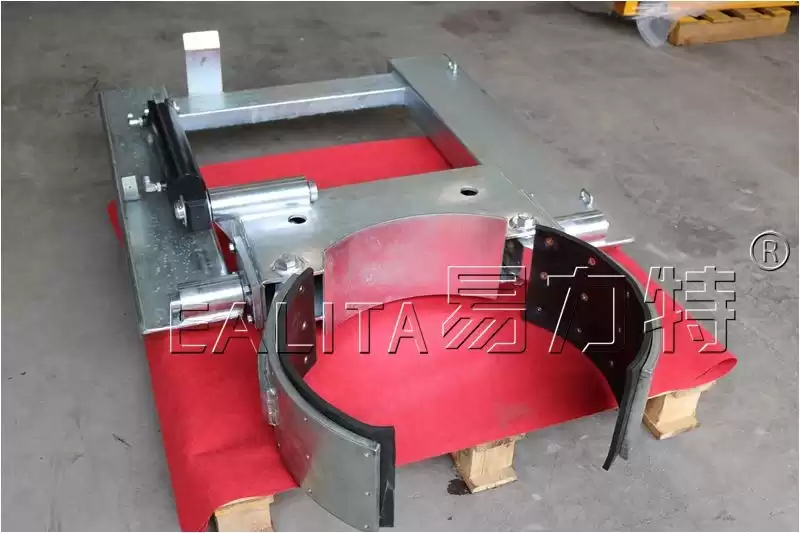

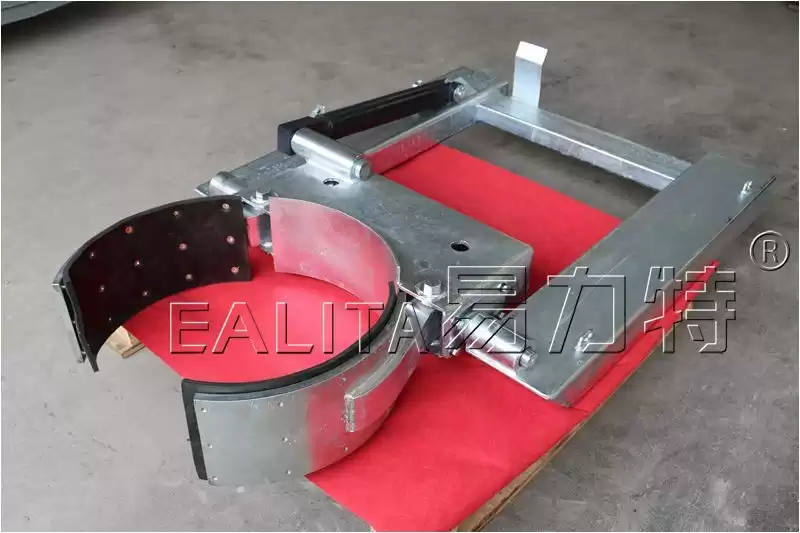

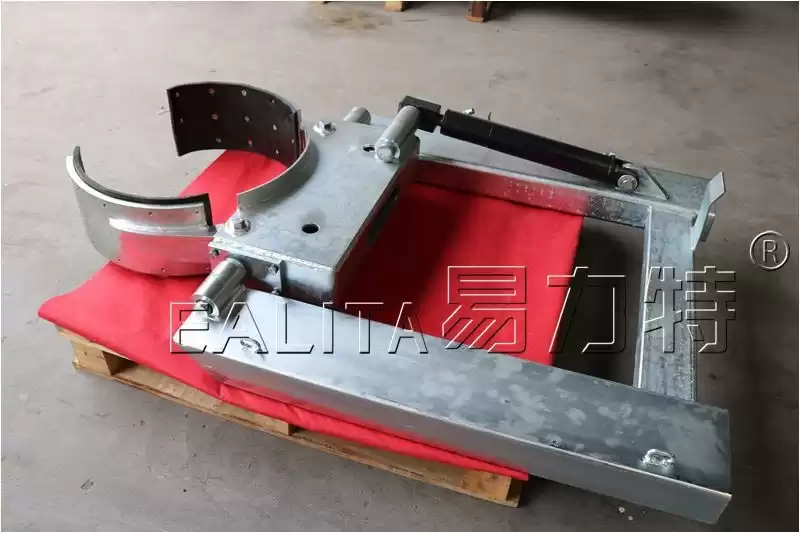

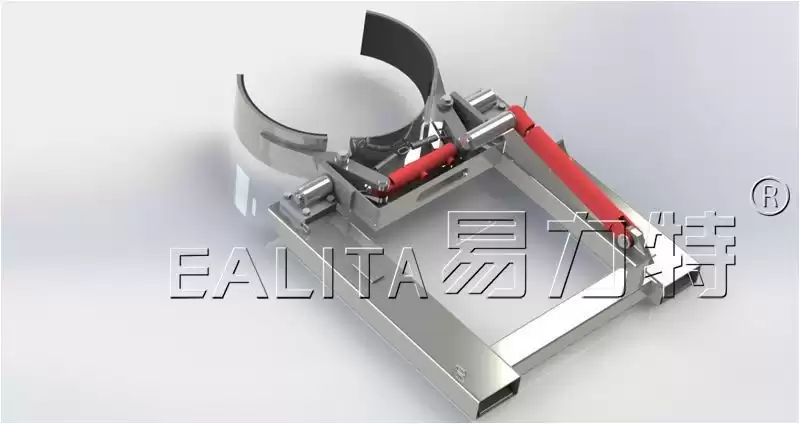

The type F-DC-GR2 Hydraulic Drum Rotator is a heavy duty 205 litre Drum Lifter with hydraulic grab/rotation ability.
- With 1 tonne lift capacity, this attachment is ideal for the recycle industry and for mining applications.
- This lifter is able to pick a single drum from a pallet of 4 without disturbing the other 3 drums.
- This unit is fitted with quick connect couplings for connection to the 3rd and 4th Forklift hydraulic valves.
- The standard finish is galvanized.
Specifications
- Safe Working Load (SWL) 1000kg
- Unit weight 175kg
- 130° Rotation
- Load Centre 1307.5mm
- Pocket Size 185 x 65
- Pocket Centres 874mm
- Horizontal C of G 700mm
