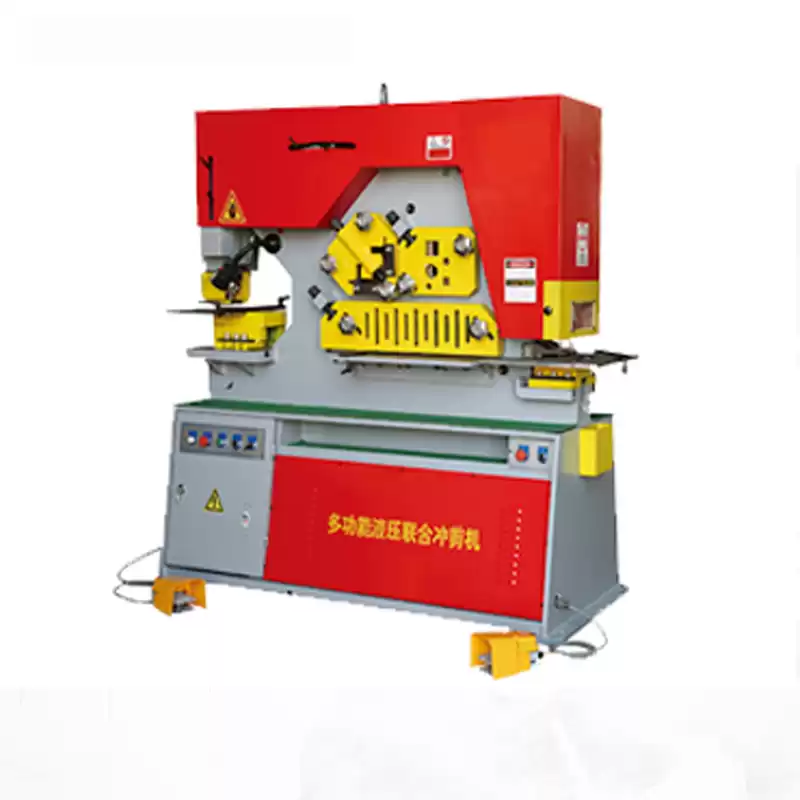

Hydraulic Iron Worker with punching , notching , angle cutting , bending

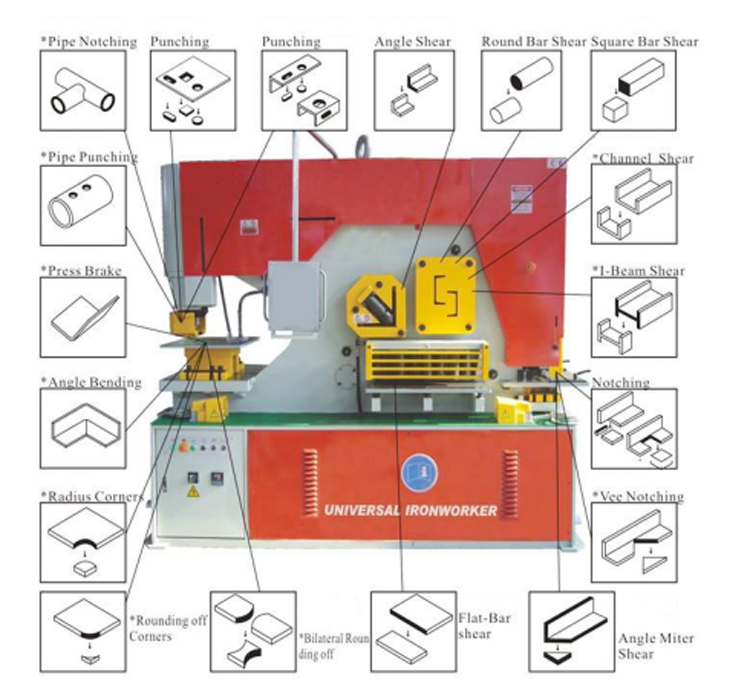

Hydraulic Iron Worker machine can do punching ,cutting , bending ,this machine with multi function.



Hydraulic Iron Worker with punching , notching , angle cutting  , bending


1.Punching

Full range of universal punches and dies are available.unique style allows for large

angle iron punching and large channel punching.

Large viewing window on stripper swing away design for ease of operation.

large two piece gauging table with rulers and stop as standard fittings.

Quick change coupling nut and sleeve for rapid replacement of change.

2.Shearing

Round and square bar shear has multiple holes for a variety of sizes.Adjustable

hold down device for round/square bar,channel/beam cutting.Large strong

guarding for max safety.

The angle shear has the ability to cut angle at 45°both top and bottom leg.

This gives the operator the ability to make a picture frame corner for perfect

welds.Diamond shaped blade for quality cuts that is minimal material lost and deformity.

Easily adjustable hold-down device for accurate plate cutting.Large 15squaring

arm with inlaid scale.Special anti-distorted blade for quality cutting.Lower blade

has four usable edges.There is screw allow for gap adjust no shim needed.



3.Notching

Unique design allows for cutting of angle and flat bar.Electrical interlock safety

guard and three gauging stops for precise positioning.

1. Bending

Can also bend the plate below 500mm.


Standard accessories on machine

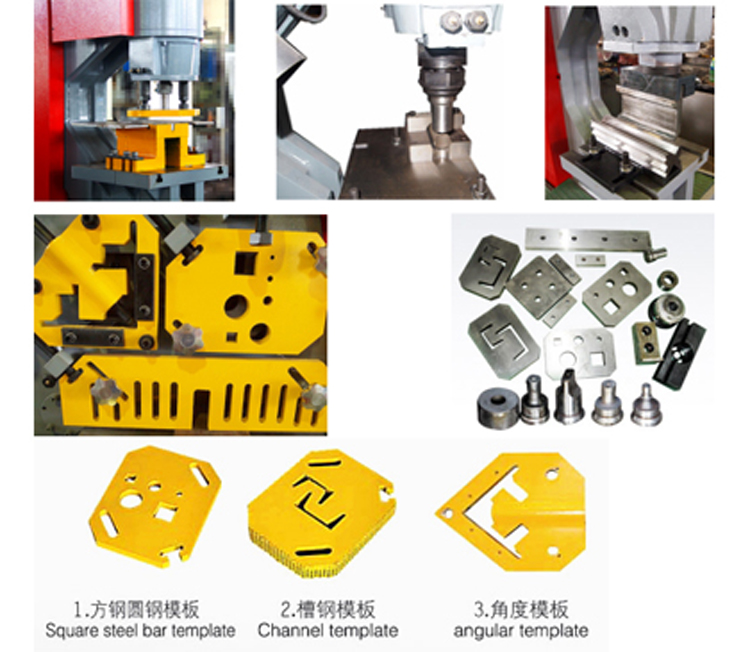

1. A pair of punch die

2. A set of angle steel blade

3. A set of square and round bar blade

4. A set of shearing plate blade

5. A set of notching blade

6.A set of bending die.
