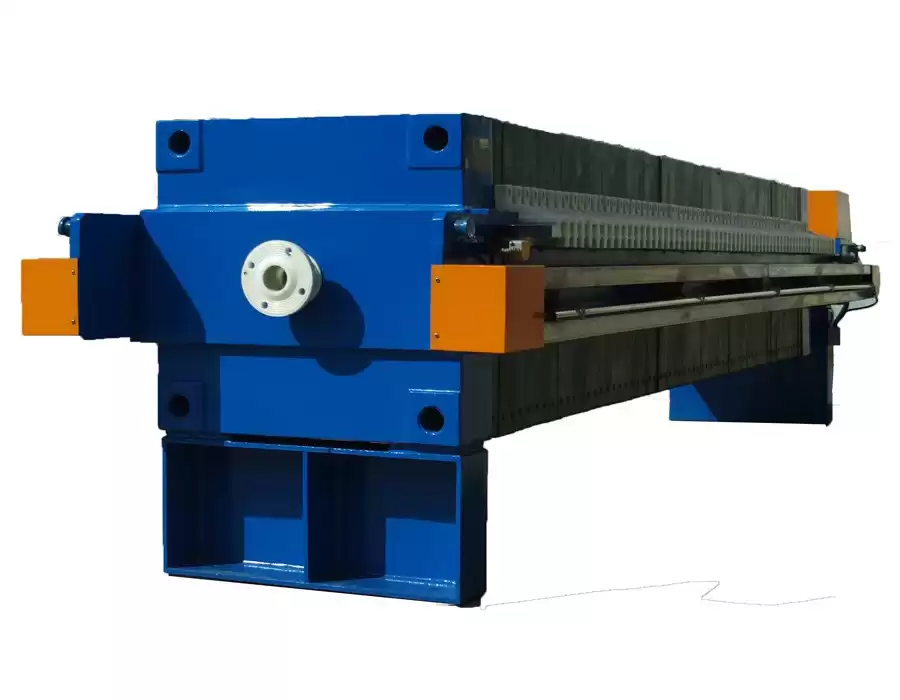

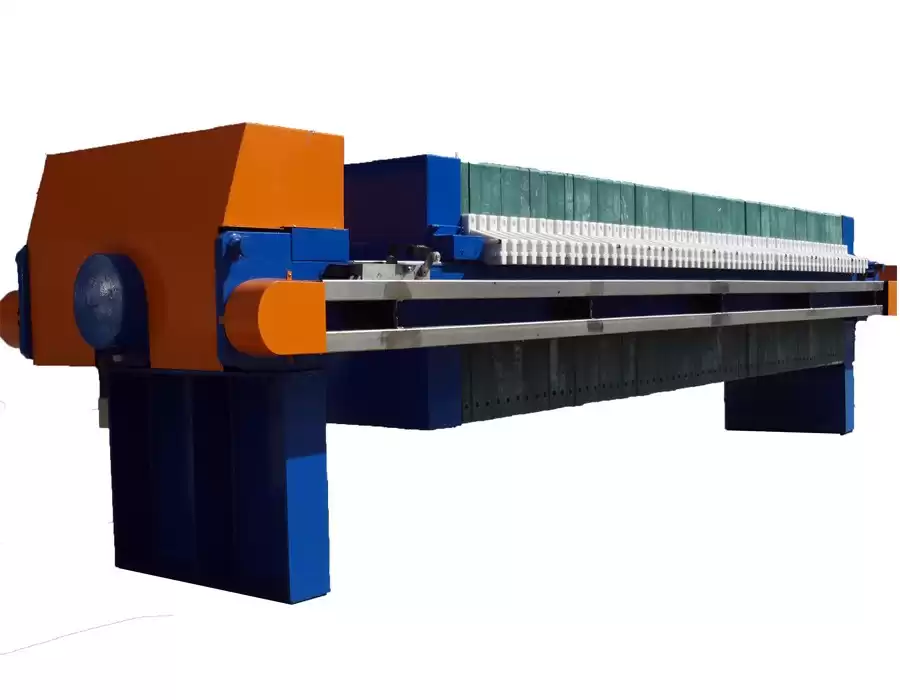

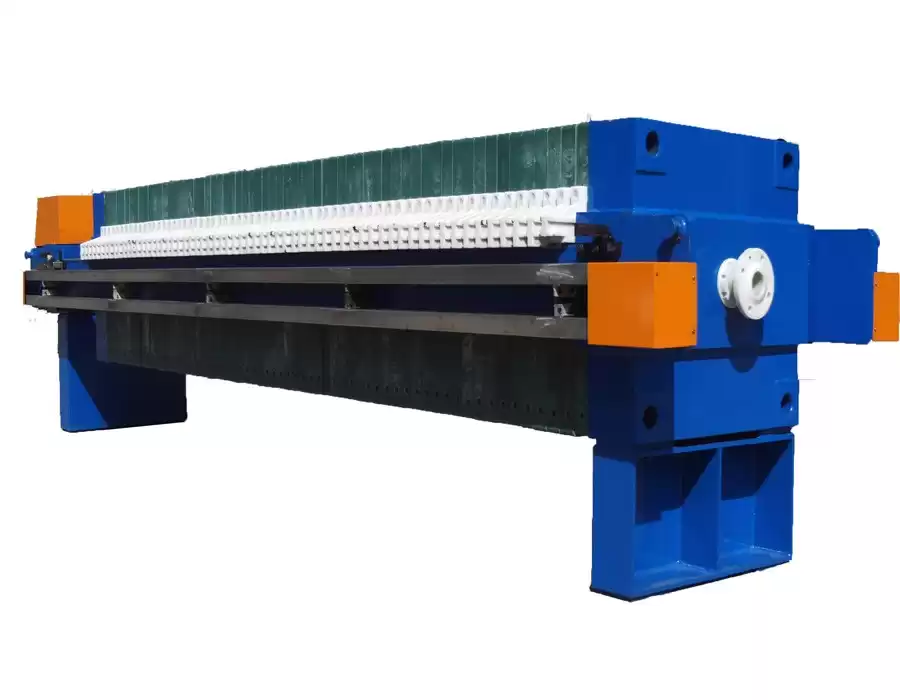

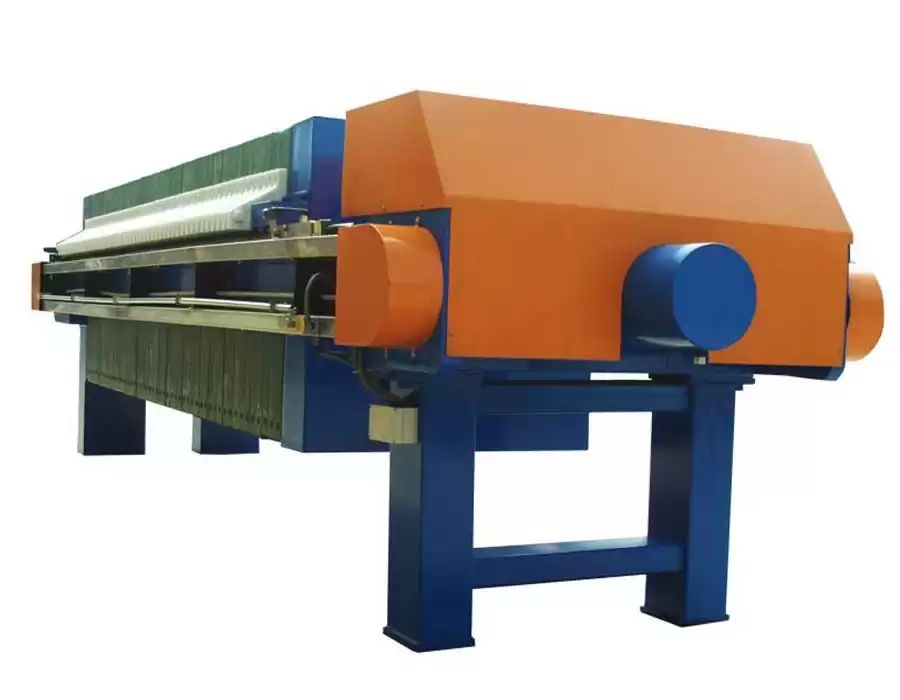

Hydraulic Plate Chamber Slurry Filter Press
Filter Press descriptions:
1. The main parts of filter press is made of high intensity welded steel, accessories processed by PLC with high precision.
2. The filter plates are made of PP, long life span Corrosion resistant, non-toxic and tasteless
3. Hydraulic Pressing, adopting the contact meter to maintain the pressure automatically.
4. The highest working pressure could be 1.5Mpa.
5. The machine structure is simple and reasonable, easy installation and maintenance.
Filter Press Application：
Food, Chemical, Dyeing, Leather, Mining (Aluminium, Bauxite， Copper, Iron) and Electroplate.
Filter Press Technical Parameters：
Model | Filter Area (m2) | Inner Size (mm) | Plate Thickness (mm) | Motor Power (kw) | Plate Number (Pcs) | Filter Capacity (L) | Working Pressure In Chamber (Mpa) | External Size (mm) L*W*H | Weight (kg) |
NX-800 | 50 | 800*800 | 60 | 1.5 | 50 | 750 | ≤1.0 | 4794*1246*1325 | 3140 |
60 | 60 | 900 | 5404*1246*1325 | 3470 |
70 | 70 | 1050 | 6014*1246*1325 | 3950 |
NX-1000 | 50 | 1000*1000 | 60 | 3.0 | 30 | 750 | ≤1.0 | 3984*1500*1555 | 4590 |
60 | 36 | 900 | 4350*1500*1555 | 4800 |
70 | 42 | 1050 | 4716*1500*1555 | 5160 |
80 | 48 | 1200 | 5082*1500*1555 | 5440 |
Filter Press Working:
The slurry is sent by slurry pump to chambers which formed by filter plates. Then filtrating media (filter cloth) separates solid and liquid. After the filtration finished, stopping the feeding, releasing the slurry pressure, press the returning button, shifting the plates automatically.
