Hydraulic Pressing Garbage Truck Isuzu 10tons

Latest compactor garbage truck Isuzu waste collector compactor, Truck mounted compactors,



Hydraulic Pressing truck Isuzu 10 tons

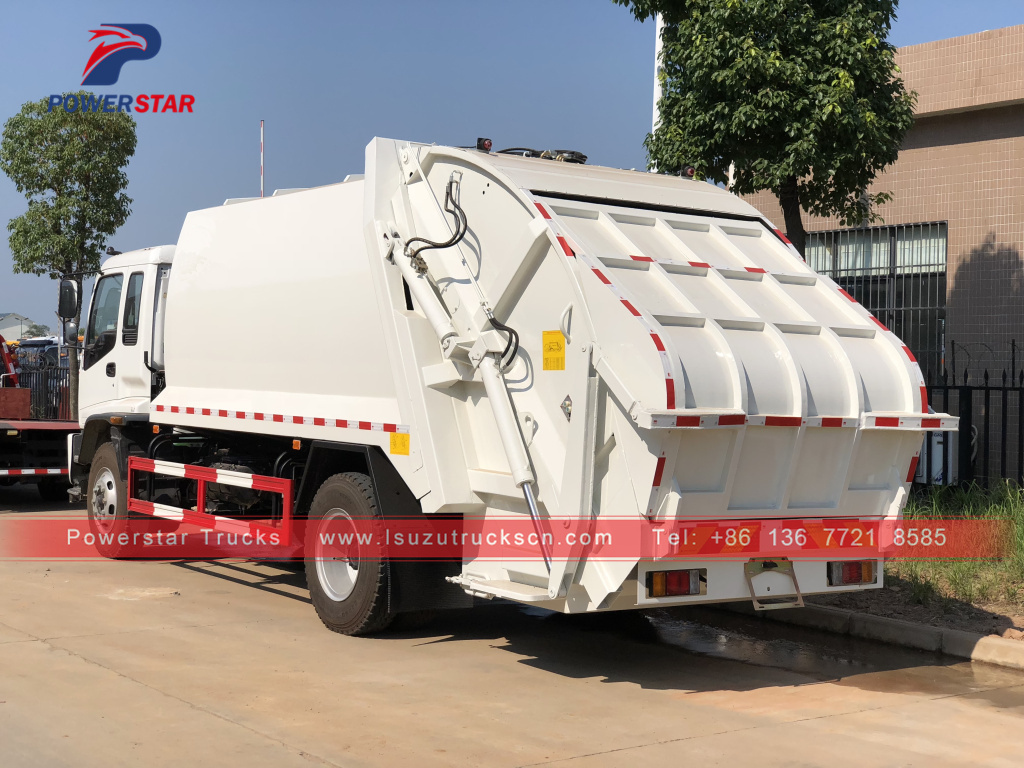

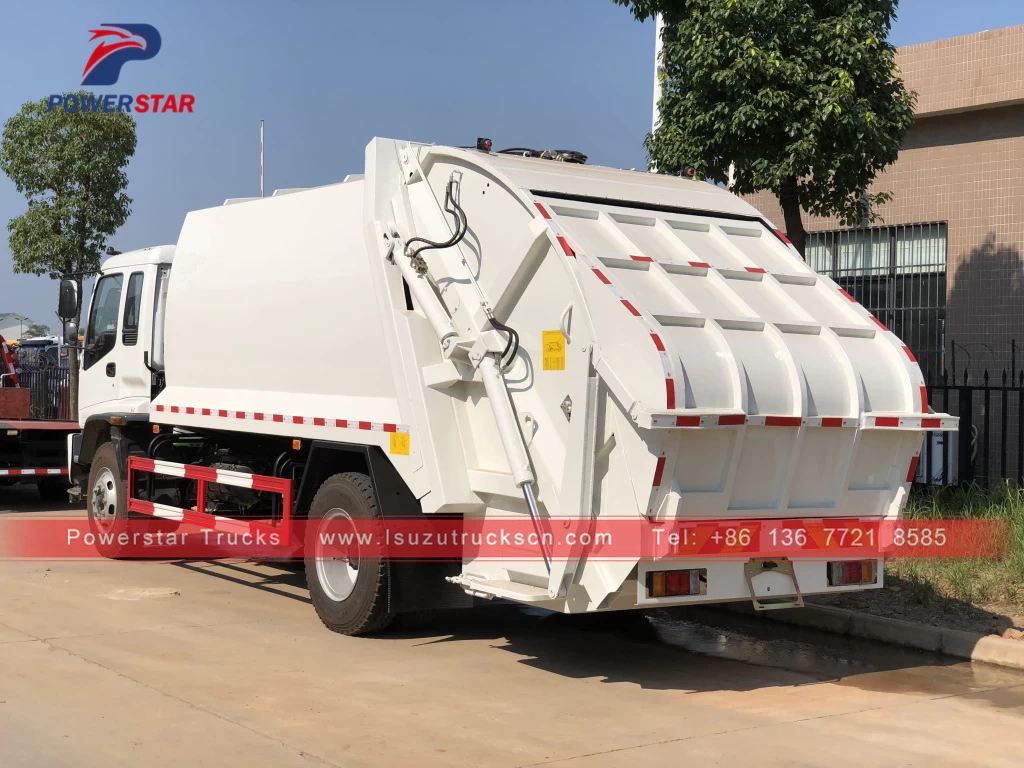

ISUZU FTR 10CBM garbage compactor truck

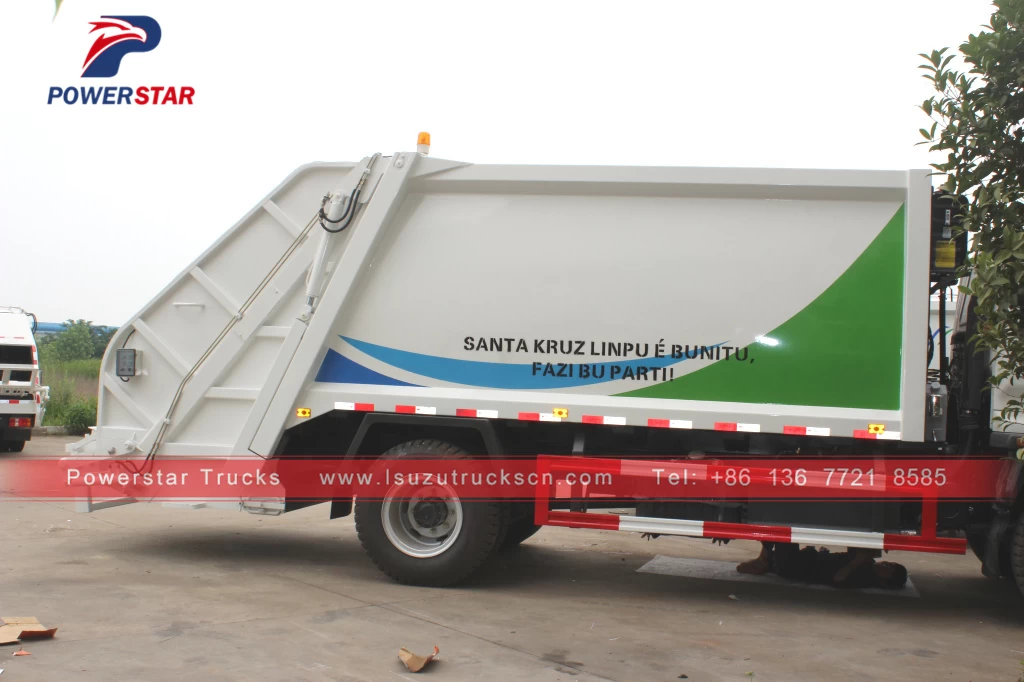

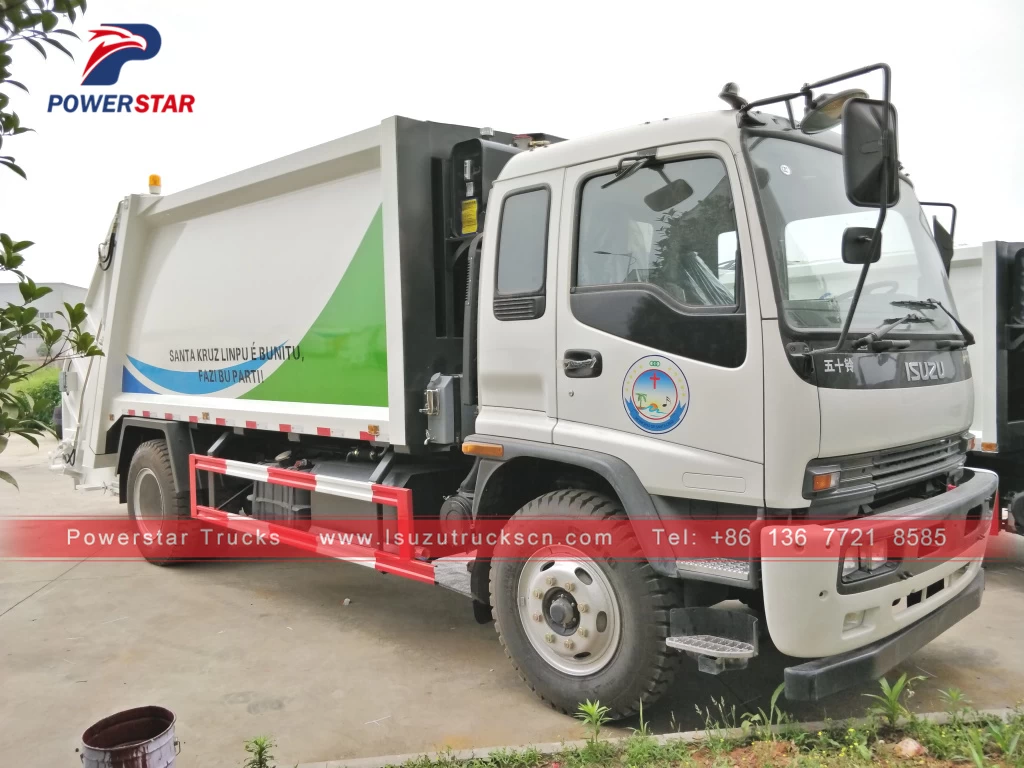

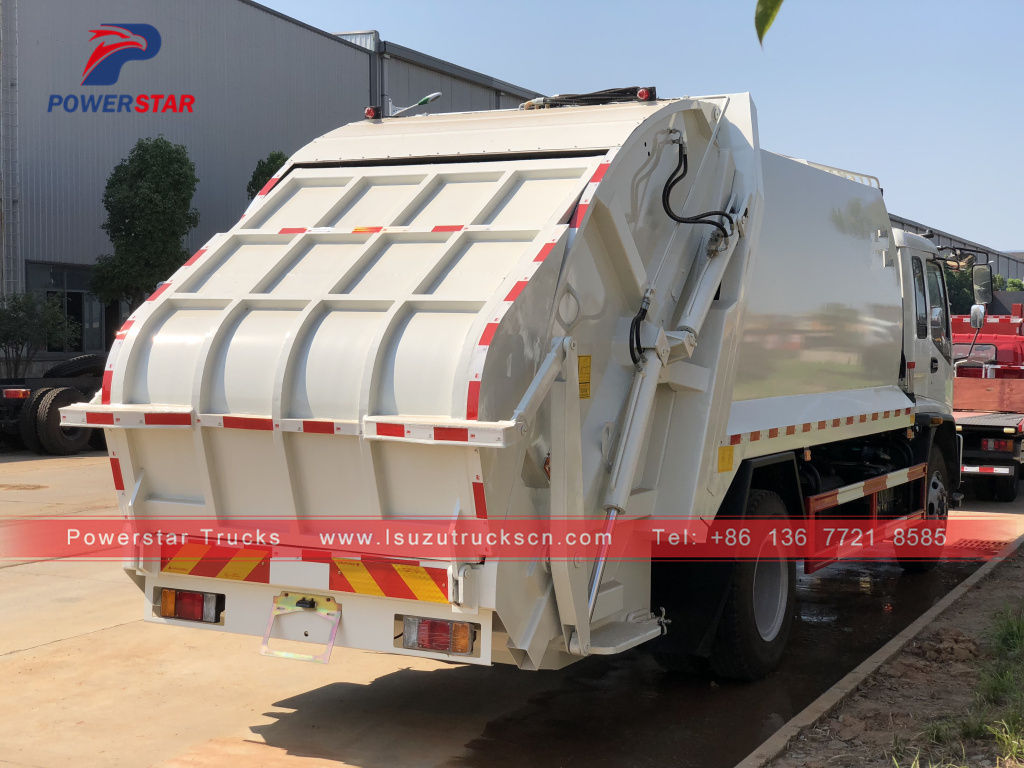

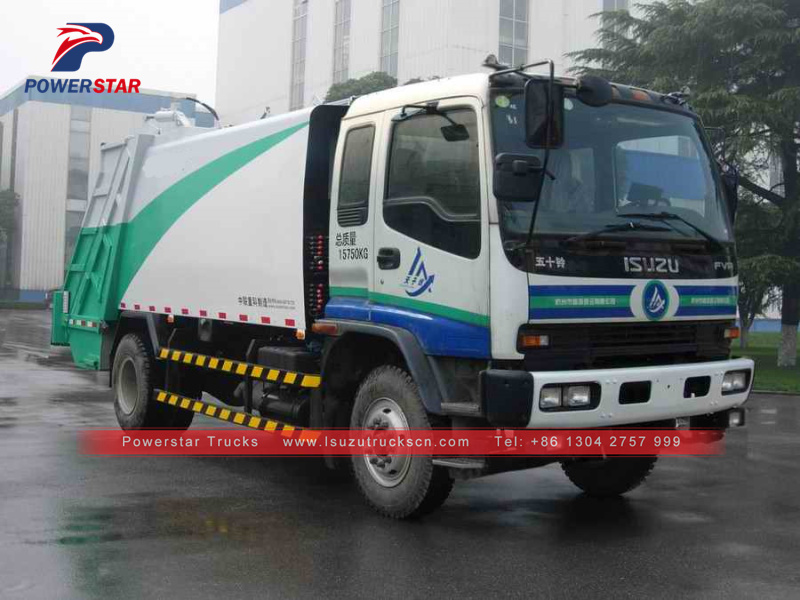

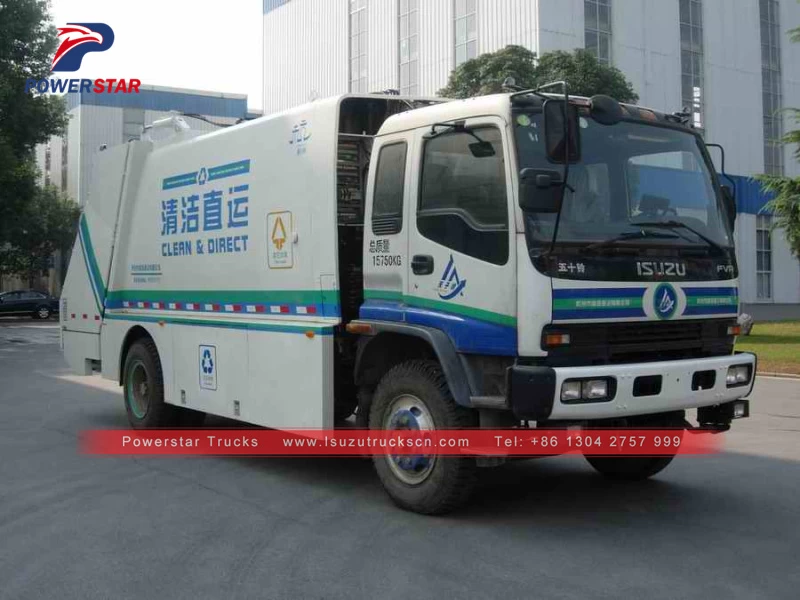

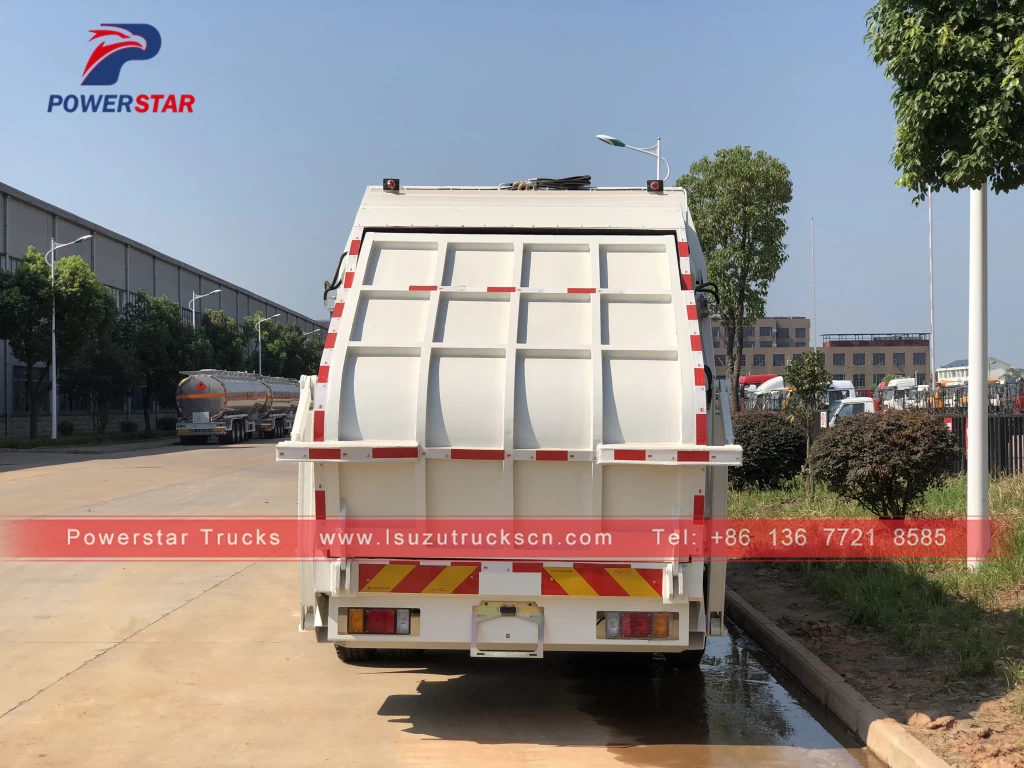

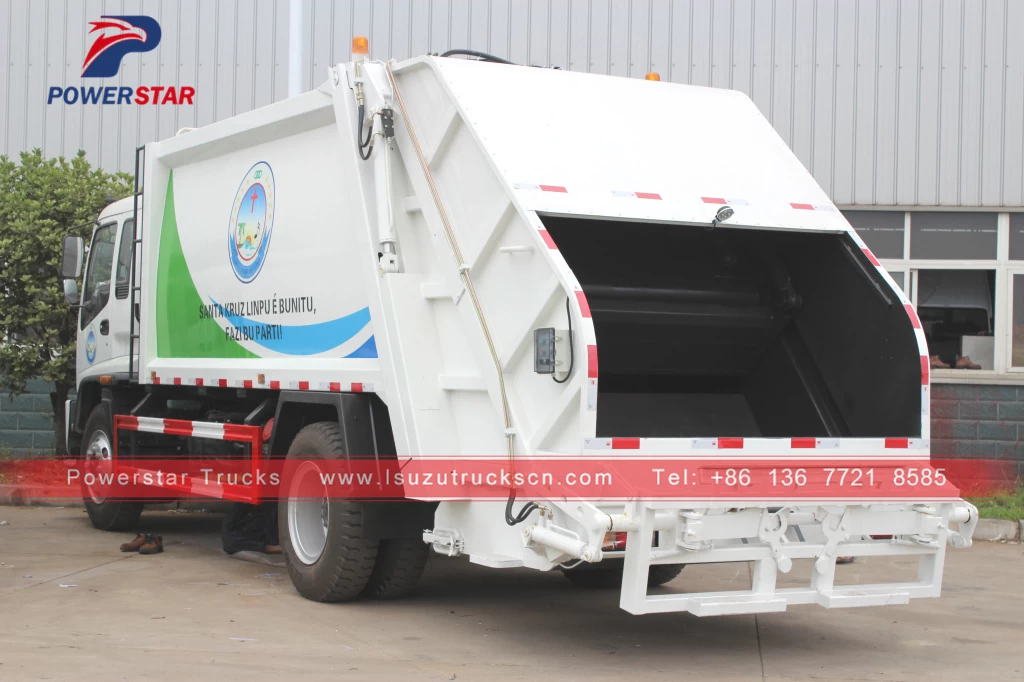

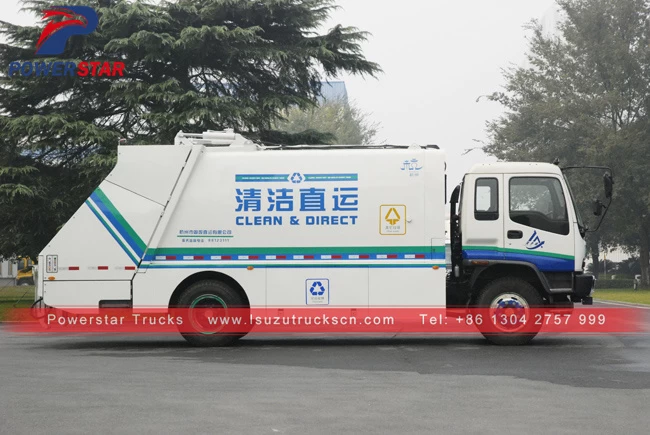

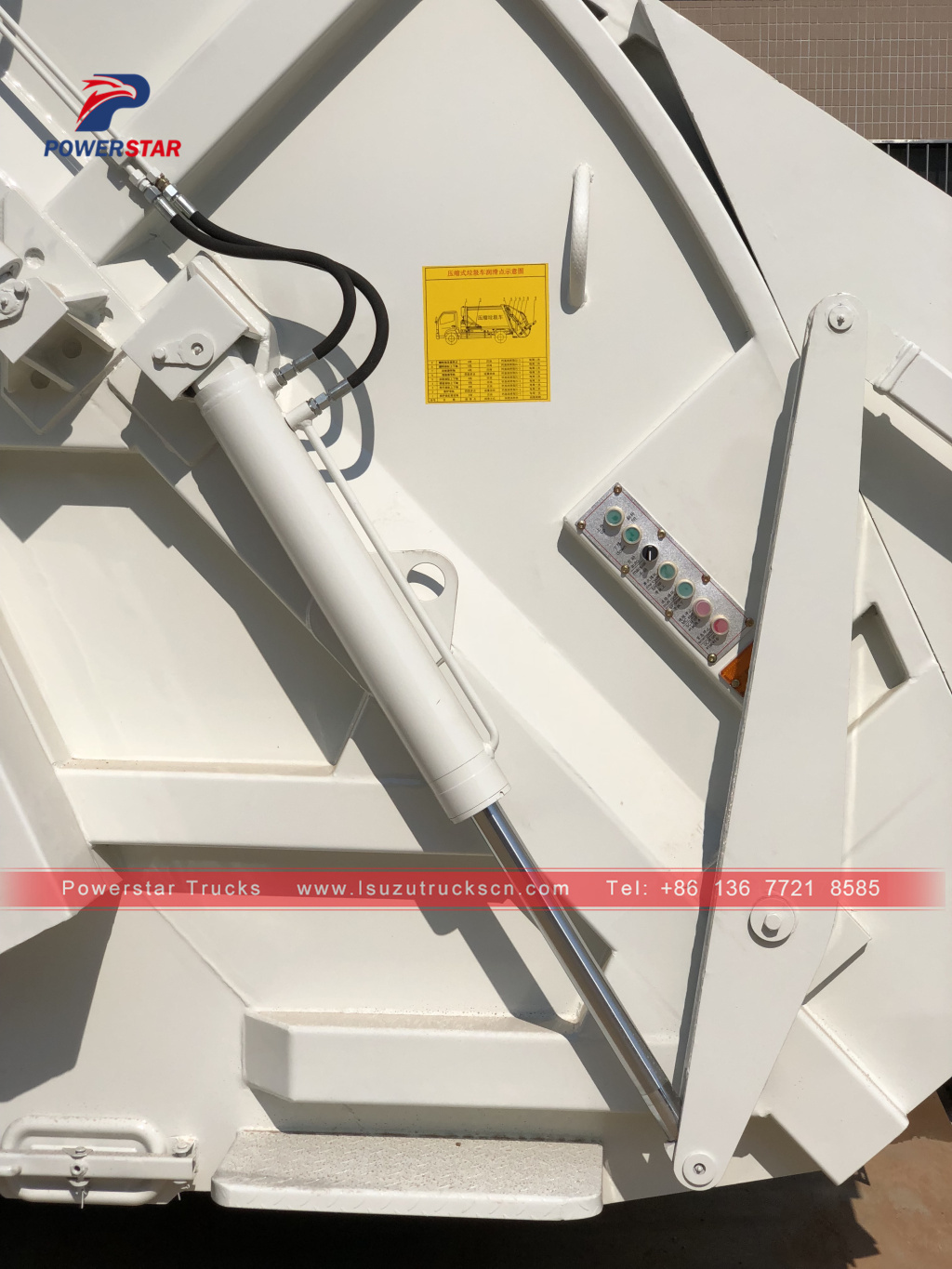

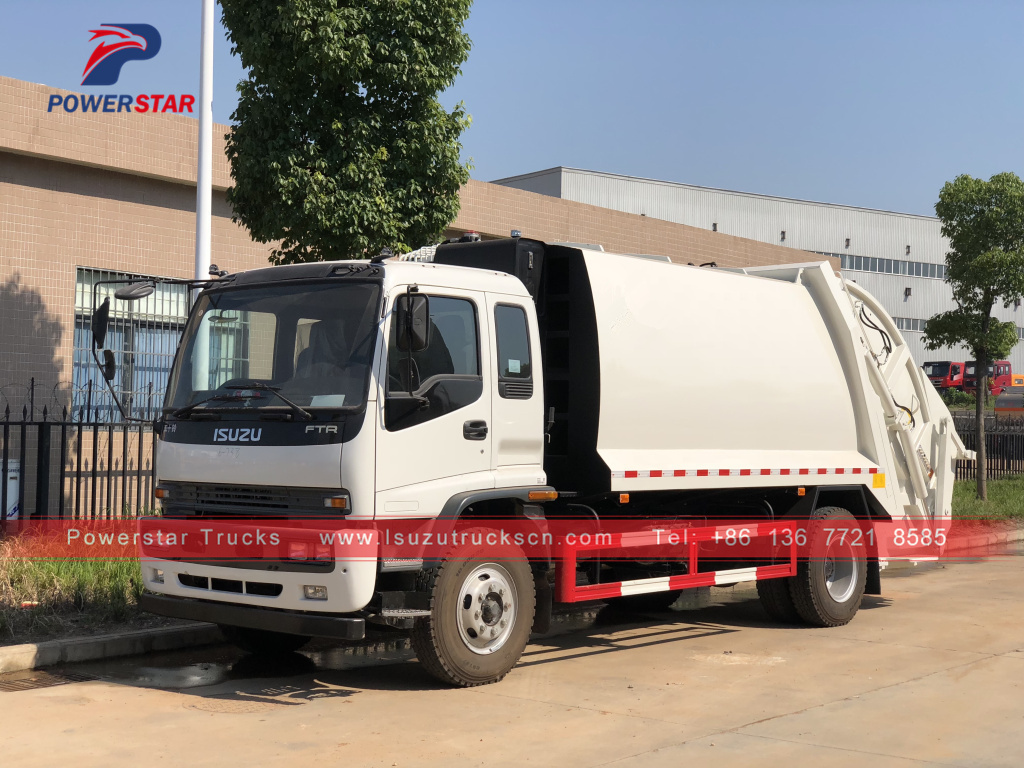

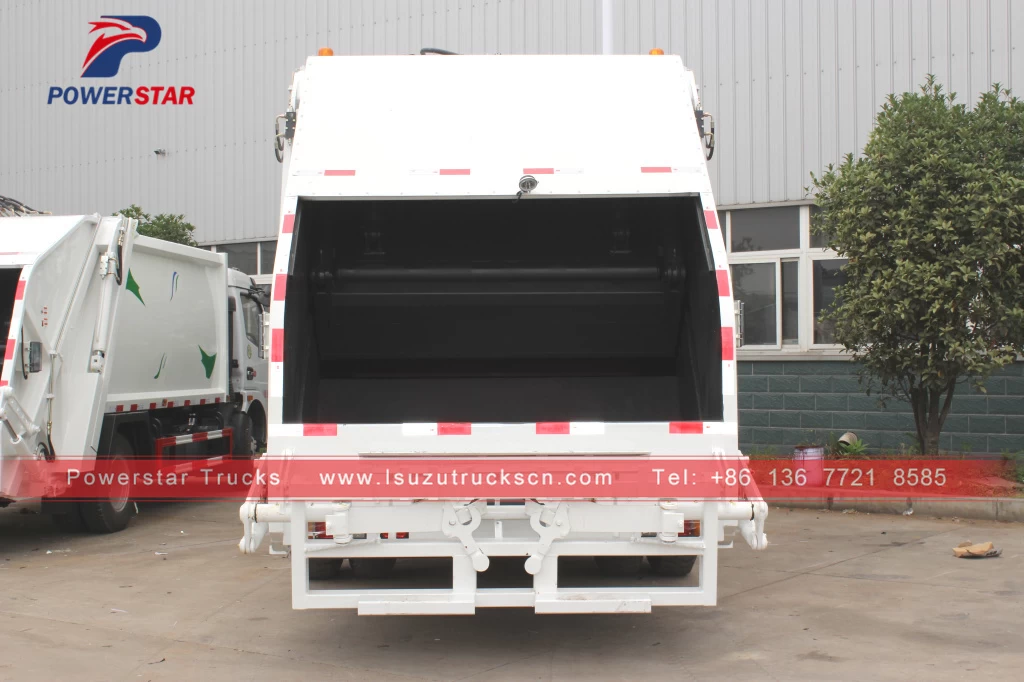

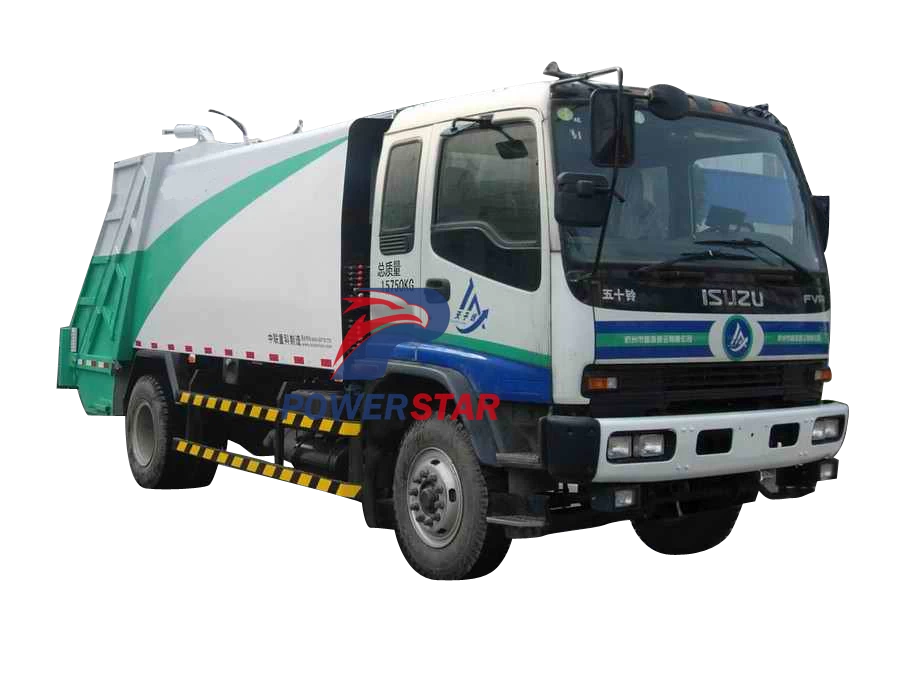

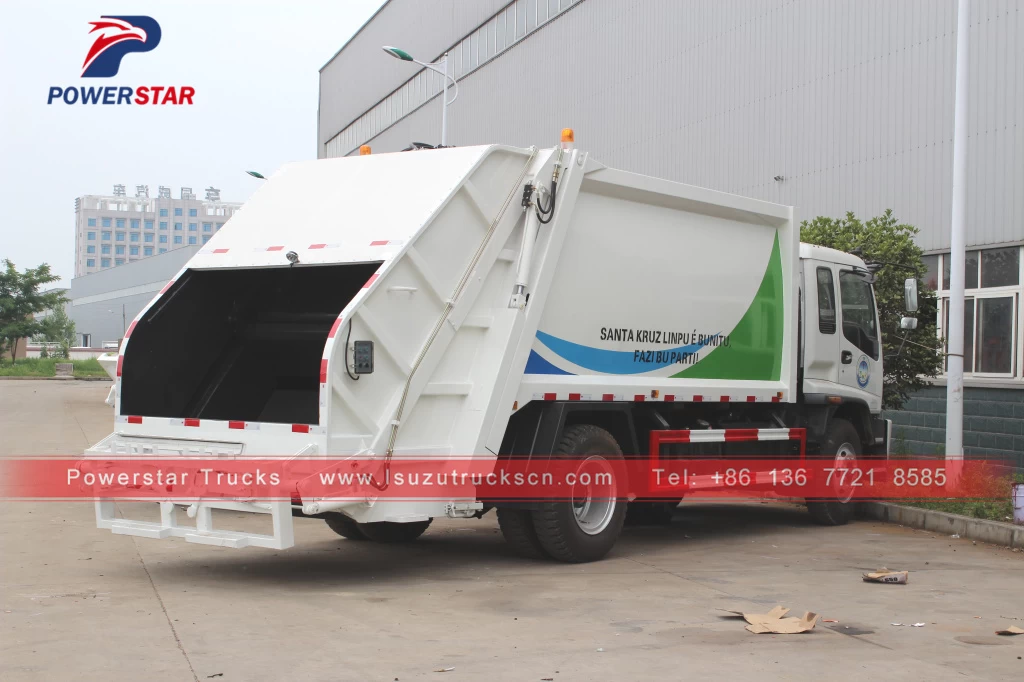

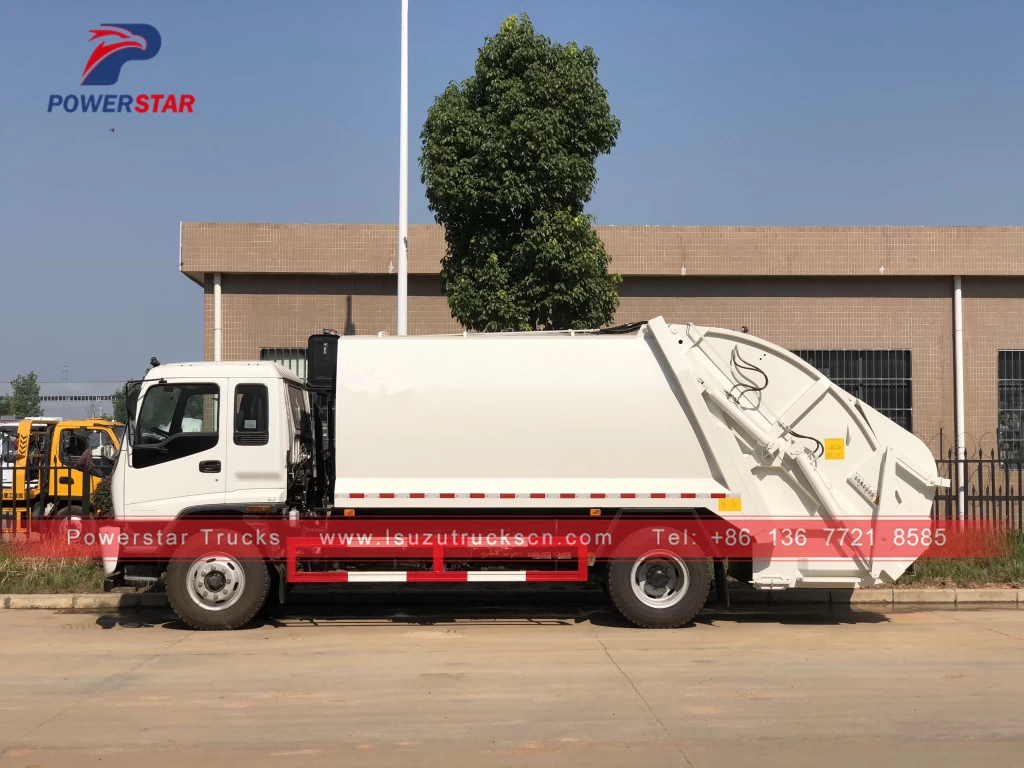

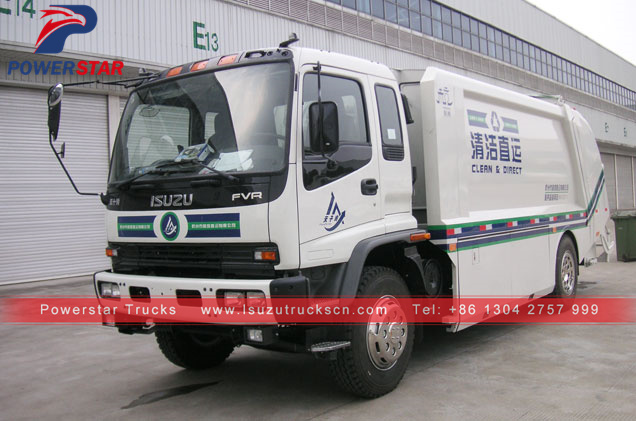

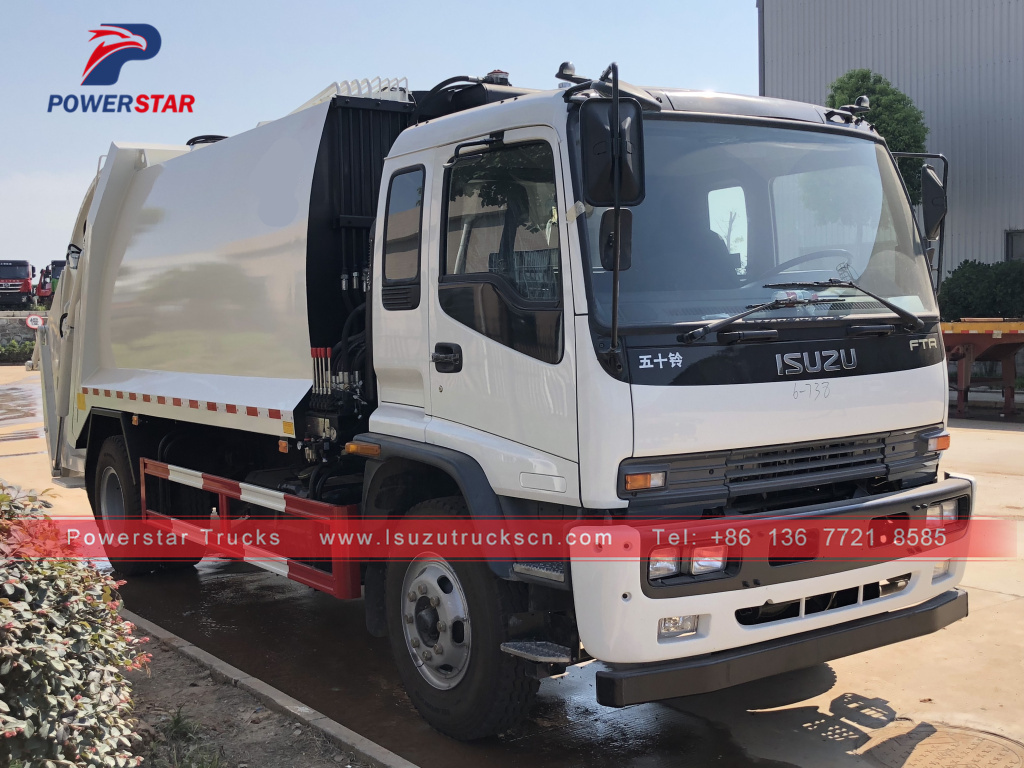

 pictures for Hydraulic Pressing truck Isuzu 10 tons    pictures for Hydraulic Pressing truck Isuzu 10 tons

 pictures for Hydraulic Pressing truck Isuzu 10 tons    pictures for Hydraulic Pressing truck Isuzu 10 tons






 Applications:

Sanitation garbage trucks Isuzu (also called Garbage transport compactor truck, Refuse compactor truck, waste compactor truck, Garbage compactor recyling truck, bin lorry vehicle) is designed for daily rubbish transport in such living areas as all kinds of cities, large station, port and wharf, airpot, and densely-populated areas like industrial and mineral enterprises and military units.


Powerstar compactor garbage truck reduces back-and-forth transport times and prevents rubbish and stinks from spreading and avoids second-time pollution produced by polluted water.


The refuse compactor vehicle tail-gas discharge reaches EUROPEAN standard. which is safe and environmental-protective.



 Key Features:

---- ISUZU chassis, perfect performance
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Compression body capacity from 3 to 20 Cublic Meter.
---- Easy operation and easy maintenance.

---- Virious types of refuse container lifter are available.



 Specifications:



Compressive Garbage Truck Isuzu (10 Tons)

General

Vehicle Brand

POWERSTAR

Chassis Brand

ISUZU

Overall Dimension

8220 * 2500 * 2680 mm

GVW / Kerb Weight

16,000kg /7,230kg

Cab

Cab Capacity

3 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

ISUZU

Power

240 HP (178KW)

Displacement

7790 ml

Emission Standard

Euro IV or V

Chassis

Drive Type

4X2, (left hand drive)

Transmission

ISUZU MLD 6 speed levers with 1 reverse

Wheelbase/No. of axle

4500 mm / 2

Tire Specification

10.00-20

Tire Number

6 tires and 1 spare tire

Max Speed

95 km/h

Paint

Metallic paint

Superstructure

Body capacity

10 Tons

Fill Hopper capacity

2.3 cbm

Sewage tank

 200 liters

Filling work cycly time

 20~25 s

Discharge model

Horizontal Ejection

Control system

Electrically Hydraulic control

Manual hydraulic control

Control panel

English or Your language

All standard accessories: Dust bin lifter,Ladder, warning lights, Emergency stop button,

handrail, fire extinguisher, basic tool kit, English manual……

Optional

** Back alarm and Camera can be equipped.

** Italy mulit-valve can be choose.

** 240L (single bin or double bin) or standard 660 L, 1100 L bins with bin lifter can be choose.







POWERSTAR TRUCKS ISUZU TRUCKS SUPPLIER


---- SGS, BV, CONTECNA, CE Qualified.

---- Local engineer training support.

Powerstar truck inspection team

 Working Principles of Garbage Compactor

Technical drawing for Isuzu NPR Refuse compactor (Garbage compactor truck)

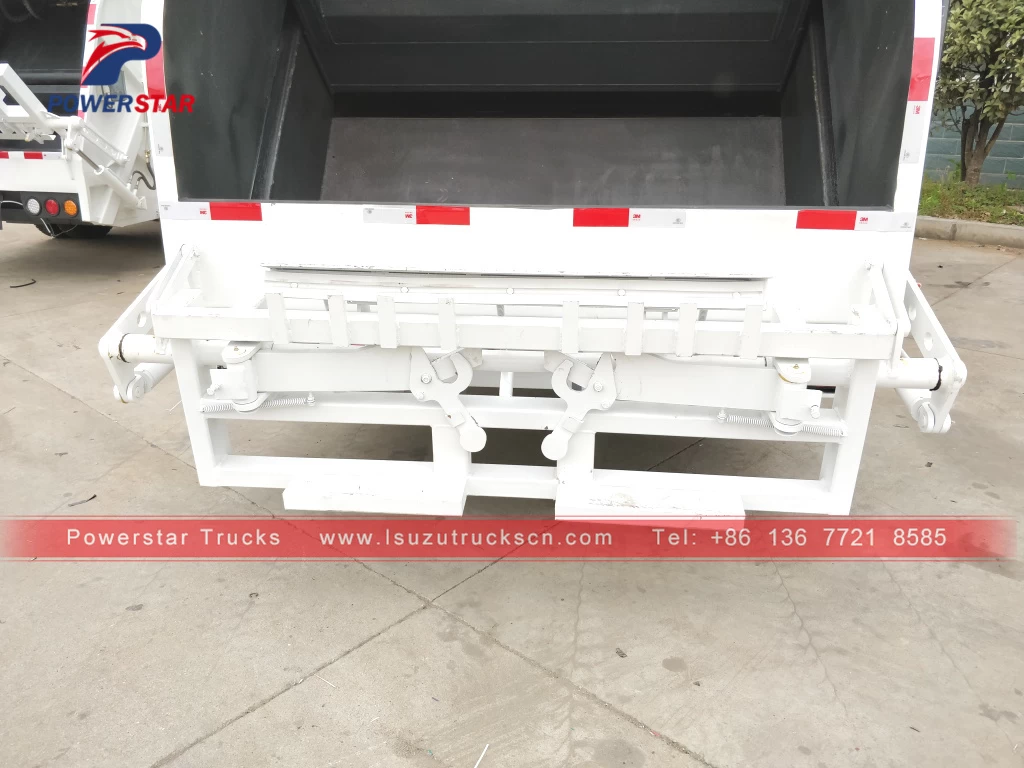

Different bin optional:


 bin hopper for garbage compactor truck

  bin hopper for garbage compactor truck

 bin hopper for garbage compactor truck    bin hopper for garbage compactor truck

POWERSTAR TRUCKS ISUZU TRUCKS SUPPLIER



---- 12 months FREE parts.

---- Factory genuine parts supply.

---- 7 days to worldwide by DHL.

 parts supply by powerstar trucks

POWERSTAR TRUCKS SPARE PARTS AND TOOLS

 Operation Manual  Chassis parts    Maintenance Tools



POWERSTAR TRUCKS ISUZU TRUCKS SUPPLIER



---- 15 years experiences Design & Export.

---- 100% customer made trucks.

---- Fast delivery assurance.



workshop of powerstar trucks



POWERSTAR TRUCKS ISUZU TRUCKS SUPPLIER



---- Service more than 60 countries.

----  Professional guidance on your importing documents.

----  CO, FORM E, FORM P, Pre-shipping Inspection...


POWERSTAR TRUCKS EXPORT DOCUMETNS FOR ISUZU TRUCKS



POWERSTAR TRUCKS ISUZU TRUCKS SUPPLIER


---- Maximize save your sea freight.

---- Professional guidance on your importing documents.

---- Safety, Quickly, Timely


POWERSTAR TRUCK FOR EXPORT


POWERSTAR TRUCKS ISUZU TRUCKS SUPPLIER



---- Quickly ship to worldwide.

---- Color and LOGO can be wished.


Isuzu garbage trucks instore by powerstar trucks
