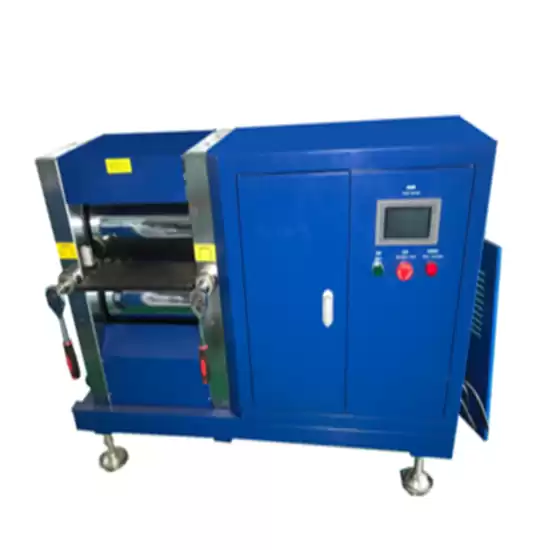

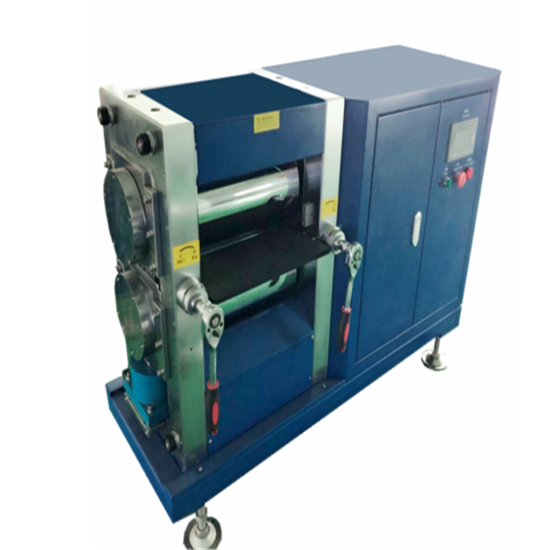

Hydraulic Pressure Roller Press Machine for Battery Making

l  Rolling force: Max40t.

l  Mechanical speed Max.6m/min

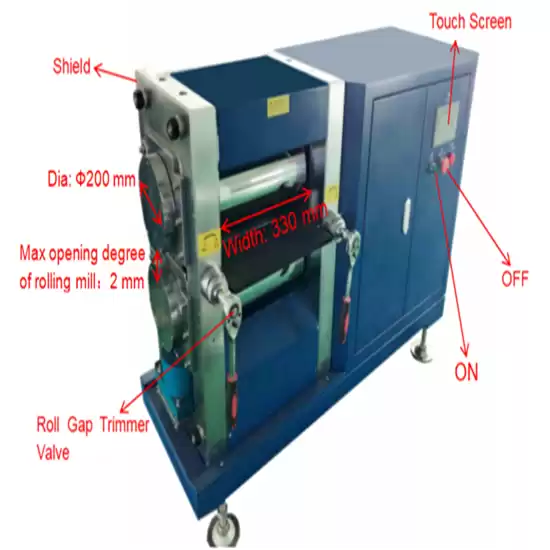

l  Working roller: Diameter: Ф200 mm; Material: 9Cr3Mo

l  Surface hardness HRC65~68, internal hardness HRC60-62, roughness Ra≤0.4, round jitters better than ±2μm

l  Roller width: 330 mm

l  Under type: hydraulic

l  Rolling accuracy: ±1.5μm

l  Maximum opening degree of rolling mill: 2 mm

l  Reducer and split gear box: combined

l  Rolling mill motor: AC variable frequency motor

l  Lithium electrode sheet has a single reduction of 20% to 30%. If it is thinner, it needs to be rolled several times (5μm/time).

l  Usage environment: Recommended ambient temperature 25±3°C, humidity 30~90RH, no vibration and electromagnetic interference

l  Outline installation size: length 1400mm width 500mmX height 1300mm

l  Voltage: 220V 2KW

l  0.5-0.8MPa compressed air

l  Weight: about 680KG
