Roll to Roll Pressure Controlled Rolling Press System for Battery Electrodes (Max. 520mm Width)
SPECIFICATIONS

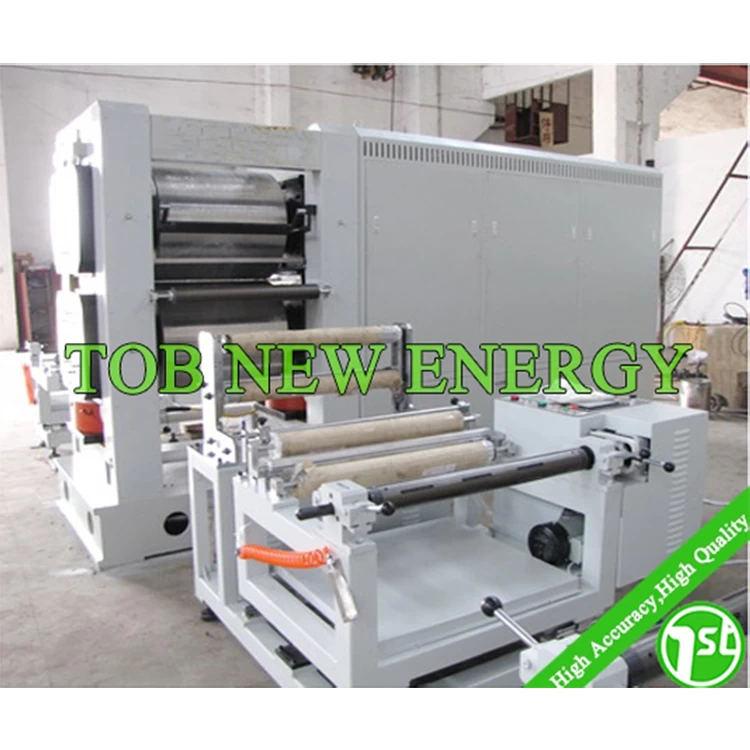

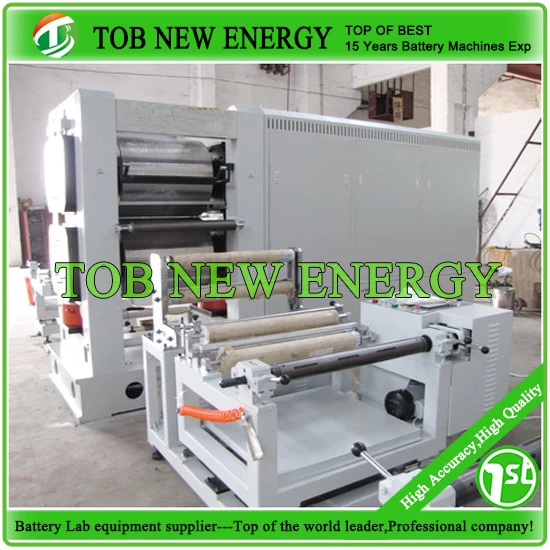

1 DYG-703BH-Φ500×550mm system battery roll press machine is a high precision oil pressure adjustable roller press machine. It has dual rollers of Dia500mm*550mm width model.. This battery roll press machine is an ideal rolling press for adjusting thickness and increasing active material density of the electrode in Li-Ion batteries research after coating and drying for producing..
2 This model battery roll press machine is pressure adjustable roll press, The operator adjust the press pressure to get best effect battery electrode density according to battery design. It is equipped with winding and unwinding roller used for continuous calendering for lithium battery production line.
|
Model
|
Lithium ion Battery Continuous Oil Pressure Rolling Press Machine
DYG-703BH-Φ500×550mm
|
|
Source voltage
|
380V, 50HZ Or customized
|
|
Power
|
15KW
|
|
Warranty
|
One Year limited warranty with lifetime support
|
|
Calender roller size
|
φ500mm×550mm
|
|
Roller surface
finish
|
0.2um
|
|
Roller hardness
|
HRC65-68, The depth of hardening≥18MM
|
|
Rolling press speed
|
2～11rpm, adjustable
|
|
Max work pressure
|
500KN-3000KN
|
|
Air compressor
|
0.5-0.7Mpa, 0.04M3/min
|
|
Machine weight
|
12T
|
|
Dimension
|
Rolling press machine : 3100*1300*2070mm
Total dimension : 6000*3100*2070mm
|
|
Winding/unwinding
parameter
|
1 Electrode with 76mm diameter size, with biggest electrode diameter 450mm. Width 520mm
2 Tension adjustment : 25N
3 Correction accuracy ≤±0.5mm
|
|
Advantage
|
1 Electrode rolling press way: adopt clearance and preloading continuous rolling way;
Preloading adopts hydraulic pressure method with the biggest preloading pressure 3000 kn,
using a hydraulic constant pressure, clearance works,
gas liquid pressurization way produce oil pressure;
Clearance adjusting range: 0-2 mm
2 Man-machine interface input adjustment change oil pressure of roller mill roll gap
|
