Product name: Hydraulic Sheet Metal Roof Crimp Curved Roll Forming Machine
Hydraulic sheet metal roof crimp curved roll forming machine is the auxiliary machine for steel roof sheet roll forming machine. It is the customized type of roll forming machine after finishing main roof sheet roll forming machine, because we need the roof sheet sample test crimp curved machine. This type of arc steel roof normally is used for steel construction roof eave, with this type of crimp curved roof, can proof wind and rain more better than common steel roof.

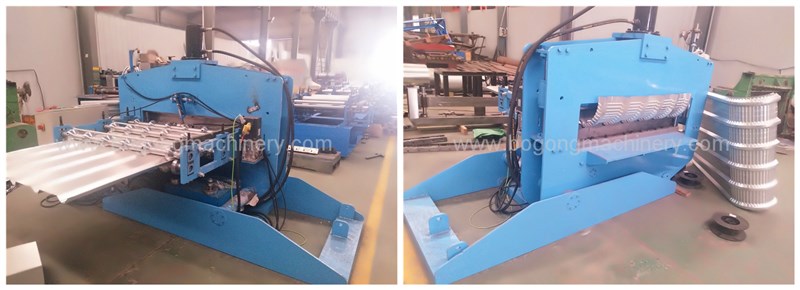

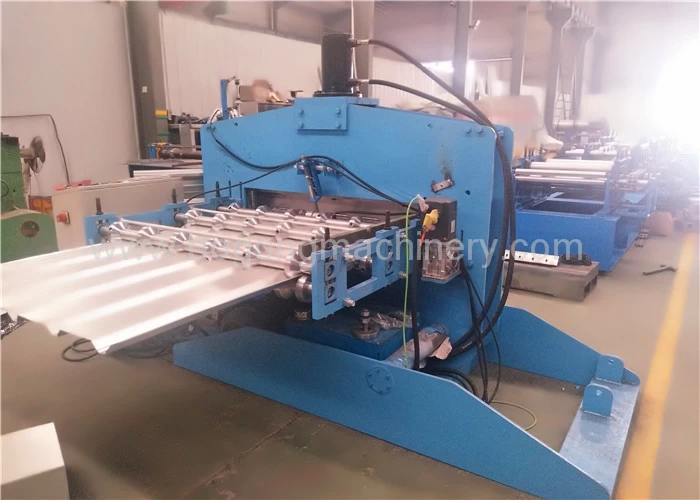

See below pictures for reference, the roof sheet has been delivery into crimping curved die, then hydraulic system controlled by PLC is working and crimping the embossing out, the crimping depth and roof radius can be set on PLC control box, whole roll forming machine can be fully automatic working.

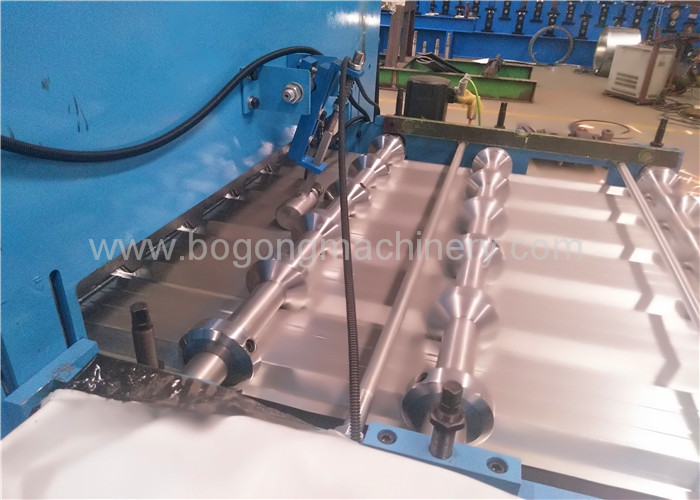

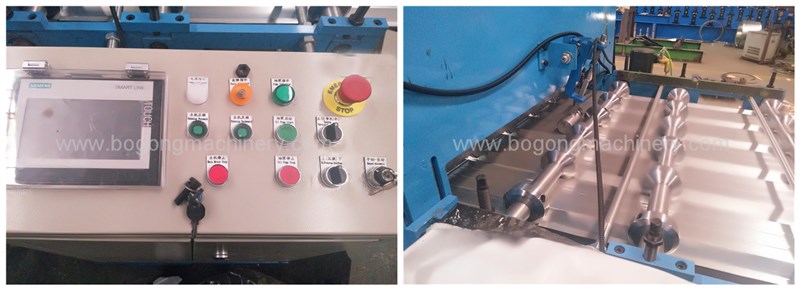

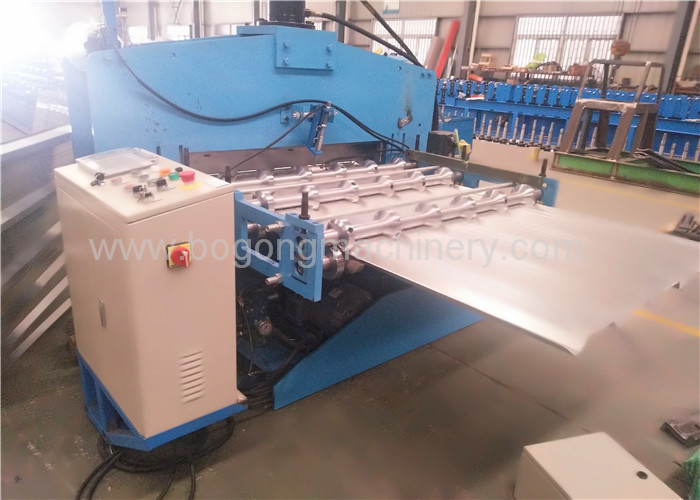

Below is the PLC operational panel of our Hydraulic Sheet Metal Roof Crimp Curved Roll Forming Machines, we can start, stop machines on this panel, also control this crimp curved roll forming machine work in vertical direction or horizontal direction, if there is any accident, press down the emergency stop soon. The working speed will be tested by encoder, see the encoder touches on roof surface, it can monitor how long the roof sheet has been crimped.

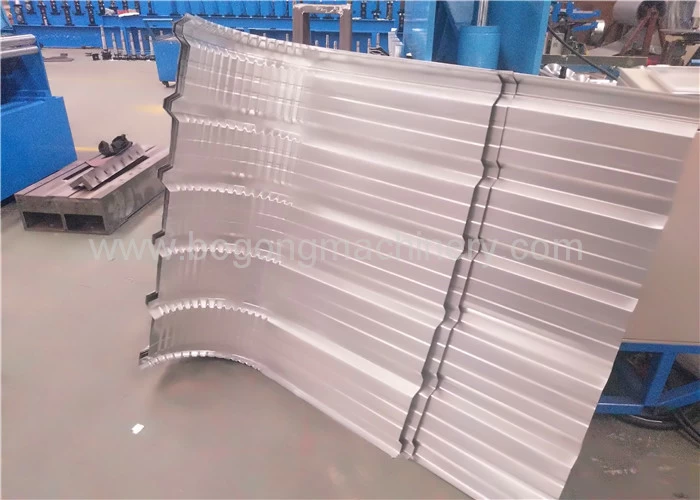

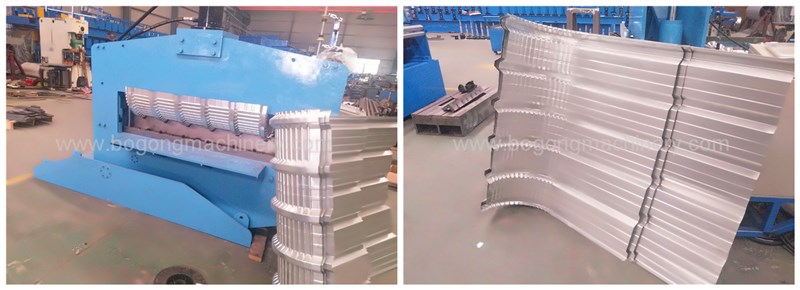

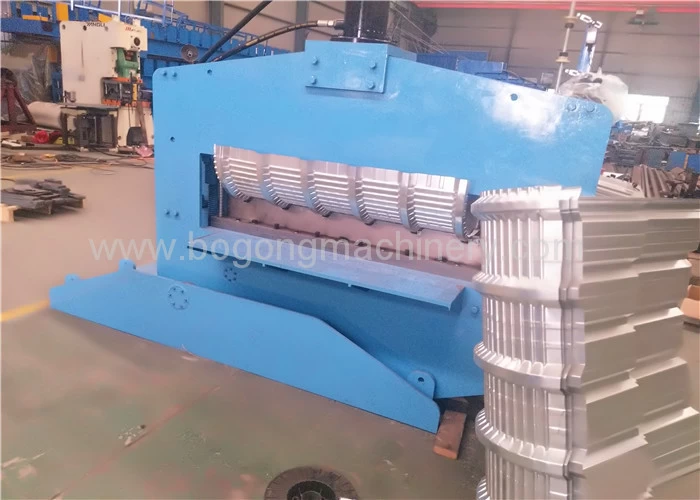

Next picture is for showing our Hydraulic Sheet Metal Roof Crimp Curved Roll Forming Machine crimping curved effect, smoothly and nothing wrinkles happened of roof sheet surface.
Technical Parameters
|
Parameters
|
Specification
|
|
Voltage
|
380V/50HZ/3PH/or customized
|
|
Driving Motor
|
5.5KW
|
|
Forming Steps
|
3 steps
|
|
Working Speed
|
0-10m/min
|
|
Thickness for Steel
|
0.25-0.6mm
|
|
Shaft Diameter
|
75mm
|
|
Shaft Material
|
High grade 45# forged steel
|
|
Roller Material
|
G45# steel, CNC lathe,polished and chrome plated
|
|
PLC Cabinet
|
Schneider, Delta, Simenz
|
|
Encoder
|
Omron
|
|
Min. crimping radius
|
500mm
|
|
Machine Frame Material
|
Fine welded structural steel;
|
|
Roofing Material
|
PPGI, GI steel G330-550
|
|
Painted Color
|
Blue+Orange Or Customization
|
|
Overall Size
|
3500*1450*1650mm
|
|
Weight
|
1500KGS
|

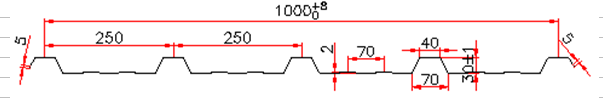

Profile Design
Feeding width: 1220mm, covered width: 1000mm; material thickness: 0.25-0.6mm
