Hydraulic Sludge Transport Ceramic Plunger Pump For Filter Press
Ceramic Plunger Pump Characteristic:
1. Hydraulic driven, two ceramic pistons working up and down stably
2. The highest feeding pressure could be 2.5Mpa, the rate pressure is 2.0Mpa, the pressure could be adjusted.

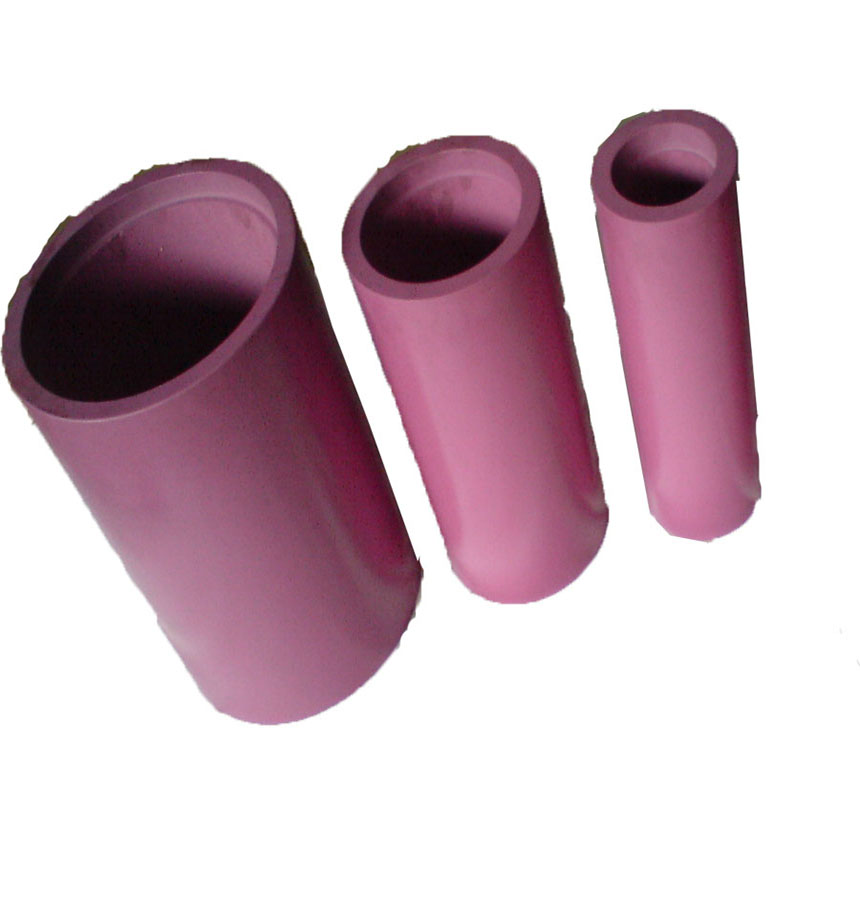

3. Pistons are made of alumina ceramics,of great abrasion resistance and corrosion resistance.
4. Using combined seal, good sealing efficiency
5. Good Design Structure, Convenient Installation and maintenance, Long Usage Life Span
How Ceramic Plunger Pump Work:

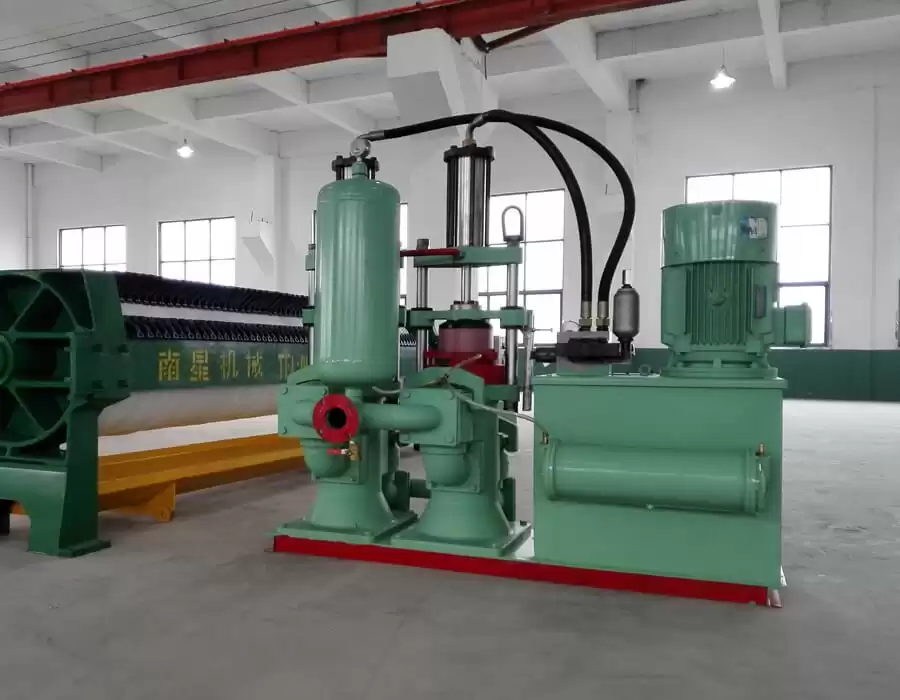

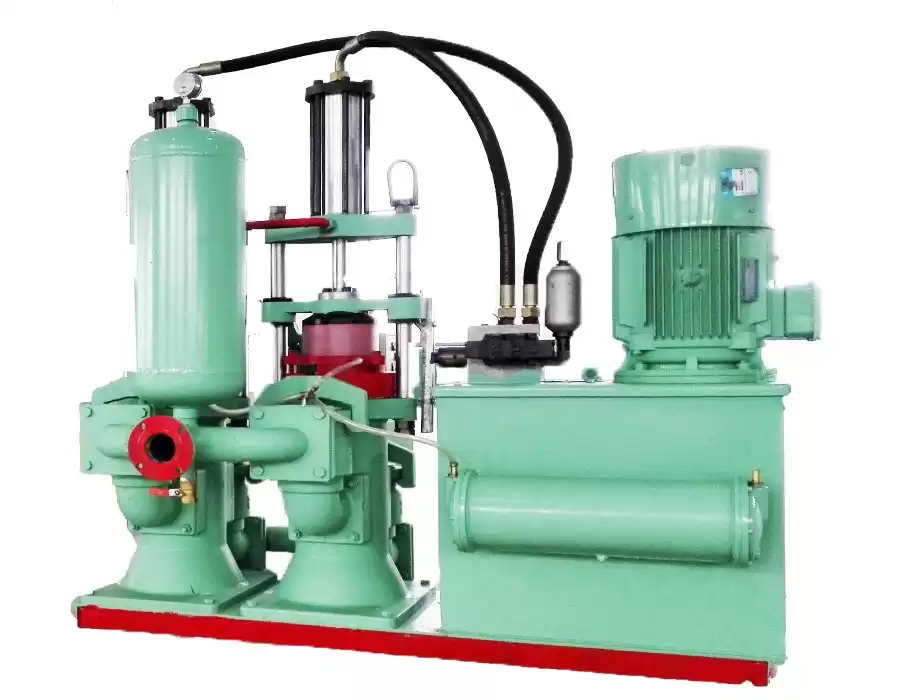

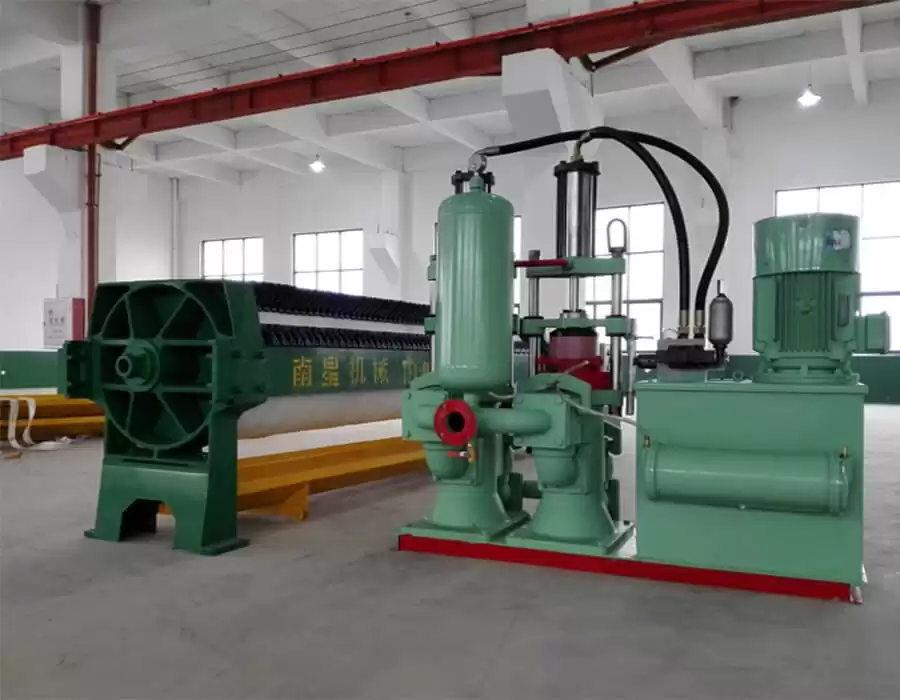

YB series hydraulic piston pump have been studied for transporting thick slurry to the filter press or spray-driers. The pump is formed by: two pistons, run by two hydraulic cylinders; suction and delivery valves which can be easily disassembled for rapid inspection or for cleaning the pump; an air accumulator; a control pressure gauge; a valve to adjust the working pressure at any value (within the fixed limits), and a safty valve. The pistons are made of alumina ceramic, equipped with gaskets made of special wear resistant material with a low coefficient of friction.
Ceramic Plunger Pump Technical Parameters
YB Series Sludge Piston Pump
Model | Flux (m3/h) | Pressure Range (Mpa) | Rated Pressure (Mpa) | Motor Power (kw) | Diameter （Suction And Discharge） （mm） | External Size (L*W*H) (mm) | Weight (Kg) |
YB-85 | 3.0 | 0-2.5 | 2.0 | 4 | Ø76 | 1300*850*1600 | 482 |
YB-120 | 7.1 | 0-2.5 | 2.0 | 11 | Ø76 | 1600*1300*1800 | 815 |
YB-140 | 10 | 0-2.5 | 2.0 | 11 | Ø76 | 1600*1300*1800 | 870 |
YB-200 | 19 | 0-2.5 | 2.0 | 18.5 | Ø89 | 1730*1400*1900 | 1127 |
YB-250 | 30 | 0-2.5 | 2.0 | 22 | Ø133 | 2000*1700*2100 | 1600 |
YB-300 | 40 | 0-2.5 | 2.0 | 30 | Ø133 | 2100*1900*2200 | 2400
|
Ceramic Plunger Pump Function

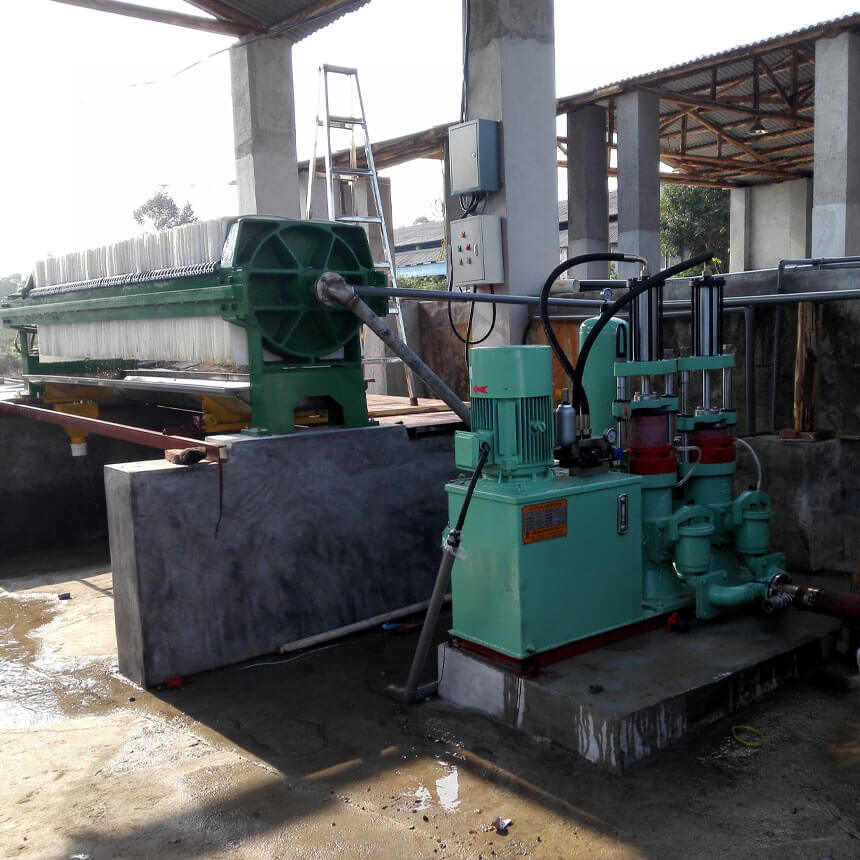

It is mainly applicable in supplying slurry to various kinds of spray-driers, also in long distance supplying slurry, clean(dirty) water and coal slurry (or other suspensions) to filter press.
