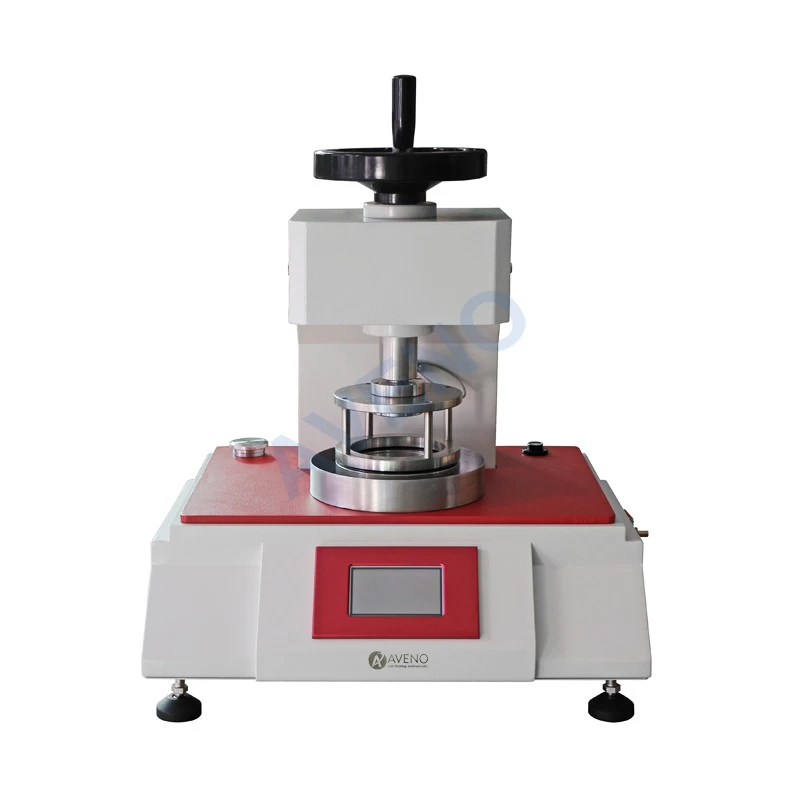

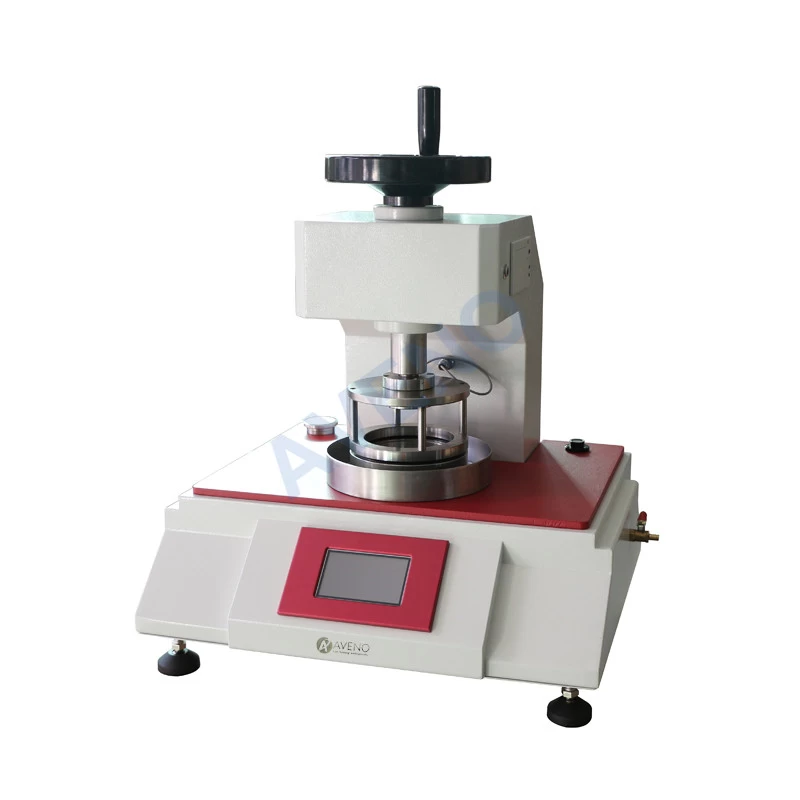

AG17-Hydrostatic Head Pressure Tester
Application Of Hydrostatic Head Pressure Tester
Hydrostatic Head Pressure Tester is used to determine the water penetration resistance of all kinds of fabrics used for waterproofing, such as canvas, coating cloth, tent cloth, tarpaulin, rainproof clothing and geotextile materials, etc..
Feature Of Hydrostatic Head Pressure Tester
-
Microcomputer programmed, LCD menu, built-in two testing methods.
-
Built-in water tank, original water pressure rate balance system, rise speed stable and accurate.
-
The unit of measurement is free to set, pa,Kpa,mmHg,cmH2O.
Standards Of Hydrostatic Head Pressure Tester
GB/T 4744, AATCC 127, ISO 811, BS EN 20811, BS 3321, 3424-26, JIS L 1092A/B, FZ/T 01004.
Key Specification Of Hydrostatic Head Pressure Tester
|
Model
|
AG17-1
|
AG17-2
|
AG17-3
|
|
Measuring range
|
500Pa ~ 50kPa
|
500Pa ~ 200kPa
|
5kPa ~ 500kPa
|
|
Water pressure rise rate
|
1kpa-20kpa
|
1kpa-30kpa
|
1kpa-100kpa
|
|
Test accuracy
|
0.2%F.S
|
|
Test area
|
100cm2, 7.8cm2 （optional or customized）
|
|
Test method
|
Supercharging method, leakage method
|
|
Unit
|
Pa, Kpa, mmHg, cmH2O freely set
|
|
|
AC220V, 50/60HZ
|
|
Dimensions
|
55×40×50cm
|
|
Weight
|
50kg
|
Accessories Of Hydrostatic Head Pressure Tester
|
Standard
Accessories
|
100cm² griper
|
1set
|
|
Calibration
plate
|
1set
|
|
Rubber ring
|
1set
|
|
Power line
|
1set
|
|
Option
Accessories
|
Other size of
griper
|
|
